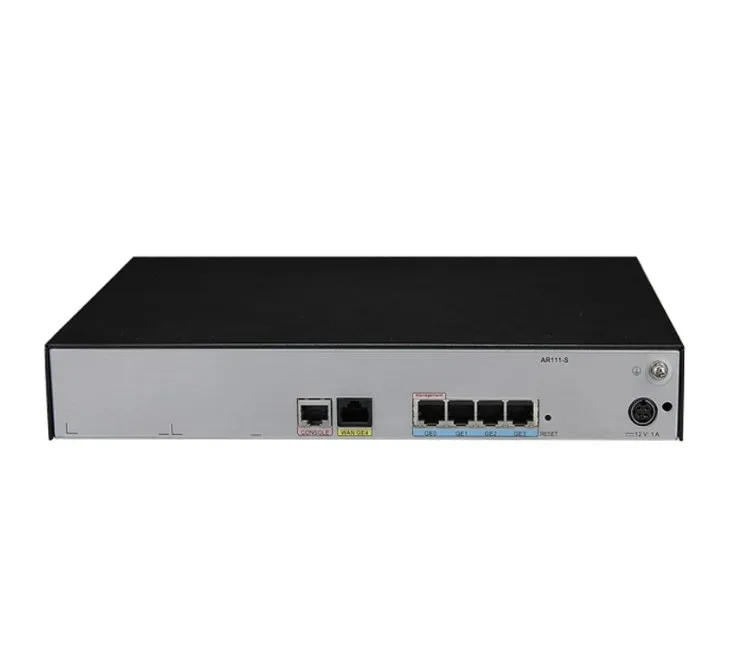

Huawei Enterprise SOHO Router 8 FE LAN Network Router AR111 S

WAN speed with services*
(IMIX)

50 Mbit/s

Fixed WAN Ports

1 x GE

Fixed Ethernet Switching Ports

4 x GE (can be configured as WAN interfaces)

Wi-Fi

None

USB 2.0 Ports

1

Console Ports

1

Memory Size

256 MB

Flash Memory

256 MB

PoE Power

None

Maximum Power

24W

Power Supply (AC)

100V to 240V

Frequency

50 Hz/60 Hz

Dimensions (H x W x D)

44.5mm x 300mm x 220mm

Operating Temperature

0°C to 45°C

Relative Humidity

5% to 95% (non-condensing)

Basic Features

ARP, PBR, DNS, DHCP, and NAT

WLAN (AC)

AP management (AC discovery/AP access/AP management), CAPWAP, WLAN user management, WLAN radio management (802.11a/b/g/n), WLAN
QoS (WMM), and WLAN security (WEP/WPA/WPA2/key management)

LAN

IEEE 802.1P, IEEE 802.1Q, IEEE 802.3, VLAN management, MAC address management, MSTP, etc.

IPv4 Routing

Static route, RIP, and BGP

IPv6 Routing

Static route, RIPng, and BGP4+

Multicast

IGMP, MLD

VPN

IPSec VPN, GRE VPN, DSVPN, L2TP VPN, Smart VPN

QoS

MQC, priority mapping, traffic policing (CAR), traffic shaping, congestion avoidance (based on IP precedence/DSCPWRED), congestion
management (LAN interface: SP/WRR/SP + WRR WAN interface: PQ/CBWFQ), and MQC (traffic classification, traffic behavior, and
traffic policy)

Security

ACL, firewall, 802.1x authentication, AAA authentication, RADIUS authentication, broadcast storm suppression, ARP security, ICMP
attack defense, URPF, blacklist, IP source tracing, PKI, and HTTPS

Management and Maintenance

Upgrade management, device management, web-based GUI, SNMP v1/v2c/v3 (AR129CGVW-L only), RMON, NTP, CWMP, Auto-Config, site
deployment using USB disk, CLI

Service interfaces

WAN interface: one GE electrical interface
LAN interfaces: four GE electrical interfaces

Extended slots

Not supported

Operating temperature

0°C to 40°C (32°F to 104°F)
NOTE:
When the altitude is 1800 m-5000 m (5906ft.-16404.2 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the
altitude increases by 220 m (722 ft.).

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Operating relative humidity

5% to 95%, noncondensing

Operating altitude

< 5000 m (16404.2 ft.)
