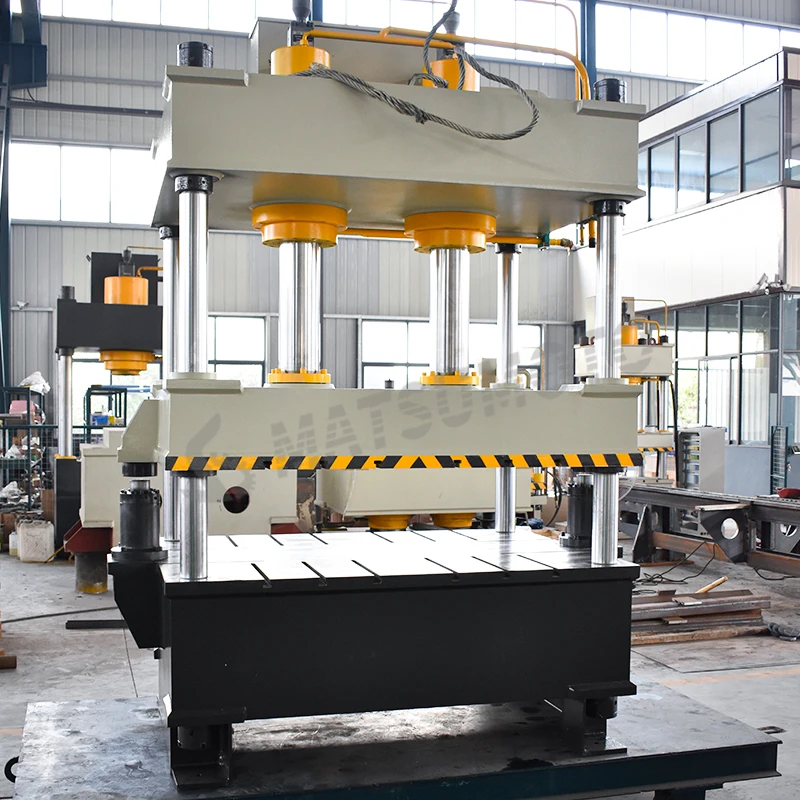

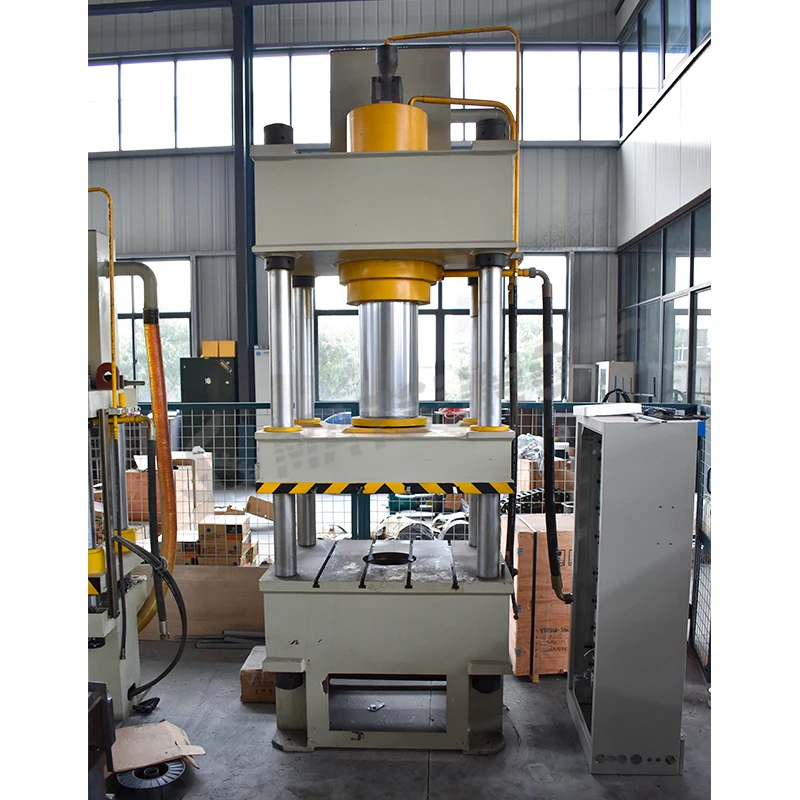

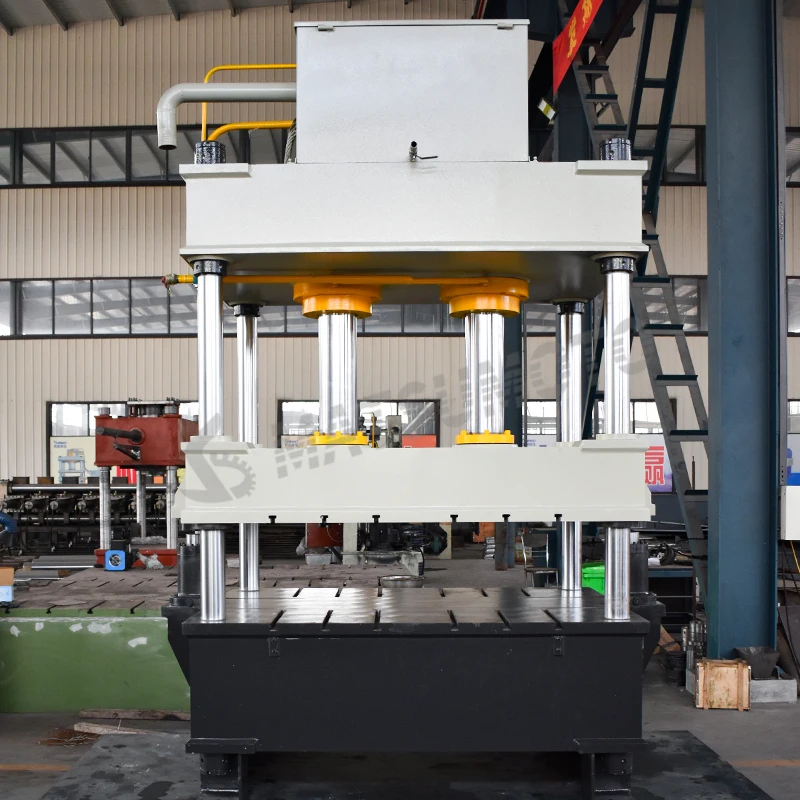

315 Tons 100 Tons Hydraulic Press Machines Four Column Hydraulic Machine Press
- Category: >>>
- Supplier: Shandong Matsumoto Machine Tool Co. Ltd.
Share on (1600746444200):
Product Overview
Description
Recommend Products
Products Description
Product Paramenters
For reference only and supports customization.

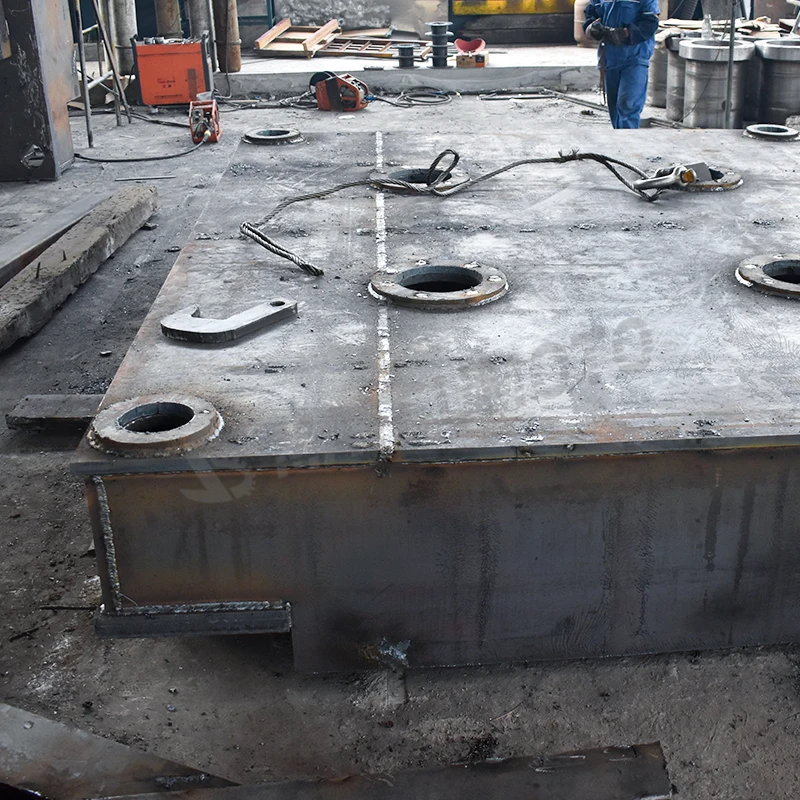

1.Gateway steel frame structure
2. Adopts the hydraulic ram with manual and foot-operated functions
3. Applied in dismounting, molding, aligning in the vehicle repairing
4.The manual hydraulc press are used for assembling, dismantling, alignment, stamping, drawing, straightening and punching.
5. It features with small volume, high pressure, simple structure and light weight.
6. mandrel presses have the advantages of small volume ,simple structure ,and little cost.The machine is suitable for operating in the open alror the other special situation.
1.Gateway steel frame structure
2. Adopts the hydraulic ram with manual and foot-operated functions
3. Applied in dismounting, molding, aligning in the vehicle repairing
4.The manual hydraulc press are used for assembling, dismantling, alignment, stamping, drawing, straightening and punching.
5. It features with small volume, high pressure, simple structure and light weight.
6. mandrel presses have the advantages of small volume ,simple structure ,and little cost.The machine is suitable for operating in the open alror the other special situation.
Model | YM-63T | YM-100T | YM-160T | YM-200T |
Capacity (kn) | 630 | 1000 | 1600 | 2000 |
Pressure (MPa) | 25 | 25 | 25 | 25 |
Travel ( mm) | 400 | 300 | 500 | 500 |
Max. opening height (mm) | 600 | 600 | 800 | 900 |
Column diameter (mm) | 70 | 80 | 80 | 100 |
Table Size ( mm ) | 520*520 | 640*550 | 700*700 | 800*800 |
Machine height (mm) | 2300 | 2300 | 3000 | 2835 |
Motor power(Kw) | 5.5 | 5.5 | 7.5 | 7.5 |
Weight ( Kg) | 1400 | 1900 | 2700 | 4000 |
Model | YM-250T | YM-315T | YM-400T | YM-500T |
Capacity (kn) | 2500 | 3150 | 4000 | 5000 |
Pressure (MPa) | 25 | 25 | 25 | 25 |
Travel ( mm) | 500 | 500 | 600 | 900 |
Max. opening height (mm) | 900 | 900 | 1000 | 1500 |
Column diameter (mm) | 110 | 120 | 140 | 160 |
Table Size ( mm ) | 800*800 | 800*800 | 1000*1000 | 1400*1400 |
Machine height (mm) | 3200 | 3500 | 3800 | 4350 |
Motor power(Kw) | 11 | 15 | 18.5 | 15*2 |
Weight ( Kg) | 5300 | 6200 | 9200 | 18000 |
Model | YM-630T | YM-1000T | YM-1200T | YM-1500T |
Capacity (kn) | 6300 | 10000 | 12000 | 15000 |
Pressure (MPa) | 25 | 25 | 25 | 25 |
Travel ( mm) | 900 | 900 | 700 | 1500 |
Max. opening height (mm) | 1500 | 1500 | 1100 | 2000 |
Column diameter (mm) | 180 | 220 | 220 | 250 |
Table Size ( mm ) | 1600*1200 | 2000*1500 | 2100*1600 | 4000*2000 |
Machine height (mm) | 4550 | 6000 | 5500 | 6400 |
Motor power(Kw) | 18.5*2 | 30*2 | 30*2 | 37*2 |
Weight ( Kg) | 23000 | 39000 | 41000 | 98000 |
Details Images
Company Profile
Certifications
Packaging & Shipping
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Machining Center ,Grinding Machines，Milling Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: What about the quality of the machine?and after-sales service?
A : Our machine warranty period is 3 years，and we provide free technical service.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
