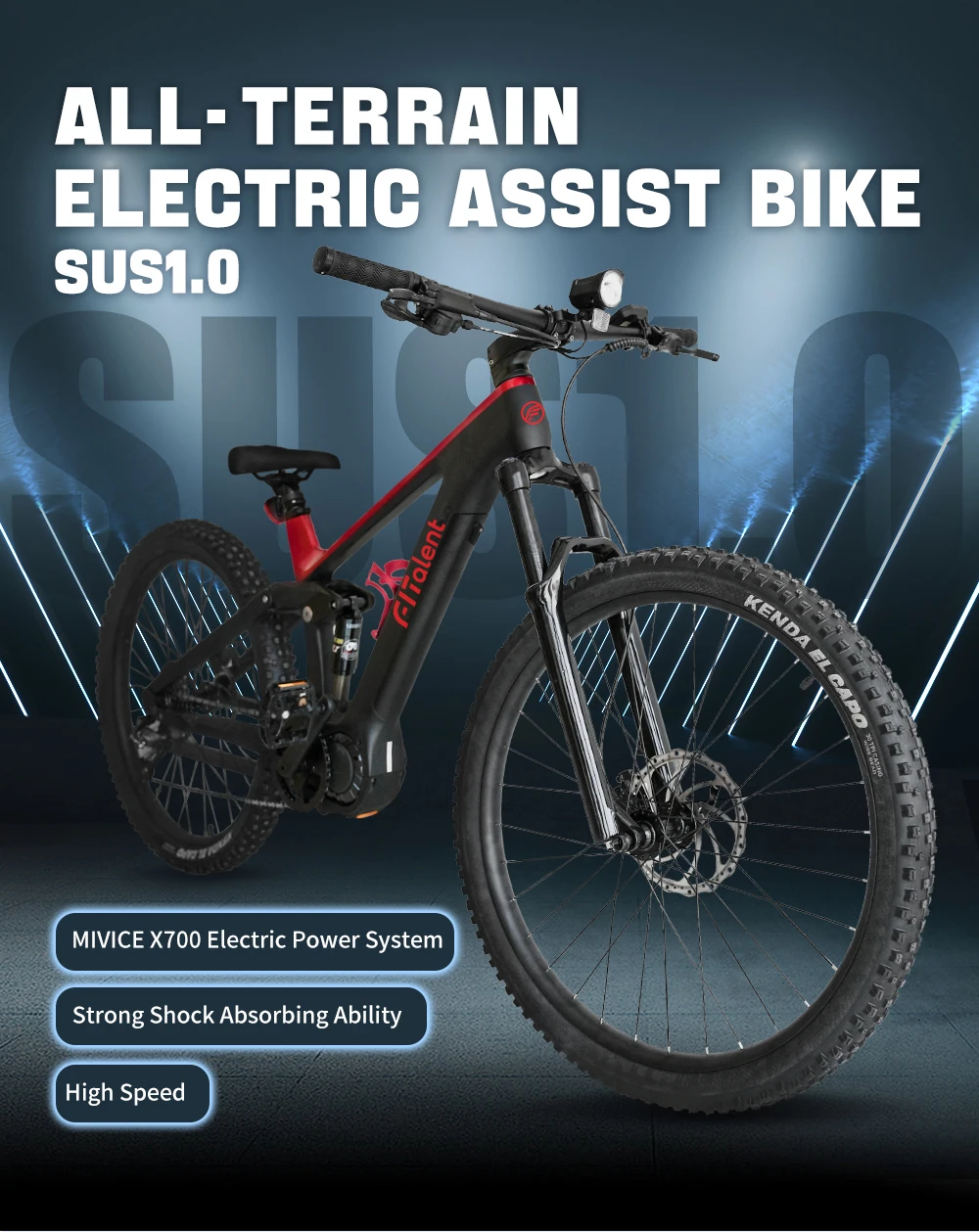

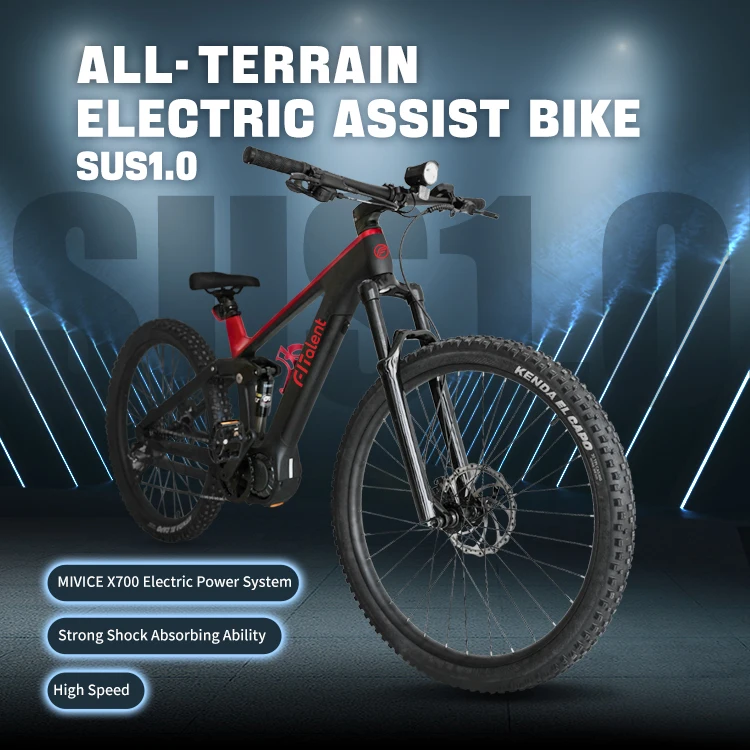

2023 Full Suspension Carbon Fiber Fast Mtb E Bike Mid Drive 36V Lithium Battery Ebike Electric Mountain Bike E Bicycle For Sale
- Category: >>>
- Supplier: Shenzhen Million Concept Wearable Co. Ltd.
Share on (1600746445407):
Product Overview
Description
Product Parameters
Frame System | Bike Frame | Advanced Carbon suspension frame |
Fork | Hydraulic suspension Lockout,140mm travel,Boost 150x15QR | |
Shock | HLT-100,Hydraulic suspension 185x52.5mm System Trunnion mount,55mm travel | |
Size | S/M/L | |
Color | Optional | |
Ride Components | HandleBar | HB-105BT/P.G.31.8x740mm |
Stem | 3D forged AL6061-T6 φ31.8*φ28.6*60mm,-7° | |
Shitt System | Shifters | Shimano SL-M2010 |
Brake | Hydraulic brakes | |
Front Derailleur | // | |

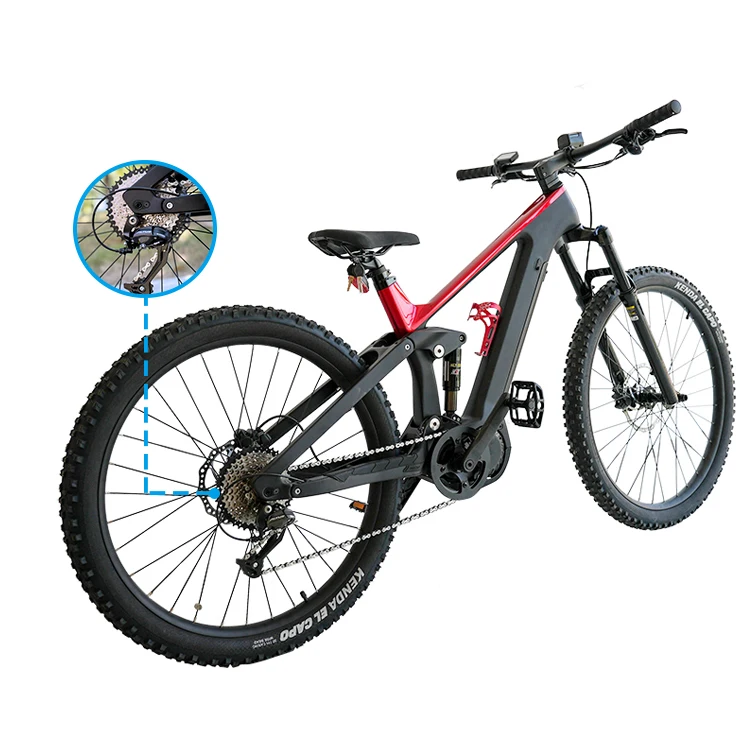

Rear Derailleur | Shimano RD-M370,9-speed | |
Pedaling Resistance | 9-speed | |
Brake System | Brakes Levers | TEKTRO HD6.EM,2-piston |
Brakes | TEKTRO HD-M275 | |
Brake Disc | Hydraulic disc,180mm | |

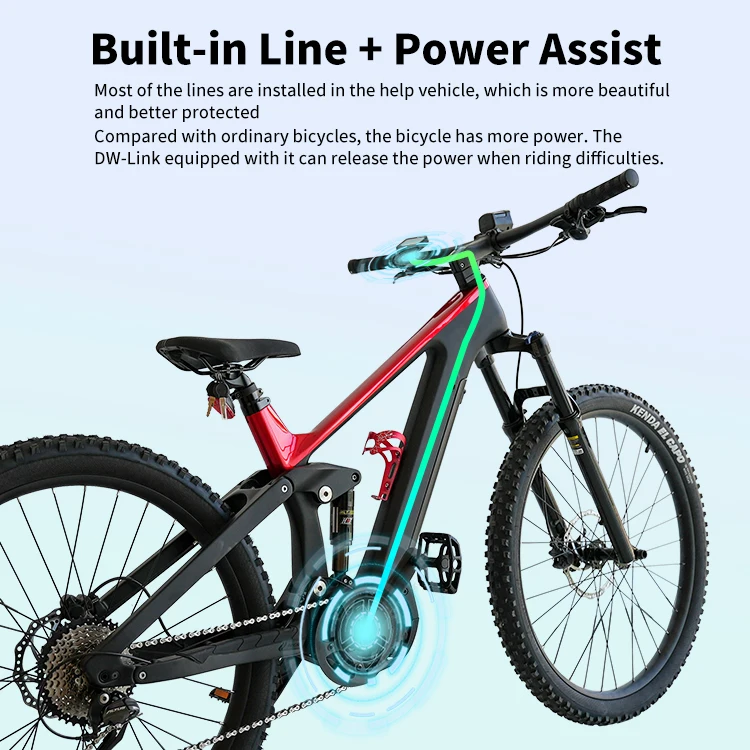

Hybrd Cycling Tech | Motor | MIVICE X700 DC36V250W 100Nm |
Motor Torque | 100Nm at Peak | |
Max Speed | 25km/h | |
Power Assist | Torque Sensor | |
Display | RideControl GO,Frame Integrated LED Display | |
Battery System | Capacity | EnergyPak Smart 360Wh,36V,10AH |
Cells | Lishen 21700 5000 mah | |
Charger | EnergyPak Smart 2A Charger | |
Recharge Time | 4 Hours | |
Max Range | 80km | |
Drivetrain | Chain Ring | MIVICE Z38-38T |
Cassette | HR9-46,14-46T,9-speed | |
Chain | KMC e9 sport,NP/NP,Dedicated for e-bike | |
Crankarm | MIVICE 170_WTX-9 | |
Pedals | Aluminum alloy with sealed bearing | |

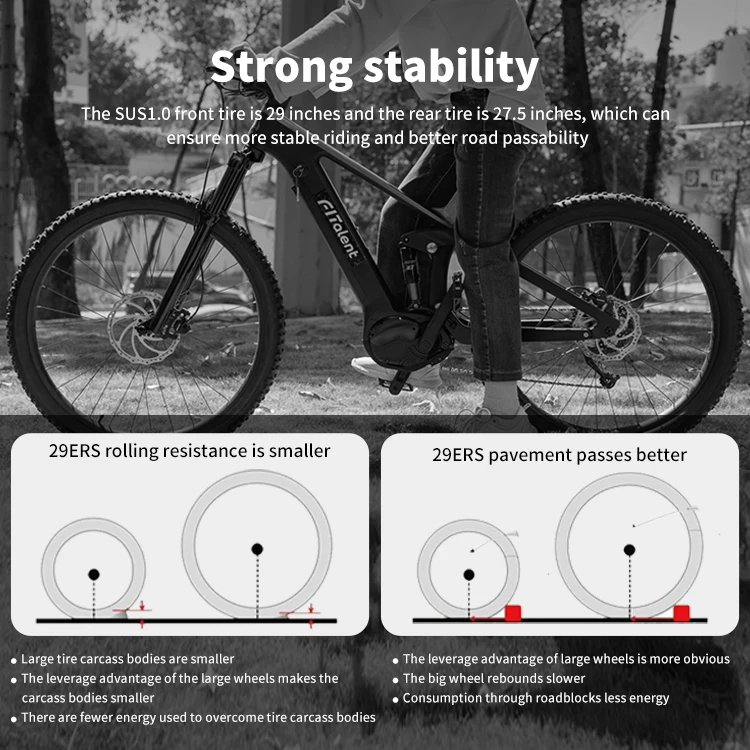

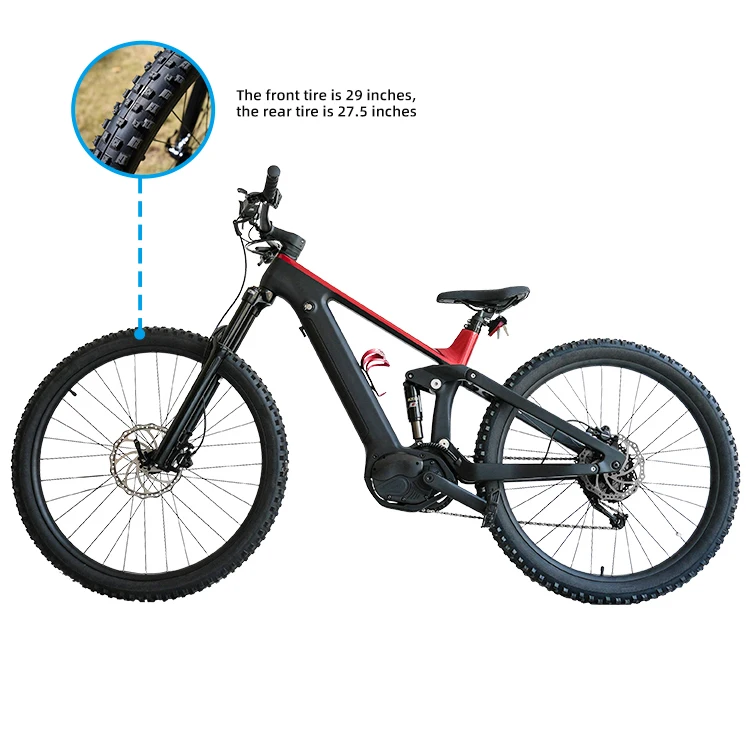

Rims | Aluminum alloy double-layer.rim,F29"/R27.5" | |
Tires | CHAOYANG 29x2.6F]/CST 27.5x2.6",30tpi[R] | |
Others | Saddle | MTB Saddle |
Seatpost | AL 6061-T6 φ31.6*300 OFF SET:15mm | |
Net Weight | 23KG with Battery | |
Bike Size Unfold | L1950mm*W740mm*H1030mm | |
Package Size | L1570mm*W250mm*H840mm | |
Gross Weight | 25KG including Battery | |
Max Load Weight | 100KG |
