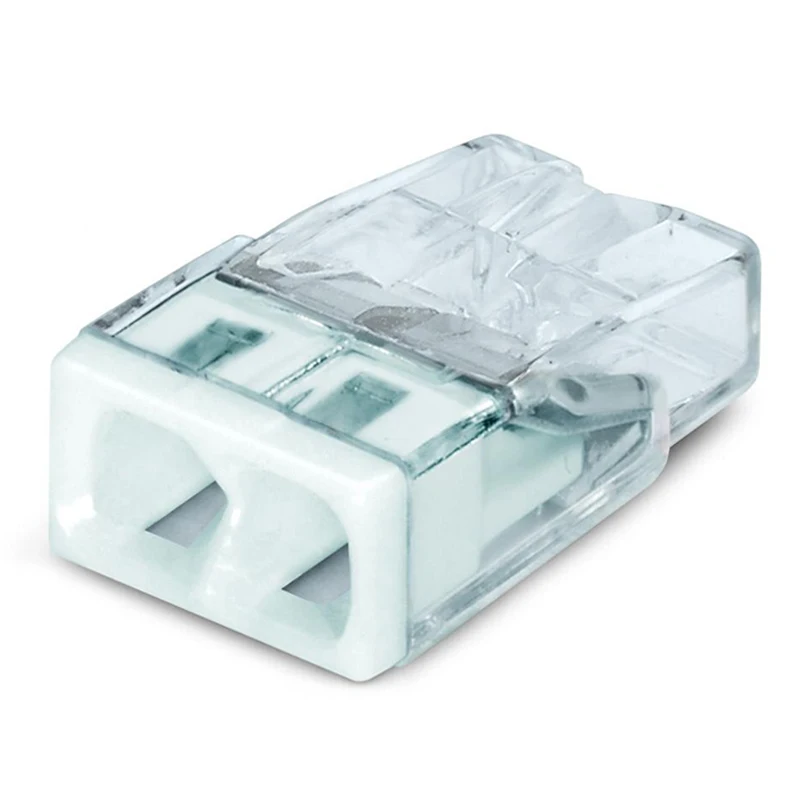

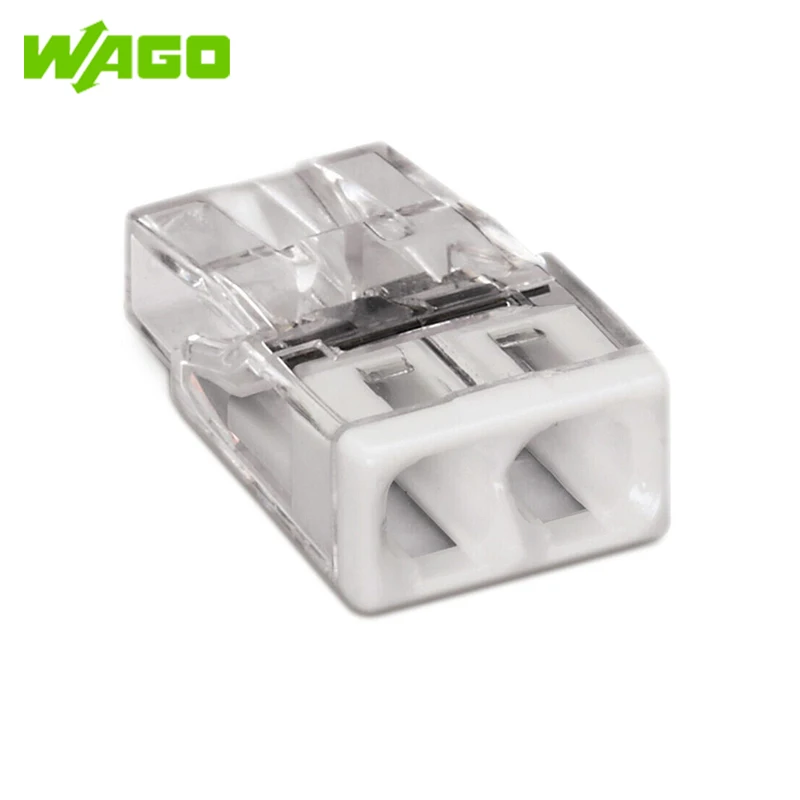

WAGO Germany 2273 202 Compact conductor connector Wire butt branching connector Two port terminal
- Category: >>>
- Supplier: Guangzhou Xian Duan Electronic Co. Ltd.
Share on (1600746470765):
Product Overview
Description
Products Description
WAGO 2273 Compact wire connector | ||
Product Name | Two-position terminal block | |
Product model | 2273-202 | |
Conductive material | Electrolytic copper tin plating UL94 flame retardant grade V2 | |

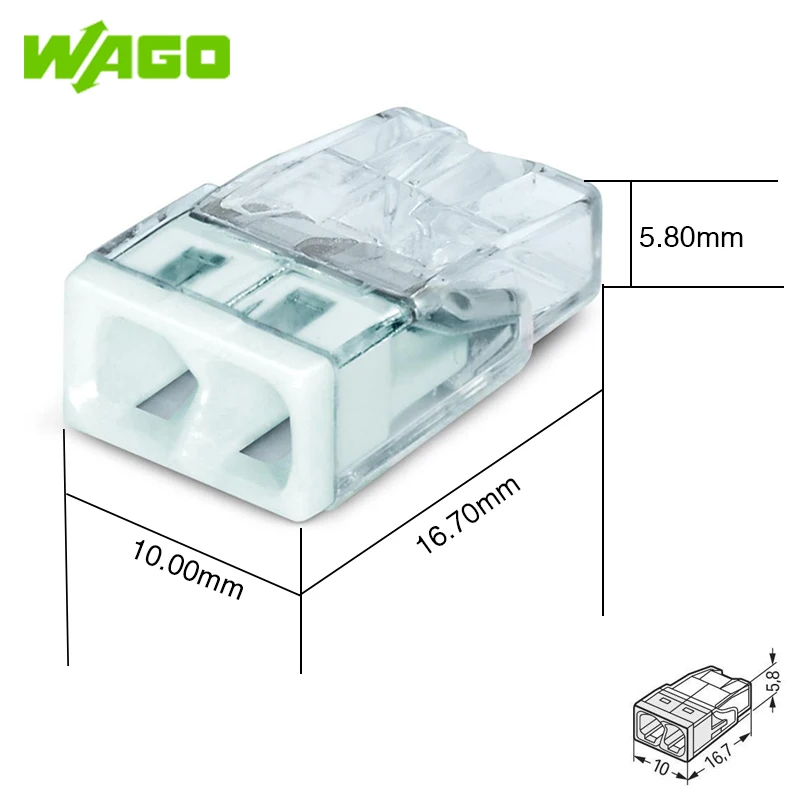

Product size | 16.70mm*10.00mm*5.80mm | |
Rated voltage | 450V | |
Rated current | 24A | |
Colour | Transparent | |
Cuigai Color | White | |
UL94 Cation rating | V2 | |
Fire load | 0.022MJ | |
Product weight | 0.7g | |
Product display
Reliable wire connector
Compact conductor connector;Suitable for single strand conductor; max. 2.5 mm ²; 2 lines;Transparent shell; White cover;Working ambient temperature: max. 60 ° C (T60); 2,50 mm ²; transparent

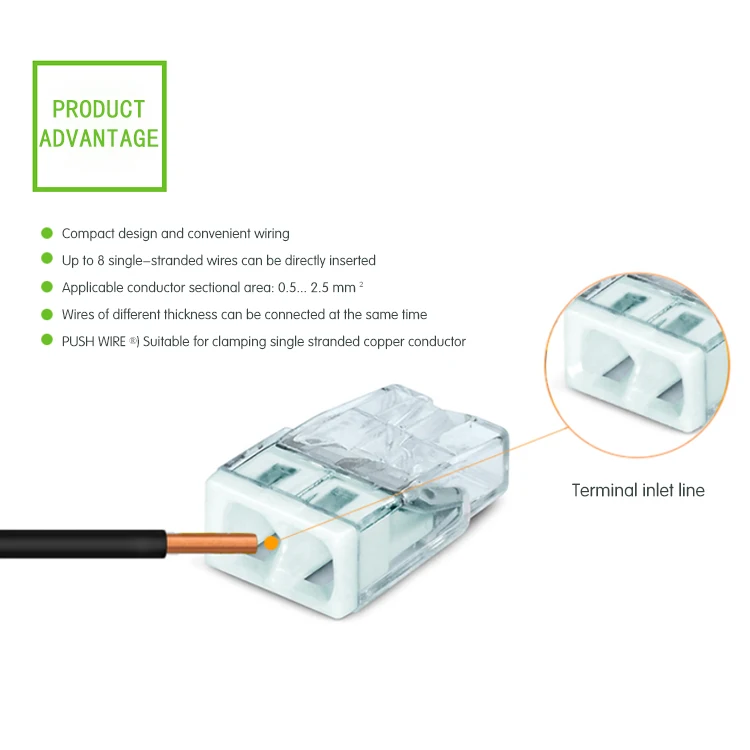

Advantage
①：Compact design and convenient wiring
②：Up to 8 single-stranded wires can be directly inserted
③：Applicable conductor sectional area: 0.5... 2.5 mm ²
④：Wires of different thickness can be connected at the same time
⑤：PUSH WIRE ®) Suitable for clamping single stranded copper conductor
Model: 2273-202

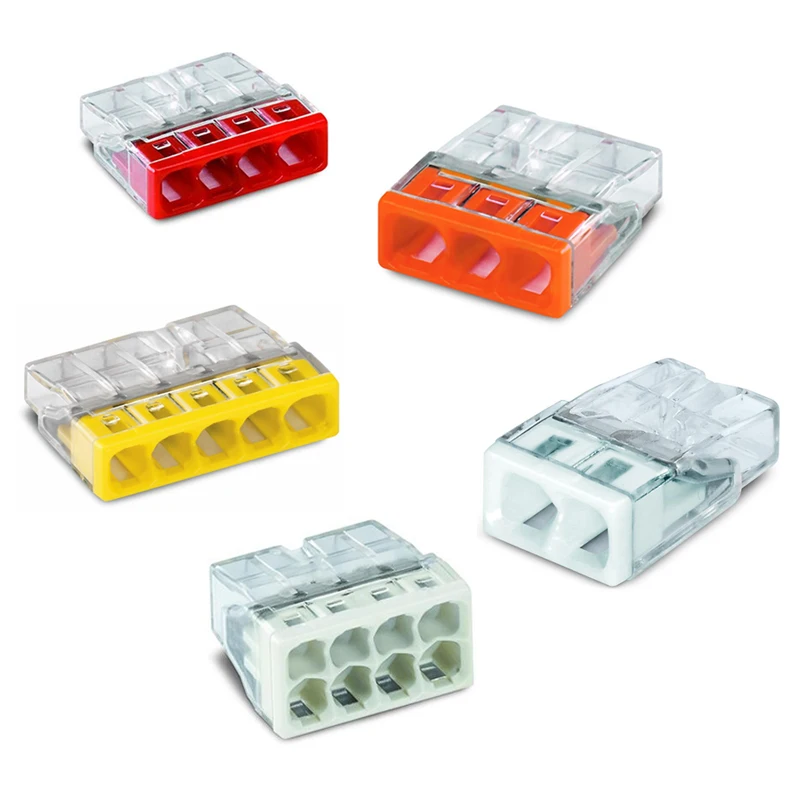

Wanke compact 2273 series push wire ® A connector for a junction box,It can provide a wide range of single strand and multi strand stranded conductors in a limited space.Push wire used in 2273 series ® Connection technology can connect wires quickly without any tools - almost without any external force,No wire preparation is required. Through the transparent shell, it is easy to check the wire stripping and connection.Wanke 2273 series products are available in six different versions: 2, 3, 4, 5, 6 and 8-wire connectors.
Plug-in spring connection technology（PUSH WIRE®)
The plug-in spring wiring unit can be used for single-stranded copper wire
Stripping length: strip the insulation sheath of single wire by 11mm
Wiring operation: fully insert the wire stripped of insulation
Wire removal operation: pull out the wire by turning the wiring terminal left and right
Visually check the wiring: the transparent shell can show whether the wire is fully inserted; The small window at the color part of the shell can easily check whether the wire stripping is proper. If the exposed copper wire is not visible in the window, it means that the wire stripping is correct.
Test: test through the test socket (as shown in the figure)
Compact design and convenient wiring
Applicable wire sectional area 0.5-2.5mm2 (AWG18-14)
Wire of different thickness can be connected at the same time
PUSH WIRE ® The wiring unit is suitable for clamping single wire ("s")
Up to 8 single-stranded wires can be directly inserted
Applicable wire sectional area 0.5-2.5mm2 (AWG18-14)
Wire of different thickness can be connected at the same time
PUSH WIRE ® The wiring unit is suitable for clamping single wire ("s")
Up to 8 single-stranded wires can be directly inserted
Certifications
