DWIN HOT SALE 1.3/1.54/2/2.1/2.4/2.8/3/3.5/4/4.1/4.3/5/6.8/7/8/9.7/10.1/10.4~21.5 inch IPS TFT LCD Module touch screen
- Category: >>>
- Supplier: Beijing DWIN Technology Co. Ltd.
Share on (1600746507281):
Product Overview
Description
Product Details

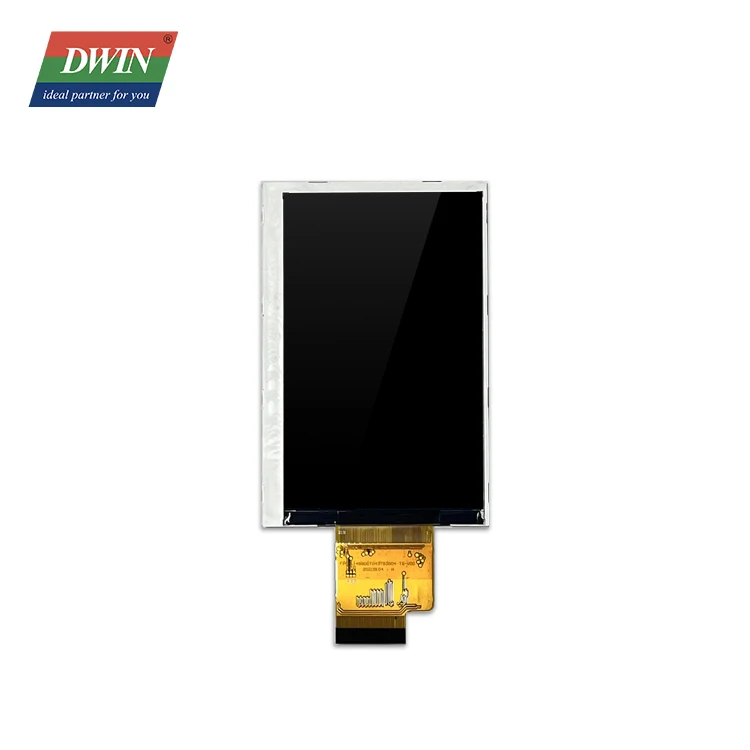

LI48800T043TA9098
LI48800T043TA9098 is lcd without touch, LI48800T043TA9098-TC is lcd with capacitive touch(COB structure)
*COF: TP with IC, COB: TP without IC
Brand Name | DWIN | Size | 4.3 inch |
Resolution | 480x800 | Luminance | 900nit |
LCD Type | IPS | Color | 16.7M |
Active Area | 56.16(W)*93.60(H) | Dimensions(mm) | 67.1(W)*105.4(H)*3.0(D) |
Interface | RGB_24bit | IC Driver | ST7701S |
Operating Temp. | -20~70℃ | Storage Temp. | -30~80℃ |
Product Specification
Electrical Characteristics
Item | Symbol | Min. | Typ. | Max. | Unit | Remark |
Analog Voltage | VCI | 2.8 | 3.0 | 3.3 | V | |
Input Logic High Voltage | VIH | 0.7VCI | - | VCI | V | |
Input Logic Low Voltage | VIL | GND | - | 0.3VCI | V | |
Output Logic High Voltage | VOH | 0.8VCI | - | VCI | V | |
Output Logic Low Voltage | VOL | GND | - | 0.2VCI | V |
Item | Symbol | Min. | Typ. | Max. | Unit | Remark |
Forward Voltage | VF | 14.6 | 15 | 16 | V | |
Forward Current | IF | - | 80 | - | mA | |
Luminance | Lv | - | 900 | - | cd/m² | |
Uniformity(with L/G) | YU | 75 | 80 | - | % | |
LED Life Time | Hr | - | 30000 | - | Hour |
Optical Characteristics
Item | Symbol | Condition | Min. | Typ. | Max. | Unit | Remark |
Viewing Angle | Top | CR≧10 | - | 85 | - | Deg. | Note 2 |
Bottom | - | 85 | - | ||||
Left | - | 85 | - | ||||
Right | - | 85 | - | ||||
Contrast Ratio | CR | θ=0° | 800 | 1000 | - | ||
Response Time | Tr+Tf | θ=0° | - | 25 | 35 | ms | |
Color Gamut(NTSC Ratio) | NTSC | θ=0° | 65 | 70 | - | % | |
Color Chromaticity (CIE1931) | Wx | θ=0° | 0.271 | 0.286 | 0.301 | ||
Wy | 0.302 | 0.317 | 0.332 | ||||
Rx | 0.636 | 0.651 | 0.666 | ||||
Ry | 0.296 | 0.311 | 0.326 | ||||
Gx | 0.241 | 0.256 | 0.271 | ||||
Gy | 0.573 | 0.588 | 0.603 | ||||
Bx | 0.123 | 0.138 | 0.153 | ||||
By | 0.083 | 0.098 | 0.113 |
Company Profile
Beijing DWIN Techology Co., Ltd is a 20 years manufacturer of TFT-LCD&touch panel, We have an industrial park of 250,000 square meters, which can produce 2.5 million LCD displays every month and each LCD undergoes 30 days
of charged aging. DWIN is committed to providing customers with high-quality products.
of charged aging. DWIN is committed to providing customers with high-quality products.
High Quality
Production Process

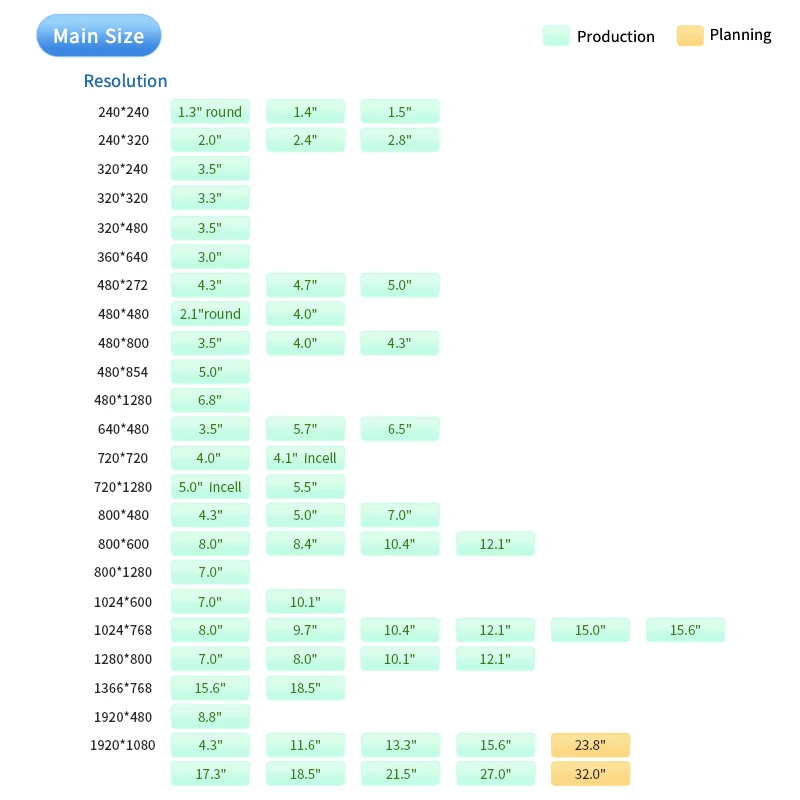

Main Size for TFT LCD
Customized Service

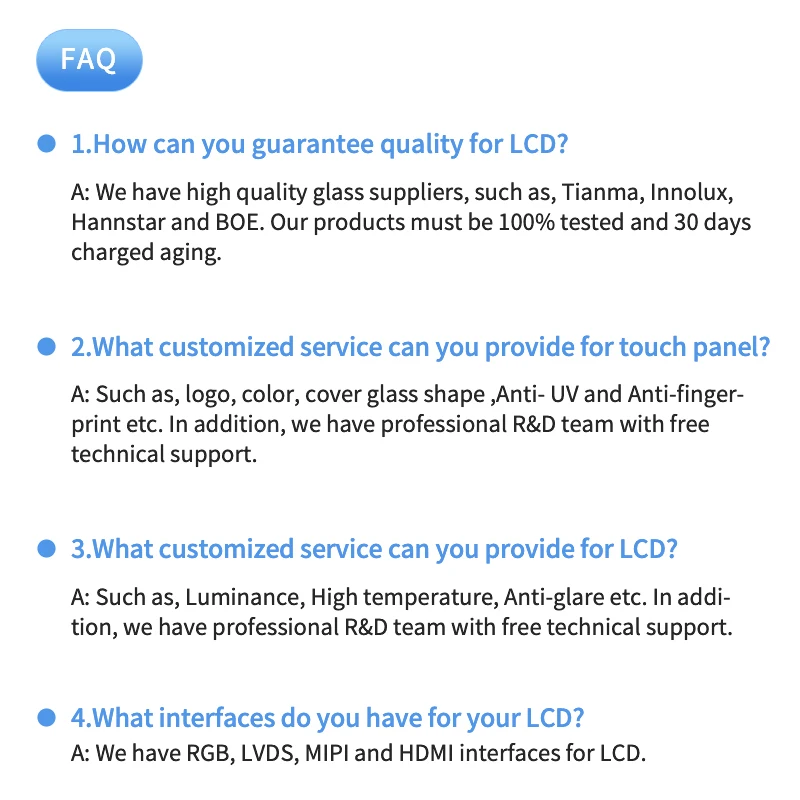

FAQ
