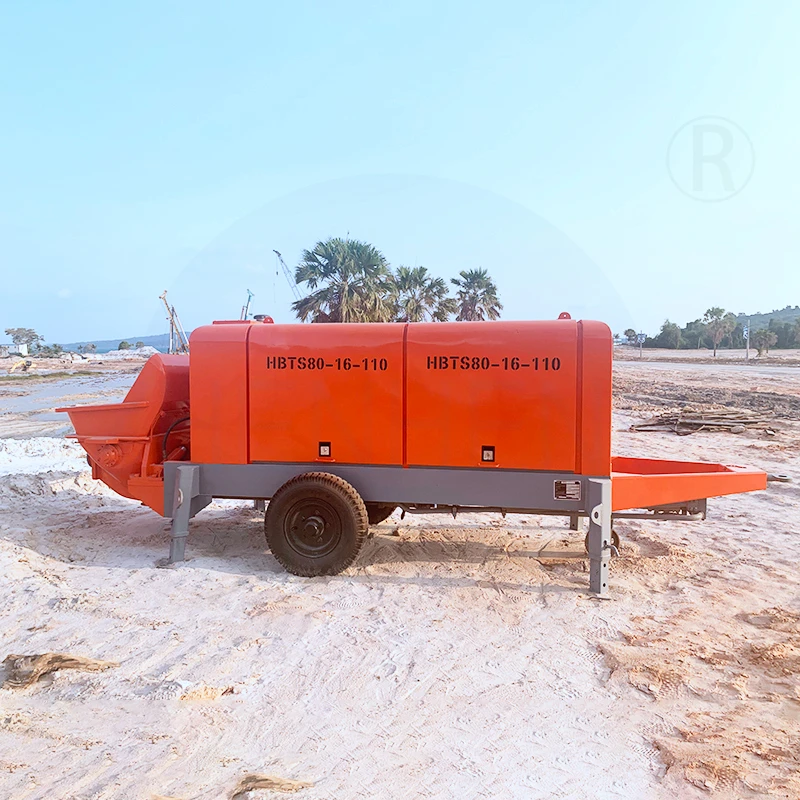

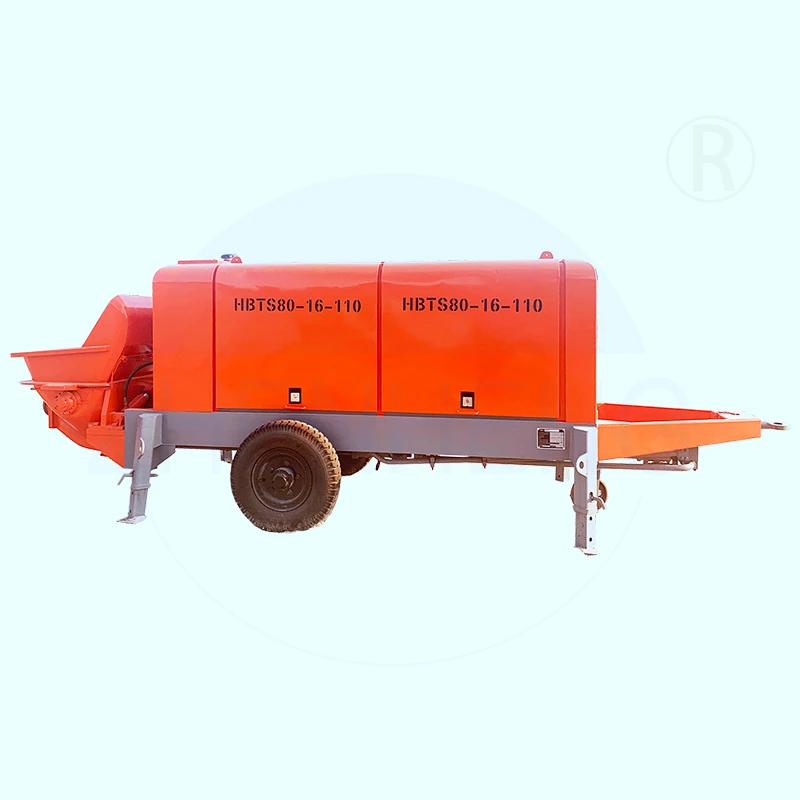

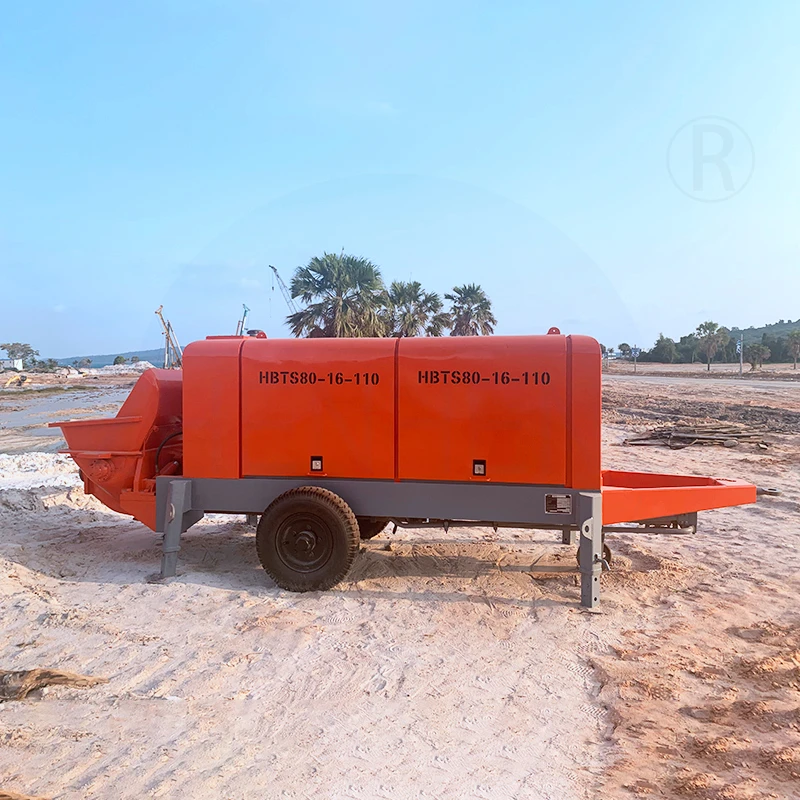

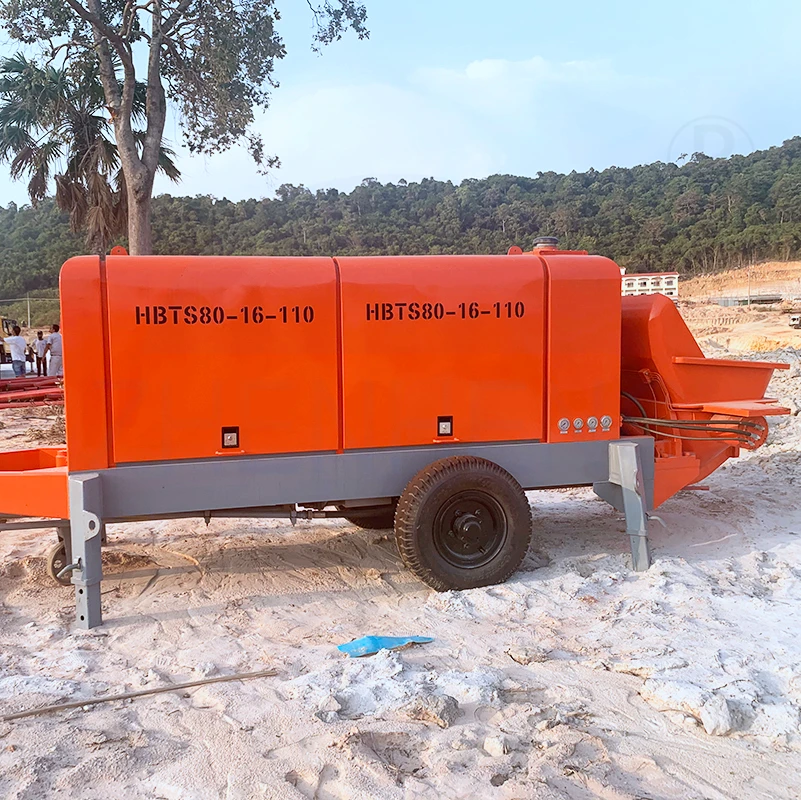

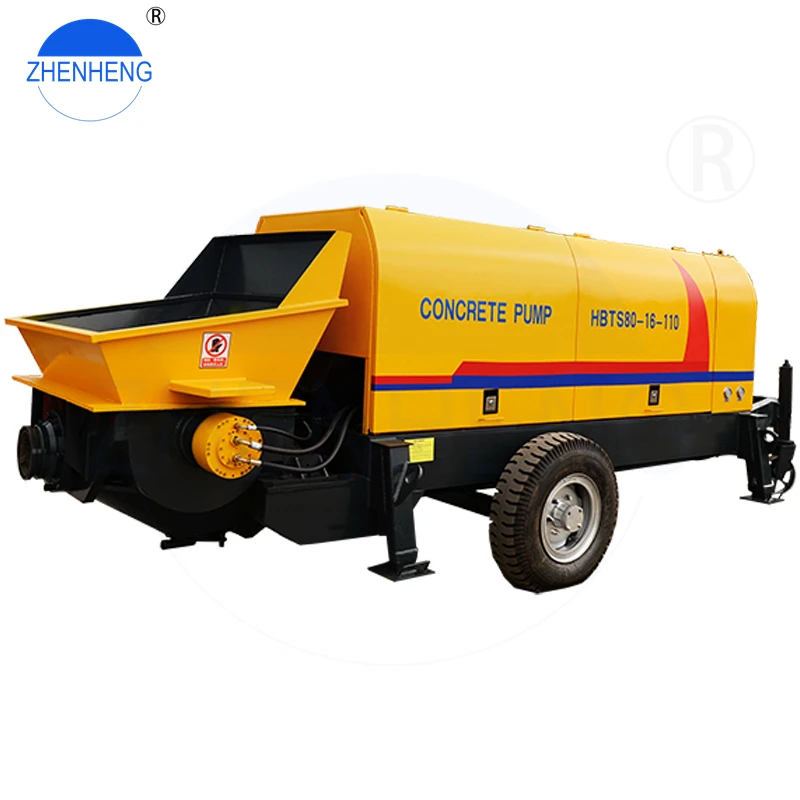

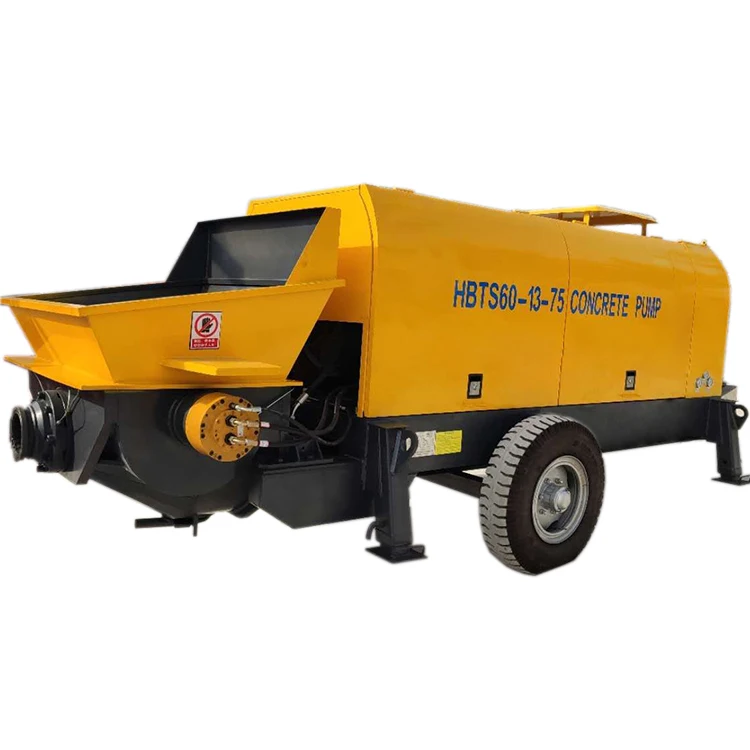

Zhenheng Hbt60 60 M3/H Concrete Pump Electric Power Hbt 50 Readymix Concrete Pump For Sale
- Category: >>>
- Supplier: Zhengzhou Zhenheng Construction Equipment Co. Ltd.
Share on (1600746521132):
Product Overview
Description
Products Description
Feature
1. Easy to move, strong and flexible
2. Stable and reliable, longer service life
3. Reliable and efficient, saving labor
4.Automatically add water
5. Fuel saving.
Feature
1. Advanced dual hydraulic system
2. Uniform and stable spraying
3. Long life of mortar piston
4. Reduce pumping resistance
5. Cleaning is safer and faster.
2. Uniform and stable spraying
3. Long life of mortar piston
4. Reduce pumping resistance
5. Cleaning is safer and faster.
Concrete pump is widely used in concrete pumping in housing construction, viaduct, bridge, tunnel and other projects. Zhenheng concrete pump is equipped with advanced hydraulic system, which can be driven by diesel engine or motor for your choice.
The pump has the characteristics of energy saving, large flow, wide adaptability, high efficiency, good wear resistance and convenient operation. And 60 m3/h electric concrete pump can approach 13 floors high.
Parameters
Performance Index | HBTS40 | HBTS50 | HBTS60 | HBTS80 |
Max. theo. pumping capacity | 40 m³/h | 50 m³/h | 60 m³/h | 80 m³/h |
Max. concrete pumping pressure | 10 Mpa | 12/7.3 Mpa | 13/7 Mpa | 16/8.3 Mpa |
Distribution valve type | S Valve | S Valve | S Valve | S Valve |
Concrete cylinder (diameter*stroke) | Ф180*1,100 mm | Ф180*1,300 mm | Ф200*1,650 mm | Ф200*1,650 mm |
Outlet diameter | Ф150 mm | Ф150 mm | Ф180 mm | Ф180 mm |
Power | 45 kw | 55 kw | 90 kw | 110 kw |
Oil tank capacity | 370L | 370L | 560L | 560L |
Max. conveying distance (vertical/level) | 120/500 m | 120/500 m | 160/800 m | 160/800 m |
Max. aggregate diameter | 40 mm | 40 mm | 40 mm | 40 mm |
Pipe | 100 m | 100 m | 100 m | 100 m |
Overall dimensions | 4,500*1,750*1,600 mm | 5,200*2,000*2,260 mm | 5,900*2,000*2,260 mm | 6,000*2,100*2,250 mm |
Total weight | 4,700 kg | 5,500 kg | 7,200 kg | 7,700 kg |

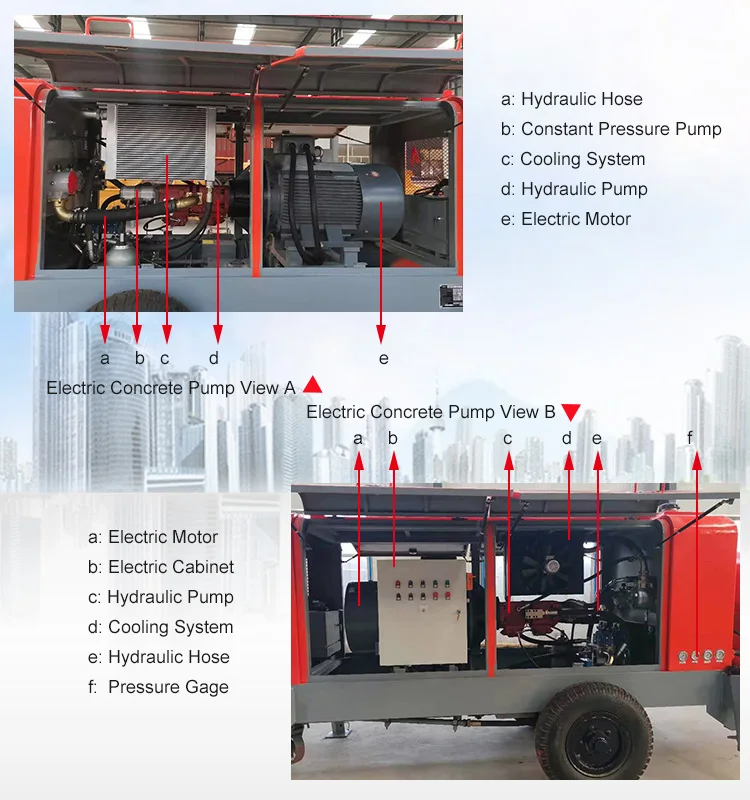

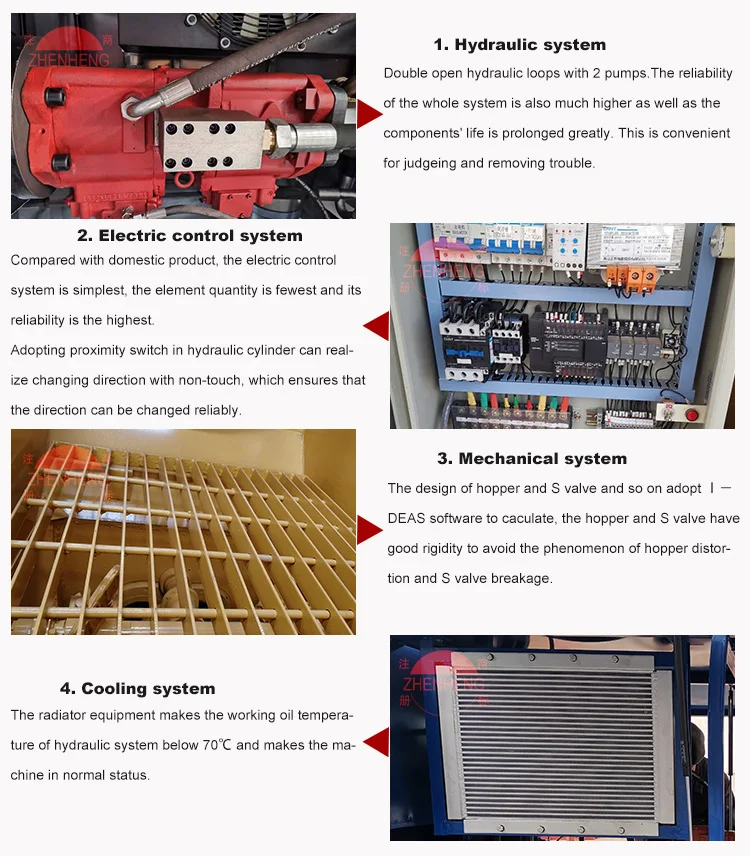

Detailed Images

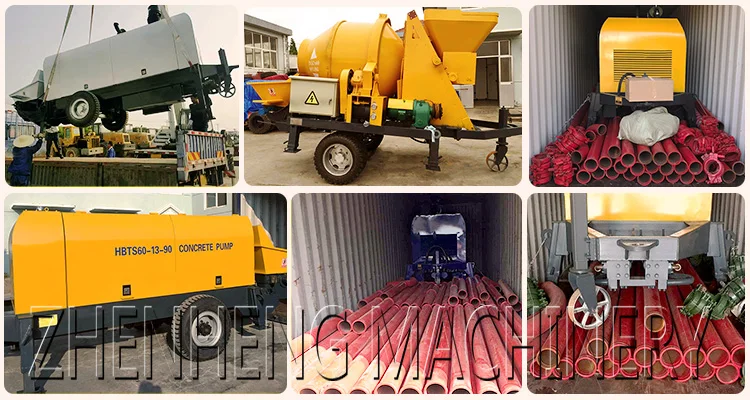

Product packaging
Export standard container: 20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight.
Transactions

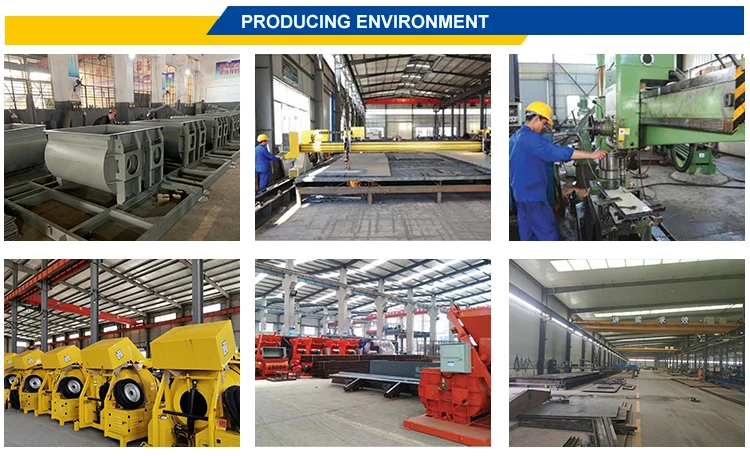

Company Profile
our team
Why Choose Us
FAQ
Q1: How to add material to concrete mixer pump?
A1: Load materials by manual or by wheel loader. By wheel loader to improve working efficiency. Both is ok, it is no problem.
A1: Load materials by manual or by wheel loader. By wheel loader to improve working efficiency. Both is ok, it is no problem.
Q2: How about your service of the concrete pump spare parts?
A2: We are dedicated to provide our clients concrete pumps spare parts with the highest quality,exact fitness and fast deliveries and services. Customers are guaranteed that once they submit the spare parts request or products name list to us , the requirement will be handled quickly and appropriately.Q3:How to choose a suitable concrete pump machine?
A3:we could choose suitable model Concrete Pump machine by the following requirements:
1. what is your expected pumping capacity per hour?
2.what is your horizontal distance and delivery height?
3.what is your max. gravel size?
3.what is your max. gravel size?
Q4: What's the payment you accept ?
A4: As usual our payment is 50%T/T as deposit, and the 50% balance against the copy of B/L. Also we accept the payment such as L/C.
