Medical Bed Linear Actuator Motor 3500N 24 V Thrust Permanent Magnet Motor Linear Actuator

Medical Bed Linear Actuator Motor 3500N 24 V Thrust Permanent Magnet Motor Linear Actuator

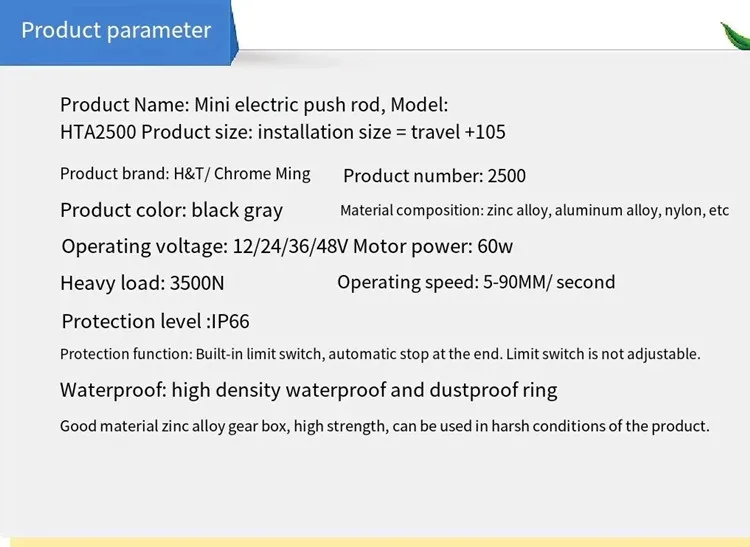

Technical specification:

Product name: linear actuator
Model: HTA2500
Voltage: 12V / 24 V DC
Pressure: up to 3500N
Speed range: 7-90mm / s
Stroke range: 30-1200mm
Installation size: S (stroke) + 120mm or 105mm
Limit switch: built-in
Protection level: IP66
Application areas: household appliances, office furniture, medical machinery, industrial applications ...
Certificate: ROHS CE

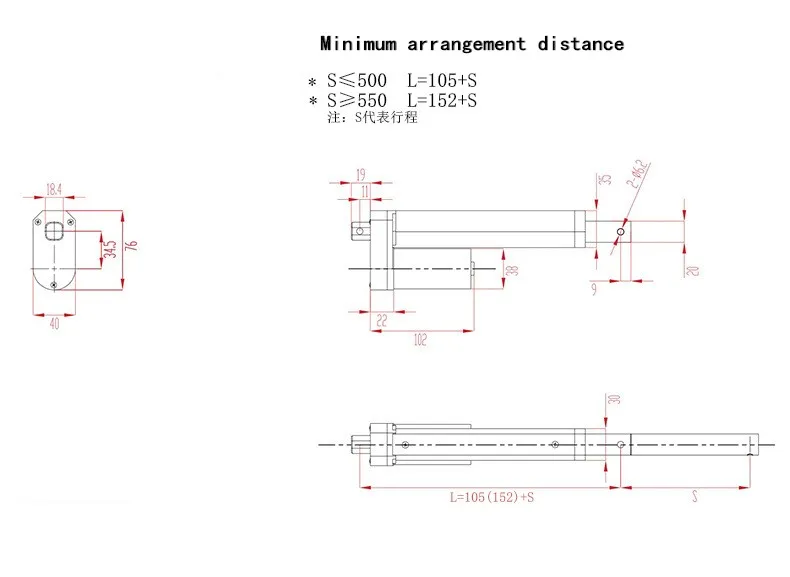

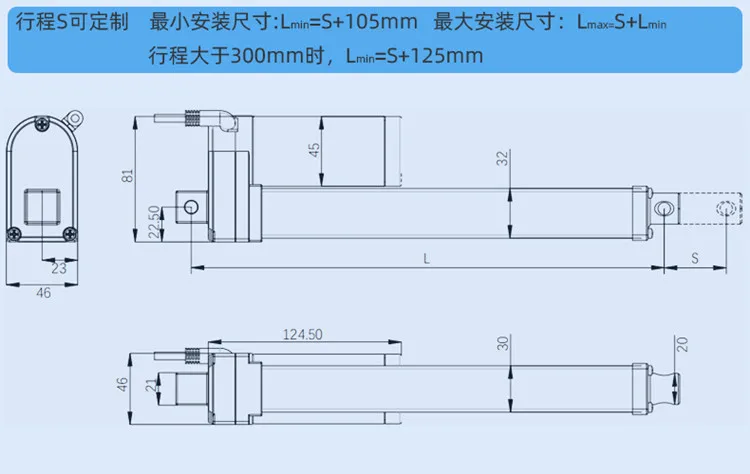

Drawing:

Minimum installation size (the push rod is fully retracted, the distance between the two mounting holes): L = S (stroke) + 120mm or 105mm
Maximum installation size (the push rod is fully extended, the distance between the two mounting holes): L = 2 * S (stroke) + 120mm or 105mm

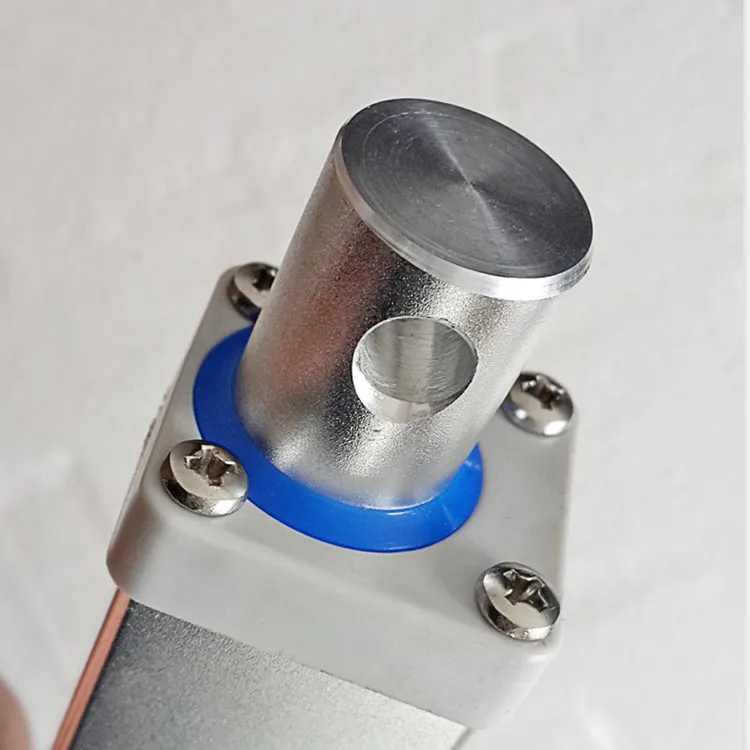

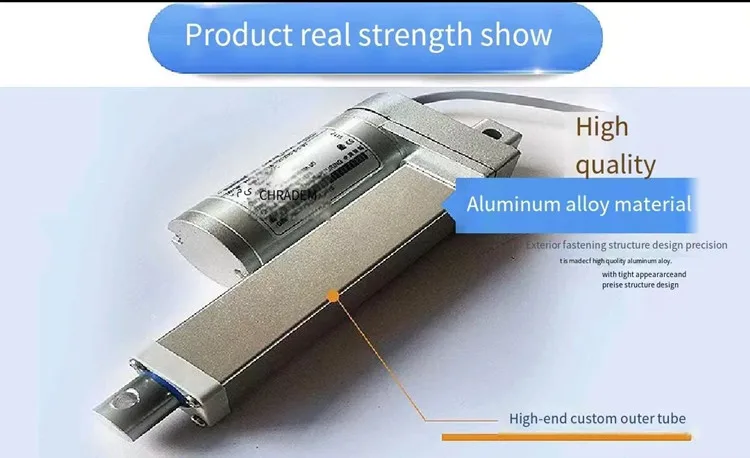

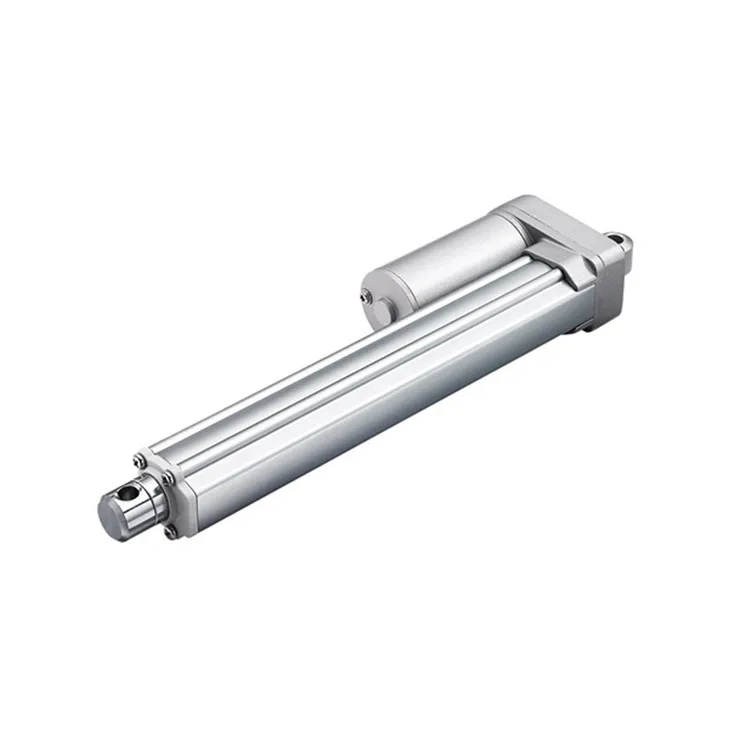

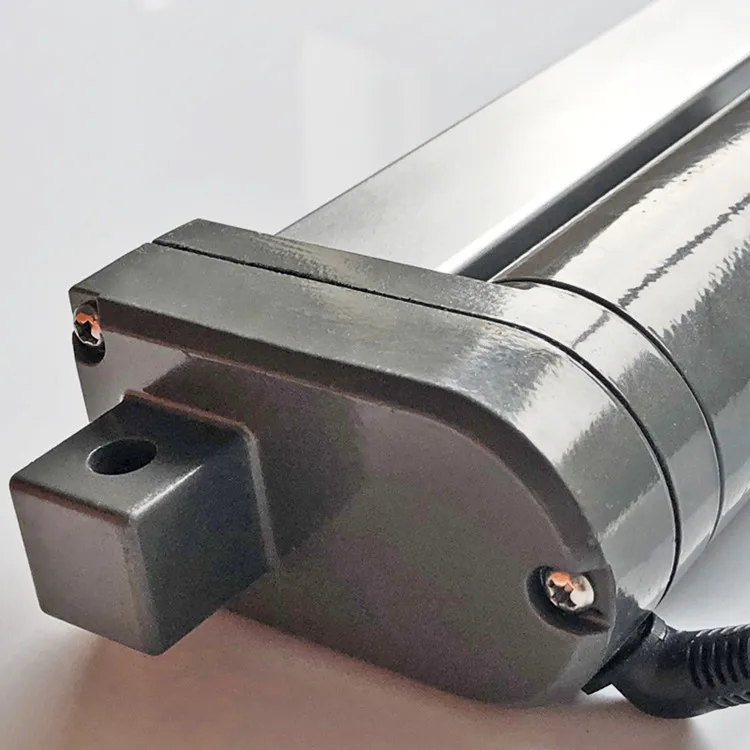

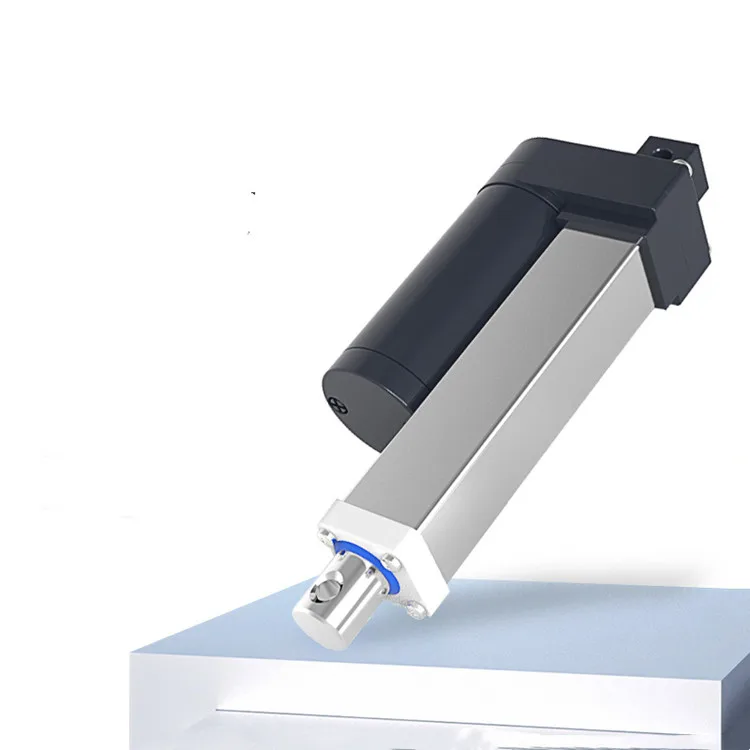

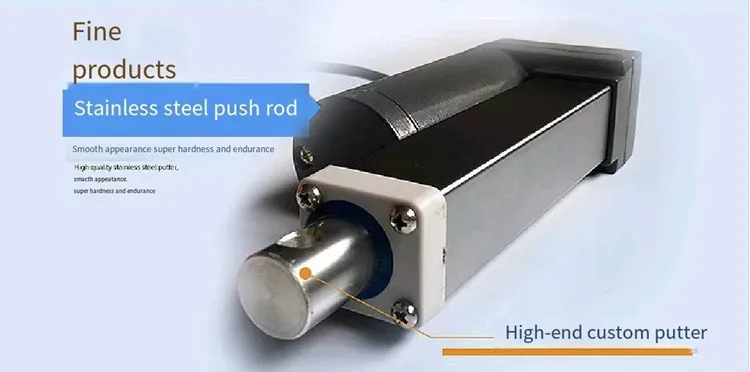

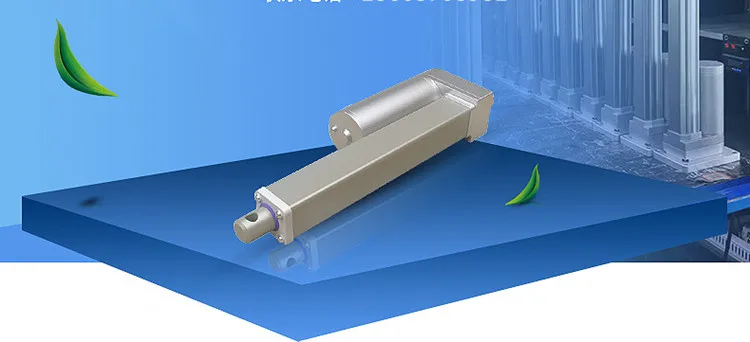

Photos:

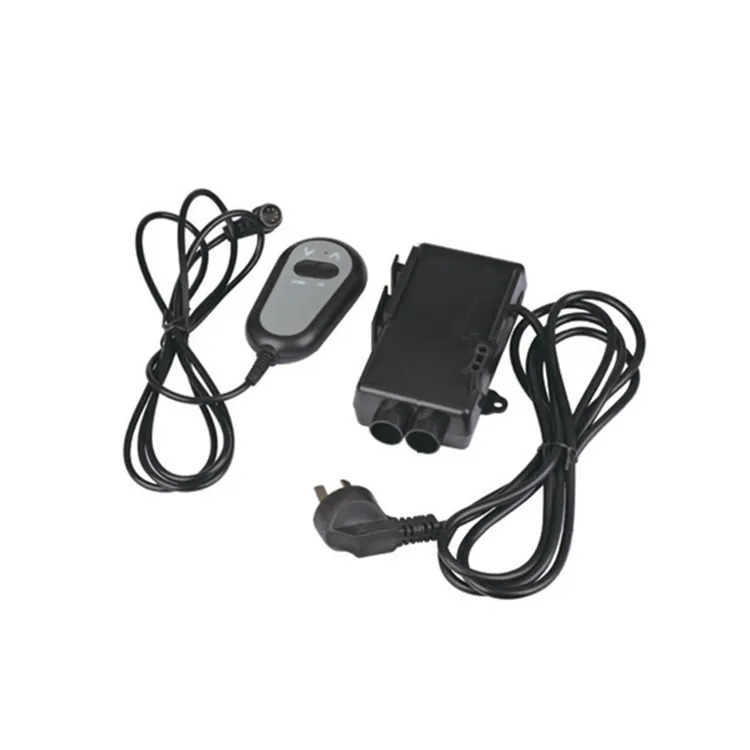

About wiring method:

The plug on the linear drive is used with our controller. If you do not use the matching controller, cut off the connector. There are two wires in the line connected to the positive and negative electrodes.

Change control to push back, you can add a forward and reverse switch to control the telescopic.

Application:

Instructions for use of linear actuators:

1. The putter cannot work continuously for a long time. The working efficiency of the putter is 10% -20%. It can work continuously for 2 minutes and rest for more than 18 minutes.

2. The built-in limit switch of the push rod automatically stops when reaching the end of the head, and stops when any power is cut off in the middle
