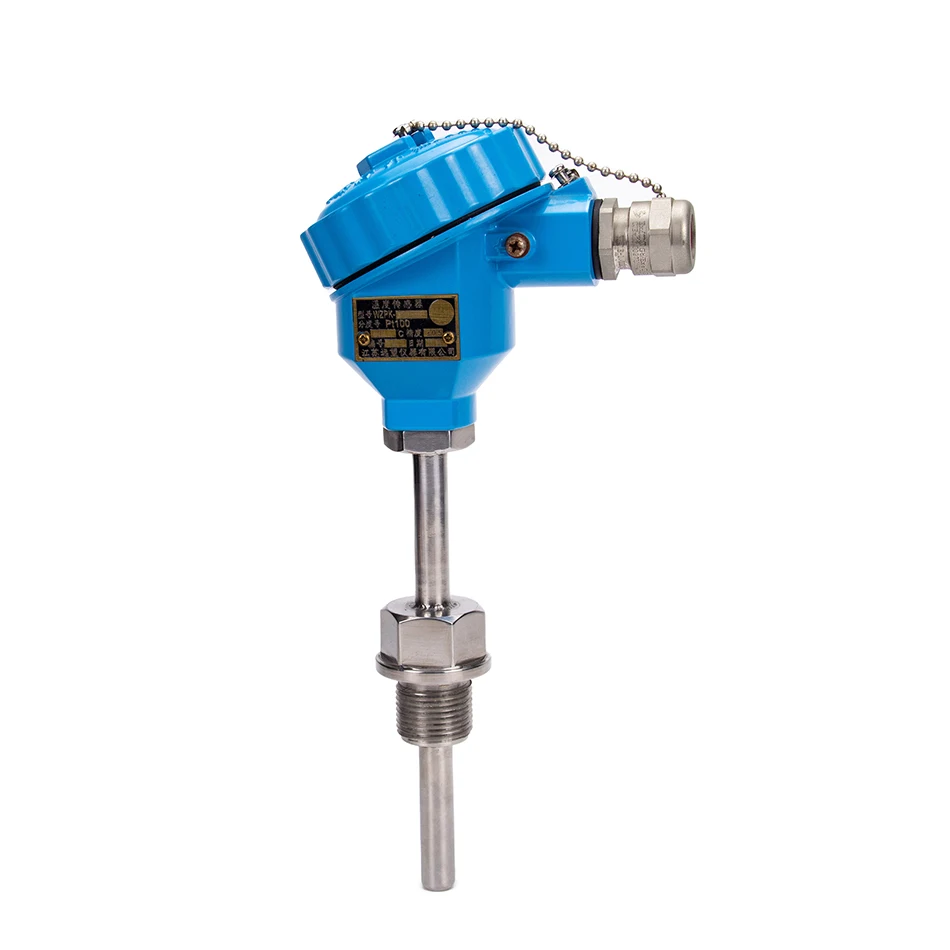

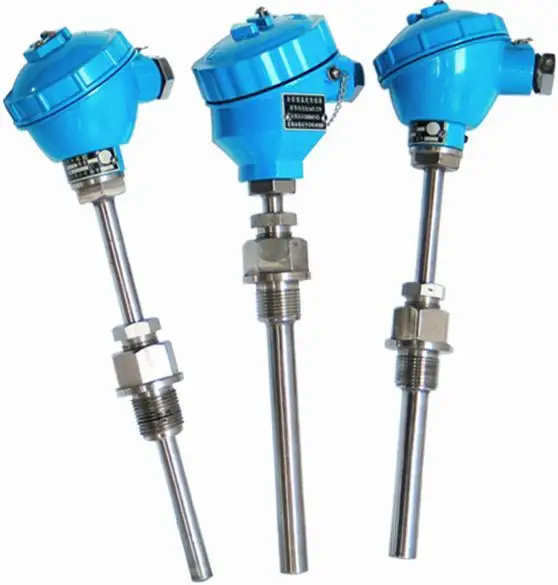

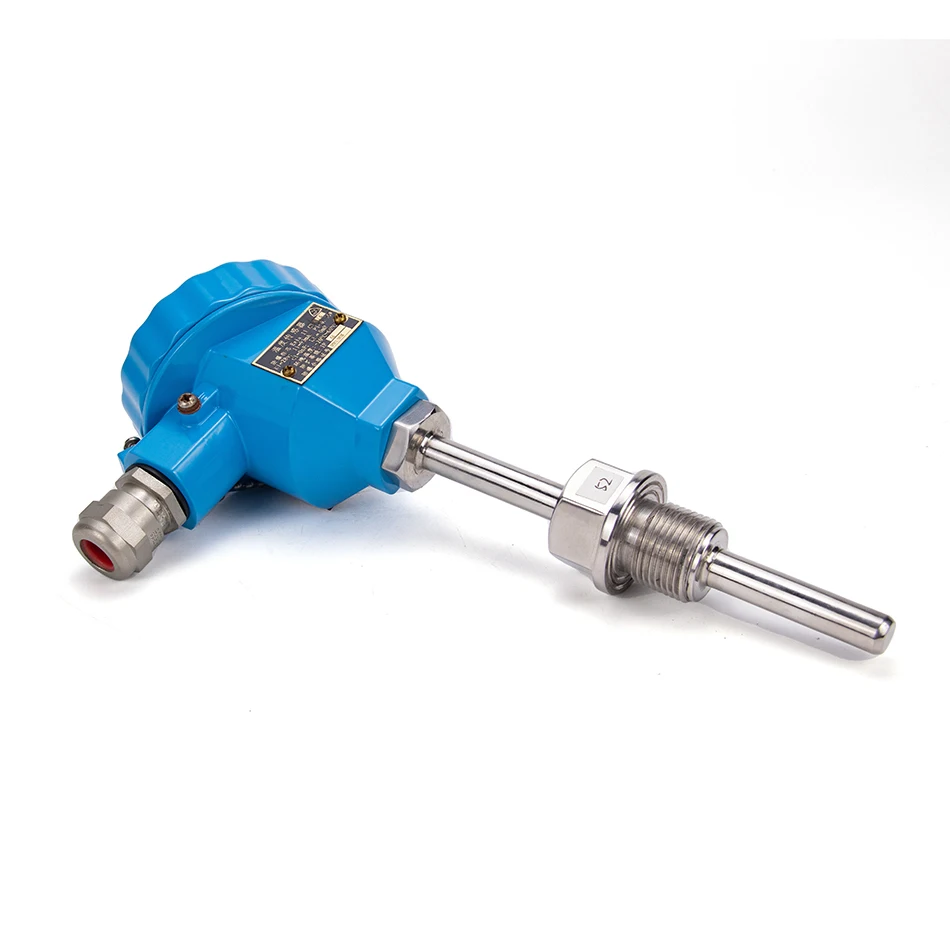

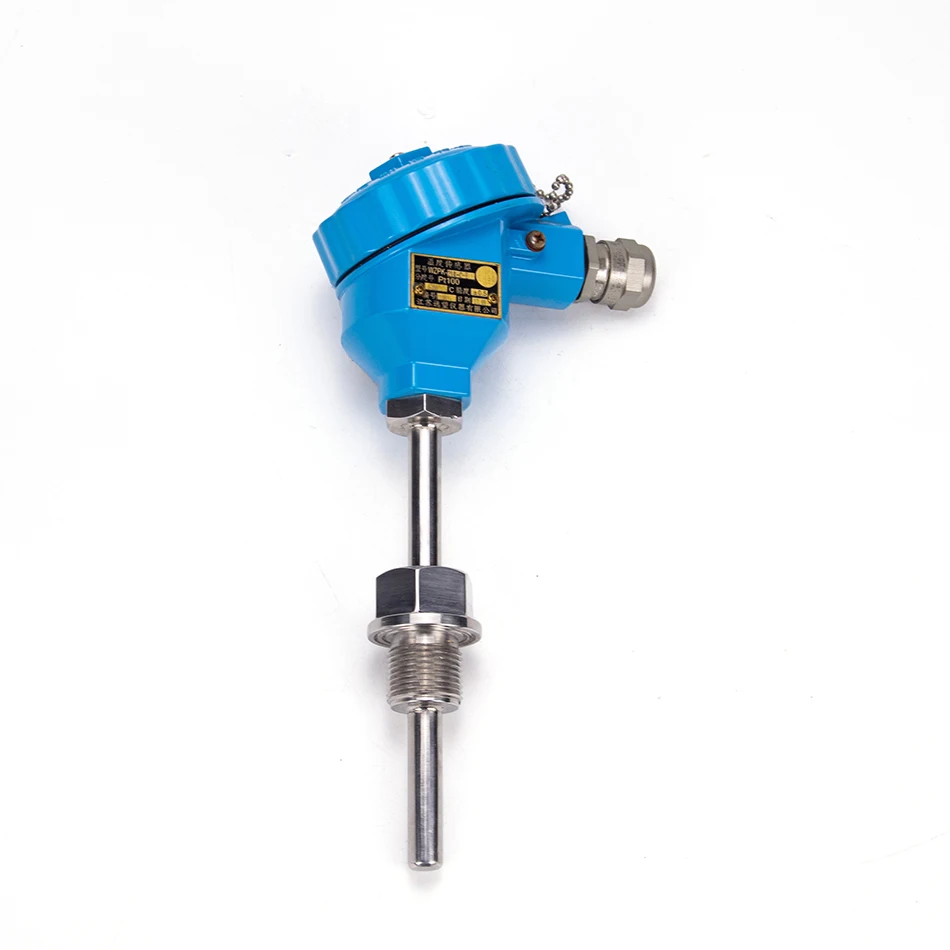

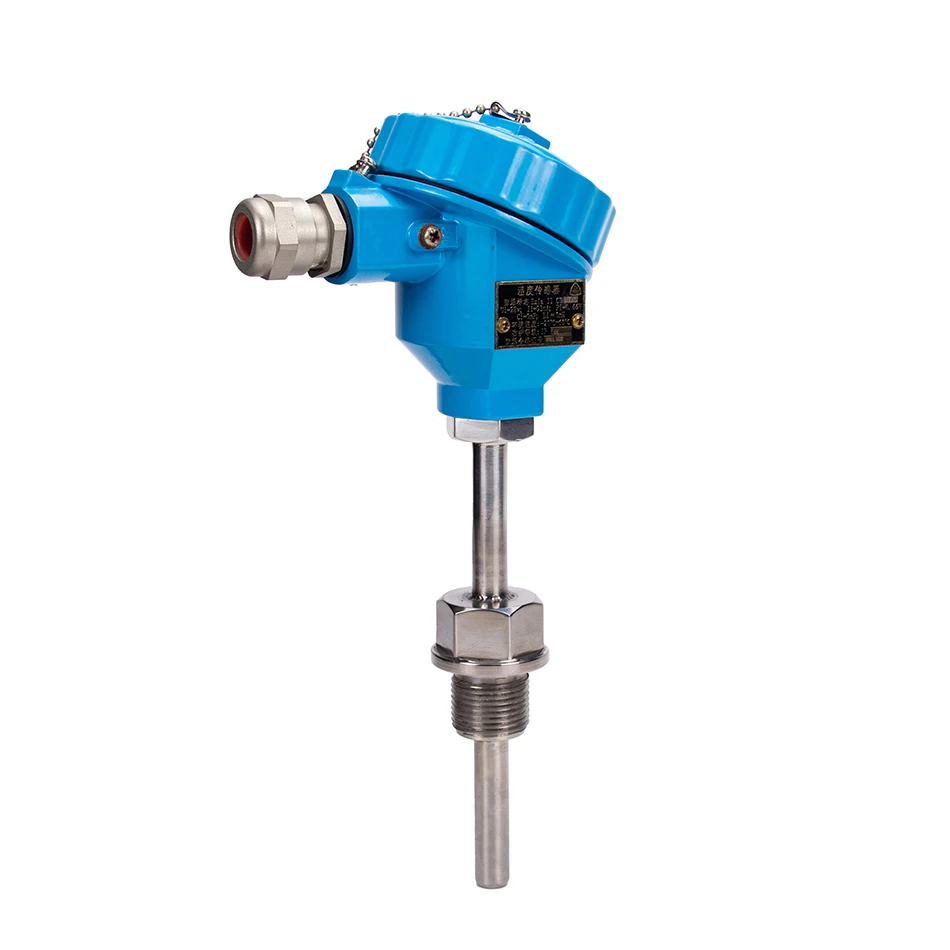

Industry Temperature Measurement Probe Thermocouple
- Category: >>>
- Supplier: Jiangsu Yuanwang Instrument Group Co. Ltd.
Share on (1600746580144):
Product Overview
Description
Product Description
Temperature transmitters adopt high quality Pt resistance as temperature sensing component, and have characteristics of high measuring accuracy, good stability & reliability, and long life etc. They are widely used to measure temp. of liquid, gas and steam in ships and other industrial equipments.
Main Technical Specification
Model | WZPK | |
Temp. sensing element | Pt100 | |
Pt500 | ||
Pt1000 | ||
Measuring range | -70~500℃ | |
Nominal pressure | 1.0MPa | |
Installation type | 1 | Movable female screw connector |
2 | Movable male screw connector | |
3 | Loose flange type | |
4 | Fixed flange type | |
Thermowell | Material | SUS304, SUS316L |
Diameter | 12mm (single), 16mm (double) | |
Output signal | I | 4~20mA current |
R | Pt resistance | |
Ex-proof mark | Adding -E | Intrinsic safety type |
Adding -B | Flameproof type | |
Adding -D | Pt100 output (option) | |
Adding -S | Local digital indication | |
Sketches
Wiring Diagram

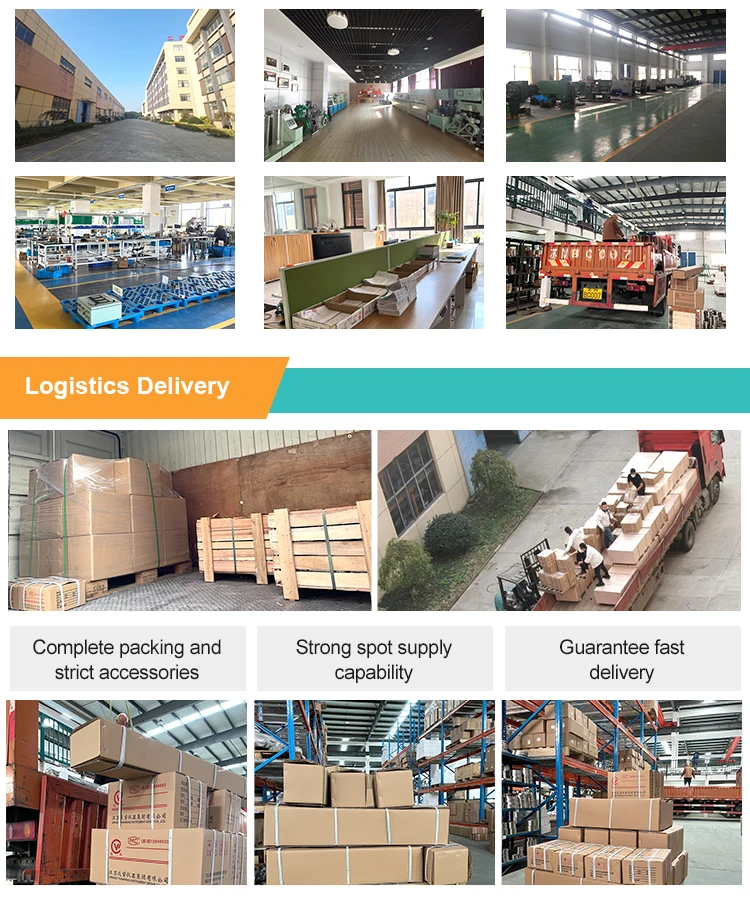

Packaging & Shipping
Packing: carton or wooden case
Shipping: by air, sea, or courier as Fedex, DHL, UPS, EMS
Certifications
Class certificate (Type approval): BV, CCS, DNV.GL, LR, NK, RINA
EX-proof certificate (NEPSI): EXD, EX IA
Q: Are you trading company or manufacturer ?
A: We are manufacturer & trading company.
Q:Are you a professional manufacturer of Marine equipment?
A: Yes, we have been engaged in the production of Marine equipment for more than 20 years
Q: How long is your delivery time?
A: Generally it is 5~10 days if the goods are in stock.Or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=2000USD, 50% T/T in advance ,balance before shipment. Irrepealable LC at sight.
Q:Do you inspect the finished products?
A:Yes, each step of production and finished products will be come out inspection by QC department before shipping.
Q:Can I get a lower price if I order large quantities? A:Yes, cheaper prices with more bigger quantity orders.
