Cast iron turbine woltman type agriculture sea water flow meter
US $59.00-$2200
Smart Digital Water Flow Meter Home Garden Irrigation Water Meter
- Category: Water Meters >>>
- Supplier: Shanghai,Panda,Machinery,(group),Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Features:
* Integrated Meter And Valve, Fully Enclosed Structure, Anti-vandalism
* Range Is Up to 400
* Low Starting Flow
* No Moving Parts, Accuracy Will Not Change After Long Term Working
* With Functions of Self-diagnosis, Flow Sensor Alarm, Temperature Sensor Alarm, Over Range Alarm, Battery Undervoltage Alarm and
Valve Error Alarm
* Low Consumption Design, Battery Can Continuously Work For 6 Years
* With Optic Electric Interface,Hand-held Infrared Meter Reading Tool Can Read Directly
* Built-in Wireless NB-IoTIs Optional
* Support Swiping Card To Recharge And Manage System Remote Remote Valve Control.
* Bi-directional Measuring Forward And Reverse Flow
* According To Sanitary Standard For Drinking Water
* Range Is Up to 400
* Low Starting Flow
* No Moving Parts, Accuracy Will Not Change After Long Term Working
* With Functions of Self-diagnosis, Flow Sensor Alarm, Temperature Sensor Alarm, Over Range Alarm, Battery Undervoltage Alarm and
Valve Error Alarm
* Low Consumption Design, Battery Can Continuously Work For 6 Years
* With Optic Electric Interface,Hand-held Infrared Meter Reading Tool Can Read Directly
* Built-in Wireless NB-IoTIs Optional
* Support Swiping Card To Recharge And Manage System Remote Remote Valve Control.
* Bi-directional Measuring Forward And Reverse Flow
* According To Sanitary Standard For Drinking Water
Specification
Max. Working Pressure | 1.6Mpa |
Temperature Class | T30 |
Accuracy Class | ISO 4064, Accuracy Class 2 |
Body Material | Brass HPb59-1 |
Battery | 6 Years(Consumption≤0.3mW) |
Protection Class | IP68 |
Environmental Temperature | -40～+70℃，≤100%RH |
Pressure Loss | ΔP16、ΔP25（Based on different dynamic flow） |
Climatic And Mechanical Environment | Class O |
Electromagnetic Class | E2 |

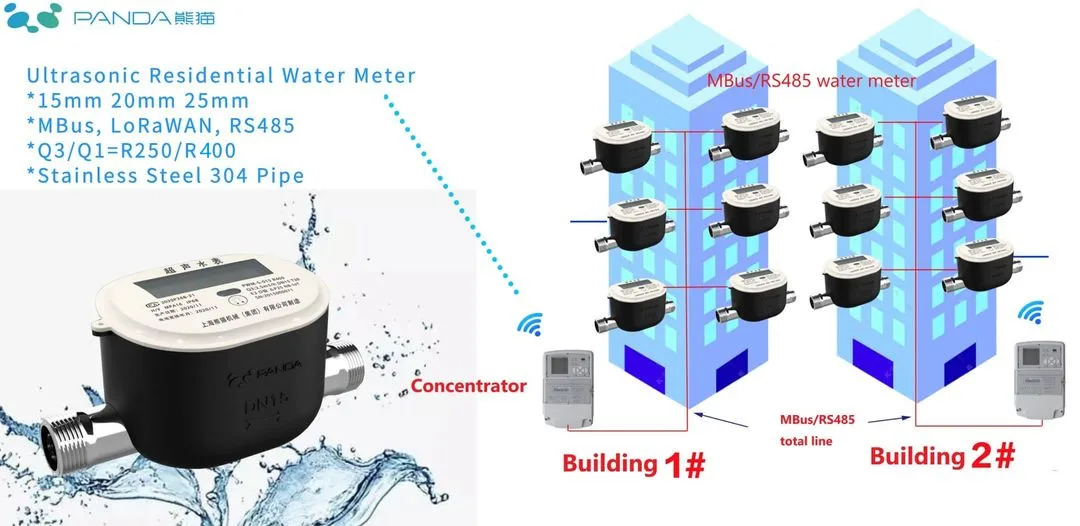

Communication | Opt.NB-IoT，M-bus、RS485（ModBus）or Wireless LoRa，OCT Pulese Output etc. |

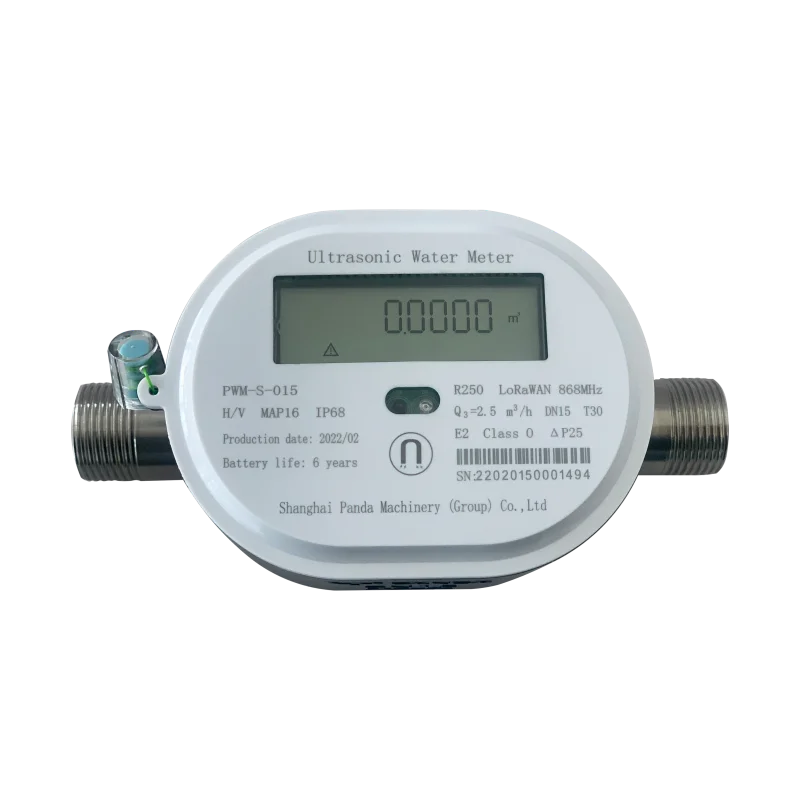

Display | 8 digits LCD display volume, flow rate, power alarm, flow direction, output etc. |
Connection | Thread |
Flow Profile Sensitivity Class | U5/D3 |
Data Storage | Store the latest 2 years’ data including day, month and year, The data can be permanently saved even powered off |
Frequency | 1-4 times/second |
Application
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Shanghai Panda Machinery(Group) Co.,Ltd is a high-tech enterprise in Shanghai,No.1 market shares of building pumps in China. President Xuecong, Chi founded the company in 2000. Through 20 years development, We have been a leading group including from researching, manufacturing pumps, complete equipments,water meters, flow meters to intelligent management platform which is consist of raw water monitoring, water supply control, DMA, pipe GIS, Secondary water supply and Billing. We have been providing advanced smart watering solutions for thousands of water supply companies. Also we take proud of that our high-tech products are servicing water supply and drainage, municipal infrastructure, HAVC, chemicals, electrics, mining, thermal energy efficiency monitoring fields etc.
Certifications
FAQ
Q: Why choose you?
A: We have professional team of workers, service and inspection, and we have our own factory.
Q: Could you print our company logo on the nameplate and package?
A: Yes, we can.
Q: Where is your factory located? How can I visit there?
A: CN , Shanghai , Shanghai, , 6355 East Yinggang Road, Qingpu Dist. All our clients, from home or abroad, you are most welcome to visit us!
Q: How many colors of body are available?
A: We have own spraying equipment, so we can do custom colors as your special request. So any Pantone color is available. You just need to tell me your favorite Pantone color.
Q: Will you save my mold for future orders?
A: Yes. Once we create your mold. you can use it as many times as you like at no cost for future orders. As long as you keep the same design there is never any new molding fees.
Q: Do you offer customized packing?
A: Yes! All of our products can be packed as your requirement.
A: We have professional team of workers, service and inspection, and we have our own factory.
Q: Could you print our company logo on the nameplate and package?
A: Yes, we can.
Q: Where is your factory located? How can I visit there?
A: CN , Shanghai , Shanghai, , 6355 East Yinggang Road, Qingpu Dist. All our clients, from home or abroad, you are most welcome to visit us!
Q: How many colors of body are available?
A: We have own spraying equipment, so we can do custom colors as your special request. So any Pantone color is available. You just need to tell me your favorite Pantone color.
Q: Will you save my mold for future orders?
A: Yes. Once we create your mold. you can use it as many times as you like at no cost for future orders. As long as you keep the same design there is never any new molding fees.
Q: Do you offer customized packing?
A: Yes! All of our products can be packed as your requirement.
