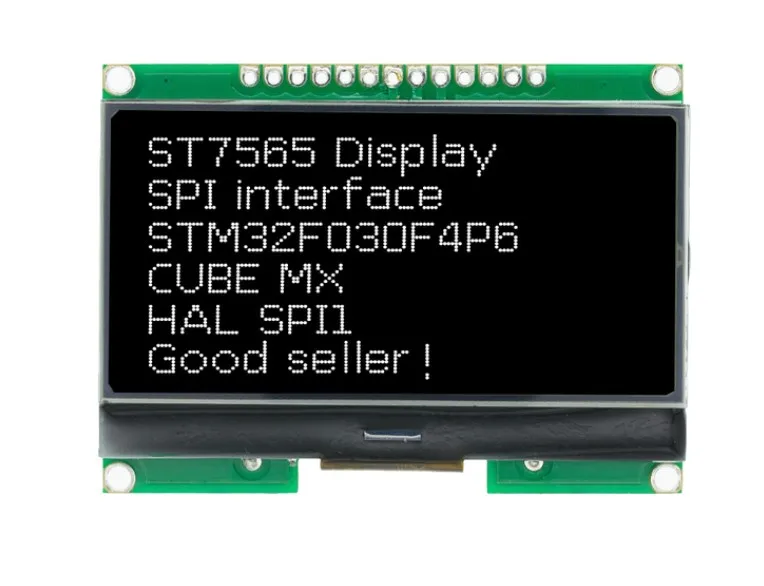

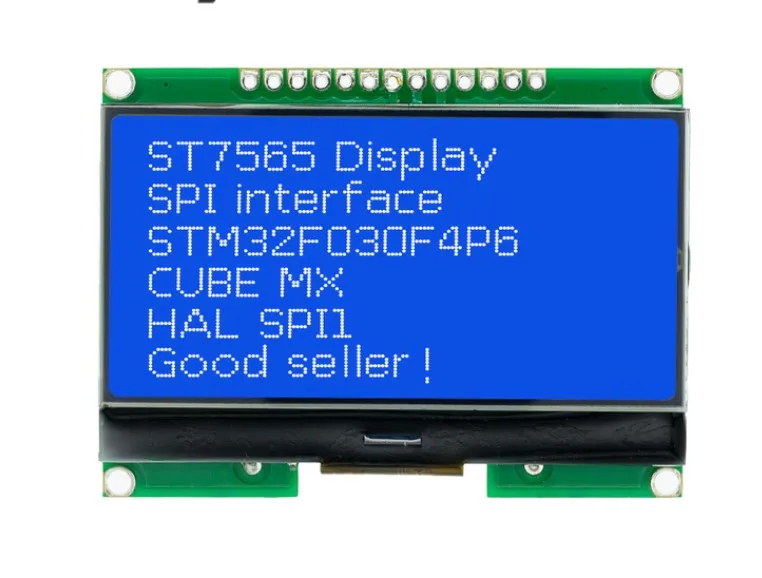

Lcd12864 12864 06D, 12864, LCD module, COG, with Chinese font, dot matrix screen, SPI interface
Lcd12864 12864-06D, 12864, LCD module, COG, with Chinese font, dot matrix screen, SPI interface
Lcd12864 12864-06D, 12864, LCD module, COG, with Chinese font, dot matrix screen, SPI interface
Lcd12864 12864-06D, 12864, LCD module, COG, with Chinese font, dot matrix screen, SPI interface

Lcd12864 12864 06D, 12864, LCD module, COG, with Chinese font, dot matrix screen, SPI interface

Share on (1600746641252):


Price:

Quantity:


Product Overview

Description









product information

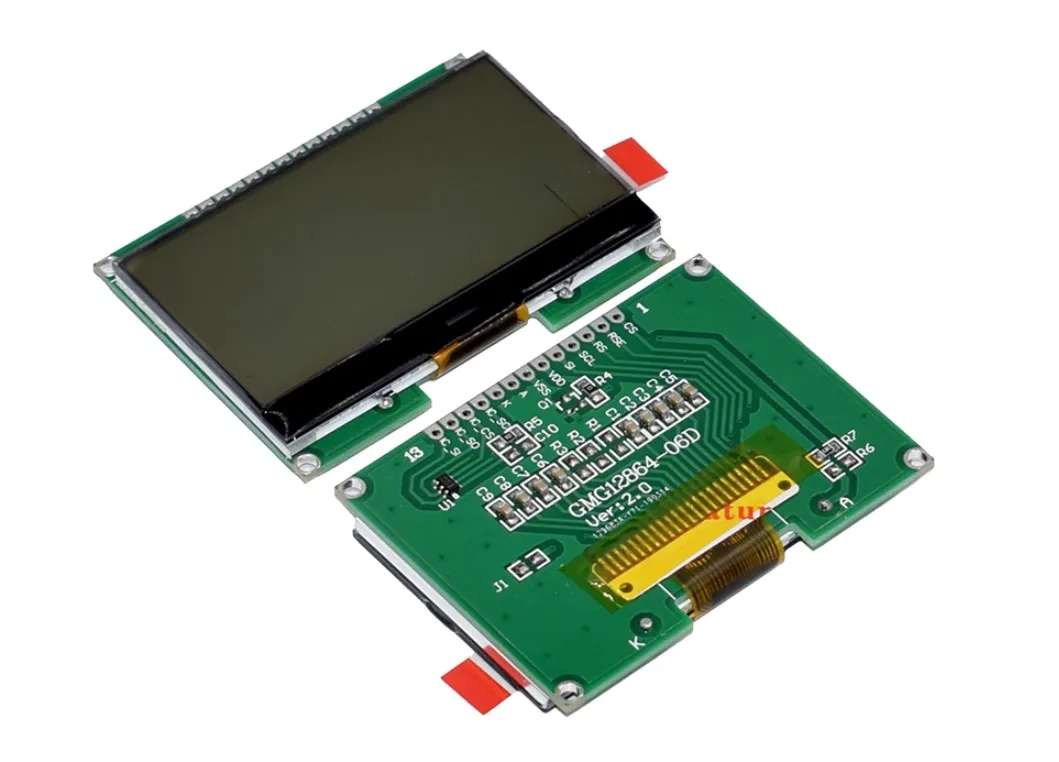

Name: LCD module



Model: GMG12864-06D



Dot matrix: 12864

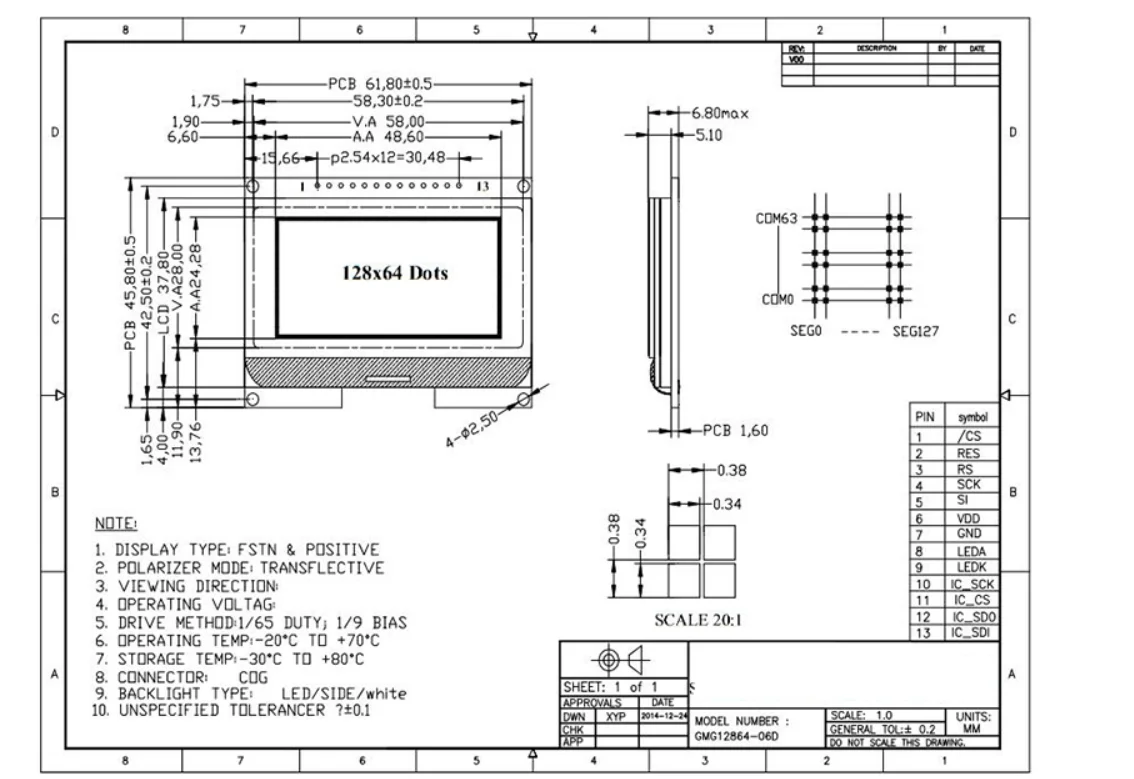

Dimensions: 61.8 * 45.8 * 6.8



Window size: 58 * 28



Driver IC: ST7565R



IC: 20L16S1Y Simplified Chinese



Temperature: -20 degrees +70 degrees



Voltage: 3.3V



Interface mode: SPI interfac
