High quality automatic flexo flexographic printing machine
- Category: >>>
- Supplier: Ruian Lilin Machinery Co. Ltd.
Share on (1600746667239):
Product Overview
Description
Products Description
2021 Hot selling products LST-2700 Paper bag over print machine for trade (with logo print)
Features：

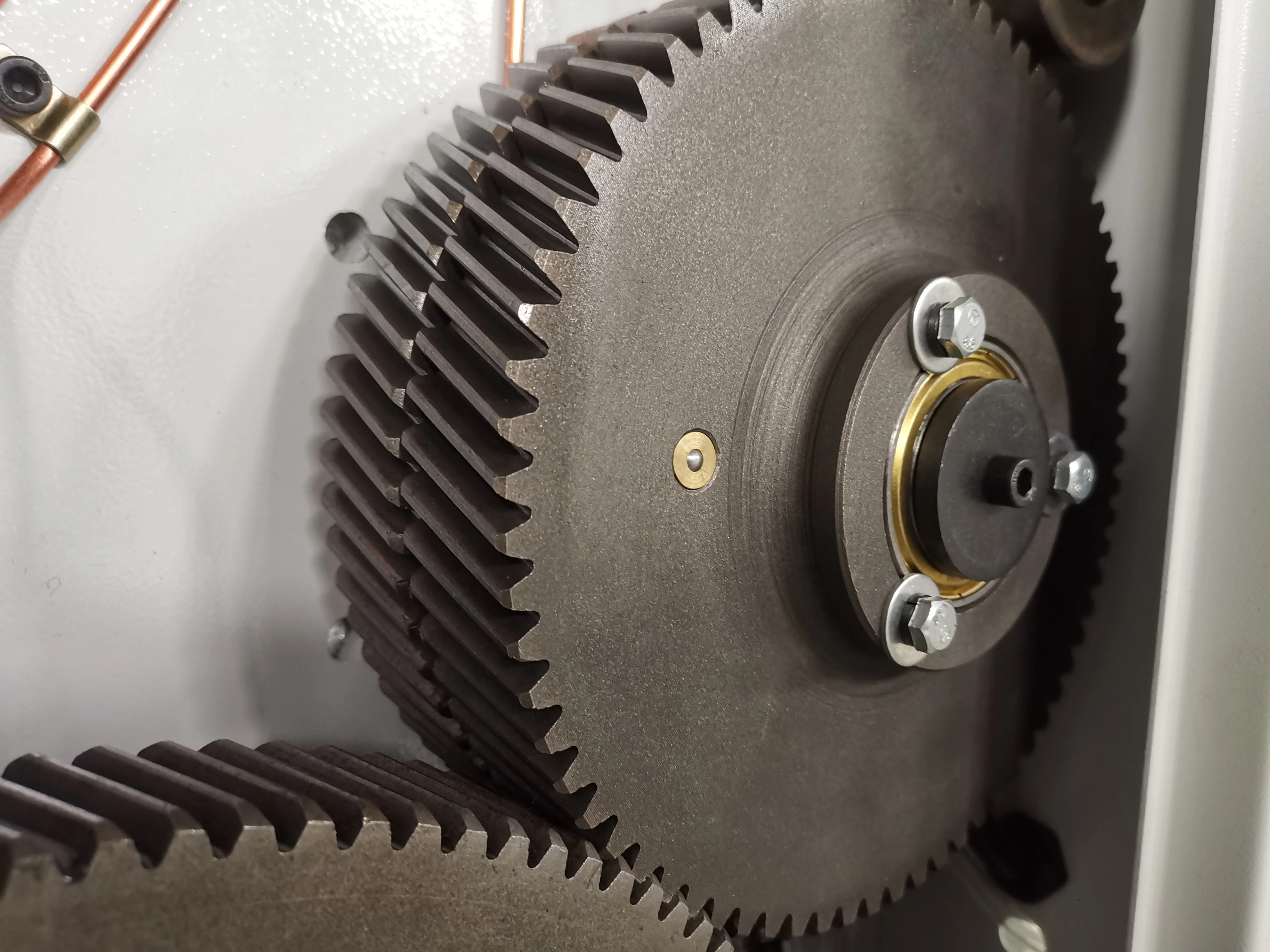

1.The machine adopts hard tooth surface gear helical gears, smooth operation, low noise, high accuracy and long life.

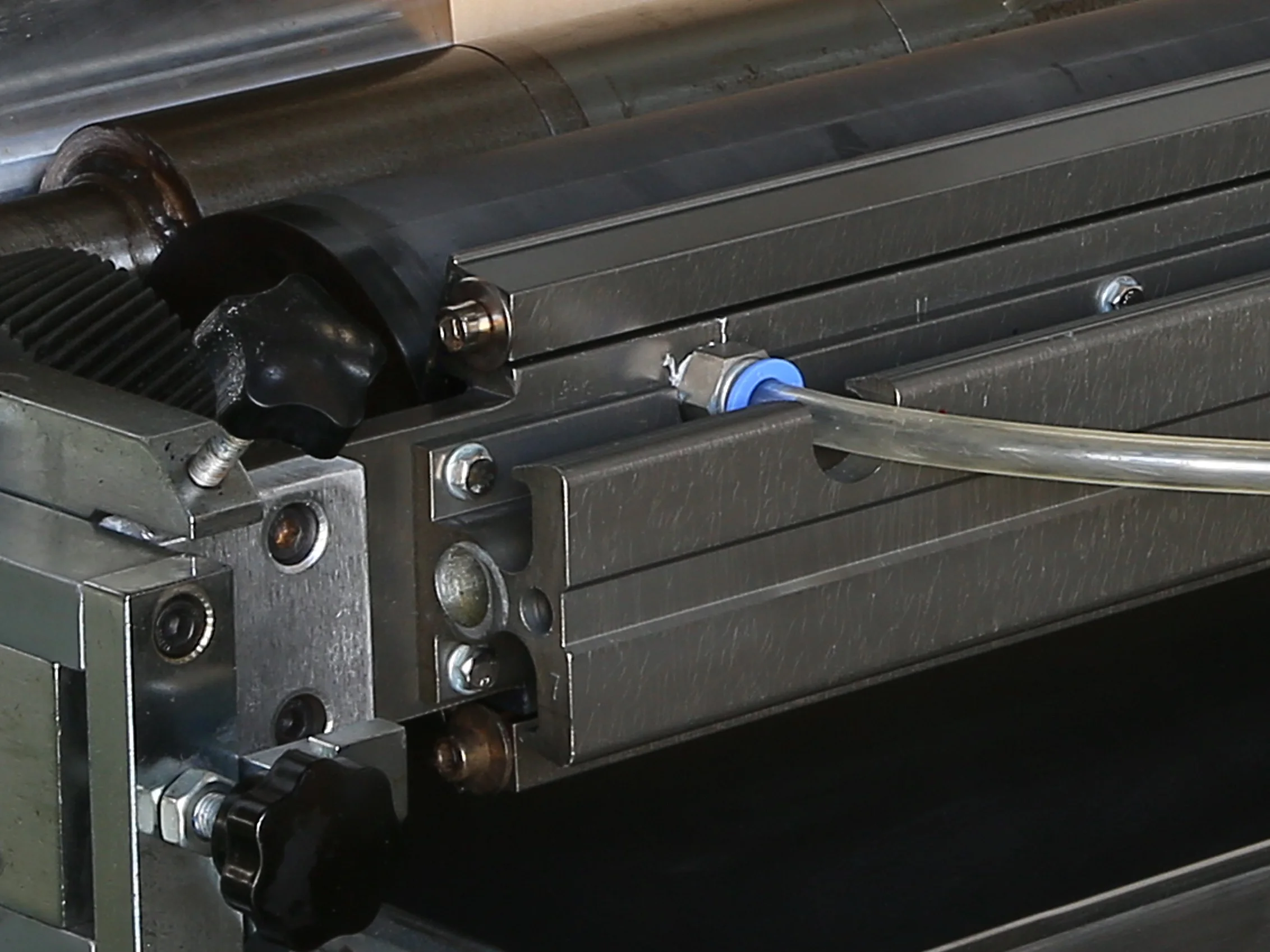

2.Ink-ring sealed scraping knife scraping.

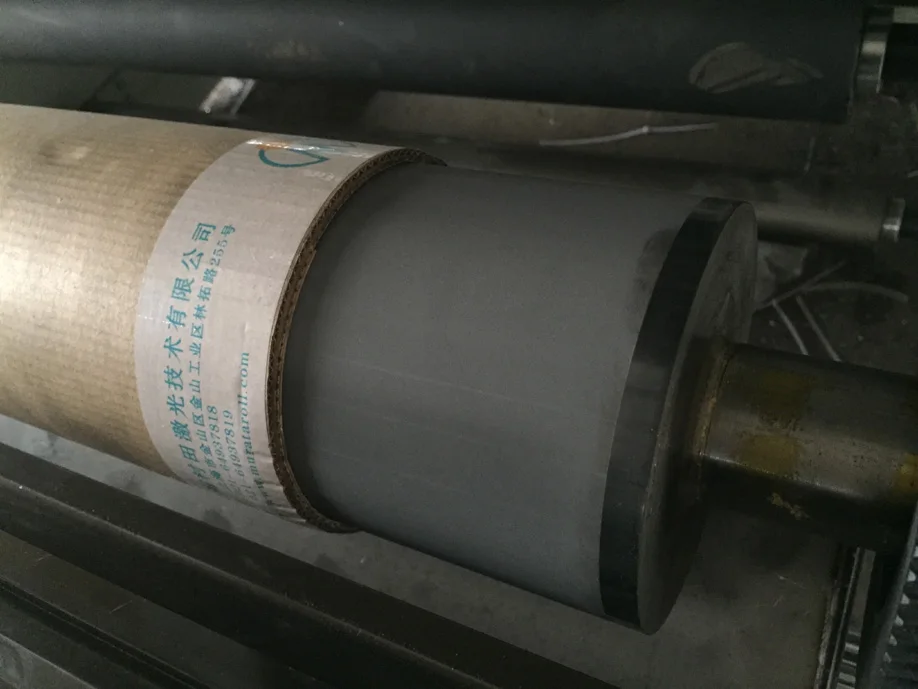

3.Ink Ceramic Anilox roller, high speed dot rate, screen printed layered, stronger.
4.Button-360 ° continuous and adjustable longitudinal register device.
5.Pneumatic automatic printing plate roller.
6.The independent group automatic ink system, can be opened one or more sets of ink.
7.Automatic lubricating oil system.
2.Ink-ring sealed scraping knife scraping.
3.Ink Ceramic Anilox roller, high speed dot rate, screen printed layered, stronger.
4.Button-360 ° continuous and adjustable longitudinal register device.
5.Pneumatic automatic printing plate roller.
6.The independent group automatic ink system, can be opened one or more sets of ink.
7.Automatic lubricating oil system.
Product Paramenters
Type | LST-2700 | LST-4700 | LST-21100 | LST-41100 | LST-21400 | LST-41400 |
Printing Color | 2 Color | 4 Color | 2 Color | 4 Color | 2 Color | 4 Color |
Max.Printing Width | 700 mm | 700 mm | 1100 mm | 1100 mm | 1400 mm | 1400 mm |
Max.Material width | 730 mm | 730 mm | 1130 mm | 1130 mm | 1430 mm | 1430 mm |
Printing Length | 180-800 mm | 180-800 mm | 180-800 mm | 180-800 mm | 180-800 mm | 180-800 mm |
Max.Printing Speed | 120 m/min | 120 m/min | 120 m/min | 120 m/min | 120 m/min | 120 m/min |
Paper Thickness | 30-350 gsm | 30-350 gsm | 30-350 gsm | 30-350 gsm | 30-350 gsm | 30-350 gsm |
Overprint Precision | ±0.15 mm | ±0.15 mm | ±0.15 mm | ±0.15 mm | ±0.15 mm | ±0.15 mm |
Thickness of Plate | 1.7 mm | 1.7 mm | 1.7 mm | 1.7 mm | 1.7 mm | 1.7 mm |
Total Power | 6 kw | 8 kw | 7 kw | 10 kw | 8.5 kw | 12.5 kw |
weight | 2100kg | 2700kg | 2700kg | 3100kg | 3200kg | 3600kg |
Overall Dimension | 565*136*185 cm | 565*136*185 cm | 565*176*185cm | 565*176*185cm | 565*206*185cm | 565*206*185cm |
