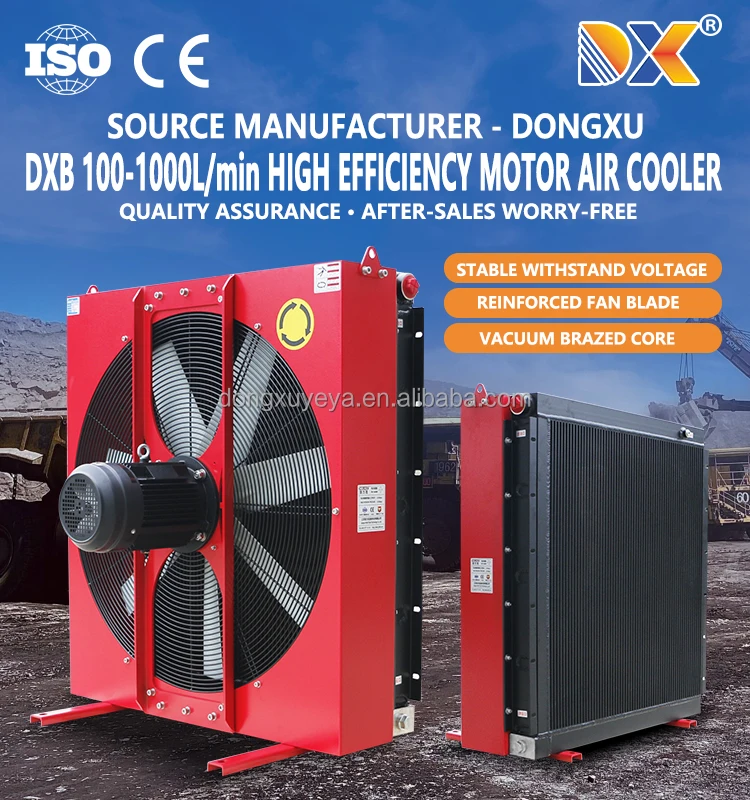

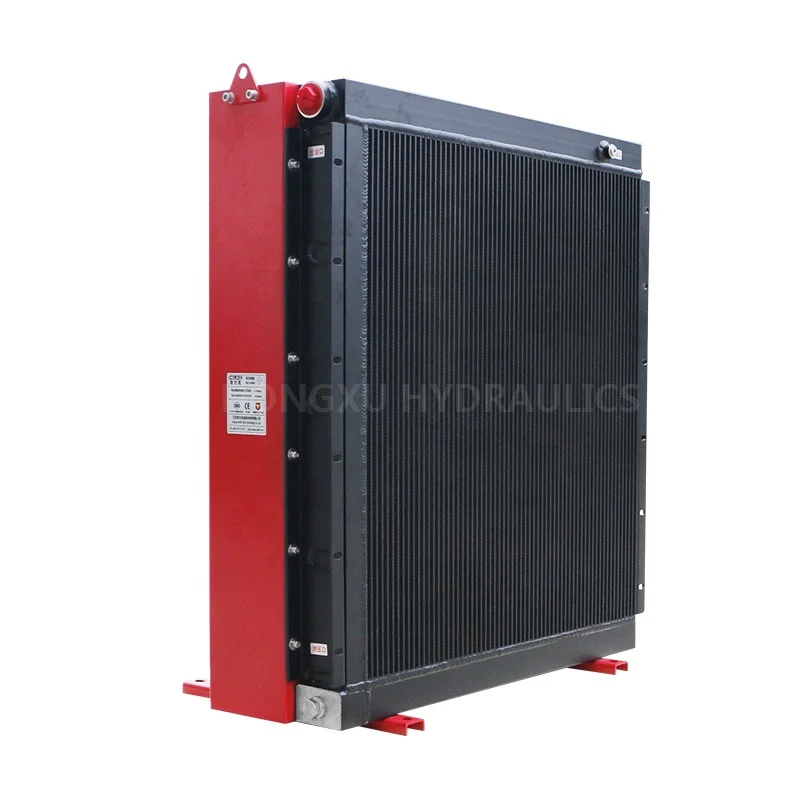

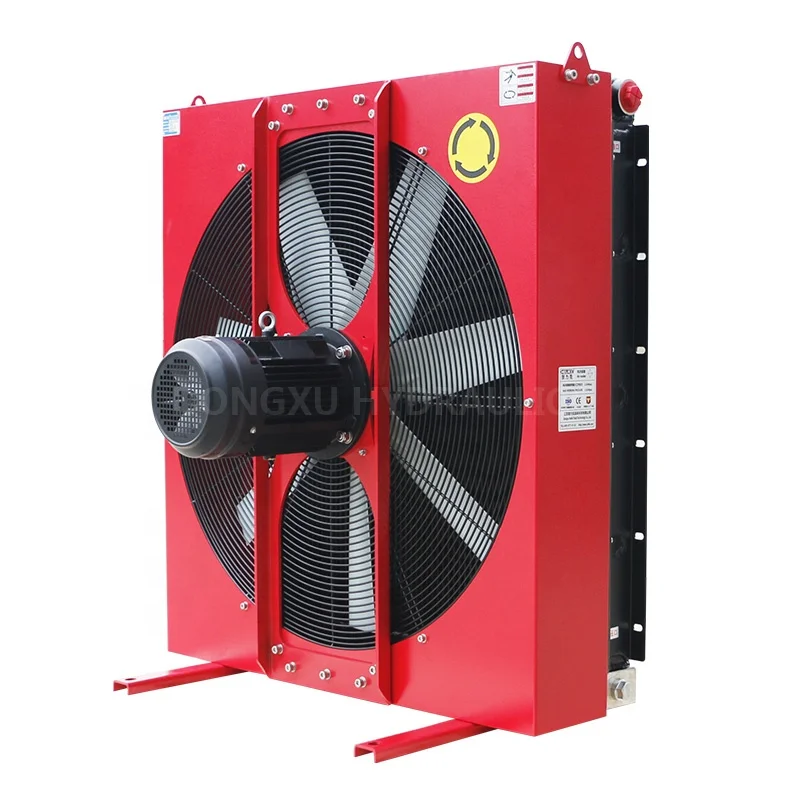

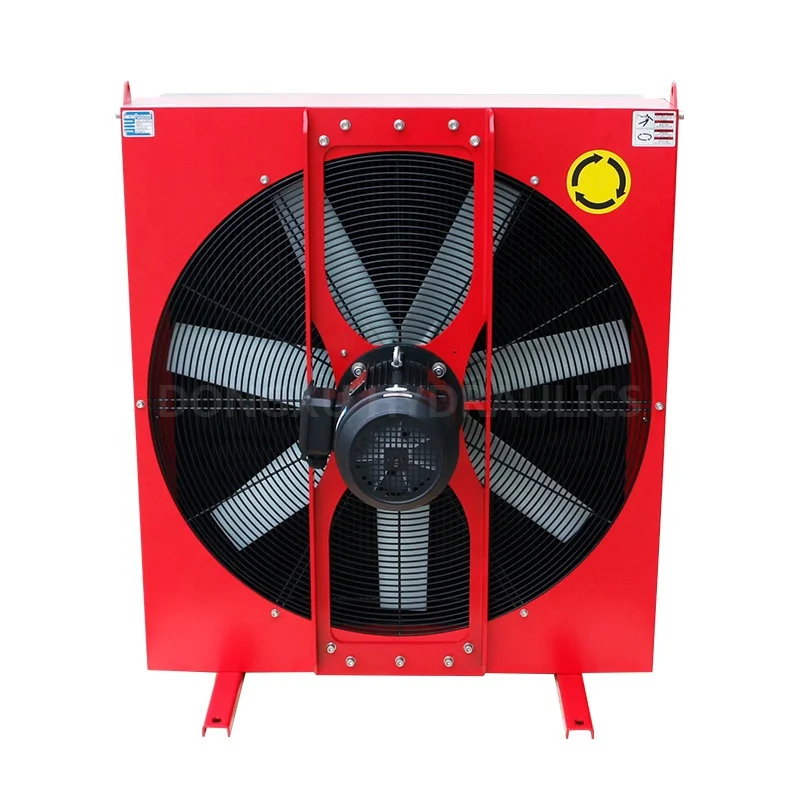

Big discounting OEM High Pressure Hydraulic DXB Oil Air Cooler

Product Overview

Description



---Features---

The cooler, through vacuum brazing process, is driving by high-efficiency standard motor and high-strength fan blades to achieve stable cooling effect.

1. Three-phase asynchronous motor: large rotation, good stability, continuous work for 24 hours;


2. Thickened Aluminum,Vacuum Brazing Technology;


3.  Fast Heat Dissipation;


4. Strong Winds;


5. Safety at Work;


6. Environmentally Friendly and Energy-saving;


7. Low Noise;


8. Thickened casing, spraying treatment, fine workmanship, not easy to rust;


9. Temperature controller can be installed.;


10. A variety of pressure protection forms can be selected;

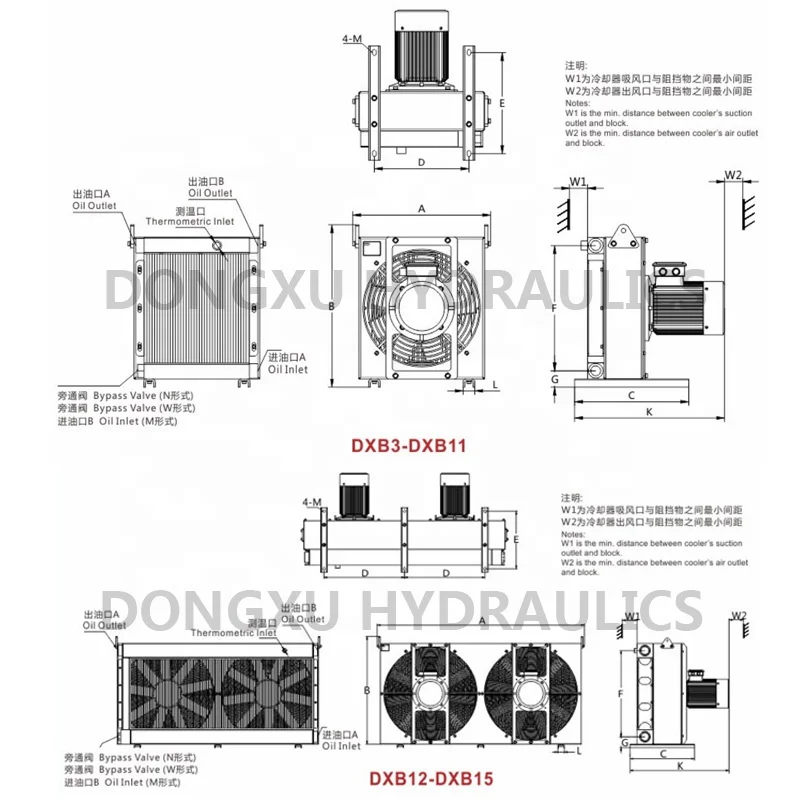

11. The oil inlet and outlet of the cooler are standard G thread, also can be customized or connected with SAE flange as required.

 Quality Assurance, Easy Installation, One Year Warranty

Description Of Model Label
DXB	8	A3	5	N	C	X	O	O
Cooler Type: Efficient Motor Drive Series	Plate Size: 3/4/5/6/7/8/9/10 /11/12/13/14/15	Voltage: A3=AC380V(Standard) A4=AC440V A5=AC660V	Frequency: 5=50Hz(Standard) 6=60Hz	Bypass Valve: N=Build-in(Standard) W=External M=Without Bypass Valve	Oil Hole Direction: C=Side in side out(Standard) S=Up in up out	Wind Direction: X=Suction(Standard) C=Blowing	Temp. Controller: O=Without controller(Standard) T=Temp. Switches--Action Temp.:     T50=50℃,T60=60℃,T70=70℃ C=Temp. Transmitter--     C1=Compact,C2=Digital	Heatsink Protection: O=Without protection(Standard) S=Anti-Stone net
