PVDF Hollow Fiber UF Membrane





Hollow Fiber UF Membrane Introduction


Ultrafiltration membrane belongs to capillary hollow fiber membrane,It is a polymer material membrane,It is a separation product without phase change.With the material of modified PVDF and PES, It has good water permeability, mechanical properties, chemical resistance and pollution resistance. The Module type is Outside-in(PVDF) and Inside-out(PES). It can filter various harmful substances such as bacteria, colloids, suspended solids and microorganisms which are in the feed water.





Hollow Fiber UF Membrane Application


Water Treatment:


sterilization, turbidity removal and purification of tap water, groundwater and surface water; pretreatment of reverse osmosis.


Wastewater Treatment and Reuse:


urban reclaimed water reuse, industrial wastewater treatment and reuse, hospital wastewater, and treatment of oilfield reinjection water.


Seawater Desalination:


seawater purification and seawater desalination pretreatment.


Medicine and Biotechnology:


separation and refinement of traditional Chinese medicine extracts, depyrogenation of medical sterile water and water for injection, separation and purification of biological products, and blood purification.


Food and Cooking Materials:


clarification of fruit and vegetable juices and wine, filtration and sterilization of milk, concentration and purification of whey.





Hollow Fiber Membrane Material



The hollow fiber materials are polyvinylidene (PVDF) and polyvinyl alcohol (PES), these materials have the following characteristics:

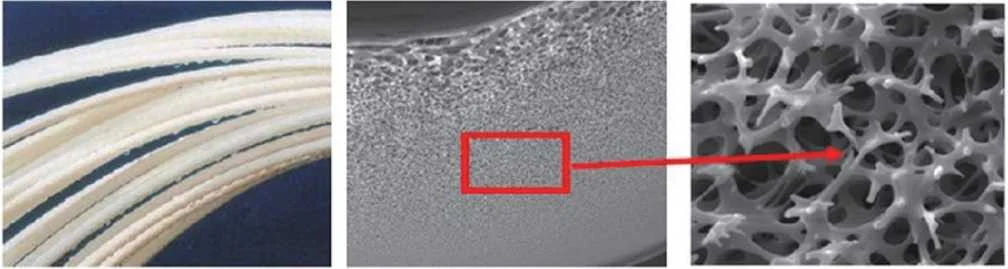

The microstructure of the hollow fiber membrane is a sponge structure and the pores change in gradient, which is stronger than the traditional finger-shaped pore structure and has stronger anti-pollution ability.


Good hydrophilicity, uniform membrane pore size, and large water permeability per unit area.


Good heat resistance, strong chemical stability, good resistance to chemical cleaning.


It operates under ultra-low pressure and has low energy consumption.





Hydrophilic Hollow Fiber UF Membrane Material










































Model



UF-0.1-PVDF



Structure



PVDF



Membrane Filter Precision (Dalton)



200,000


0.1μm



Hollow Fiber Diameter (mm)



0.7/1.3



Pure Water Flux (L/m2.h.bar)



800



Burst Pressure (MPa)



>0.6



pH



2-11



Chlorine Resistance



Good







PVDF Hollow Fiber UF Membrane Technical Data





HC-UF90-PVDF UF Membrane



























































































Model



HC-UF90-PVDF



Structure



Outside-in



Material



PVDF



Membrane Filter Precision



200,000 Dalton (0.1μm)



Membrane Area



6.5m2



Hollow Fiber Diameter ID/OD



0.7mm/1.3mm



Size



φ90mm×1160mm



Port Size



DN25



Pure Water Flux



1,300L/H (0.15MPa,25℃)



Design Flux



40~120L/M2.H (0.15MPa,25℃)



Flux Range



260~780L/H (0.15MPa,25℃)



Suggested Working Pressure



≤0.2MPa



Max.Water Inlet Pressure Pressure



0.3MPa



Max.Transmembrane Pressure



0.15MPa



Max.Backwash Pressure



0.15MPa



Air Wash Flux



0.1~0.15N m3/m2.h



Air Wash Pressure



≤0.1MPa



Working Temperature



5~45ºC



pH Range



Working: 4~10; Washing: 2~12



Operation Mode



Cross-flow or Dead-end






HC-UF160-PVDF UF Membrane



























































































Model



HC-UF160-PVDF



Structure



Outside-in



Material



PVDF



Membrane Filter Precision



200,000 Dalton (0.1μm)



Membrane Area



40m2



Hollow Fiber Diameter ID/OD



0.7mm/1.3mm



Size



φ160mm×1810mm



Port Size



DN40



Pure Water Flux



8,000L/H (0.15MPa,25℃)



Design Flux



40~120L/M2.H (0.15MPa,25℃)



Flux Range



1,600~4,800L/H (0.15MPa,25℃)



Suggested Working Pressure



≤0.2MPa



Max.Water Inlet Pressure Pressure



0.3MPa



Max.Transmembrane Pressure



0.15MPa



Max.Backwash Pressure



0.15MPa



Air Wash Flux



0.1~0.15N m3/m2.h



Air Wash Pressure



≤0.1MPa



Working Temperature



5~45ºC



pH Range



Working: 4~10; Washing: 2~12



Operation Mode



Cross-flow or Dead-end






HC-UF200-PVDF UF Membrane



























































































Model



HC-UF200-PVDF



Structure



Outside-in



Material



PVDF



Membrane Filter Precision



200,000 Dalton (0.1μm)



Membrane Area



50m2



Hollow Fiber Diameter ID/OD



0.7mm/1.3mm



Size



φ200mm×1884mm



Port Size



DN50



Pure Water Flux



10,000L/H (0.15MPa,25℃)



Design Flux



40~120L/M2.H (0.15MPa,25℃)



Flux Range



2,000~6,000L/H (0.15MPa,25℃)



Suggested Working Pressure



≤0.2MPa



Max.Water Inlet Pressure Pressure



0.25MPa



Max.Transmembrane Pressure



0.15MPa



Max.Backwash Pressure



0.15MPa



Air Wash Flux



0.1~0.15N m3/m2.h



Air Wash Pressure



≤0.1MPa



Working Temperature



5~45ºC



pH Range



Working: 4~10; Washing: 2~12



Operation Mode



Cross-flow or Dead-end

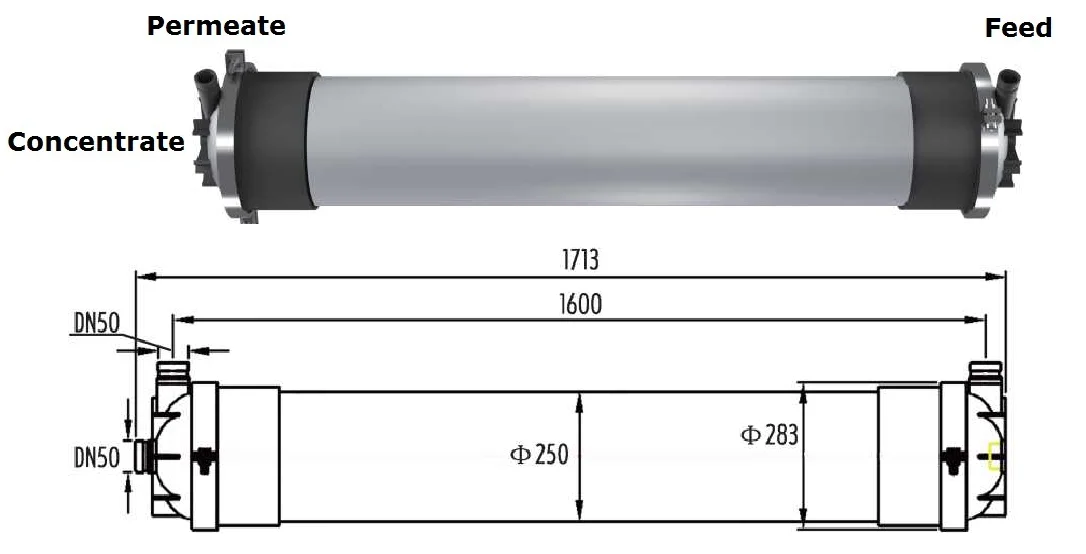

HC-UF250-PVDF UF Membrane



























































































Model



HC-UF250-PVDF



Structure



Outside-in



Material



PVDF



Membrane Filter Precision



200,000 Dalton (0.1μm)



Membrane Area



75m2



Hollow Fiber Diameter ID/OD



0.7mm/1.3mm



Size



φ250mm×1713mm



Port Size



DN50



Pure Water Flux



15,000L/H (0.15MPa,25℃)



Design Flux



40~120L/M2.H (0.15MPa,25℃)



Flux Range



3,000~9,000L/H (0.15MPa,25℃)



Suggested Working Pressure



≤0.2MPa



Max.Water Inlet Pressure Pressure



0.25MPa



Max.Transmembrane Pressure



0.15MPa



Max.Backwash Pressure



0.15MPa



Air Wash Flux



0.1~0.15N m3/m2.h



Air Wash Pressure



≤0.1MPa



Working Temperature



5~45ºC



pH Range



Working: 4~10; Washing: 2~12



Operation Mode



Cross-flow or Dead-end

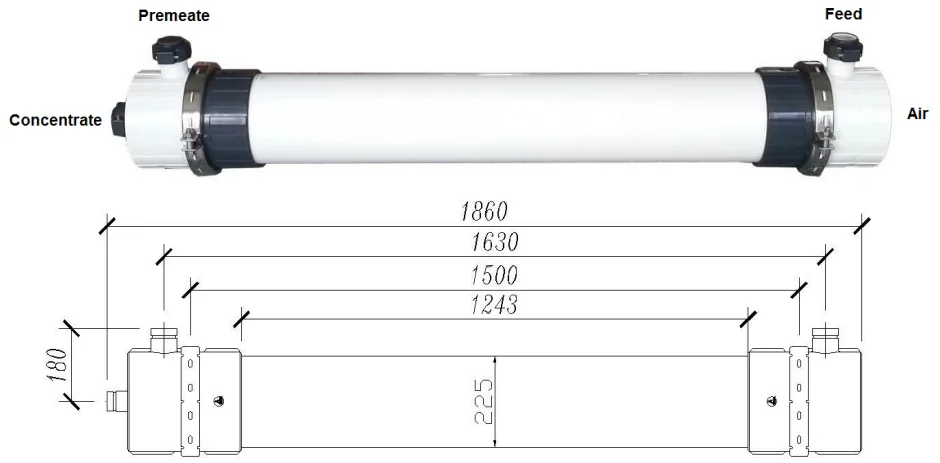

HC-UF2860-PVDF UF Membrane



























































































Model



HC-UF2860-PVDF



Structure



Outside-in



Material



PVDF



Membrane Filter Precision



200,000 Dalton (0.1μm)



Membrane Area



51m2



Hollow Fiber Diameter ID/OD



0.7mm/1.3mm



Size



φ225mm×1860mm



Port Size



DN50, Air Tube:10mm



Pure Water Flux



10,200L/H (0.15MPa,25℃)



Design Flux



40~120L/M2.H (0.15MPa,25℃)



Flux Range



2,040~6,120L/H (0.15MPa,25℃)



Suggested Working Pressure



≤0.2MPa



Max.Water Inlet Pressure Pressure



0.25MPa



Max.Transmembrane Pressure



0.15MPa



Max.Backwash Pressure



0.15MPa



Air Wash Flux



0.1~0.15N m3/m2.h



Air Wash Pressure



≤0.1MPa



Working Temperature



5~45ºC



pH Range



Working: 4~10; Washing: 2~12



Operation Mode



Cross-flow or Dead-end

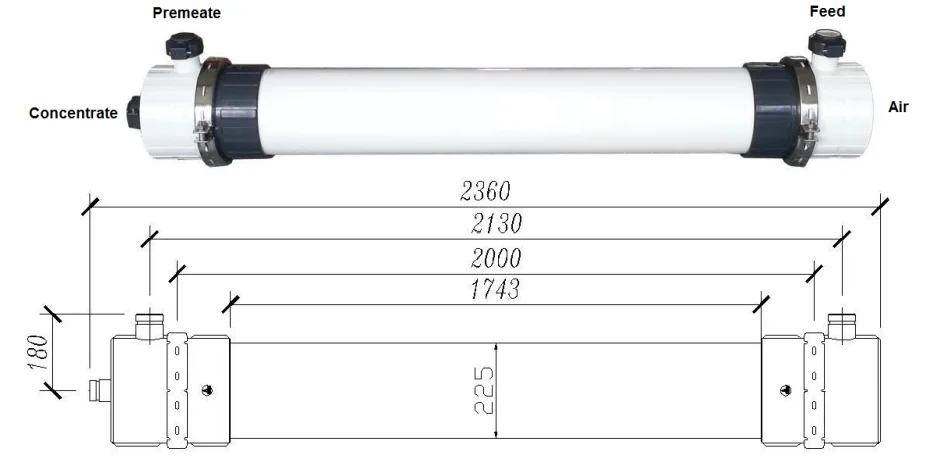

HC-UF2880-PVDF UF Membrane



























































































Model



HC-UF2880-PVDF



Structure



Outside-in



Material



PVDF



Membrane Filter Precision



200,000 Dalton (0.1μm)



Membrane Area



77m2



Hollow Fiber Diameter ID/OD



0.7mm/1.3mm



Size



φ225mm×2360mm



Port Size



DN50, Air Tube:10mm



Pure Water Flux



15,400L/H (0.15MPa,25℃)



Design Flux



40~120L/M2.H (0.15MPa,25℃)



Flux Range



3,080~9,240L/H (0.15MPa,25℃)



Suggested Working Pressure



≤0.2MPa



Max.Water Inlet Pressure Pressure



0.25MPa



Max.Transmembrane Pressure



0.15MPa



Max.Backwash Pressure



0.15MPa



Air Wash Flux



0.1~0.15N m3/m2.h



Air Wash Pressure



≤0.1MPa



Working Temperature



5~45ºC



pH Range



Working: 4~10; Washing: 2~12



Operation Mode



Cross-flow or Dead-end









Replacement Size









































Model



Membrane Material



Membrane Area



Size



UF-2660-PVDF



PVDF



33 m2



φ165mm×1800mm



UF-2860-PVDF



51 m2



φ225mm×1860mm



UF-2880-PVDF



77 m2



φ225mm×2360mm



UF-2980-PVDF



60 m2



φ225mm×2150mm



UF-1060-PVDF



78 m2



φ250mm×1724mm






Parts Material






















Parts



Material



Hollow fiber



PVDF



Sealing



Epoxy Resin



Shell



UPVC









Typical Operating Parameters





































Maximum backwash pressure



0.15MPa



Backwash flux



100~150L/m2.h



Backwash frequency



Once every 30-60 minutes



Backwash time



30-60 second each time



Dosing backwash frequency



0~4 times/day



Dosing backwash time



5-10 minutes each time



Chemical cleaning frequency



Once every 1~3 months









Common cleaning chemicals:





















Sterilization



15ppm Sodium hypochlorite



Organic pollution cleaning



0.2% Sodium hypochlorite + 0.1% Sodium hydroxide



Inorganic pollution cleaning



1~2% Citric acid/0.2% hydrochloric acid






Feed Water Requirements:


Before the water entering the UF membrane, it should have a pre-treatment. Such as the PP filter(less than 50 micron)


The feed water can’t include the organic solvents!






























Feed water turbidity



≤25NTU



Grease content



≤2mg/L



Influent suspended solids



≤20mg/L



Total iron content



≤1mg/L



Continuous influent residual chlorine



≤5ppm



COD



≤500mg/L






Water Production Performance






























Ingredients in water



Filter effect



Suspended Matter, Particle>1μm



Removal Rate ≥99%



SDI



Production Water ≤3



Virus, Bacteria



>4 log



Turbidity



Production Water <0.1NTU



TOC



Removal Rate 0-25%

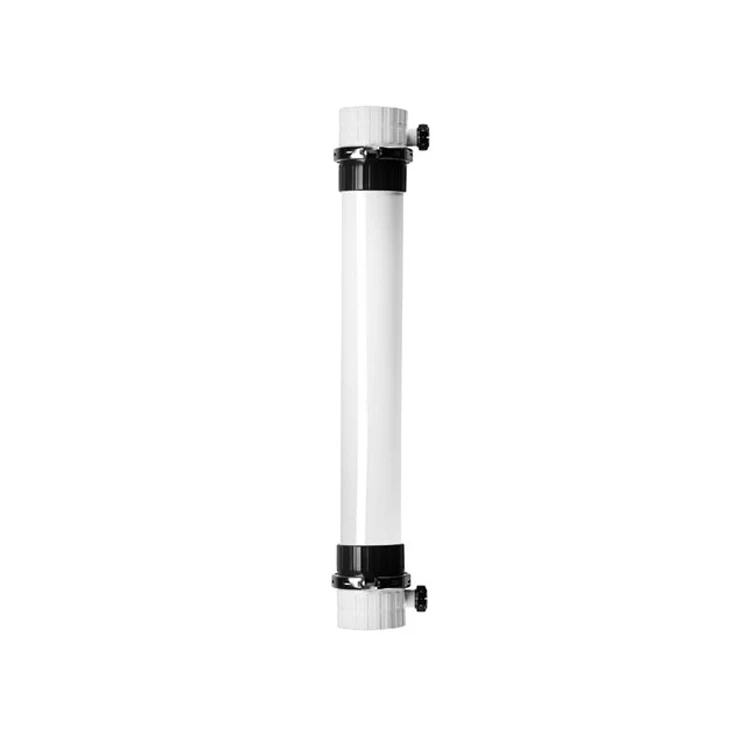

Product Show


















Packaging & Shipping

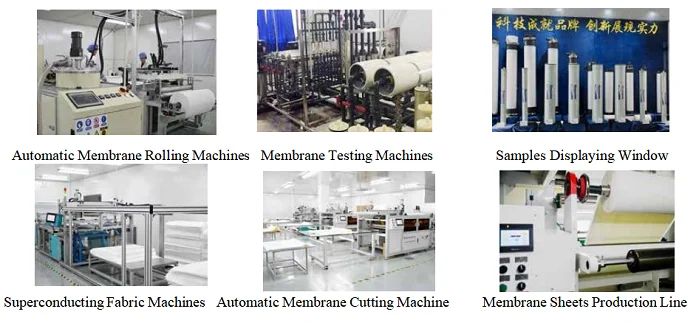

Company Information
