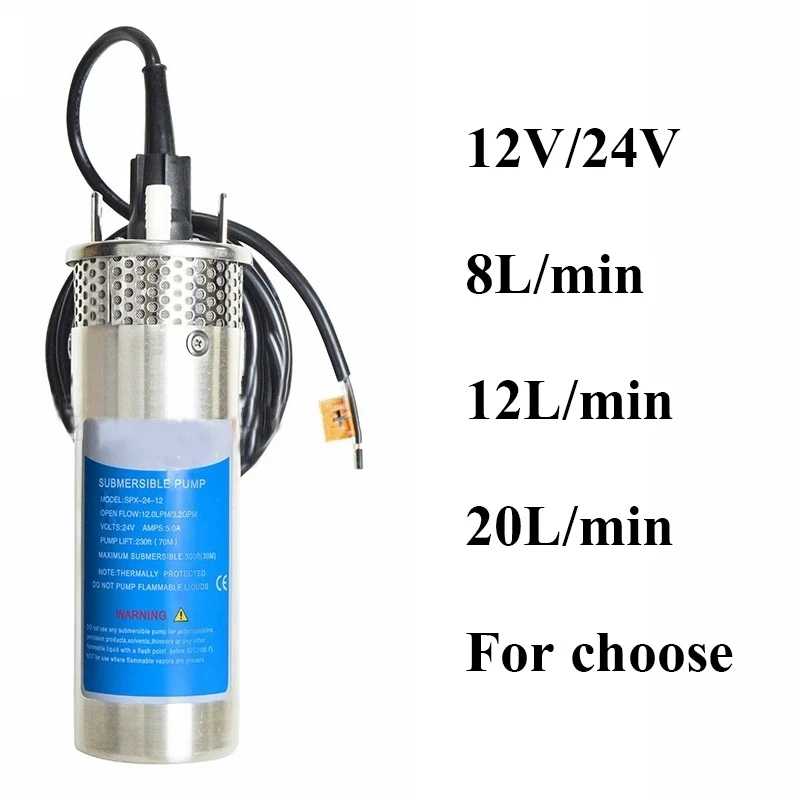

Heavy Duty Water Solar Power Pump Miniature Square Submersible Industrial System Bathroom Pressure Hybrid Pumps controller
- Category: >>>
- Supplier: Guangzhou Demuda Optoelectronics Technology Co. Ltd.
Share on (1600747165799):
Product Overview
Description
Product Description

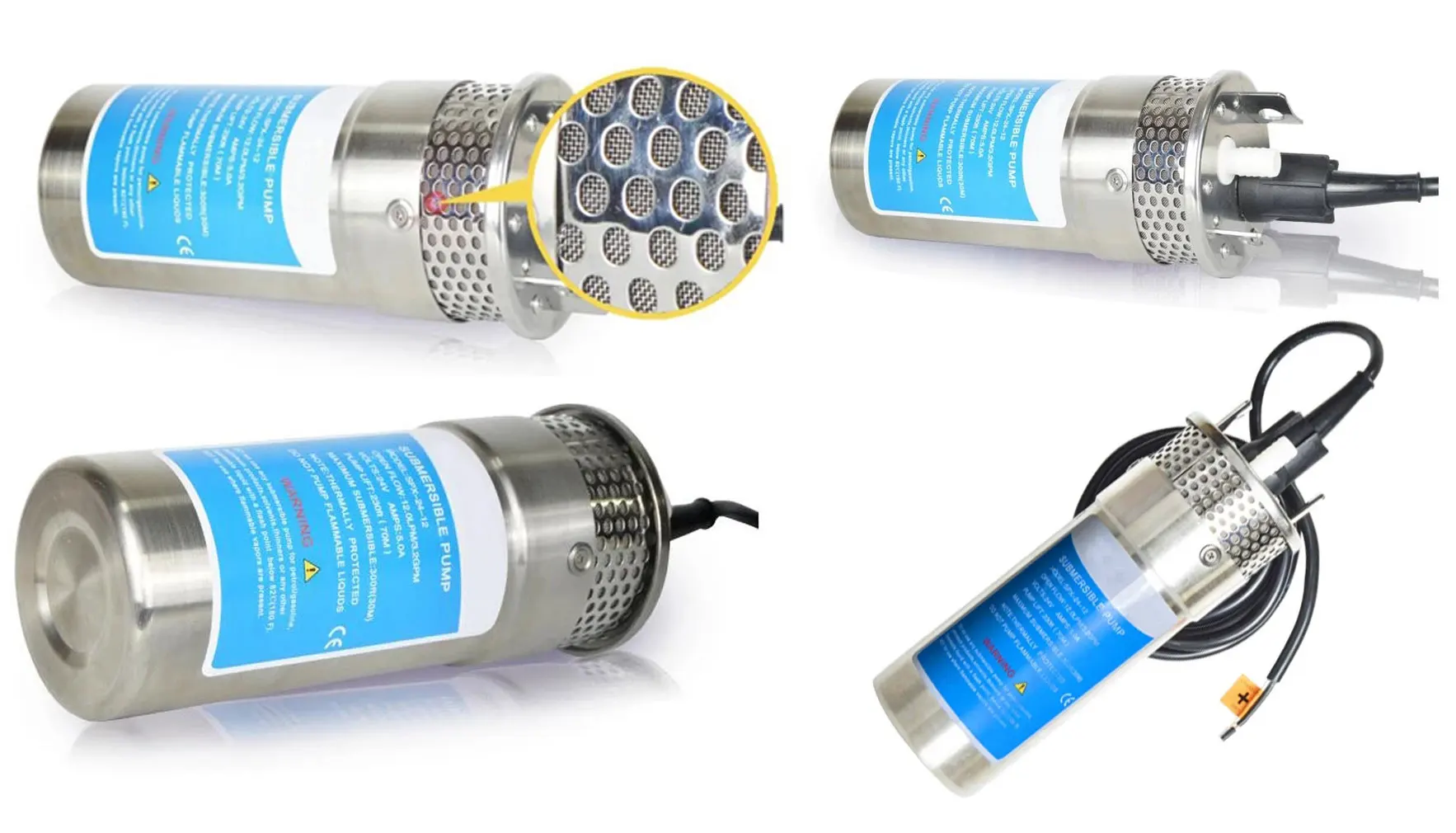

Features:
● Stainless steel submersible pump
● Built thermal protector
● Low power,high effect
● Small volume,widely used
● Large flow,high lift
● For 4" wells or larger
●Quick disconnect with "Watertight-Gland" Design Pat Pend
●Corrosion-proof housing with stainless-steel fastener
●Run dry without damage
● State of the art solid diaphragm
● Stainless Steel Pump case
● Pump Design: Positive Displacement 3 Chamber Diaphragm Pump
● Motor: Permanent Magnet Thermally Protected
● Wire Length:3M
● Stainless steel submersible pump
● Built thermal protector
● Low power,high effect
● Small volume,widely used
● Large flow,high lift
● For 4" wells or larger
●Quick disconnect with "Watertight-Gland" Design Pat Pend
●Corrosion-proof housing with stainless-steel fastener
●Run dry without damage
● State of the art solid diaphragm
● Stainless Steel Pump case
● Pump Design: Positive Displacement 3 Chamber Diaphragm Pump
● Motor: Permanent Magnet Thermally Protected
● Wire Length:3M
Specifications: pump included:
A high-efficiency positive-displacement diaphragm submersible solar water pump. The system is designed for off-grid households as
a near zero recurring cost replacement for diesel.This pump max flow rate can be 720LPH(189GPH), the Max head can be 100M.
Its unique water-tight power connector stops water wicking and prevents potential condensation problems.
Great for livestock watering.irrigation,pondaeration,remote homes and cabins

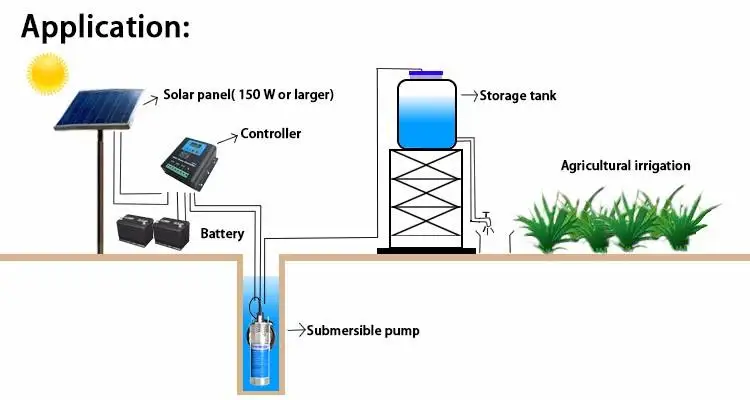

Application :
Solar water intake
Water intake at high altitude
Food beverage filling & liquid transfer
Any other pressurization system
A high-efficiency positive-displacement diaphragm submersible solar water pump. The system is designed for off-grid households as
a near zero recurring cost replacement for diesel.This pump max flow rate can be 720LPH(189GPH), the Max head can be 100M.
Its unique water-tight power connector stops water wicking and prevents potential condensation problems.
Great for livestock watering.irrigation,pondaeration,remote homes and cabins
Application :
Solar water intake
Water intake at high altitude
Food beverage filling & liquid transfer
Any other pressurization system

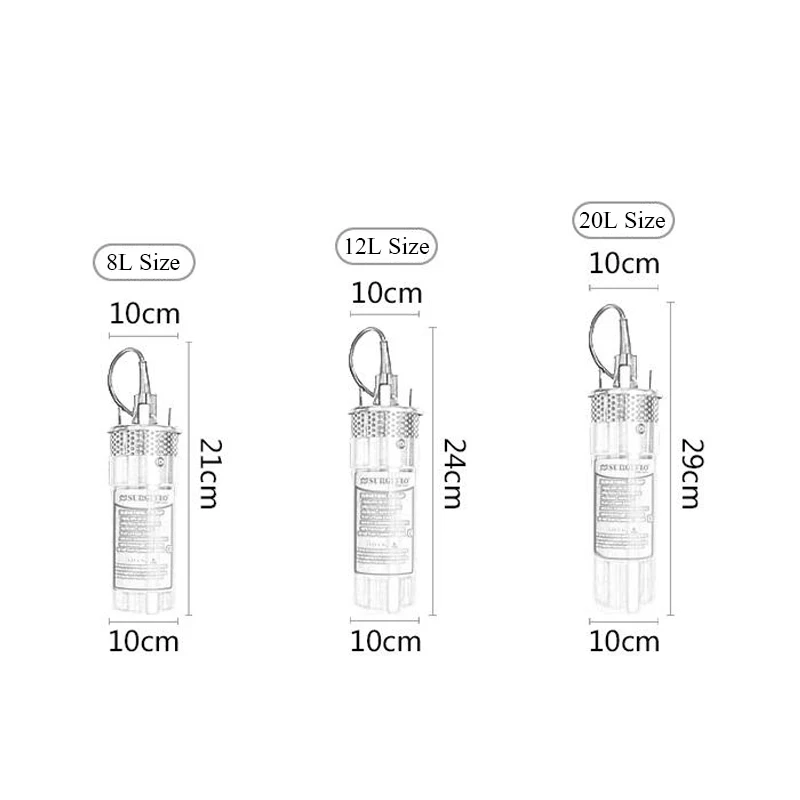

Specification
Type | Voltag | Flow | Current | LIFT | Diving depth | Outer diameter of connector |
ZY-12-8 | 12V | 8L | 8A | 70M | 30M | 12.7mm |
ZY-24-8 | 24V | 8L | 4A | 70M | 30M | 12.7mm |
ZY-12-12 | 12V | 12L | 10A | 100M | 30M | 12.7mm |
ZY-24-12 | 24V | 12L | 5A | 100M | 30M | 12.7mm |
Pump Design | Positive Displacement 3 Chamber Diaphragm Pump |
Motor | Permanent Magnet, Thermally Protected |
Voltage | 12/24VDC Nominal |
Amps | 5.0A Maximum |
Max flow rate | 12.0LPM / 3.2GPM |
Maximum Lift | 328 feet Maximum (100 Meters) |
Maximum Submersion | 100 Feet Maximum (30 meters) |
Outlet Port | 1/2'' (12.7mm) Barbed Fitting |
Inlet | 50Mesh Stainless Seel Screen |
Materials | High Strength Engineered Plastics,Stainless Steel Fasteners |
Typical Applications | Potable Water Well Pump |
Recommend Products
Packing & Delivery
Packing:
1.Attach the color sticker and label of the controller.
2.Put the controller and instruction manual into the color box.
3.Put into export carton.
4.Enter the warehouse and wait for shipment.
Kraft box packaging, Chinese and English manual, screwdriver, transparent bag,PE bags, OPP bags, Foam Cotton,Custom bags+carton case+carton box or as your requirement.
Main Port:
Guangzhou/Shenzhen/Hongkong or as require.
Express Company:
DHL, TNT, UPS, FEDEX, etc.
1.Attach the color sticker and label of the controller.
2.Put the controller and instruction manual into the color box.
3.Put into export carton.
4.Enter the warehouse and wait for shipment.
Kraft box packaging, Chinese and English manual, screwdriver, transparent bag,PE bags, OPP bags, Foam Cotton,Custom bags+carton case+carton box or as your requirement.
Main Port:
Guangzhou/Shenzhen/Hongkong or as require.
Express Company:
DHL, TNT, UPS, FEDEX, etc.
Company Profile
Founded in 2003, we are a professional factory of high-tech enterprise specializing in research and development,production,sales and oem of solar photovoltaic power supply and wind-solar complementary power upply products.
With professional R&D and design,software engineering experts,Testing Engineer team,and experienced manufacturing team,we can provide targeted products and solutions according to market and customer needs.
We have a sound quality control system,strict standards in each link,to ensure that the performance and core technology of products are reliable,most products are certified by professional qualifications,reliable performance.We have passed CE,ROHS,FCC and other certifications ,and has become a popular brand of CCTV.
FAQ
Q1: Do you support Ready To Ship ,OEM&ODM?
Q5.: How to select a suitable products?
A1: Yes, we are a powerful factory, one piece can also be shipped, and we can also customize products for you,the MOQ is much lower than many factories.
Q2: What is our advantage ?
Q2: What is our advantage ?
A2: We have professional R&D team, can customized the products you want. We have 10,000 square meters and more than 100 staffs.
Q3: How can we guarantee quality?
Q3: How can we guarantee quality?
A3: Always a pre-production sample before mass production; All of our products have passed certification of CE,CCC,UL and RoHS. Always final Inspection before packing
Q4: What can you buy from us?
A4: Solar tied inverter, solar off grid hybrid solar inverter, Solar pumping inverter, Pure sine wave
inverter, Modified sine wave inverter, MPPT/PWM solar controller, battery charger, Solar lighting system, power converter
Q4: What can you buy from us?
A4: Solar tied inverter, solar off grid hybrid solar inverter, Solar pumping inverter, Pure sine wave
inverter, Modified sine wave inverter, MPPT/PWM solar controller, battery charger, Solar lighting system, power converter
Q5.: How to select a suitable products?
A5: Tell us your demand, we can recommend a suitable inverter to you.
