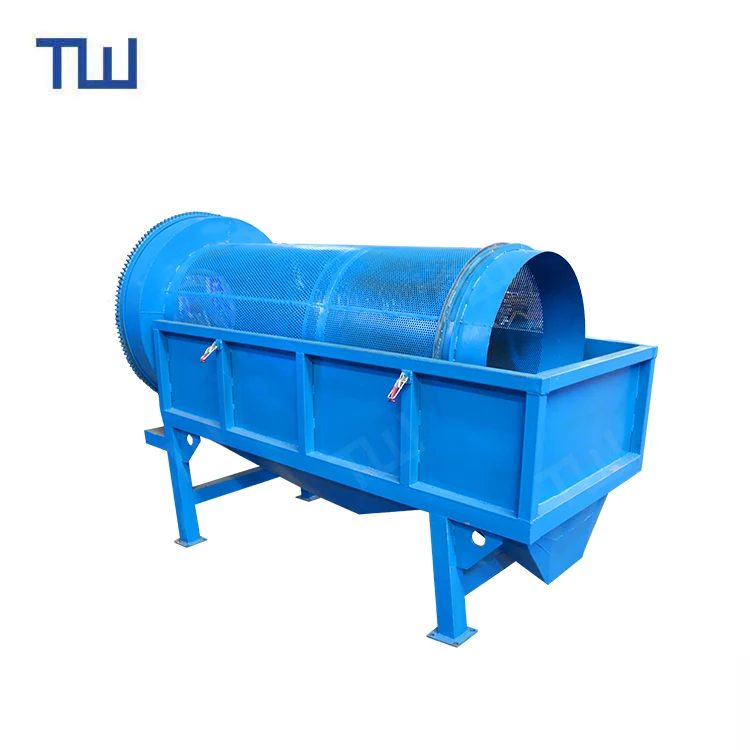

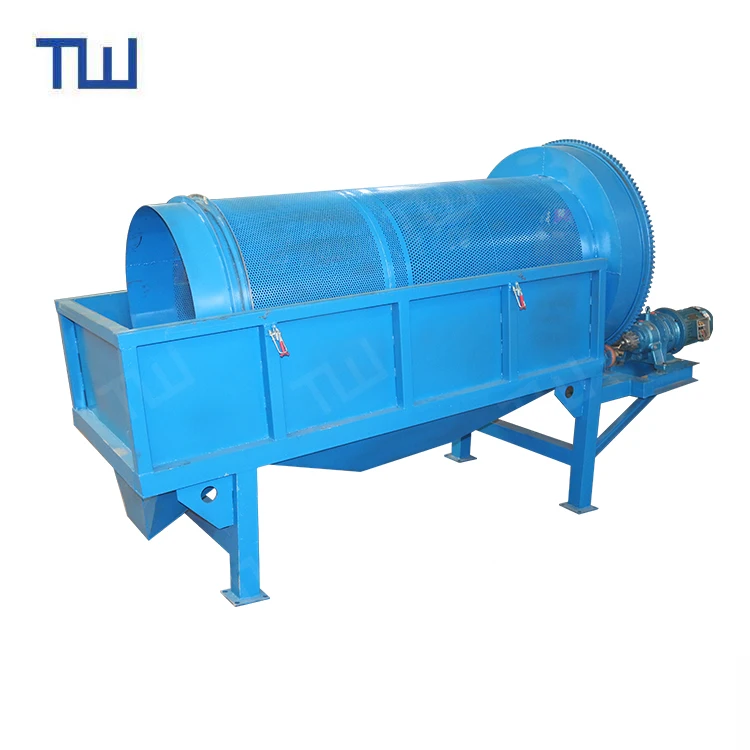

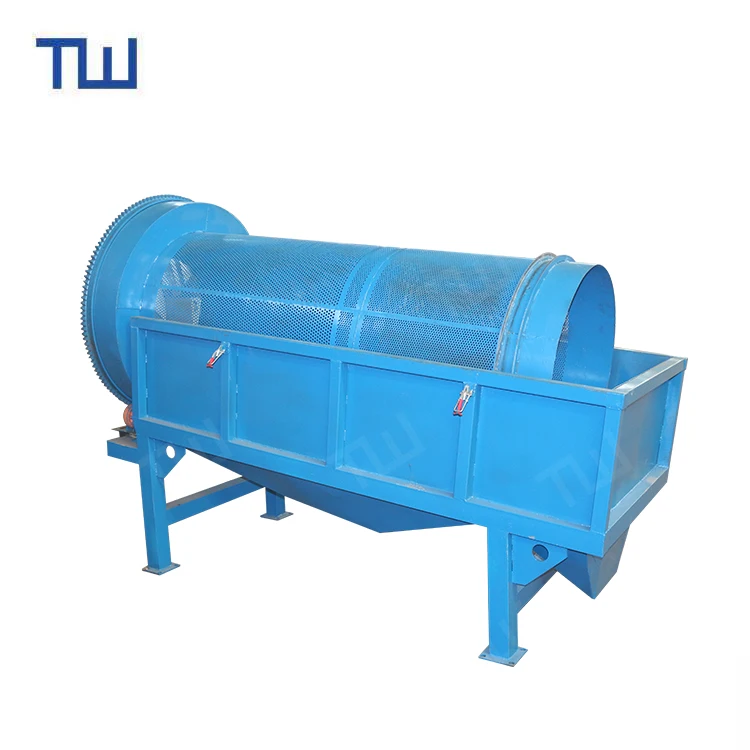

Rotary Drum Sieve Sand and Stone Separator Municipal solid waste sorting line waste small trommel screen

Share on (1600747182707):


Price:$3,200.00

Quantity:


Product Overview

Description



Product despcription

Rotary Drum Sieve Sand and Stone Separator Municipal solid waste sorting line waste small trommel screen

3




Production description





Rotary Drum Sieve Sand and Stone Separator Municipal solid waste sorting line waste small trommel screen For Classifier Compost Bsf Larvemanufacturer price is made of fine workmanship, sturdy and durable, the steel frame is welded with section steel, and the hopper has a large volume and is made of steel plates. There are multiple hoppers for discharging respectively. The mouth of the funnel is connected by a flange, and the material can be fed to both sides or one side, which is convenient for pulling or self-flowing, which improves the output and prevents the blocking of the material from wearing the screen and delaying the production.


2


.png

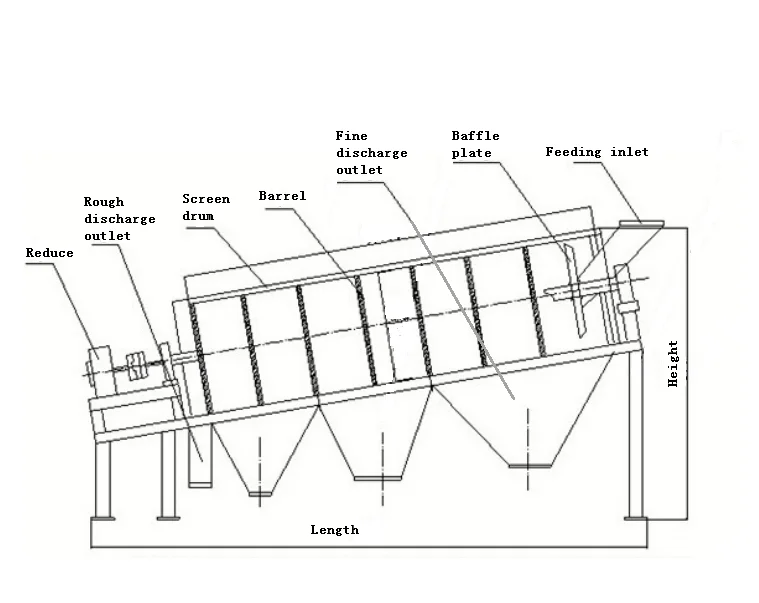

Rotary Drum Sieve Sand and Stone Separator Municipal solid waste sorting line waste small trommel screen specification.
































































Model



Diameter(mm)



Length of Screen


(mm)



Discharge


Size


(mm)



Capacity(m³/h)



Power(kw)



TW-600



600



2000



0~100



1-5



0.75



TW-800



800



2500



2-10



1.1



TW-1000



1000



3000



10-30



2.2



TW-1200



1200



3500



20-50



4



TW-1500



1500



4000



40-80



5.5



TW-1800



1800



5000



80-150



7.5



TW-2000



2000



8000



250-300



22

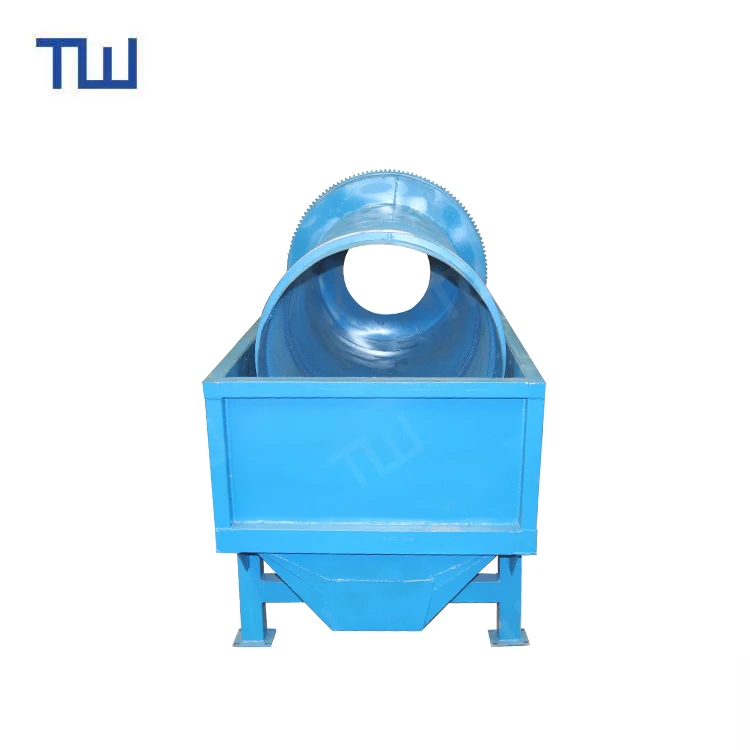

Rotary Drum Sieve Sand and Stone Separator Municipal solid waste sorting line waste small trommel screen screen

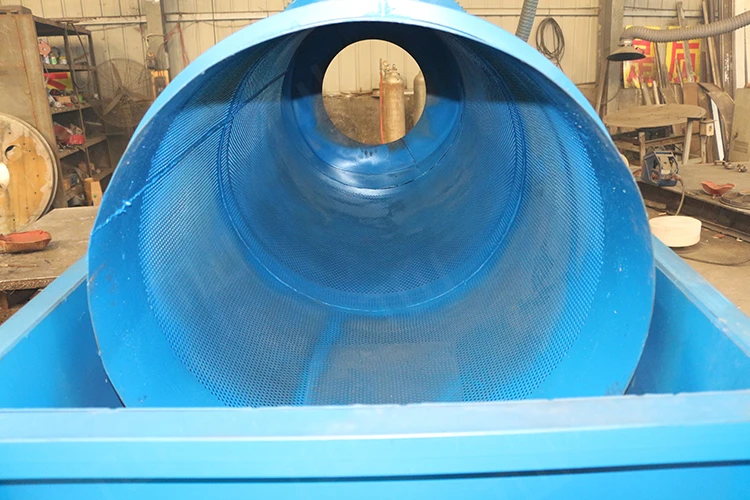

IMG_0206

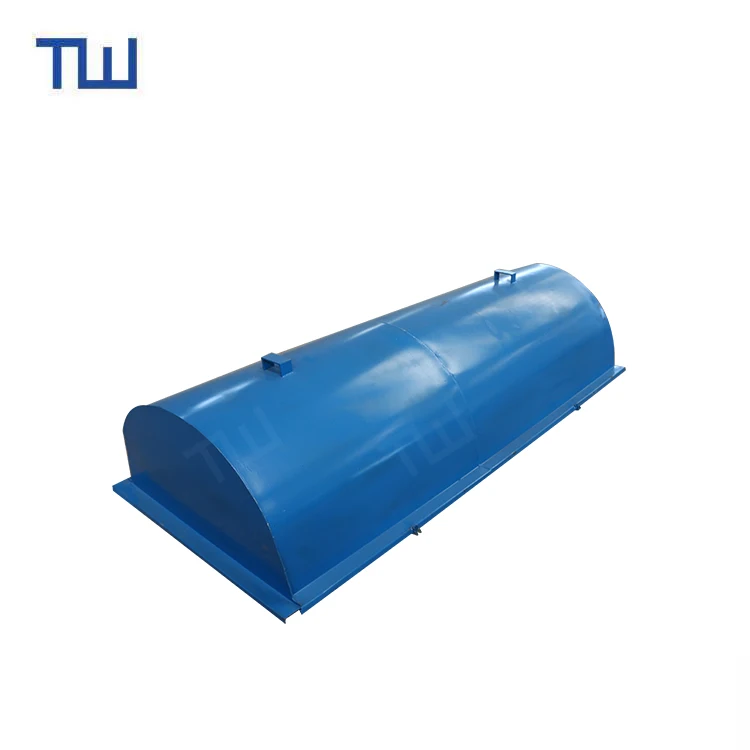

Rotary Drum Sieve Sand and Stone Separator Municipal solid waste sorting line waste small trommel screen  with good quality .

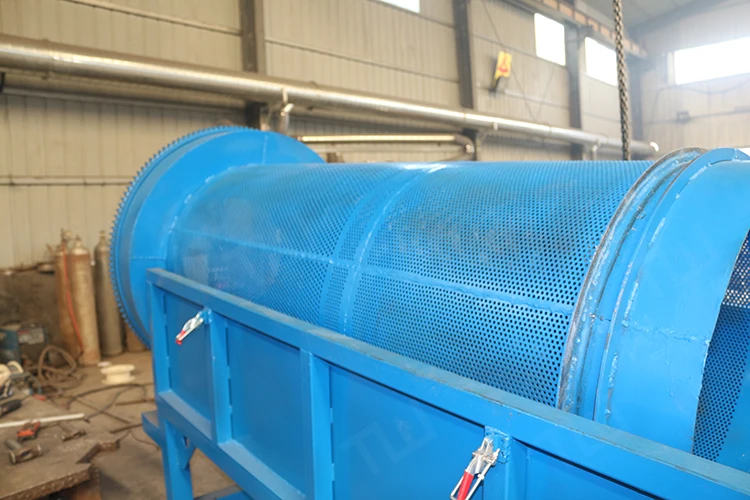

IMG_0293

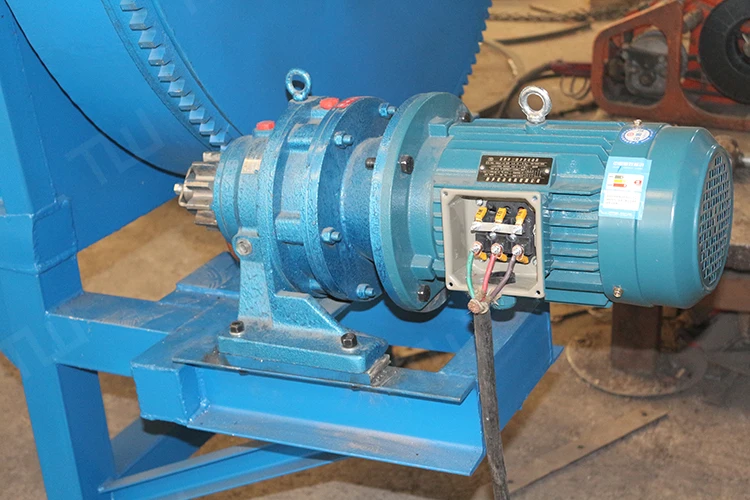

Rotary Drum Sieve Sand and Stone Separator Municipal solid waste sorting line waste small trommel screen motor.


IMG_0205


Main Features


(1) Smoothly operation and low noise.
(2) High powerful Screening ability, screened and washed widely and remarkable effects.
(3) The screening tube can be closed, easy to collect dust airtight.
(4)The high reliability and one-time investment is less.





Product Application


.png





Company introduction


magnetic separator





Our strengths


Beneficiation equipment





Related Products




FAQ



Q:Can you recommend the equipment for me ?
A:Yes,you send the information we need ,we will suggest you the best model for you and you will get the best solution.

Q:How about the payment?
A:We usually accept 40% prepayment and the balance payment before shipment .


Q:Can you offer EXW,FCA FOB ,CIF and CNF price ?
A:Yes,we would like to offer you the different price of different trading manner.

Q.What is the real delivery time of your factory?
A:7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.

Q:What’s the guarantee for the machine ?
A:12 months for the machine except the quick-wear parts.if machine meet the problem ,we will reply you in time and help you solve it within 12 hours.and the results is liked for each other .

Q:How to make the payment ?
A:You can make payment by bank account and trade assurance account.the following payment terms for refer :BOLETO, MasterCard, Visa, E-Checking, PAYLATER, T/T.








Delivery of the good
