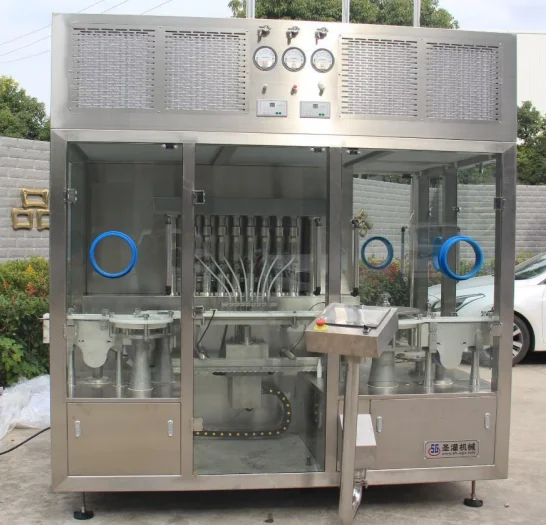

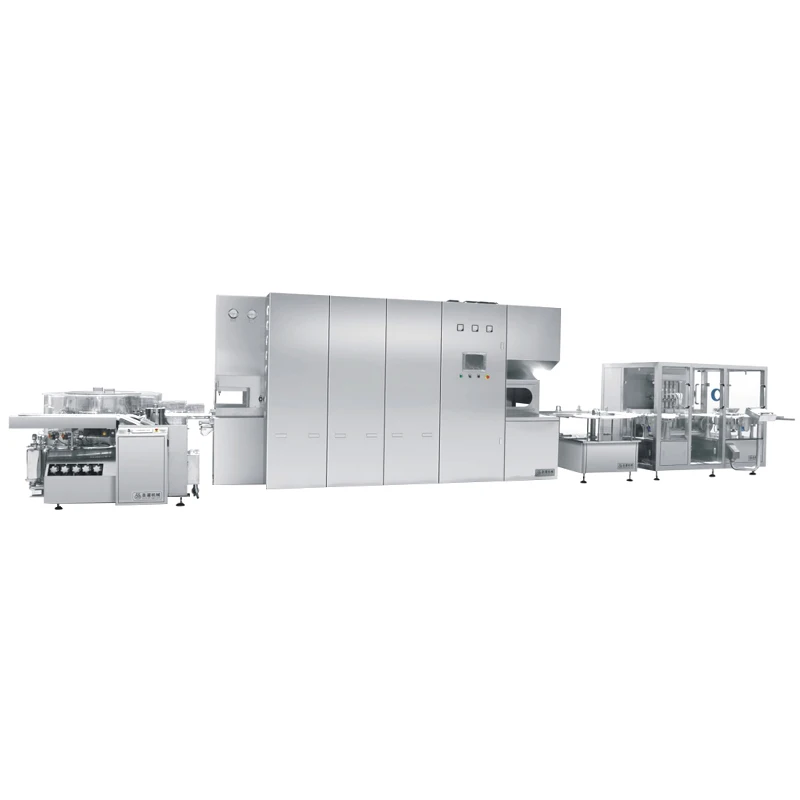

Pharmaceutical Industry Production Line Injection Liquid Vial Filling and Capping Machinery Equipment

Brief introduction:

This machine is suitable for pharmaceutical industry to automatically fill the vials with high precision solution, and at the same time to add automatic full stopper or half stoppering. With PLC program control, advanced intelligent electronic control technology, simple and intuitive human-computer interface, the perfect Mechatronics

design is realized; no bottle can be filled, no bottle is not filled. The appearance is made of high quality 304 stainless steel, which meets the requirements of GMP.

The main technical parameters:

1. Applicable specifications:6R-100R

2.   Density: 0.9-1.2 g / cm³; PH 3.0-12.0,Viscosity: max 250 mPa * s

3. Production capacity:

- 8000 vials / hour - when working with a vial of R10 and dosage in a vial of 1,0-11,0 ml of the drug;

- 8000 vials / hour - when working with a vial of R6 and dosing in a vial of 1,0-5,0 ml of the drug;

- 1000 vials / hour when working with a vial of 50 ml and dosing in a vial 25,0-53,0 ml of drug;

- 800-1000 vials / hour when working with a vial of 100 ml and dosing in a vial 50,0-105,0 ml of drug.

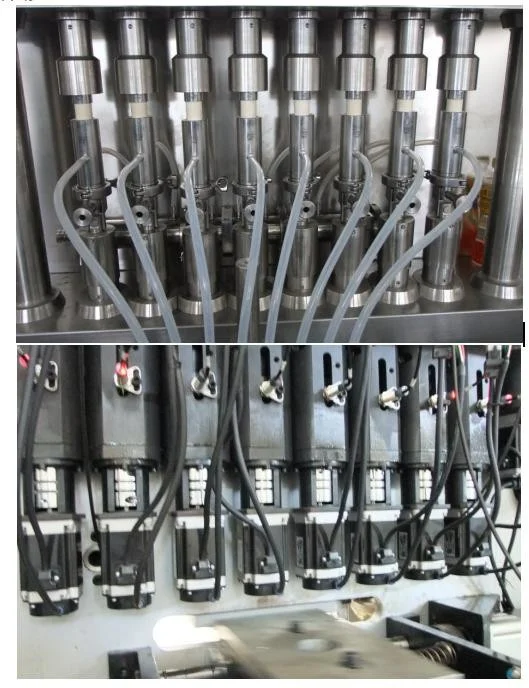

4. filling heads:6pcs

5. Stoppering qualified rate: ≥99.9% 5.Filling accuracy:≤+/- 1% 6.Vacuum pressure:600KpaG 7.Total power: 5KW

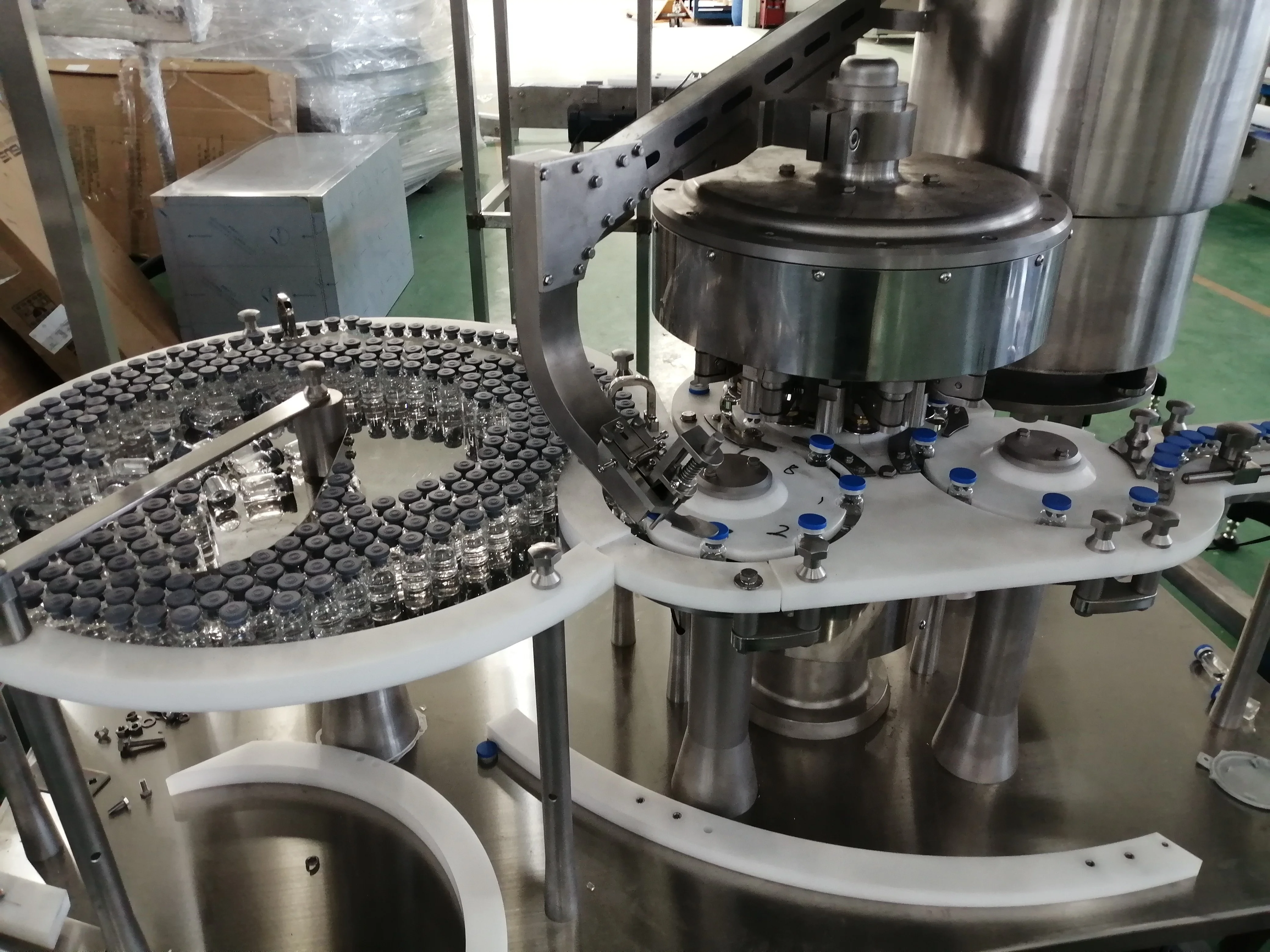

8. Full stoppering or half stoppering

9. Laminar flow cover Cleanliness A grade, filter H14, Speed 0.45m/s +/-20% 10.Dimensions:L 3000*W2400*H2400mm( Including laminar flow cover) 11.Weight: 2500kg
