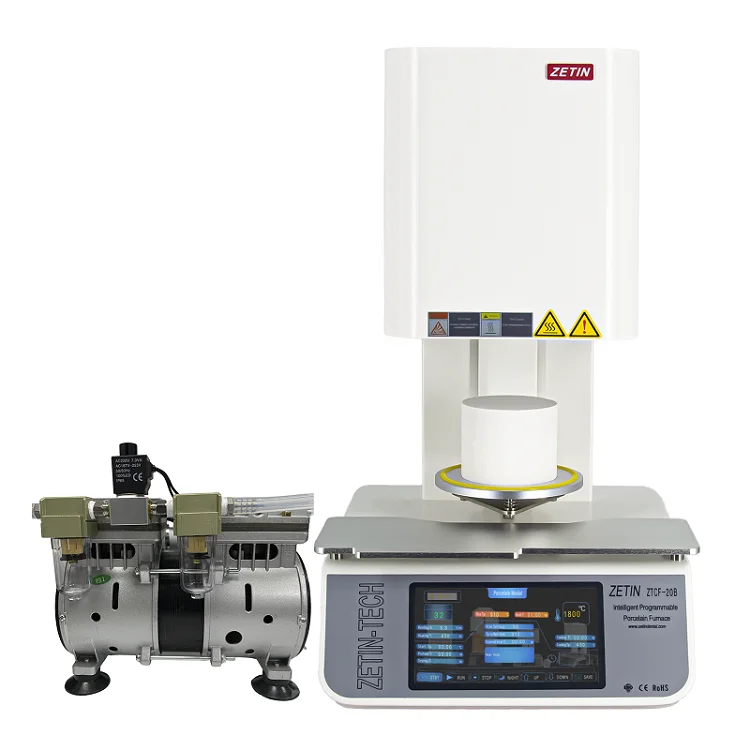

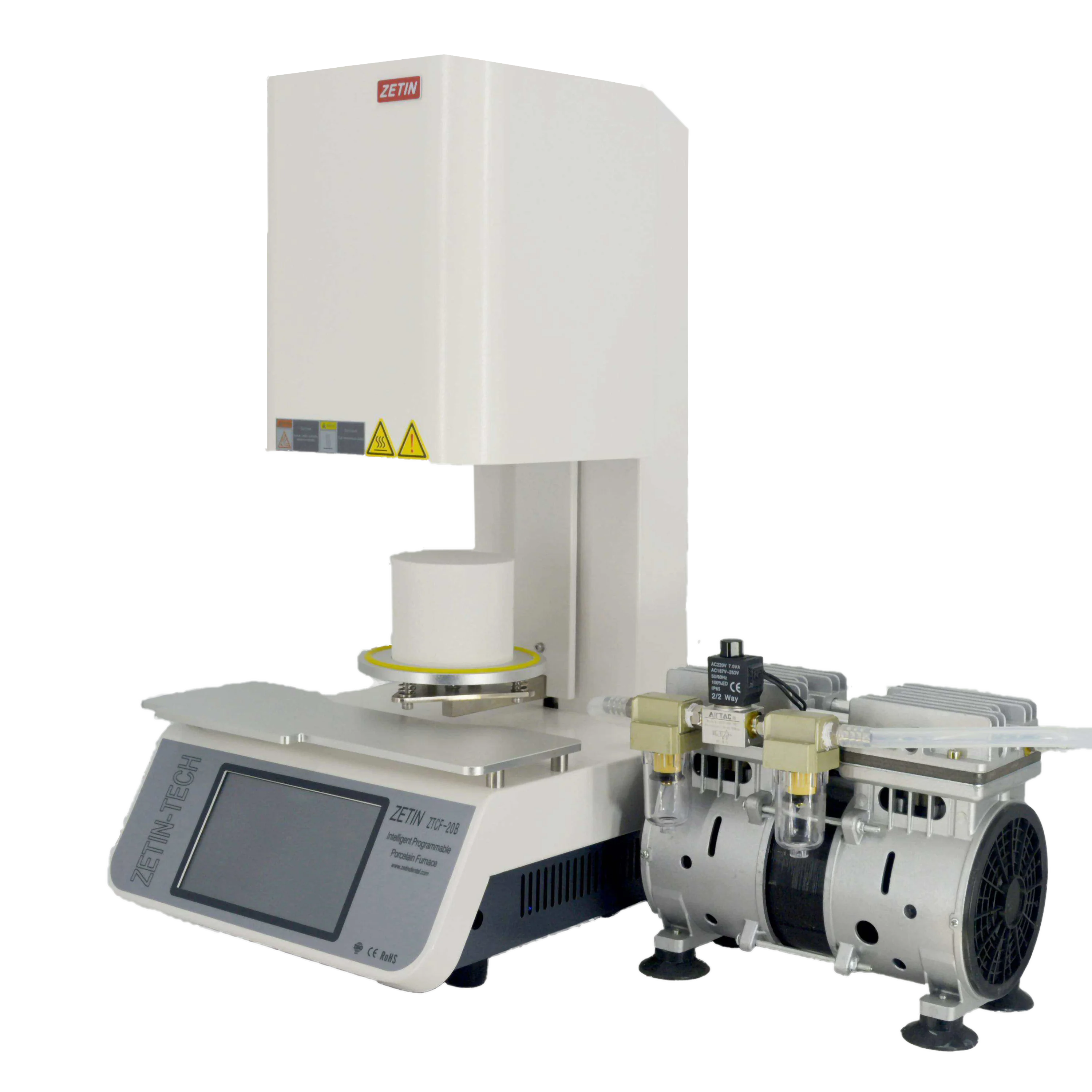

ZETIN Dental Porcelain Furnace ZTCF 20B Laboratory Heating Equipments
- Category: >>>
- Supplier: Zhengzhou Zetin Electromechanical Equipment Co. Ltd.
Share on (1600747224592):
Product Overview
Description
Products Description

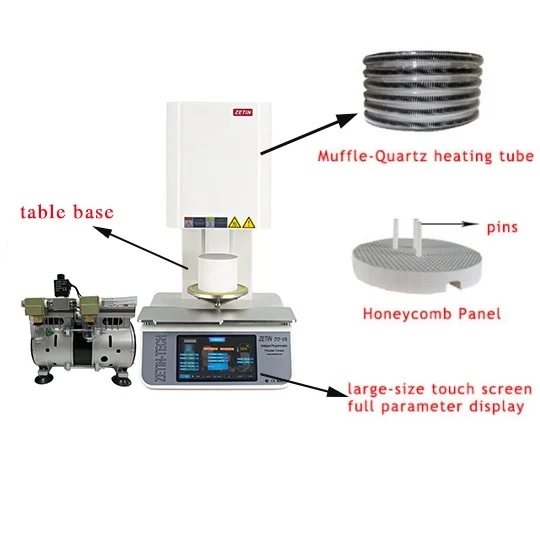

Dental porcelain furnace applies auto lift and down tray with non-oil vacuum pump design which almost don’t need maintain and less noise, it is suitable for all kinds of ceramic powder materials, such as IVOCLAR, VITA, NORITAKE etc, it configure with long lifetime and zero pollution Swedish Kanthal heating wires and U.S. accurate vacuum measurement sensor. Meanwhile Zetin use new environmental thermal insulation material that has a good insulation effect and ensure the temperature stable.
Features
●PID intelligent temperature control system ensure high Quality of the function of temperature adjustment automatically, ensure the actually temperature error within +/-1. 。
●Easy to operate, compact size, can be used for lab and office.
●Precision stepper motor drive, the smooth and jitter-free functioning, noise-free, speed programmable.

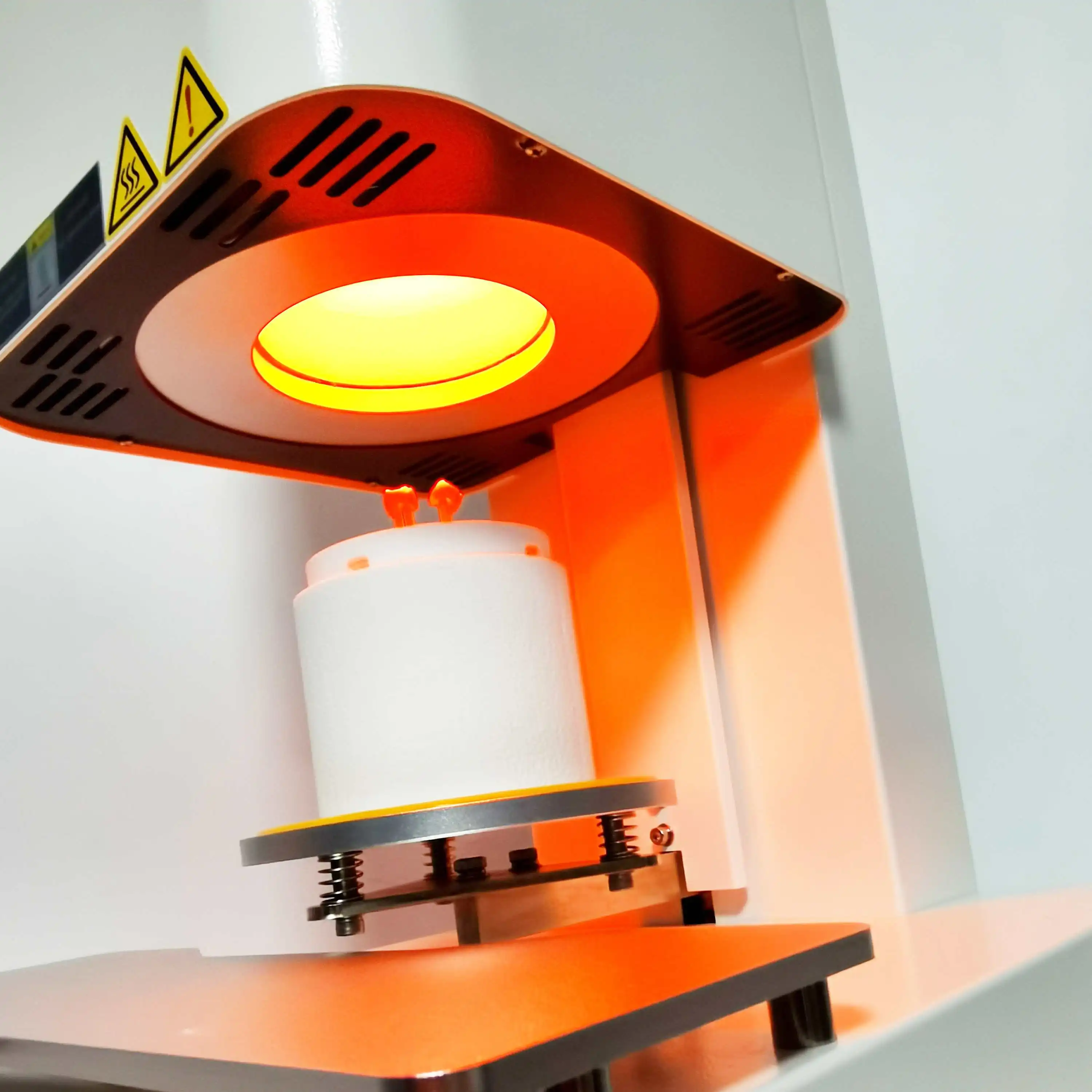

●Sprial quartz chamber of furnace.
●Temperature adjustment automatically before everything firing procedure.

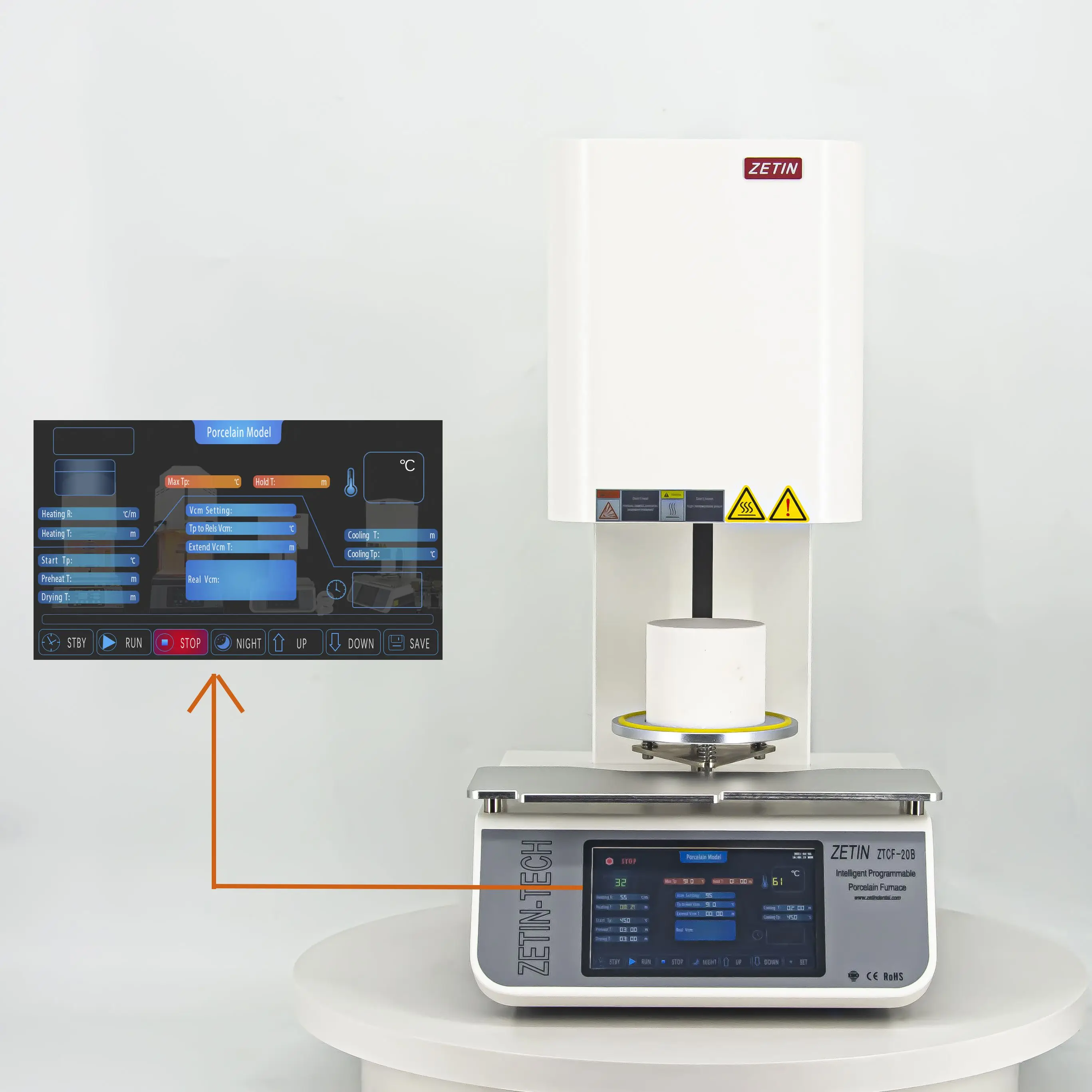

●True large and color touch screen display all the parameters, the operation is simple and convenient.
●Built in 40 program.
●Optical status display.
●Easy to operate, compact size, can be used for lab and office.
●Precision stepper motor drive, the smooth and jitter-free functioning, noise-free, speed programmable.
●Sprial quartz chamber of furnace.
●Temperature adjustment automatically before everything firing procedure.
●True large and color touch screen display all the parameters, the operation is simple and convenient.
●Built in 40 program.
●Optical status display.
Specification
Model | Tmax | Inner dimensions in mm | Outer dimensions in mm1 | Connected | Weight In kg | |||||||||||||
ZTCF-20B | °C | Ø | W | D | H | load kW | Furnace | Pump | ||||||||||
1300 | 100 | 70 | 300 | 430 | 620 | 1.6 | 26 | 10 | ||||||||||
*These furnaces are available for main voltage of 220 V 50/60H | ||||||||||||||||||
Packaging & Shipping
Certifications
Recommend Products

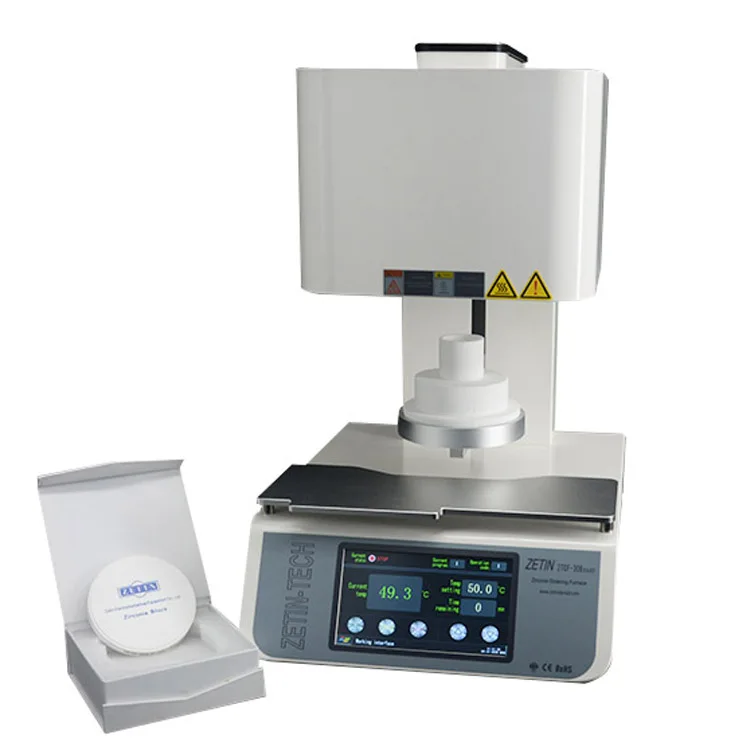

Chairside Sintering Furnace
Zetin Chairside speed sintering furnace is specially design for office use，Its particular advantage is the short processing time, which significantly improve the fabrication time of zirconium oxide crown and bridge frameworks as well as the energy consumption.
ZTCF-30B speed model in addition to equipped with a dry program also there is a forced cooling procedure and vacuum pumping pipe which is used to moisture completed removal during the temperature heating up to a defined degree phase. In the acceleration of cooling phase the furnace will automatically run step by step under the control of the set smart program.
ZTCF-30B speed model in addition to equipped with a dry program also there is a forced cooling procedure and vacuum pumping pipe which is used to moisture completed removal during the temperature heating up to a defined degree phase. In the acceleration of cooling phase the furnace will automatically run step by step under the control of the set smart program.
FAQ
Q:Are you a factory?
A:Yes. Zetin is a factory and it integrates design,manufactures and sales for several years.
Q:What about the delivery time？
A:Generally,the order will be deliveried within 15 days after receiving the payment or based,and also have to depend
on the quantity and production schedule.
on the quantity and production schedule.
Q:Which shipment is available?
A:Ses,train,air,truck and express(DHL TNT EMS Fedex UPS)ect...Accroding to the situation and the requires.
Q:What about the warranty period?
A:The warranty period is 1 year.
