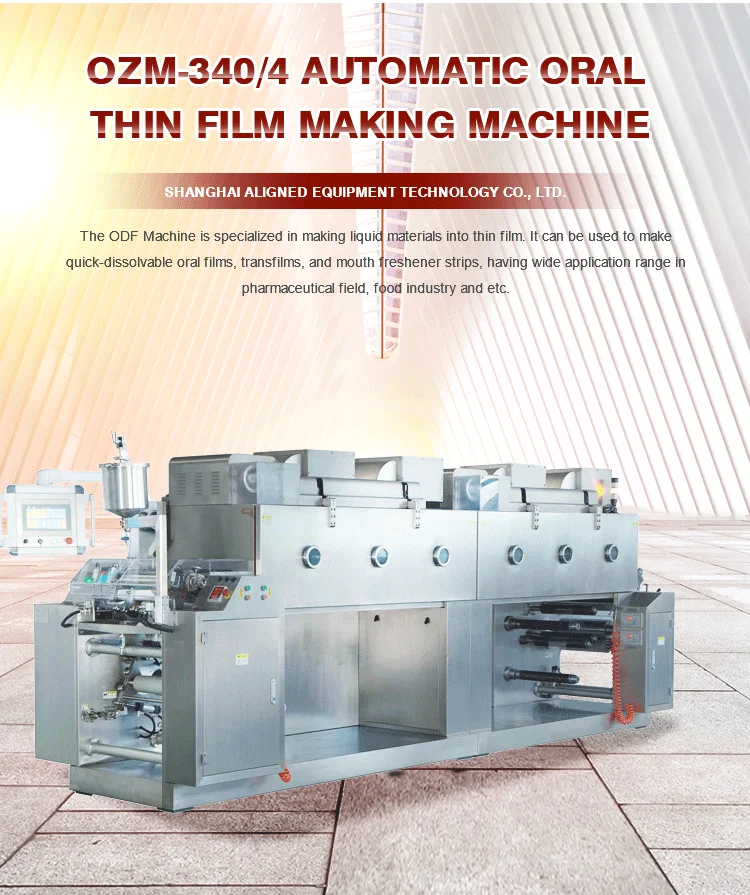

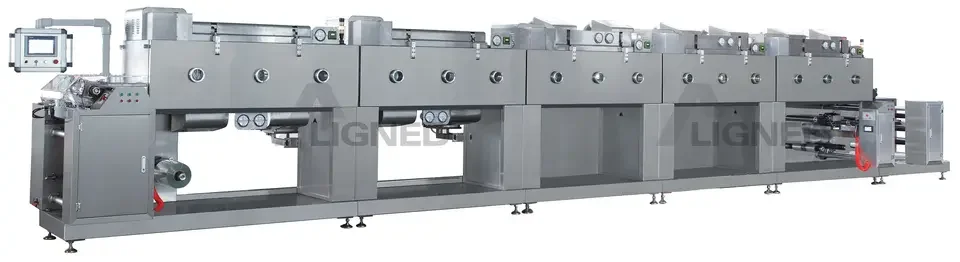

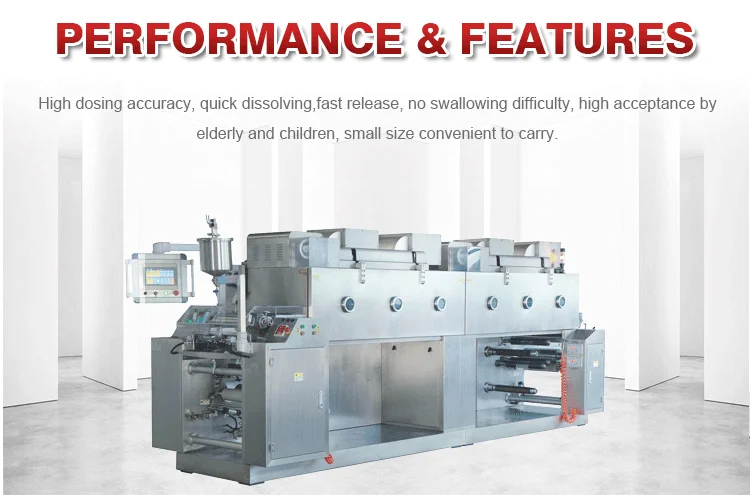

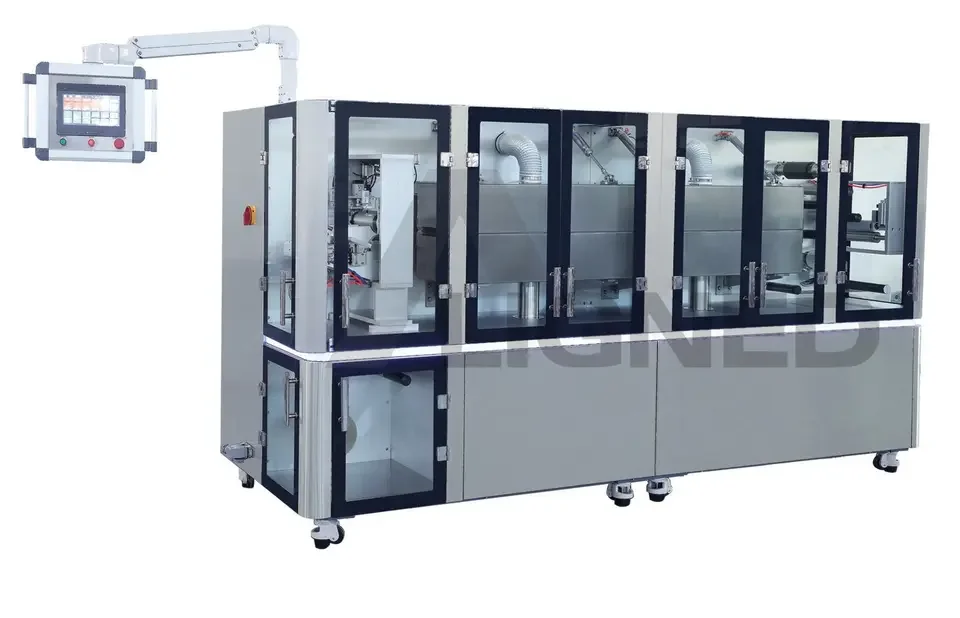

Orally Dissolving Film manufacturing oral strip machine
- Category: >>>
- Supplier: Shanghai Aligned Machinery Manufacture & Trade Co. Ltd.
Share on (1600747280259):
Product Overview
Description
Item | Parameters |
Model | OZM‐340/4 |
Oven Length | 4M |
Max Casting Width | 340mm |
Roll Width Of Film | 400mm |
Running Speed | 0.1m‐1.5m/min (depends on formula and process technology) |
Unwinding Diameter | ≤φ350mm |
Winding Diameter | ≤350mm |
Method Of Heat & Dry | Heating by external stainless steel heater, hot air circulation in centrifugal fan |
Temperature Control | 40~100℃±3℃ |
Edge Of Reeling | ±1.0mm |
Power | 31.5Kw |
Overall Dimension | 5500*1620*2050mm |
