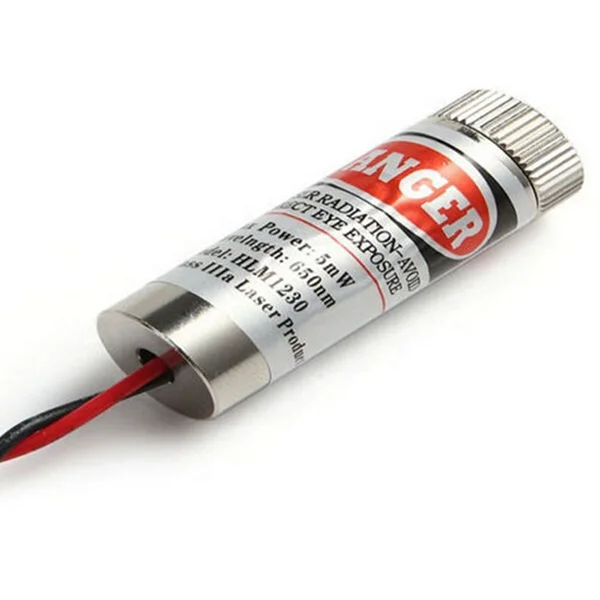

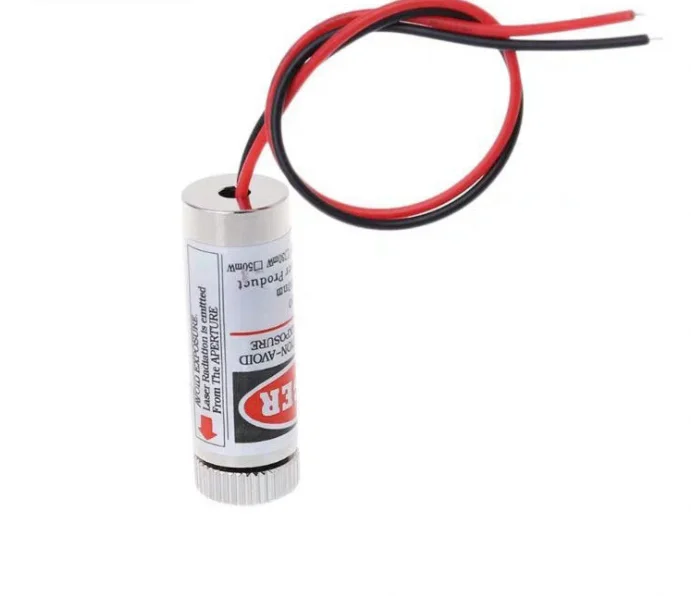

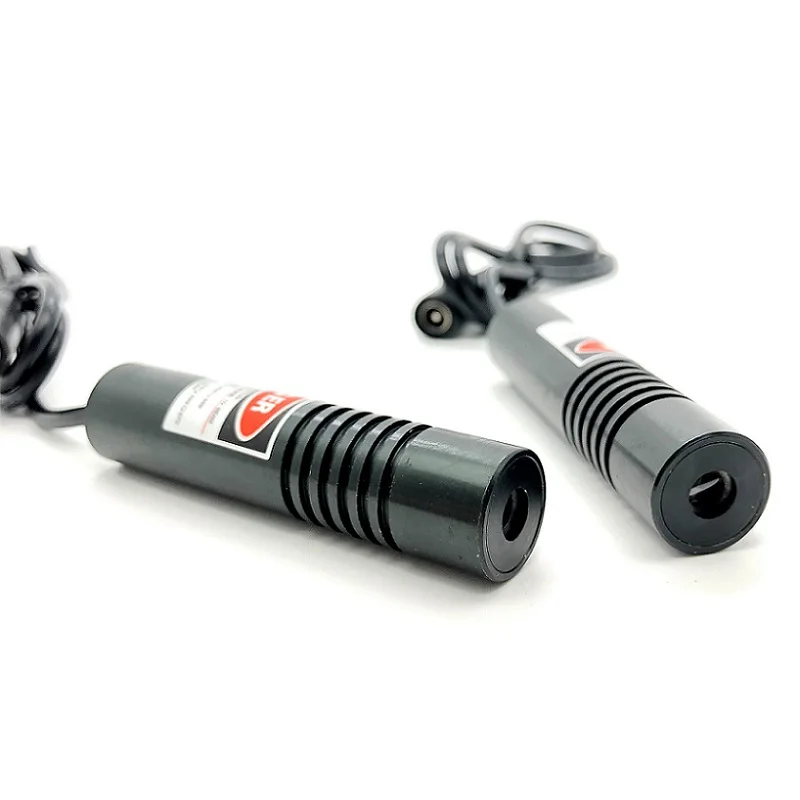

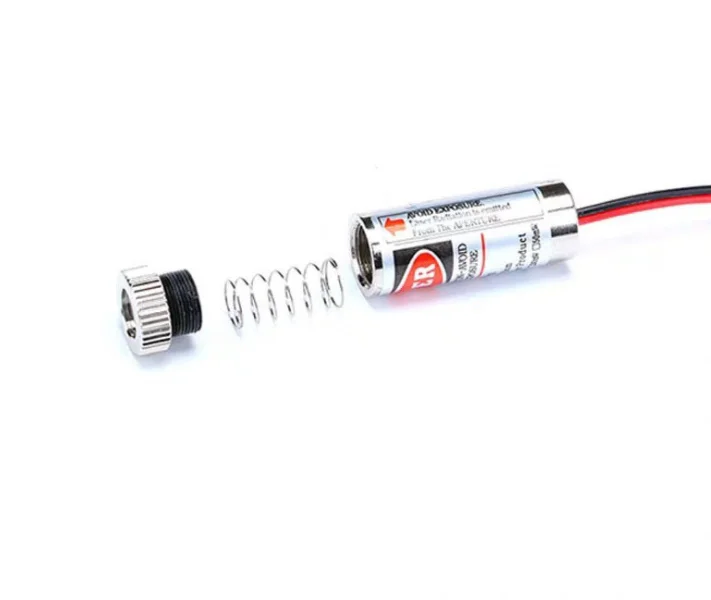

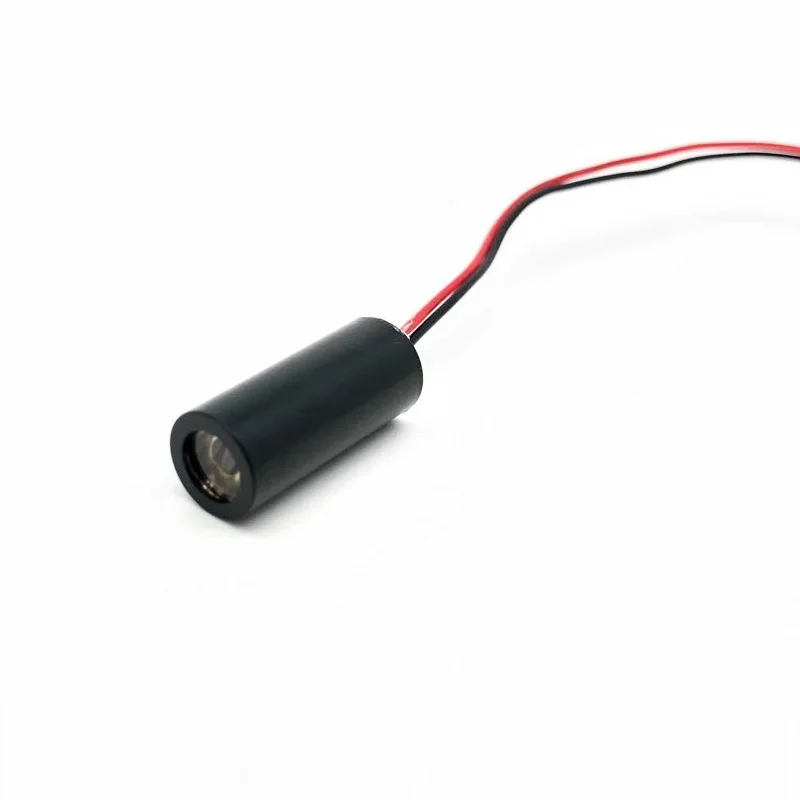

Laser Diode Positioning Line Page Turning Pen Fiber Lamp Diode 650nm Low Power Infrared Ray Laser Module
- Category: >>>
- Supplier: Shenzhen Libao Xingye Electronics Co. Ltd.
Share on (1600747313761):
Product Overview
Description
Product Description
Specifications:
- Available wavelength: from 450nm to 650nm
- Size: Dot: 4x14mm; 6x17mm; 8x25mm; 6.5x17mm; 8x17mm; 9x20mm; 9x23mm; 12x40mm; 12x28mm etc.
- Size Line:;9x23mm,12x34mm,9x27mm,12x35mm,etc.
- Size Cross: 15x35mm,etc.
- Output power: from 0.4mW to 80mW(dot)
- Output power: from 0.4mW to 50mW(line and cross)
- Output aperture: dia.1mm; 2mm; 5mm;6mm; 9mm; 20mm;30mm, etc.
- Operating voltage: DC 3V to DC 24V
- Operating current: less than 120mA
- Standard operating distance: can fixed according to buyer's request

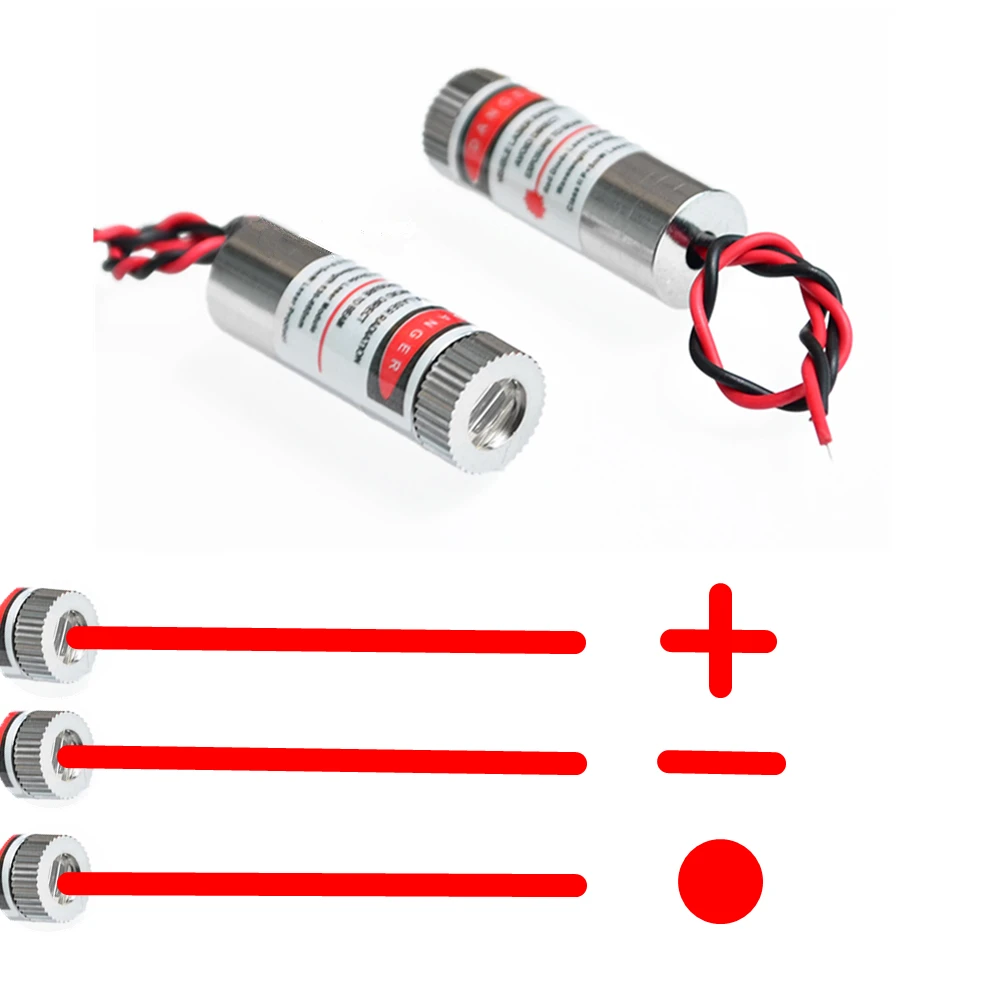

- Beam character: dot;or line,or cross
- Divergence: from 0.1mrad to 1.5 mrad
- Optics: glass lens both sides AR coated or plastic lens
- Life time: more than 8000 hours
- Laser safety classification: class 1 to class 3R
| Technical Requirement | MIN. | Typical Value | MAX. | Unit | Remarks |
| Output Power | 0.5 | -- | 10 | MW | |
| Operating Current | -- | -- | 300 | MA | |
| Operating Voltage | 3.0 | V | |||
| Wavelength | 532 | NM | |||
| Operating Temperature | 20 | 25 | 30 | °C | |
| Storage Temperature | -10 | -- | 60 | °C | |
| Beam Size | -- | -- | 15*20 | MM | 10M distance |
| Concentricity | -- | -- | ±3 | ° |
Applications:
--Industrial marking devices
--laser medical equipment
--stage lighting and laser targeting devices and so on
Packaging & Shipping
Packaging:PVC trays and master carton,also,we could do customized packing according to the quality.
Our Services
1.Follow up the case, record the entire process and all the voice from each customer. Solution will be provide with 24 hours
2.Online via SKYPE, mail, voice phone, message could contact us at any time!
3.All products have 1 year warranty.If there is no man-made problem,we will replace or repair for your freely.
4.OEM accepted
Company Information
Shenzhen Libao Xinye Electronics Co., Ltd. is one of the most professional medical aestheticalresurfacing equipment vendors in China, we have over 10 years experiences of laser product . we present world leading performance and quality.
Our company is providing products for not only domestic market but also European and American markets. We also provide OEM and ODM products for international large enterprises, gaining a considerable reputation on international market with advanced technology, quality product and perfect services.
FAQ
Advantages
1.We will process as the drawings and requirements rigorously.
2.Our engineer will check or design the drawings according to the details.
3.We have some stock lenses offered
Customer Service Center (International)
1.From Monday to Saturday between 08:00-17:30 hours (Beijing Time)
2.Reply you inquiry in 24 working hours.
3.Offer customer the best price with high quality products.
