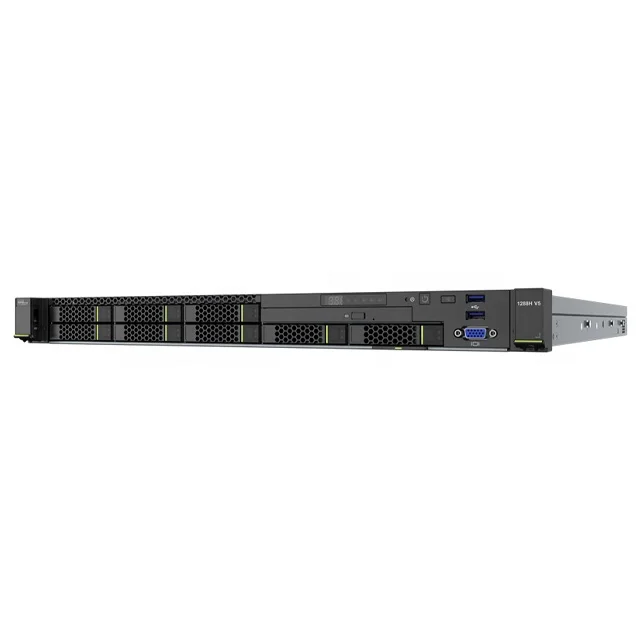

High quality xfusion 1288H V5 for HPC 1u 8*2.5in bays Intel Xeon 4110*2 1.2TB SAS*4 rack server

Form factor

1U rack server

Processors

1 or 2 1st Generation Intel® Xeon® Scalable processors (3100/4100/5100/6100/8100 series), up to 205 W
1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205 W

Chipset platform

Intel C622

Memory

24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s

Internal storage

Supports hot-swappable hard drives with the following configuration options:
• 10 x 2.5-inch SAS/SATA/SSDs (6–8 NVMe SSDs and 2–4 SAS/SATA HDDs, with a total number of 10 or less)
• 10 x 2.5-inch SAS/SATA/SSDs (2–4 NVMe SSDs and 6–8 SAS/SATA HDDs, with a total number of 10 or less)
• 10 x 2.5-inch SAS/SATA
• 8 x 2.5-inch SAS/SATA hard drives
• 4 x 3.5-inch SAS/SATA hard drives
Flash storage:
• 2 M.2 SSDs

RAID support

RAID 0, 1, 1E, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming,
self-diagnosis,
and web-based remote configuration

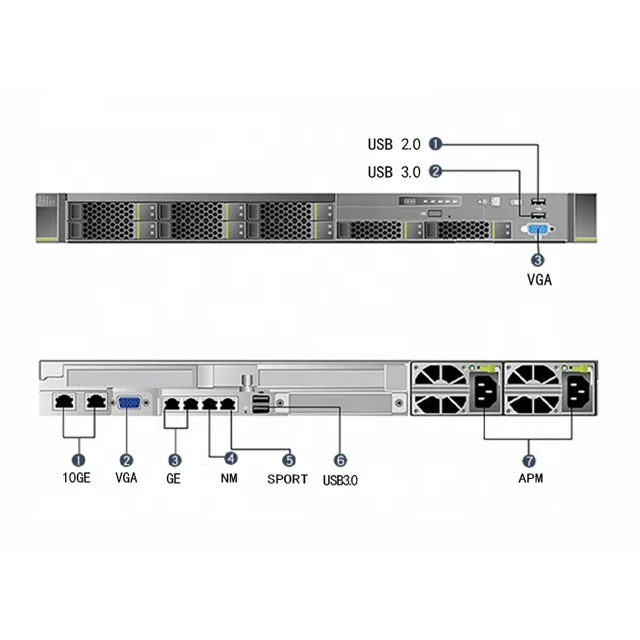

Network ports

LOM: 2 x 10GE + 2 x GE ports
Flexible NIC: 2 x GE, 4 x GE, 2 x 10GE, 2 x 25GE, or 1/2 x 56G FDR IB ports

PCIe expansion

Up to 5 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC

Heterogeneous
accelerator cards

2 single-slot HHHL GPU heterogeneous accelerator cards

Fan modules

7 hot-swappable counter-rotating fan modules with support for N+1 redundancy

Power supply units

2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options:
• 550 W AC Platinum PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W AC Platinum PSUs
1000 W (input: 100 V to 127 V AC)
1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)
• 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC)

Management

• iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault
diagnosis, automated O&M, and hardware security hardening.
• iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/
VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management.
• (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless
computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management.

Operating Systems

Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, VMware ESXi

Security

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, and security front panel

Operating temperature

5ºC to 45ºC (41ºF to 113ºF), compliant with ASHRAE A3 and A4

Certification

CE, UL, FCC, CCC, and RoHS

Installation suite

L-shaped guide rails, adjustable guide rails, and holding rails

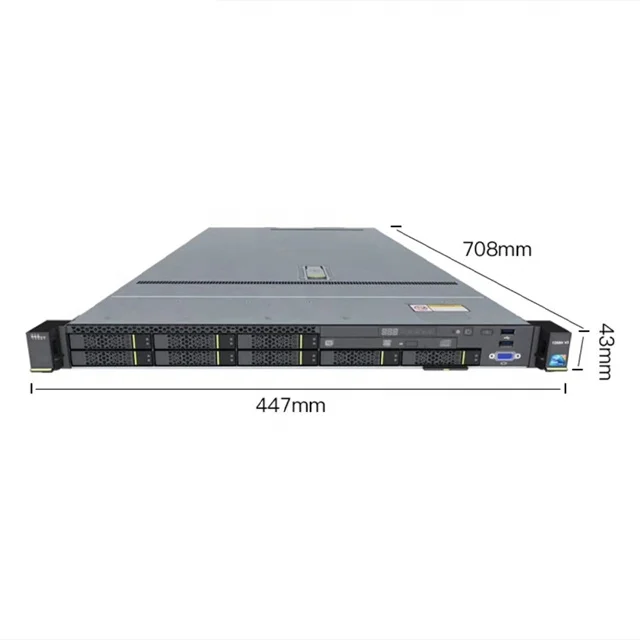

Dimensions (H x W x D)

Chassis with 3.5-inch hard drives: 43 mm x 436mm x 748 mm (1.70 in. x 17.60 in. x 29.45 in.)
Chassis with 2.5-inch hard drives: 43 mm x 436mm x 708 mm (1.70 in. x 17.60 in. x 27.87 in.)
