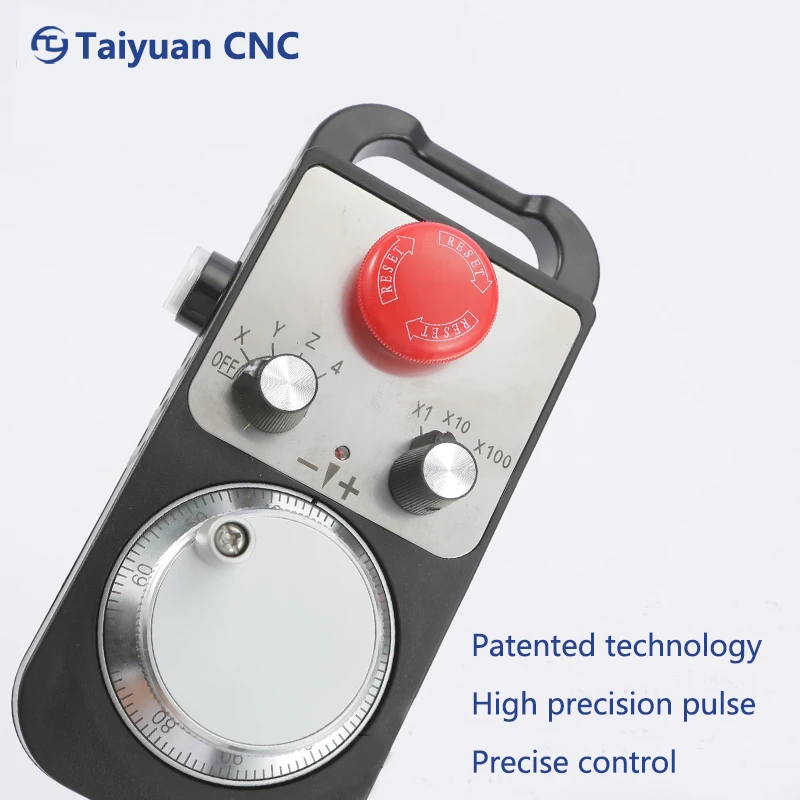

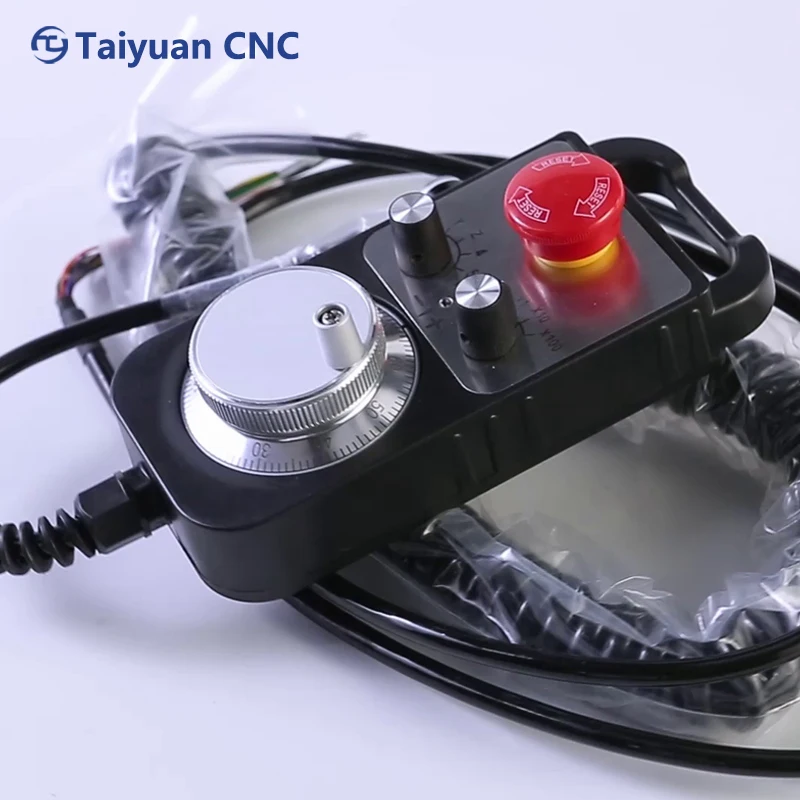

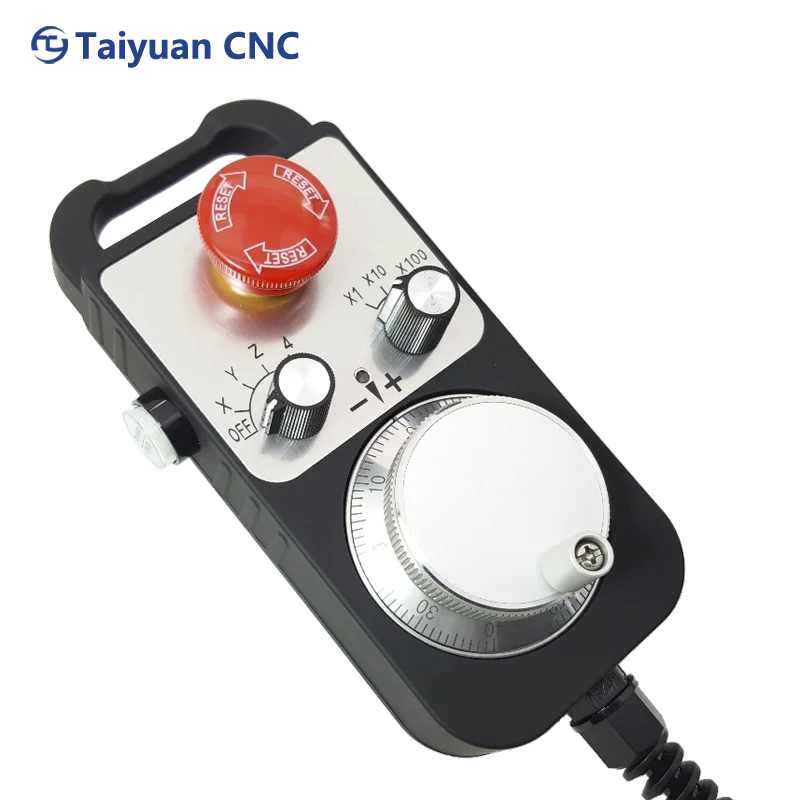

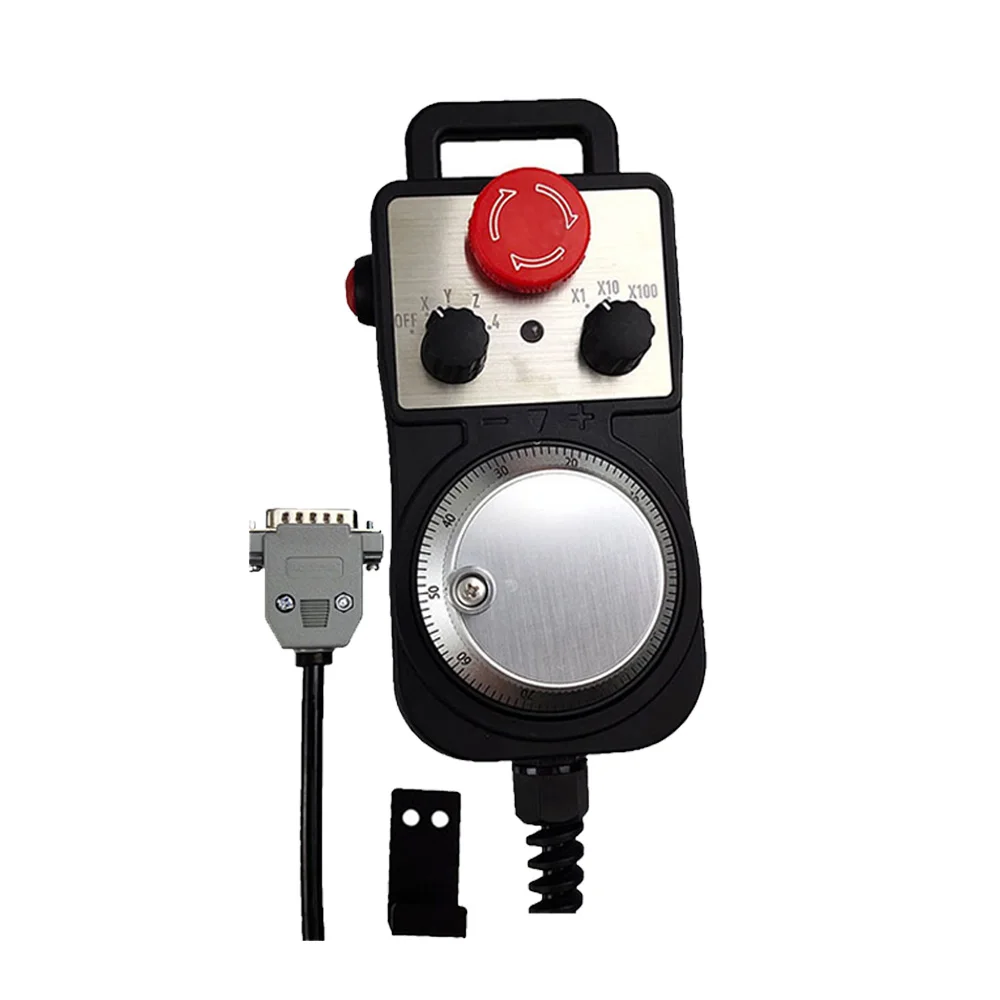

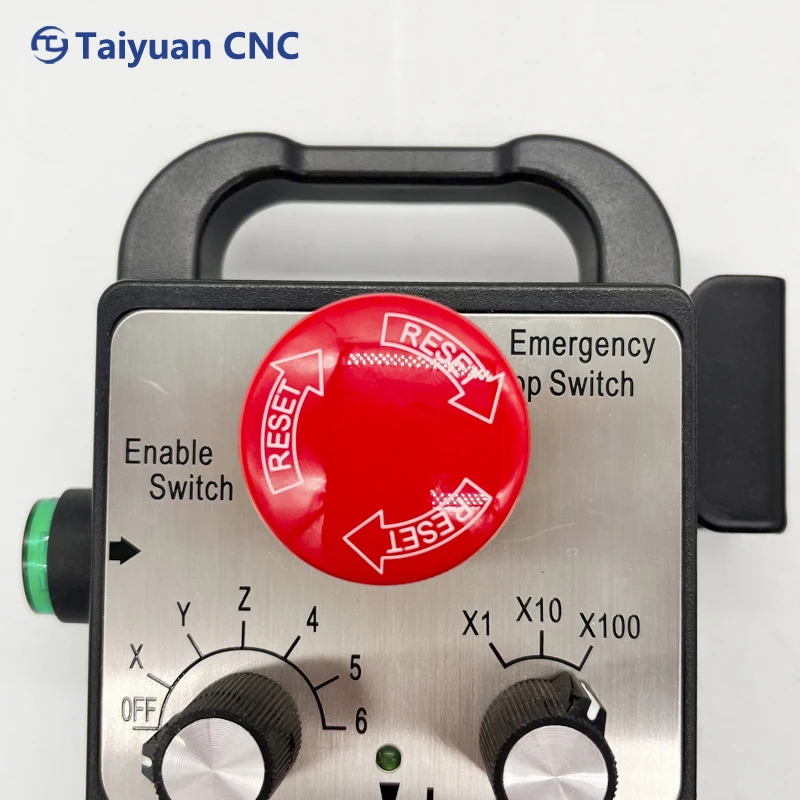

Standard Type 100 PPR 5V DC Cnc machine tools handwheel MPG for CNC Vertical Lathe
Standard Type 100 PPR 5V DC Cnc machine tools handwheel MPG for CNC Vertical Lathe
Standard Type 100 PPR 5V DC Cnc machine tools handwheel MPG for CNC Vertical Lathe
Standard Type 100 PPR 5V DC Cnc machine tools handwheel MPG for CNC Vertical Lathe
Standard Type 100 PPR 5V DC Cnc machine tools handwheel MPG for CNC Vertical Lathe

Standard Type 100 PPR 5V DC Cnc machine tools handwheel MPG for CNC Vertical Lathe

Share on (1600747347402):


Price:$46.00 - $56.00

Quantity:


Product Overview

Description

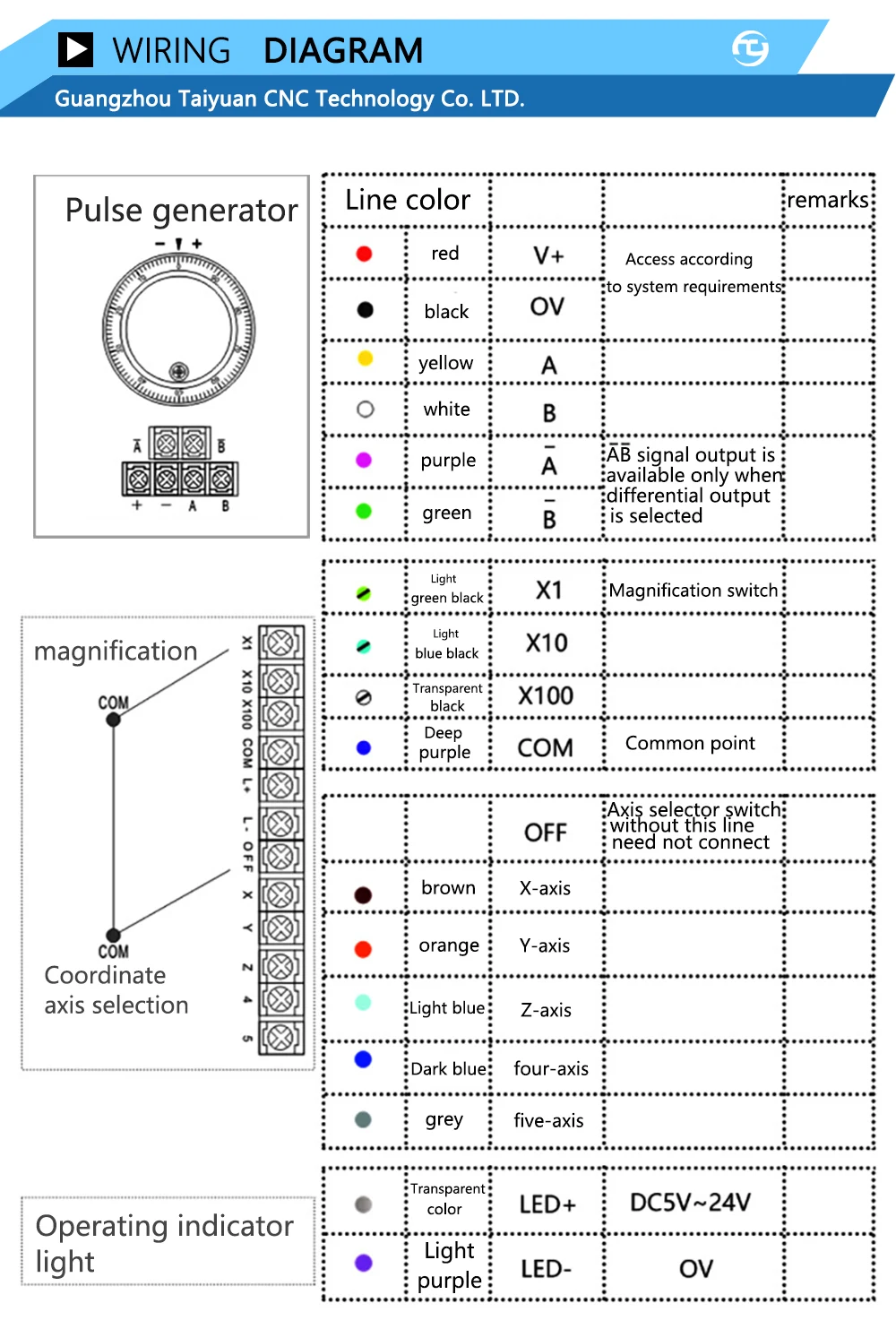

Output circuit
Open-collector output
Voltage output
Push-pull complementary outputs
driver
Supply voltage
5~26V
5~26V
5±0.25 5~26V
5±0.25 5~26V
Current consumption
≤80mA
≤80mA
≤80mA
≤150mA
Load current
40mA
40mA
40mA
60mA
Output high
Min Vcc*70%
Min Vcc-2.5V
Min Vcc-1.5V
Min 3.4V
Output low
MAX 0.4V
MAX 0.4V
MAX 0.8V
MAX 0.4V
Rise time Tr
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Fall time Tf
MAX 1us
MAX 1us
MAX 1us
MAX 200ns
Highest frequency response
10kHz
10kHz
10kHz
10kHz


Max speed r/min
Starting torque
Axis maximum load
Impact
Anti-vibration
6000
<0.05Nm
Radial 25 N Axial 15N
50G/11ms
10G 10-2000Hz
Moment inertia
Work Temperature
Storage Temperature
Protection Degree
Weight
4 x 10.-8kgm²
-25~75ºC
-25~85ºC
IP50
250g
