welding positioner/turntable /50KG Welding Rotator with K11 165 Three Jaws chuck torch holder can clamp 4 150mm pipe workpiece

Product Overview

Description

WDBWJ Series of  welding rotator are a type of automatic positioner. It works in MIG/MAG,
CO2 and TIG welding source, making a set of special circumferential automatic welding
system. This system is suitable for circumferential welding accessory ofautomobile and autobike, also suitable for the making of metal parts which needa mass of circumferential welding.



♣Main Characteristics:

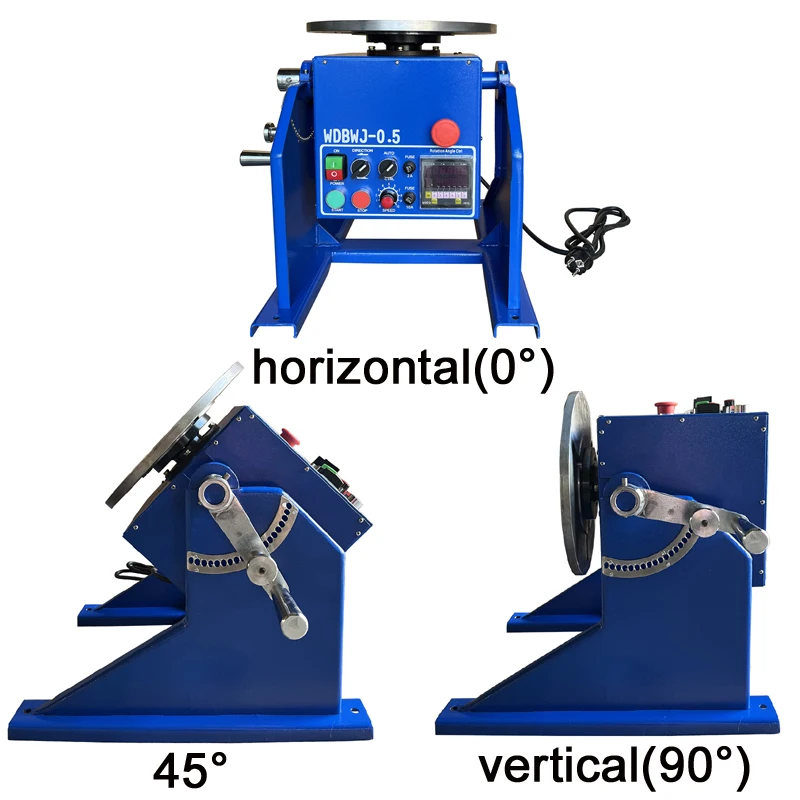

1.The headstock can be turned 90°. The principal axis can be turned random direction
to fit different angle.

2.Drive by DC motor, good performance, large timing range, available for large range
of workpiece.

3.Equipped with footpedal switch, operated conveniently.

4.Operate by one key, you only need to press the welding key after debugging, it
will weld automatically.

5.Having emergency stop function, it will stop urgently when special situation occurs
in welding processing.

6.Has welding speed display function to show current running speed.



♣WDBWJ-0.5 Technical Data:



Model	WDBWJ-0.5 with K11-165 chuck and WDCL-4 torch holder
Input Voltage	AC220V
Frequency	50/60HZ
Turntable Diameter(mm)	Φ300
Rotate Speed	1-12rpm(or 0.5-6rpm) our normal speed is 1-12rpm,if you need 0.5-6rpm need to contact seller
Horizontal Loading Capacity	40kg
Vertical Loading Capacity	20kg
Size(mm)(L×W×H)	625×535×670
Net Weight	50kg
Gross Weight	61kg

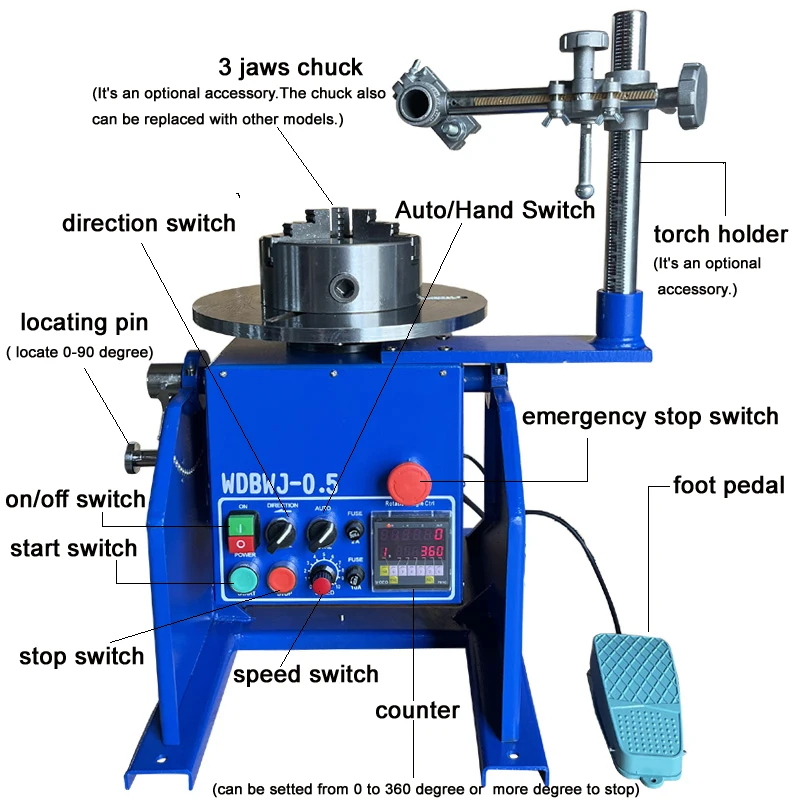

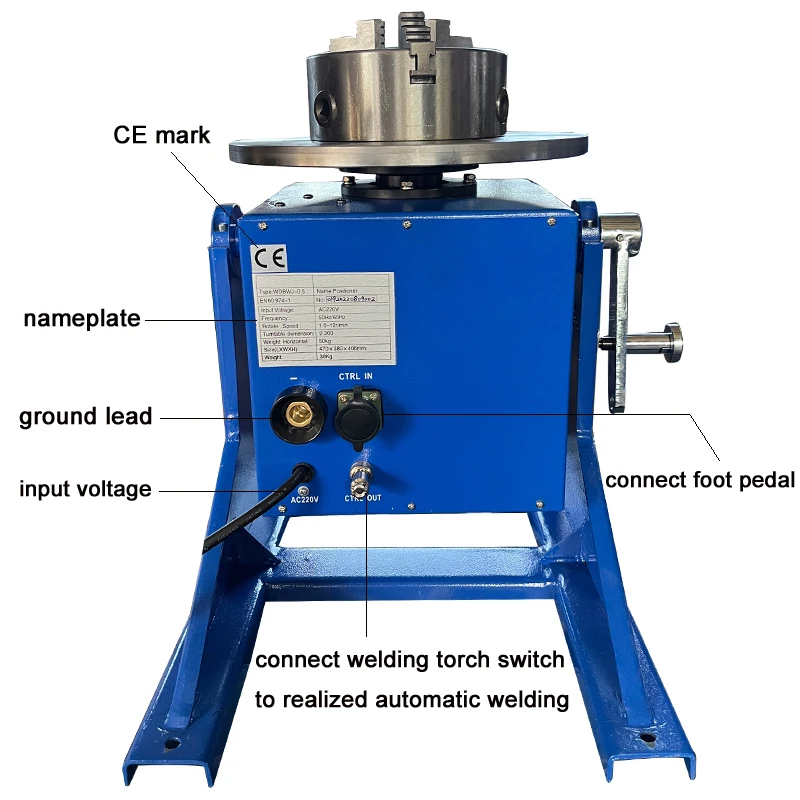

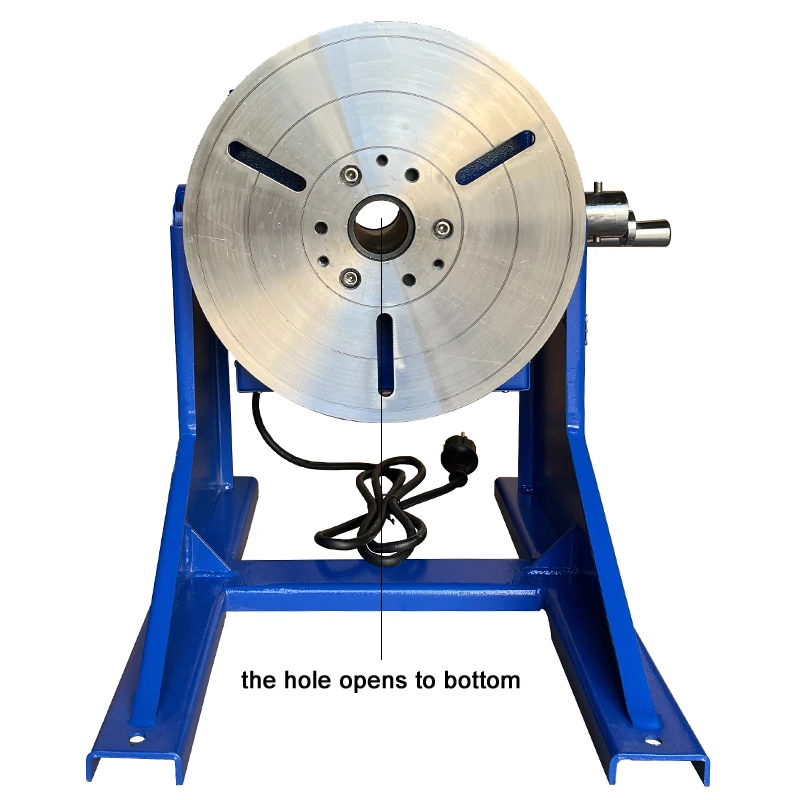

Product display:

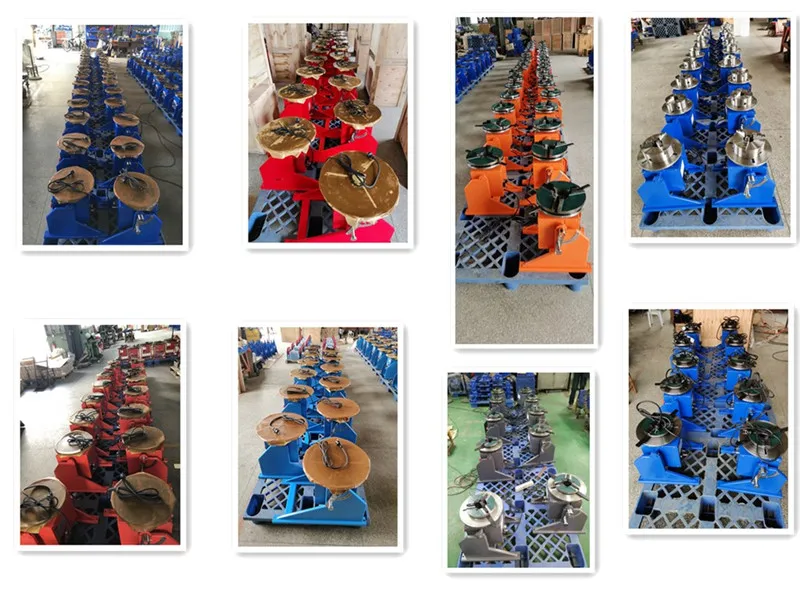

Some of OEM orders photoes:

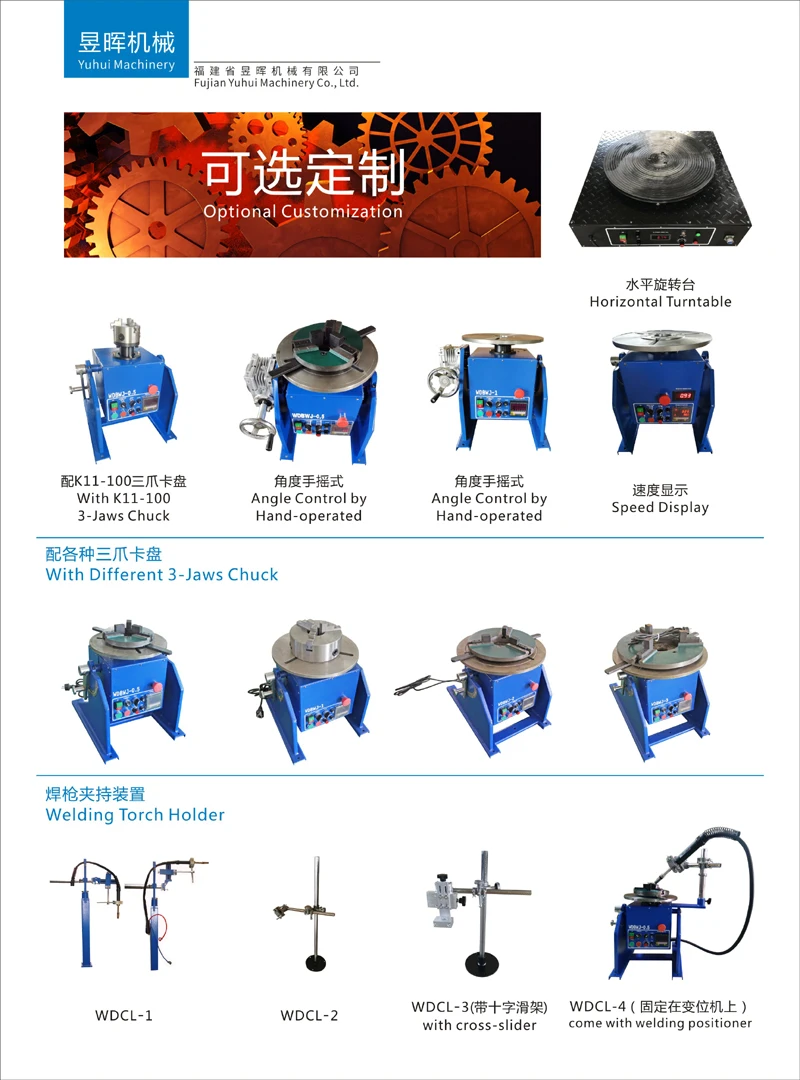

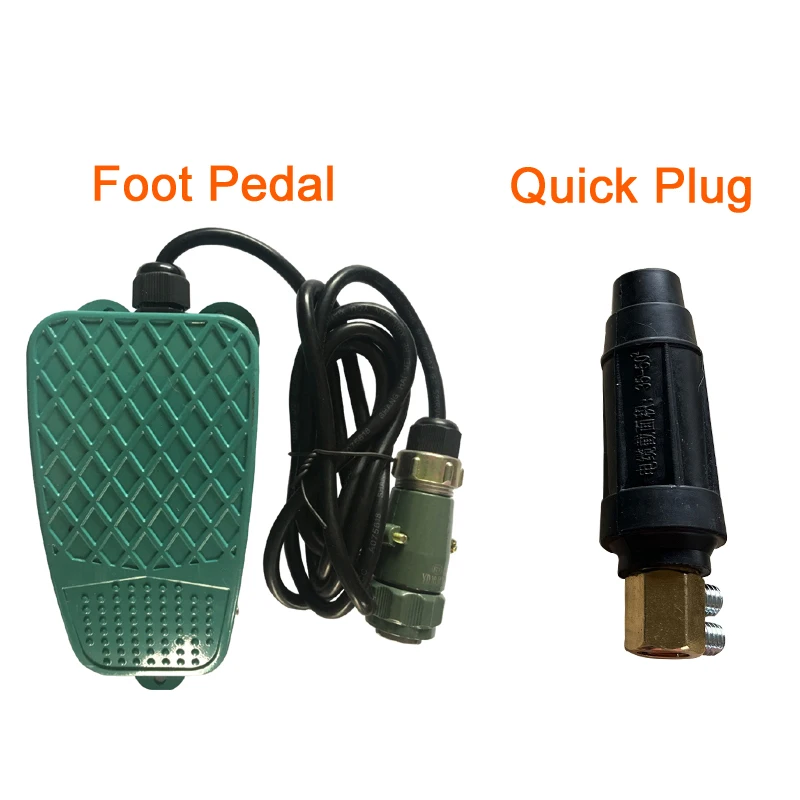

Accessories:



CE Certification:

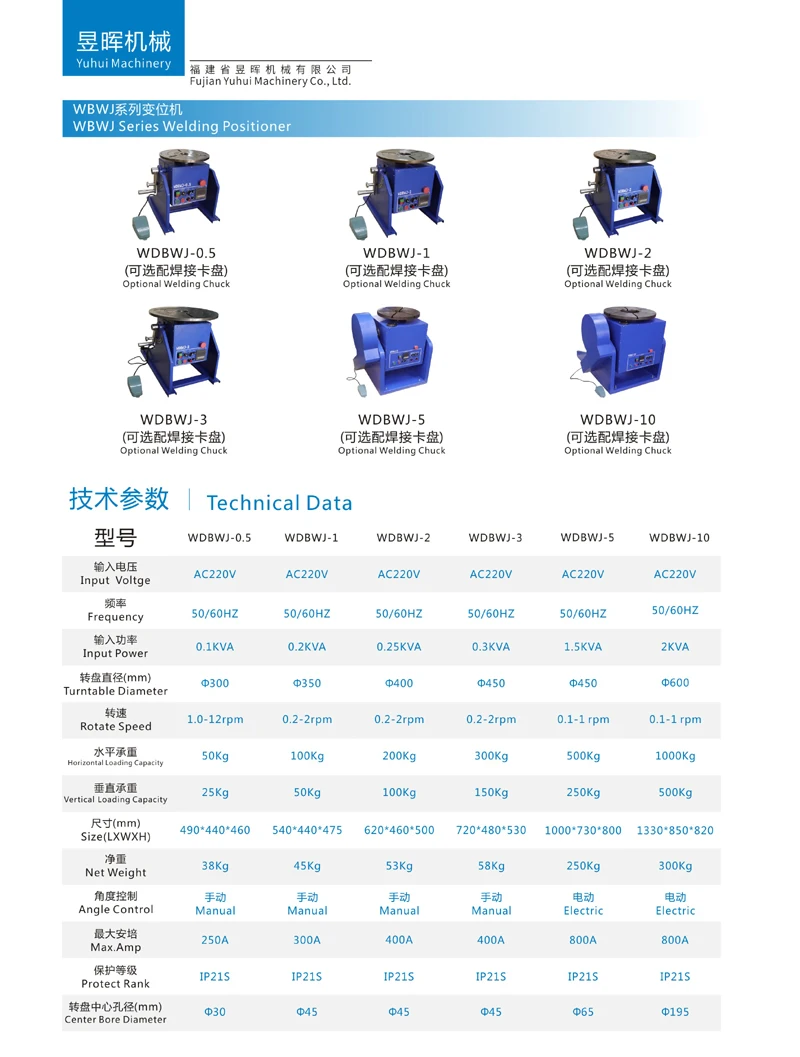

Our welding positioner catalogue:
