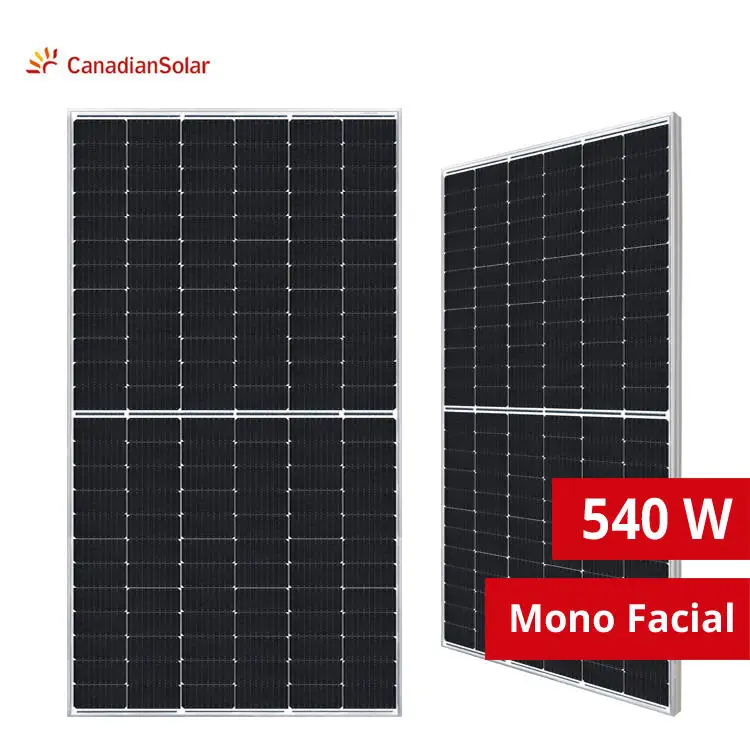

CanadianSolar 3.2 Mm Tempered Glass Monocrystalline Solar Panel 530w Price
- Category: >>>
- Supplier: Beijing Shan Hu International Technology Co. Ltd.
Share on (1600747384333):
Product Overview
Description

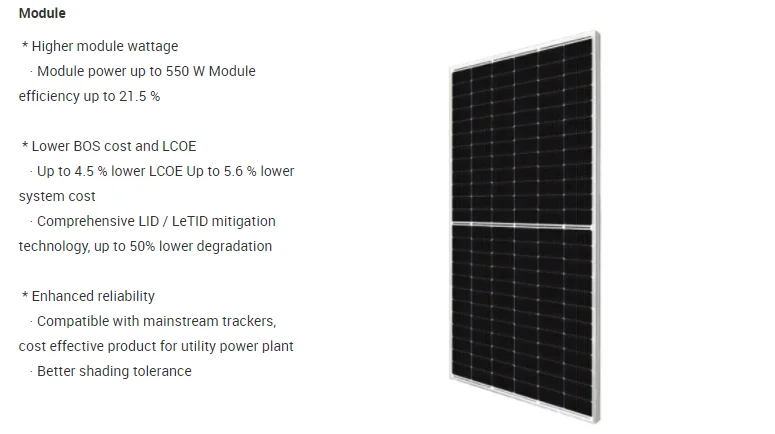

FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
MECHANICAL DATA | ELECTRICAL DATA | ||||
Cell Type | Mono-crystalline | Operating Temperature | -40°C ~ +85°C | ||
Cell Arrangement | 144 [2 x (12 x 6) ] | Max. System Voltage | 1500V (IEC/UL) or 1000V (IEC/UL) | ||
Dimensions | 2261 ˣ 1134 ˣ 35 mm (89.0 ˣ 44.6 ˣ 1.38 in) | Module Fire Performance | TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730) | ||
Weight | 27.8 kg (61.3 lbs) | Max. Series Fuse Rating | 25 A | ||
Front / Back Glass | 3.2 mm tempered glass | Application Classification | Class A | ||
Frame | Anodized aluminium alloy | Power Tolerance | 0 ~ + 10 W | ||

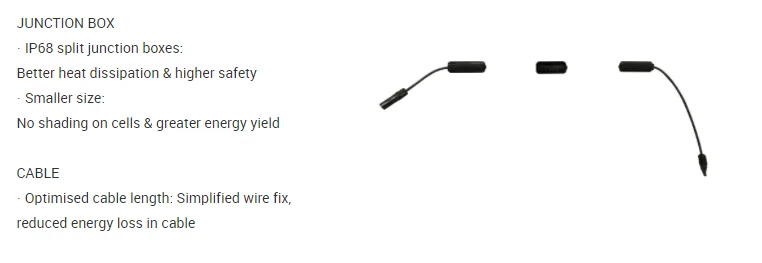

J-Box | IP68, 3 bypass diodes | Power Bifaciality | 70% | ||
Cable | 4 mm 2 (IEC), 12 AWG (UL) | TEMPERATURE CHARACTERISTICS | |||
Cable Length (Including Connector) | 410 mm (16.1 in) (+) / 290 mm (11.4 in) (-) or customized length* | Temperature Coefficient (Pmax) | -0.34 % / °C | ||
Connector | T4 series or H4 UTX or MC4-EVO2 | Temperature Coefficient (Voc) | -0.26 % / °C | ||
Per Pallet | 30 pieces | Temperature Coefficient (Isc) | 0.05 % / °C | ||
Per Container | 600 pieces | Nominal Module Operating Temperature | 42 ± 3°C | ||
