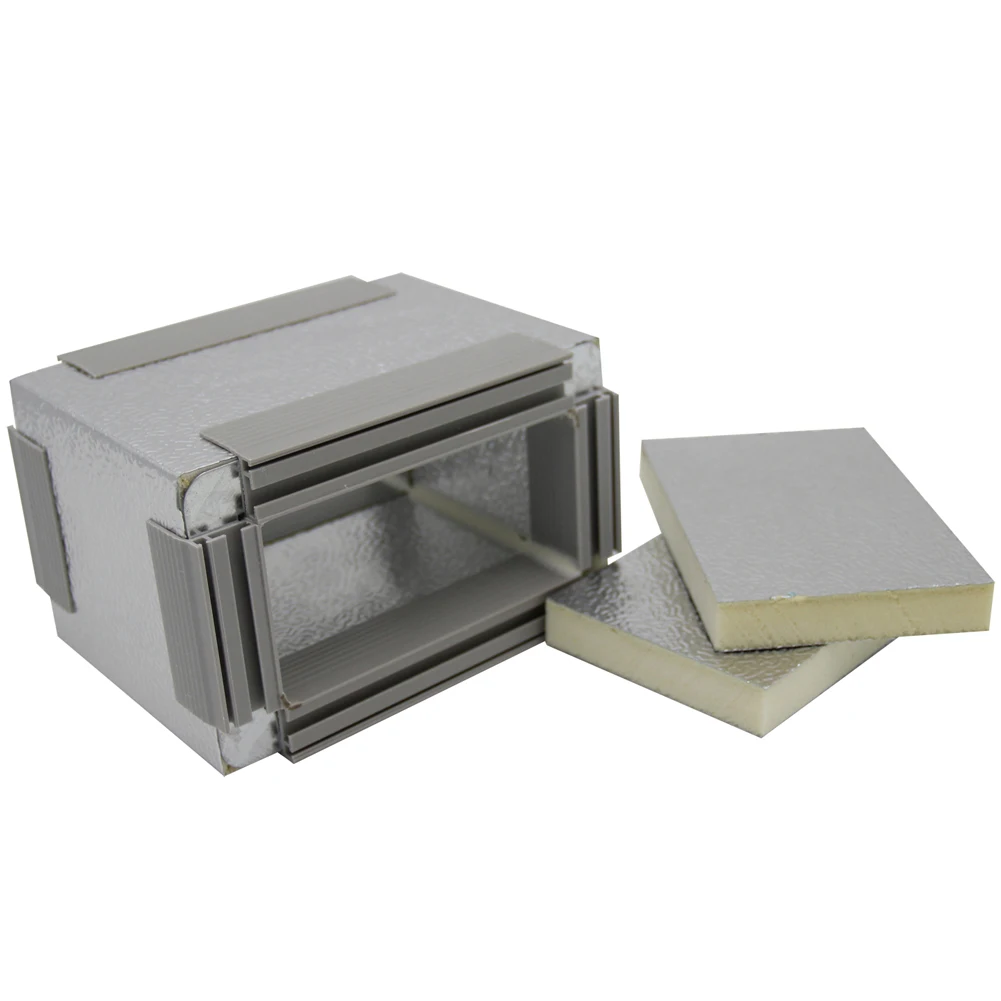

High Density Duct Panel PIR PU Insulated Duct with Foam Board Air Duct for Ventilation System

Product Overview

Description

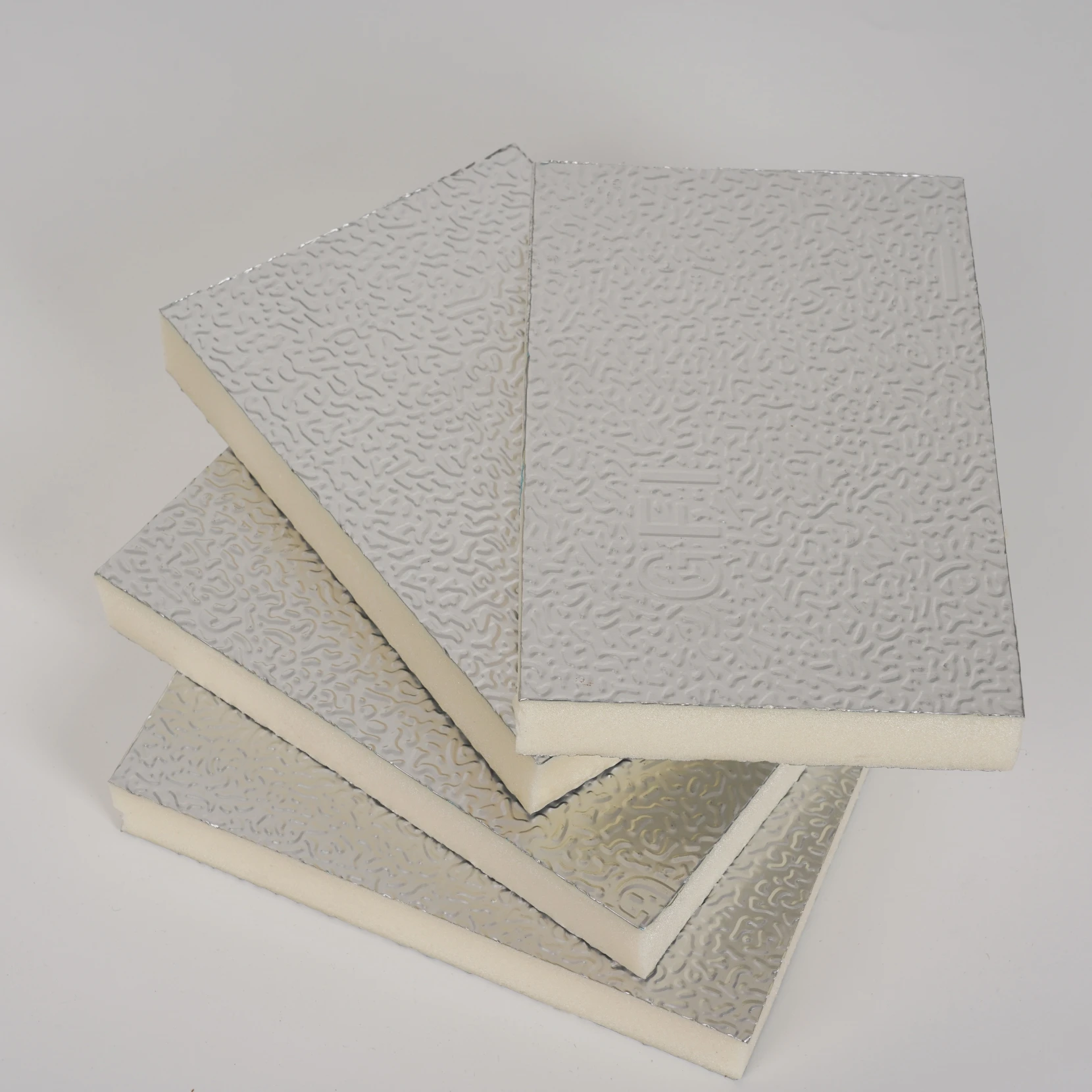

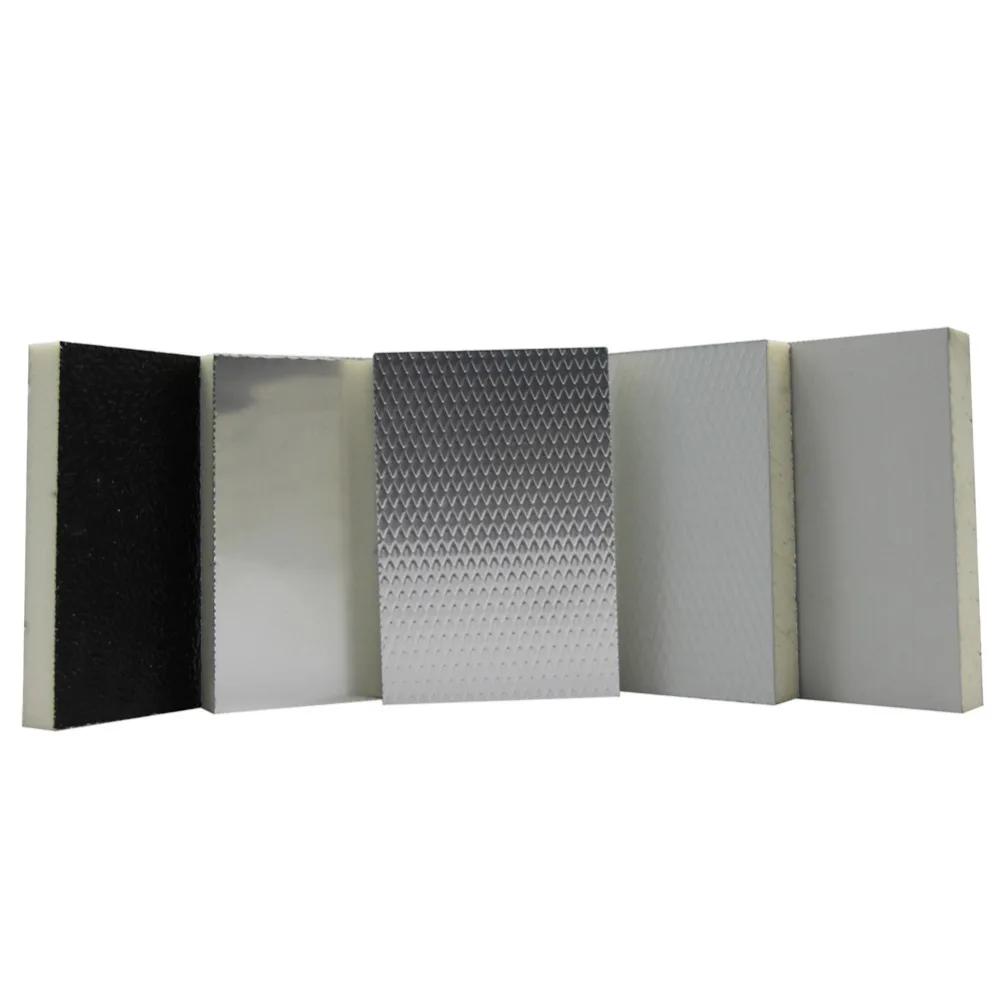

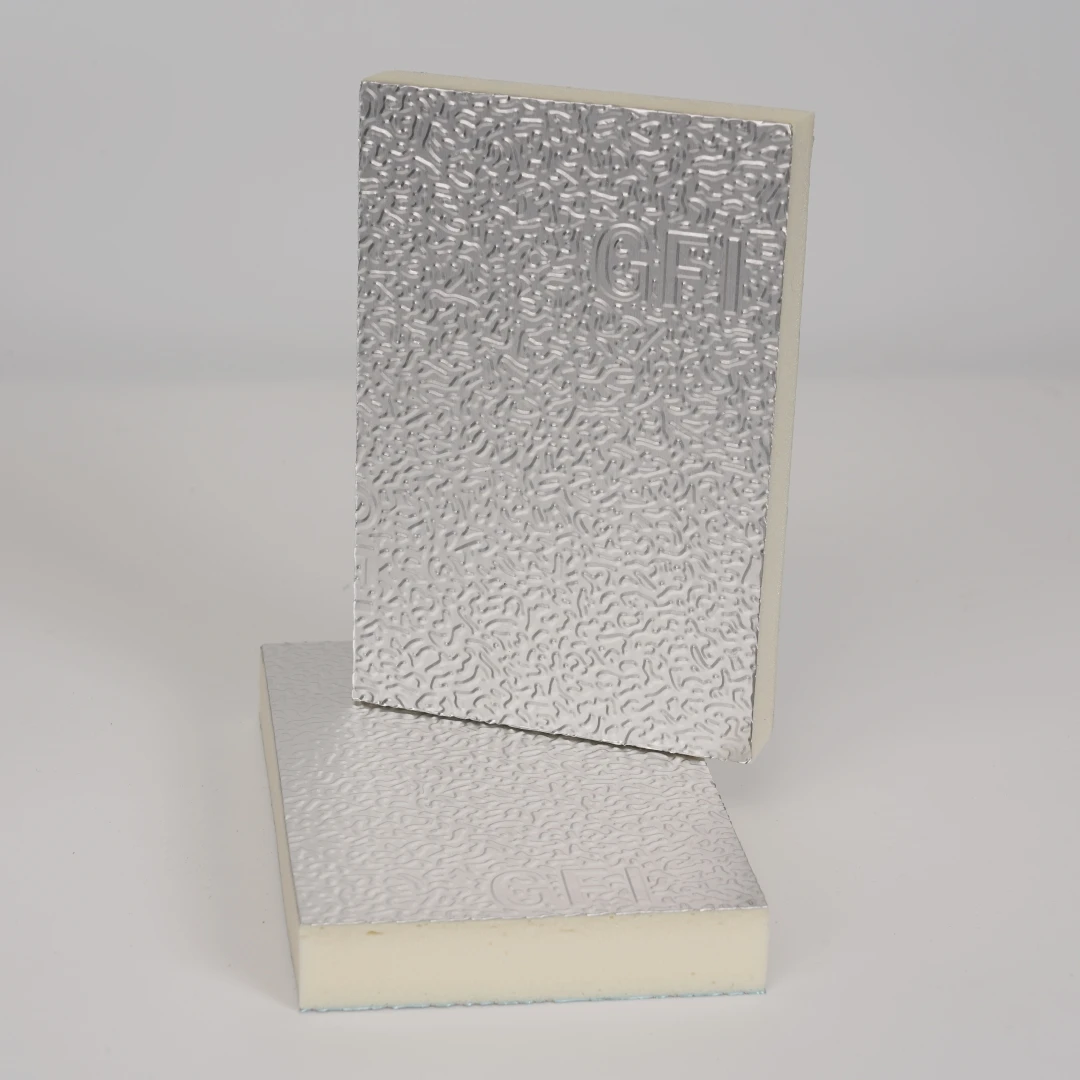

PIR PU Foam Duct Insulation with Foam Board Air Duct for Ventilation System is a high-quality product designed to provide top-notch insulation for air conditioning duct systems. The PIR insulation foam core is covered with black or regular aluminum sheeting on both sides. Its superior insulation properties can help reduce energy consumption and cut down on operating costs. This product is ideal for those looking for an energy-saving and eco-friendly solution to their air conditioning needs. The foam board air duct design ensures a more flexible and easier installation, while the high-density PIR PU insulation provides excellent thermal insulation. With its outstanding features, this product is a must-have for any commercial or residential building with air conditioning needs.

Compared with traditional galvanized Iron ( steel metal) ductwork, PIR Foam Air Duct Panel have offers a high performance, light weight and robust system that requires only a single fix installation process. It is widely used in the ventilation systems of central air conditioning units in hospital, hotel, market, supermarket, guesthouse, airport, stadium, workshop, food store, pure project and so on.









Technical Data:



Standard Size	3950/2950/2900*1200*20mm
Foam Density	50 kg/m3
Aluminum foil thickness	0.08mm/0.2mm
Thermal Conductivity	0.02W/m.k
Compressive Strength	0.25MPa
Bending Strength	2MPa
Water Absorption	0.1%
Dimension Change	0.3%
Maximum Wind Velocity	13-20m/s
Maximum Running Temperature	70 ℃











20mm PIR Foam Air Duct Panel will be packed as below details:

1. 40'HQ Container: 3950/2950*1200*20mm, 10 sheets packed in one carton, total 660sheets(3950mm) / 880sheets(2950mm).

2. 20'GP Container: 2900*1200*20mm, 10 sheets packed in one carton, total 400sheets.
