SiRON Black IDC 4 8 16 32 Bit Adapter PLC Relay DIN Rail Mounting 12V 24V Relays Module DC Relays
- Category: >>>
- Supplier: Shenzhen Siron Electrical Co. Ltd.
Share on (1600747418680):
Product Overview
Description
Our company's product categories are very rich
Features

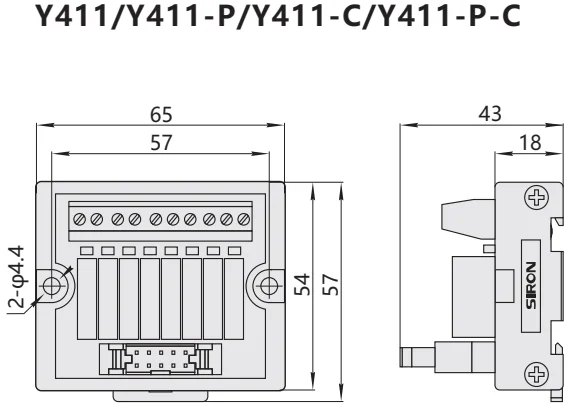

* Y411/Y411-P module is an output module corresponding to all PLC with terminal block connection;A single-strip terminal block as the input end and a 10P MIL connector as the output end;
*Utilizes an 8 bit relay module for compact design to save space;Utilizes LED display, so all input and output statuses are visible;
*NOTE:Before ordering , please confirm the load type and size, choose the suitable way to control.Contact protection scheme,please refer to this chapter products ；When PLC connection,please be sure to use the company developed and the corresponding special cable.
*Utilizes an 8 bit relay module for compact design to save space;Utilizes LED display, so all input and output statuses are visible;
*NOTE:Before ordering , please confirm the load type and size, choose the suitable way to control.Contact protection scheme,please refer to this chapter products ；When PLC connection,please be sure to use the company developed and the corresponding special cable.
*Screw Mounting:use M4* 16 screw,screw hole depth≥3mm.
DIN Rail Mounting:Standard 35mm DIN RAIL.
DIN Rail Mounting:Standard 35mm DIN RAIL.
*add "C" after the model for economy, such as "Y411-C", please consult relevant sales personnel for details.
Product Parameters
Input | Operating coil (every point of the relay) | ||||||
Rated voltage | DC 24V | ||||||
Rated current | 7.5MA | ||||||
Coil resistance | 3200Ω | ||||||
Action voltage | More 70% | ||||||
Reset voltage | Following 5% | ||||||
Maximum allowable voltage | 120% | ||||||
Rated consumption power | 180MW | ||||||
Output | Switch part (each point of the relay) | ||||||
Contact specifications | Contact structure | 1A | |||||
Contact resistance (initial) | 30mΩ(Voltage drop throgh the DC6V1A France) | ||||||
Rated control capacity (resistive load) | 5A 250V AC ,5A 30V DC | ||||||
Maximum allowable power | 1250VA， 150W | ||||||
Maximum allowable current | 5A | ||||||
Maximum allowable voltage | 250V AV；110V DC | ||||||
Minimum applicable load | DC 100MV 100UA | ||||||
COM side | Maximum allowable current | 5A | |||||
Life span | Mechanical lifetime | More than 20 million times (Off frequecy of 180 times/min | |||||
Electrical life | 100, 000 times or more （3A 250AC,30VDC ,Resistive load） | ||||||
Output side correspondence | Solenoid,Warning Light,Relay or Contactor. | ||||||
