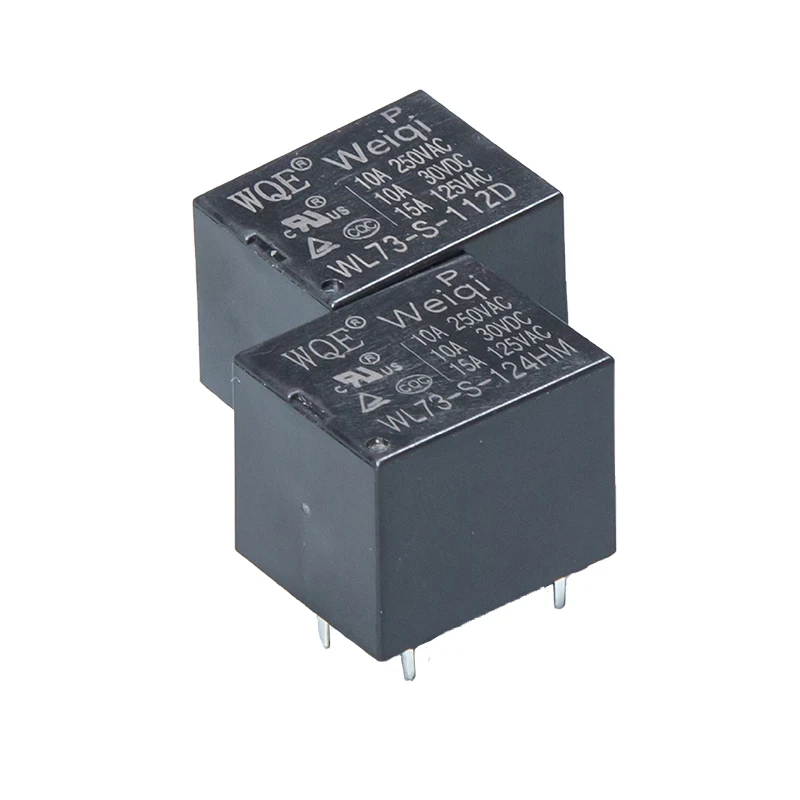

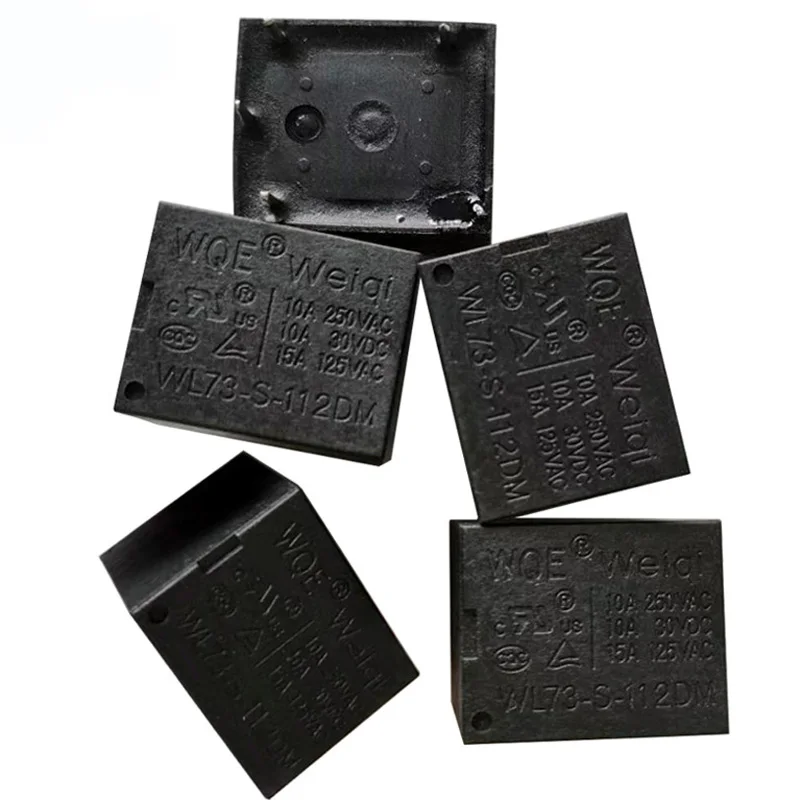

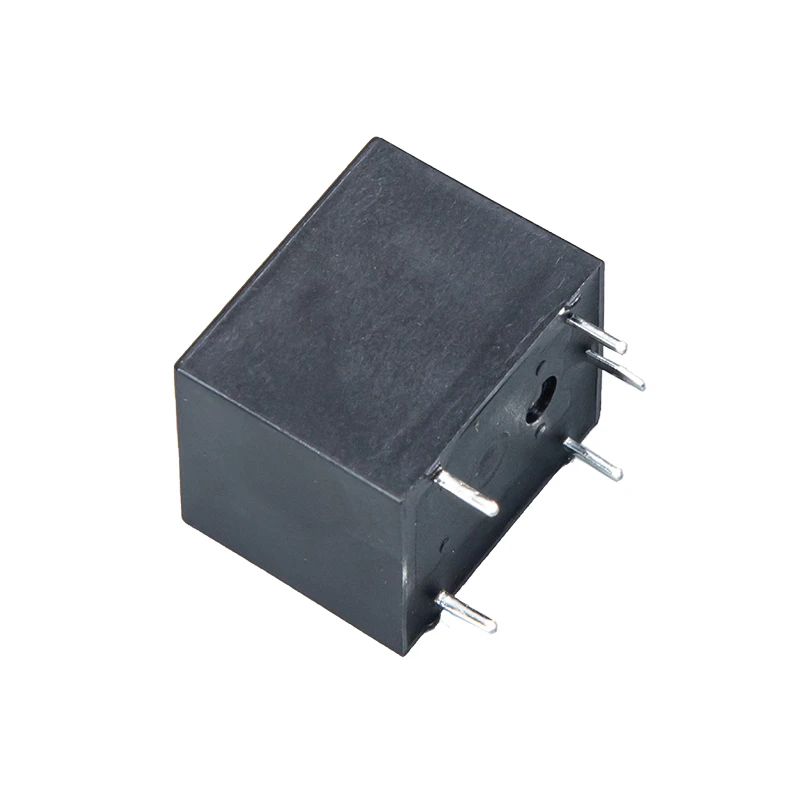

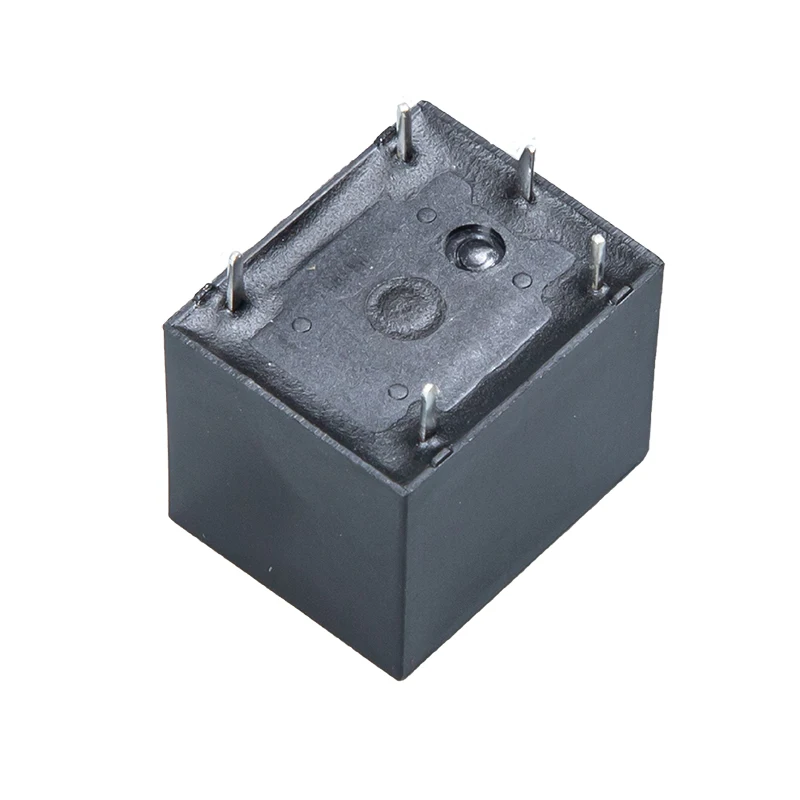

WEIQI WL73 automotive 12 v 10A 16A 0.45W relay car immobilizer flasher relay for Office Equipment Household Appliances
- Category: >>>
- Supplier: Jiangxi Weiqi Electric Co. Ltd.
Share on (1600747437576):
Product Overview
Description
Products Description
WL73/T73 10A 5 Pin auto automotive car waterproof energy with 5V / 6V / 9V / 12V / 24V automobile PCB Relay
1.Up to 20A contact switching capability
2. 1 Form A and 1 Form C configurations
3. Sockets avaliable
4. Overall dimensions （19.0×15.4×15.5）mm
Contact load | ||||||
Model | WL73 | |||||
Contact Arrangement | 1C(SPDT(B-M) | 1A(SPSTNO) | 1B(SPSTNC) | |||
Maximum switching current | 10A | 16A | 7A | |||
Maximum switching voltage | 277VAC/30VDC | 277VAC/30VDC | 277VAC/30VDC | |||
Maximum switching power | 2770VA/300W | 4432VA/480W | 1250VA/210W | |||
Rated load (resistive) | 10A 277VAC 10A 30VDC | 16A 277VAC 16A 30VDC | 7A 277VAC 7A 30VDC | |||
Performance parameter | ||||||
Contact material | Ag alloy | |||||
Contact resistance | Max 100MΩ | |||||
Action time | ≤10ms | |||||
Release time | ≤10ms | |||||
Insulation resistance | Min 100MΩ （500VDC) | |||||
Dielectric Strength | Between contacts | AC 750VAC 50/60Hz 1min | ||||
Between contact coils | AC 1500VAC 50/60Hz 1min | |||||
To attack | Stability | 98m/S2 | ||||
Strength | 980m/S2 | |||||
Vibration | 10~55Hz 1.5mm Double Amplitude | |||||
Mechanical endurance min | 1×107 | |||||
Electrial eddurance min | 1×105 | |||||
Humidity | 5%~85%RH | |||||
Ambient temperature | -40℃~105℃ | |||||
Weight | Approx.9g | |||||
Coil parameters （at 20°C） | ||||||||||
Coil Voltage | Coil Resistance | Pick-up Voltage 70% of rated voltage | Drop-out Voltage 10% of rated voltage | Coil Power | ||||||
Rated | Max | |||||||||
VDC | VDC | Ω±10% | VDC | VDC | W | |||||
3 | 3.9 | 25 | 2.25 | 0.3 | 0.36 | |||||
5 | 6.5 | 69 | 3.75 | 0.5 | ||||||
6 | 7.8 | 100 | 4.5 | 0.6 | ||||||
9 | 11.7 | 225 | 6.75 | 0.9 | ||||||
12 | 15.6 | 400 | 9 | 1.2 | ||||||
24 | 31.2 | 1600 | 18 | 2.4 | ||||||
48 | 62.4 | 6400 | 36 | 4.8 | ||||||
5 | 6.5 | 56 | 3.75 | 0.5 | 0.45 | |||||
9 | 11.7 | 180 | 6.75 | 0.9 | ||||||
12 | 15.6 | 320 | 9 | 1.2 | ||||||
24 | 31.2 | 1280 | 18 | 2.4 | ||||||
12 | 15.6 | 180 | 8 | 1.2 | 0.8 | |||||
24 | 31.2 | 720 | 16 | 2.4 | ||||||
Safetu standard | ||||||||||
Certification category | CQC | TUV | UL | |||||||
Certified load | 16A/12A,277VAC/250VAC 16A/12A,30VDC 20A/15A,125VAC 10A/7A, 277VAC/250VAC 10A/7A,30VDC | 16A/12A,277VAC/250VAC16A/12A,30VDC 20A/15A,125VAC 10A/7A, 277VAC/250VAC 10A/7A,30VDC | 16/12A/10A, 277/250/125 VAC 16A/12A/10A 30VDC 20A, 125 VAC TV-8, 125/250VAC 5A, 120VAC 1000W, 120VAC 5A, 277VAC 1/2hp, 125VAC 1/4hp, 250VAC 10A/5A 277/250AC/30VDC | |||||||
Product Usage
Related Products
Company Introduction

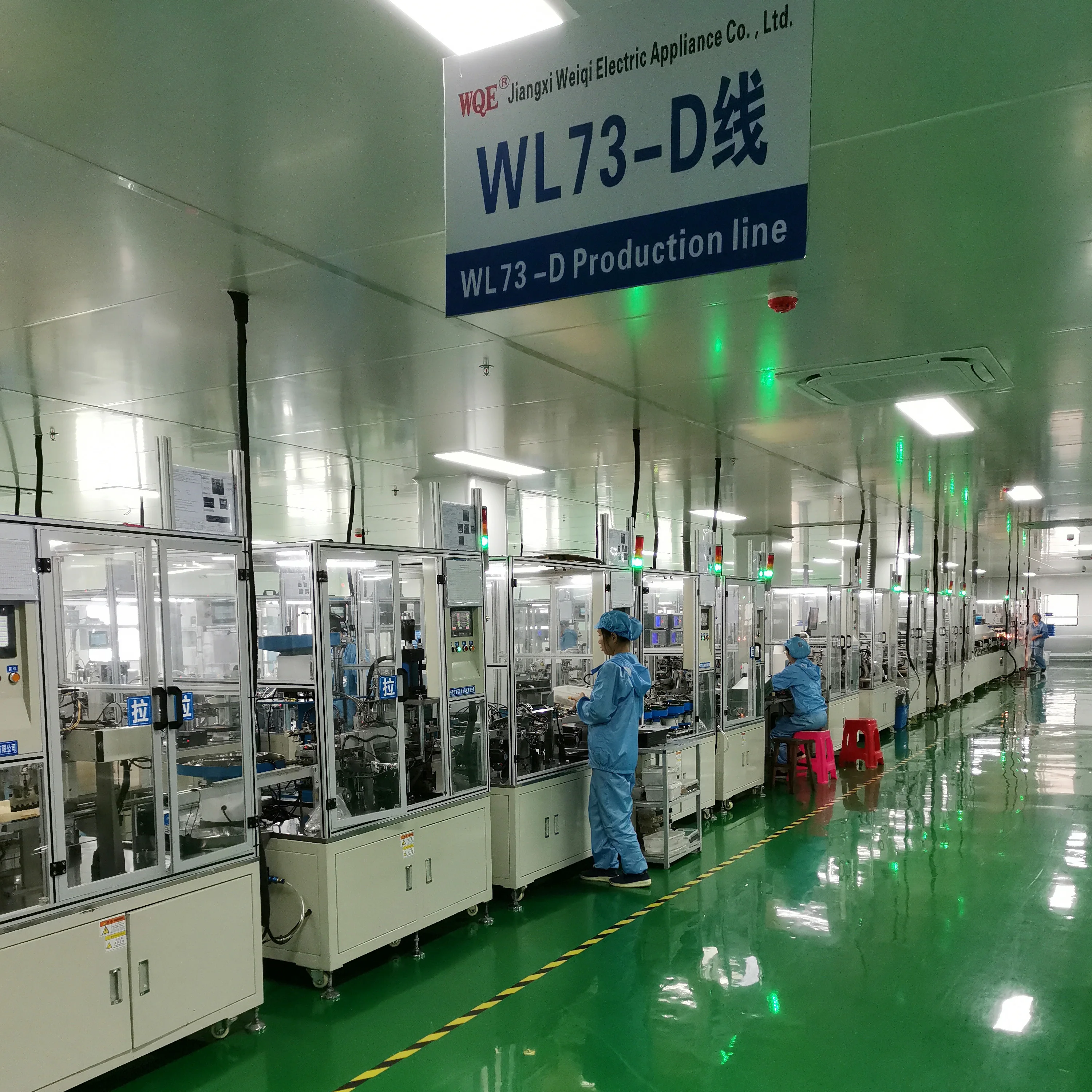

Jiangxi Weiqi Electrical Appliance Co.,Ltd
Jiangxi Weiqi Electric Co., Ltd. was established in 2007. It is a high-tech enterprise specializing in the production, research and development and sales of electromagnetic relays, automotive relays
and magnetic latching relays. The company has more than 100 people, including 15 R&D personnel.
and magnetic latching relays. The company has more than 100 people, including 15 R&D personnel.
Certifications
Customers feedback
Packaging&Shipping
FAQ
Q1. Can I have sample for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for relay?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
we are always here for you！
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for relay?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
we are always here for you！
