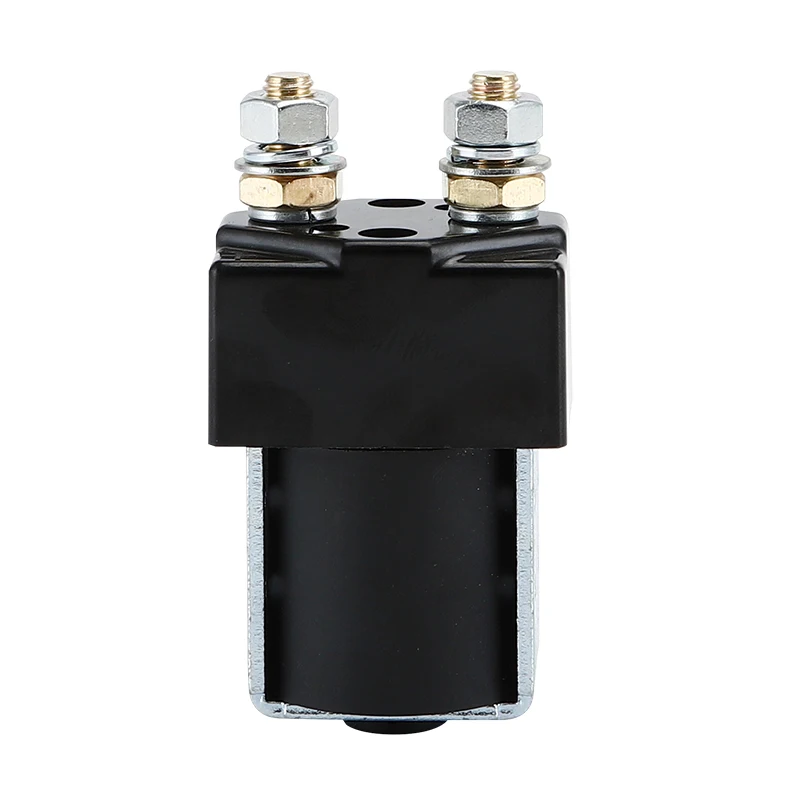

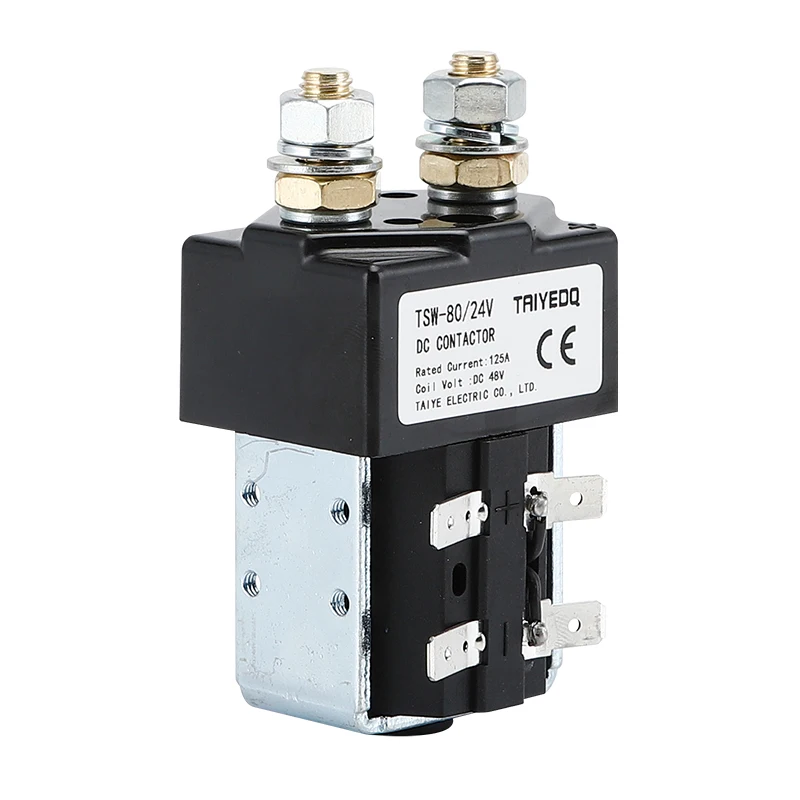

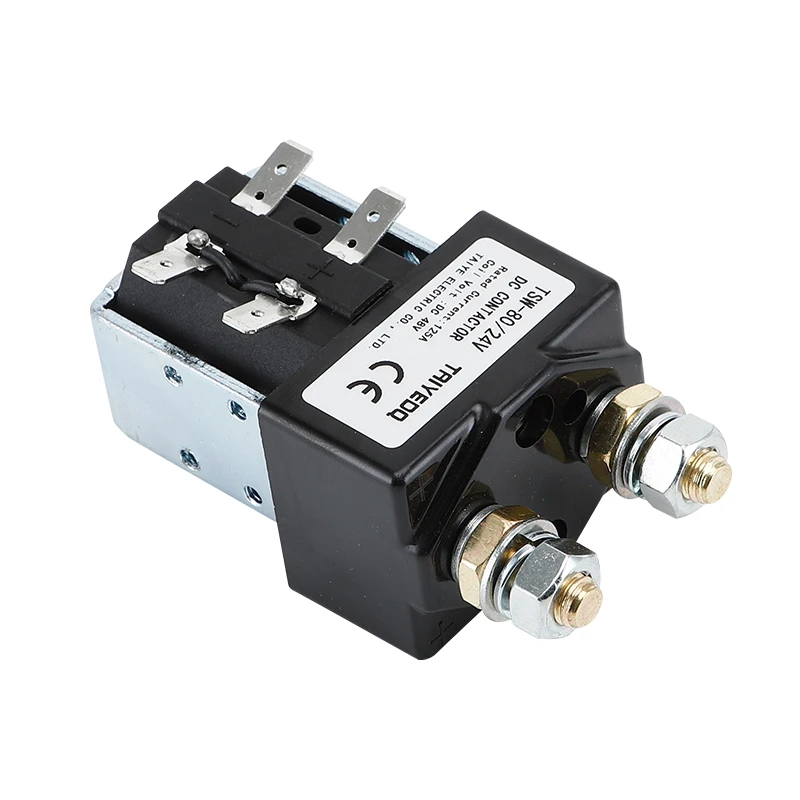

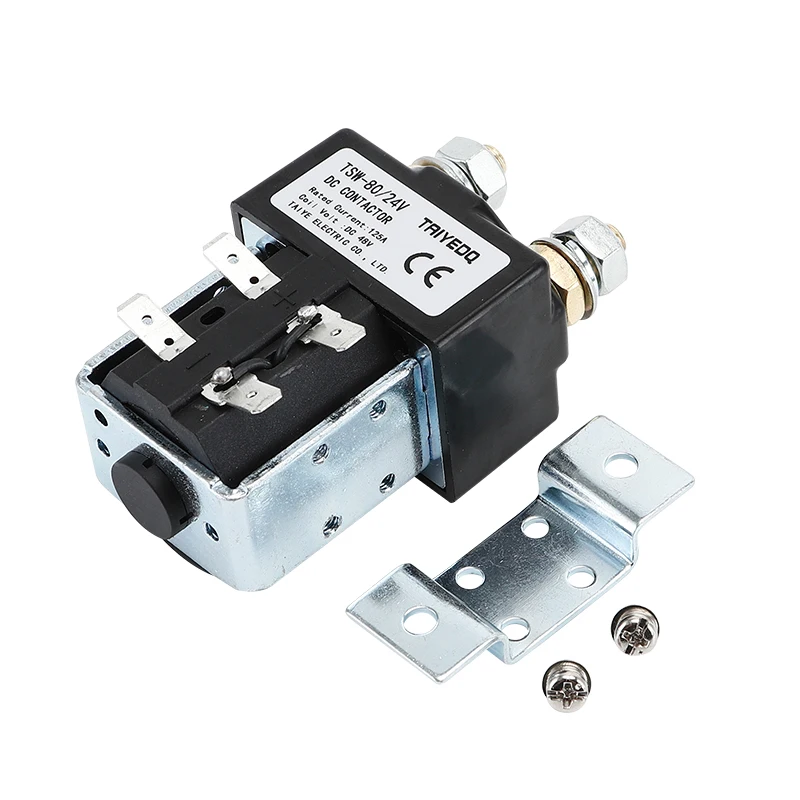

TSW 80 125A Normally Open Contacts DC Contactor for Electronic Control Systems 12V 24V 48V 60V 72V
- Category: >>>
- Supplier: Wenzhou Taiye Electric Appliance Co. Ltd.
Share on (1600747474552):
Product Overview
Description
Features
1.125A Contact switching capability
2.It has a set of normally open contacts
3.Coil Power Consumption is：7～16W Min～Max
4.Scope of Application：Wind energy、Photovoltai、Telecommunication Equipment、Construction machinery、Storage battery car、Electric forklift、Train、Ship、Uninterruptible power supply and other electronic control systems
5.Technical Specifications:GB/T14048.4-2020
6.Product Compliance： ROHS
7.Product Certification: CCC CE
Specification | ||
Model | TSW-80 | |
Contact Material | Silver Alloy | |
Contact Load | 125A×60V DC (DC-1) | |
Insulation Resistance | Min. 100MΩ at 500VDC | |
Operating Ambient Temperature | -25~60℃ | |
Storage Temperature | -40~65℃ | |
Relative Humidity | 20%~90%RH | |

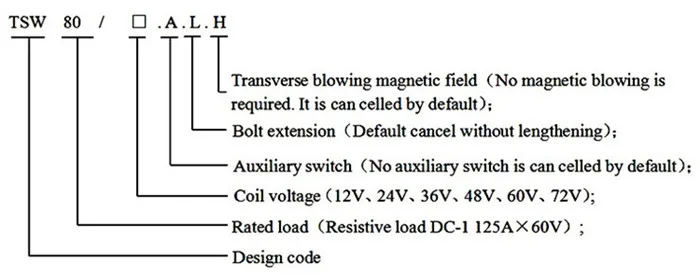

Interpretation of Product Model
Example
TSW-80/48；Express：A set of normally open DC contactors、DC-1 Rated current under load is 125A，Coil voltage DC48V.

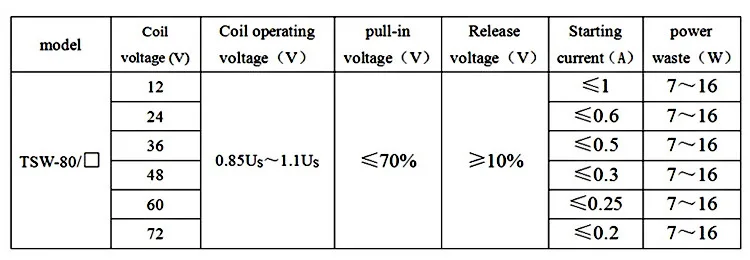

Coil Parameters
