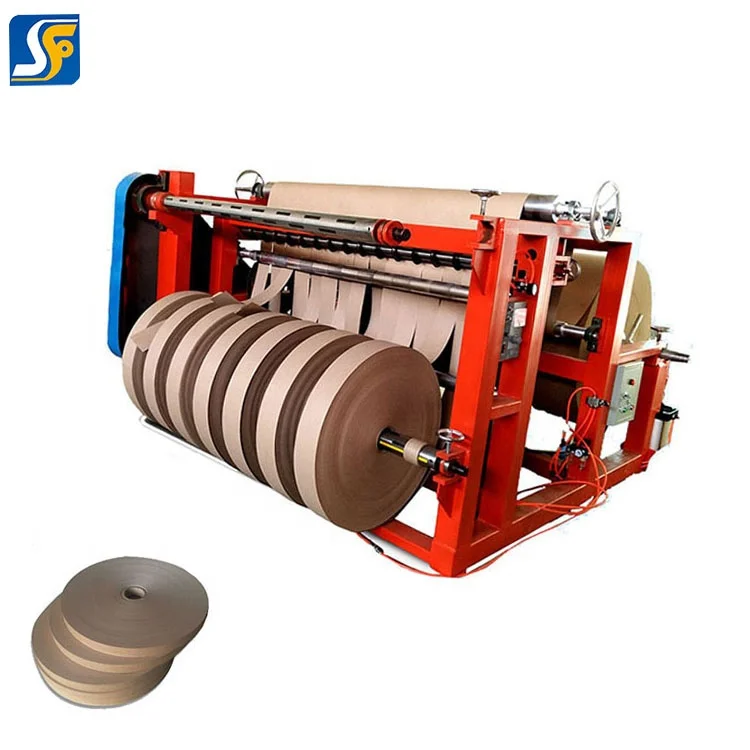

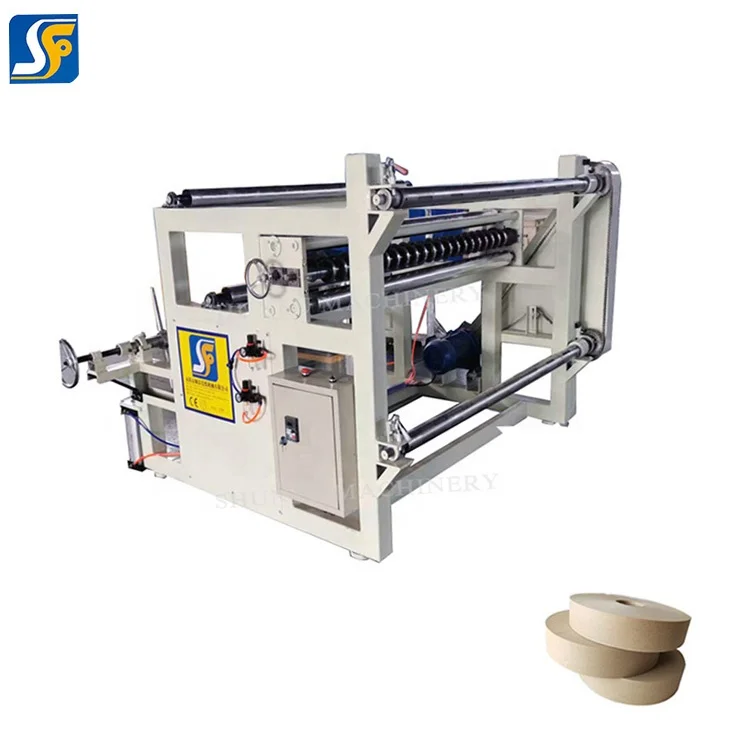

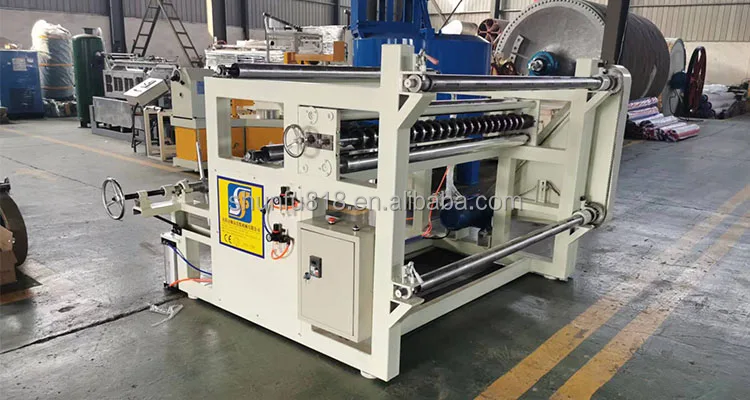

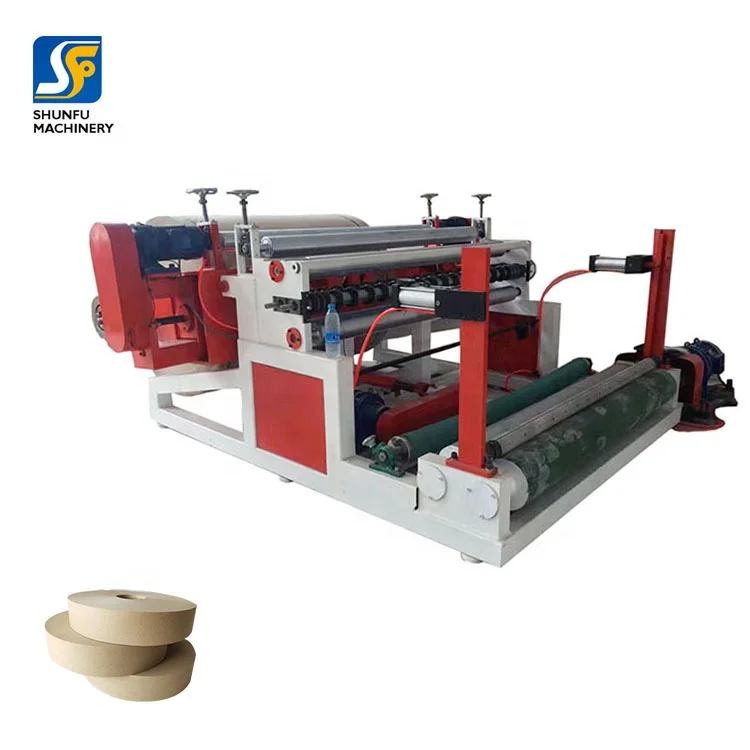

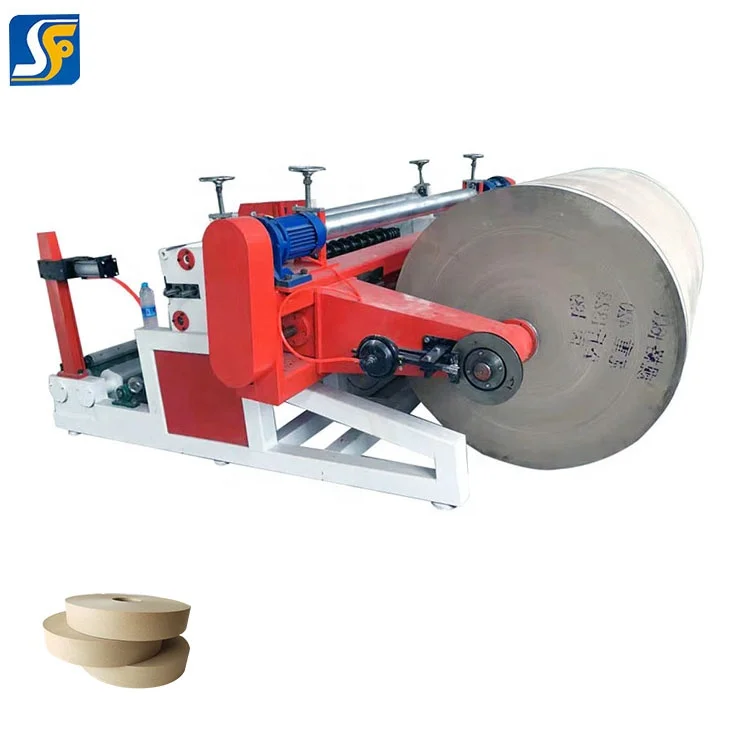

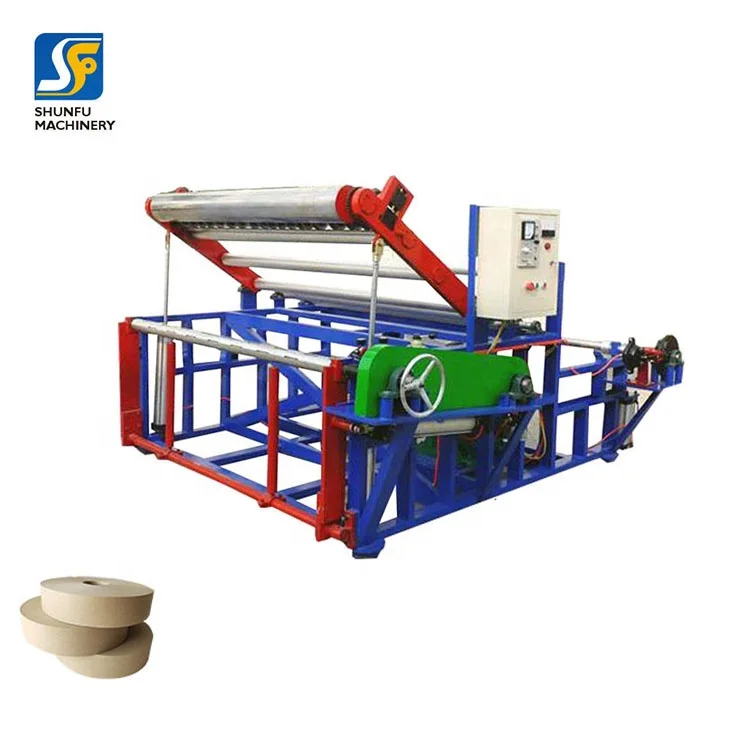

1500 Paper Slitting Rewinder Craft Roll Cutter for Core Slitting Rewinder
- Category: >>>
- Supplier: Qinyang City Shunfu Paper Making Machinery Co. Ltd.
Share on (1600747476735):
Product Overview
Description
Product Description
Application
1. Slitting and rewinding the white coated paper, kraft paper, corrugated board.
2. It's suitable for the paper mills, tissue converting plants and core making plants for the production of cores.
3. It doesn’t change the diameter of jumbo roll.
>>> High Precision High Speed Paper Slitting Machine
>>> Economical Ordinary Type Paper Slitting Machine
Main Features
1) "Bearing steel" double knife shaft permanent no bending.
2) Long distance tensioning axle design, working paper tension is more uniform.
3) Pairs of circular knife cutting design, the upper and lower knife can be between 2 - 1700mm between any adjustable width.
4) After cutting the tape on both sides of the smooth, never with a flash, the operation is very convenient.
5) After cutting the tape on both sides of the smooth, never with a flash, the operation is very convenient.
6) High yield, single output for 2-3 rolling machine use.
Technology Parameter
Cutting speed (min) | 10-200m | Cutting ability | 180g-600g |
Max width | 1800mm | Max diameter | 1200mm |
Cutter quantity | 21 | Cutter diameter | 105mm |
Cutting way | Double circular knife shear | Cutting material | Silicon/SKG-11 |
Cutter shaft size | Φ50mm Chrome optical axis | Cutter shaft material | Bearing steel |
Mounting paper method | Double cylinder | Paper collecting mode | AB axis synchronous receiving |
Host power | 3.0KW | Speed control | Electromagnetism Speed regulation |
Paper correction | Before and after,Left and right | Worker | One person |
Host size | 2500*2200*1300 | Power | 380V RSTN |
Detailed Images

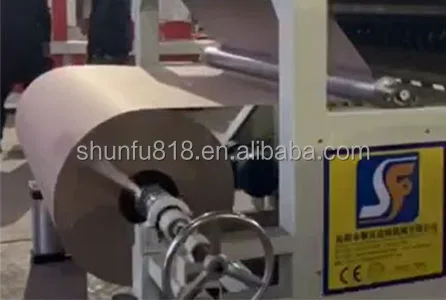

Jumbo Roll Paper
The raw material are white coated paper, kraft paper, corrugated board.

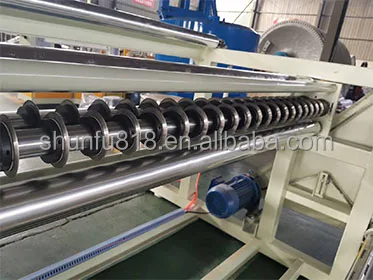

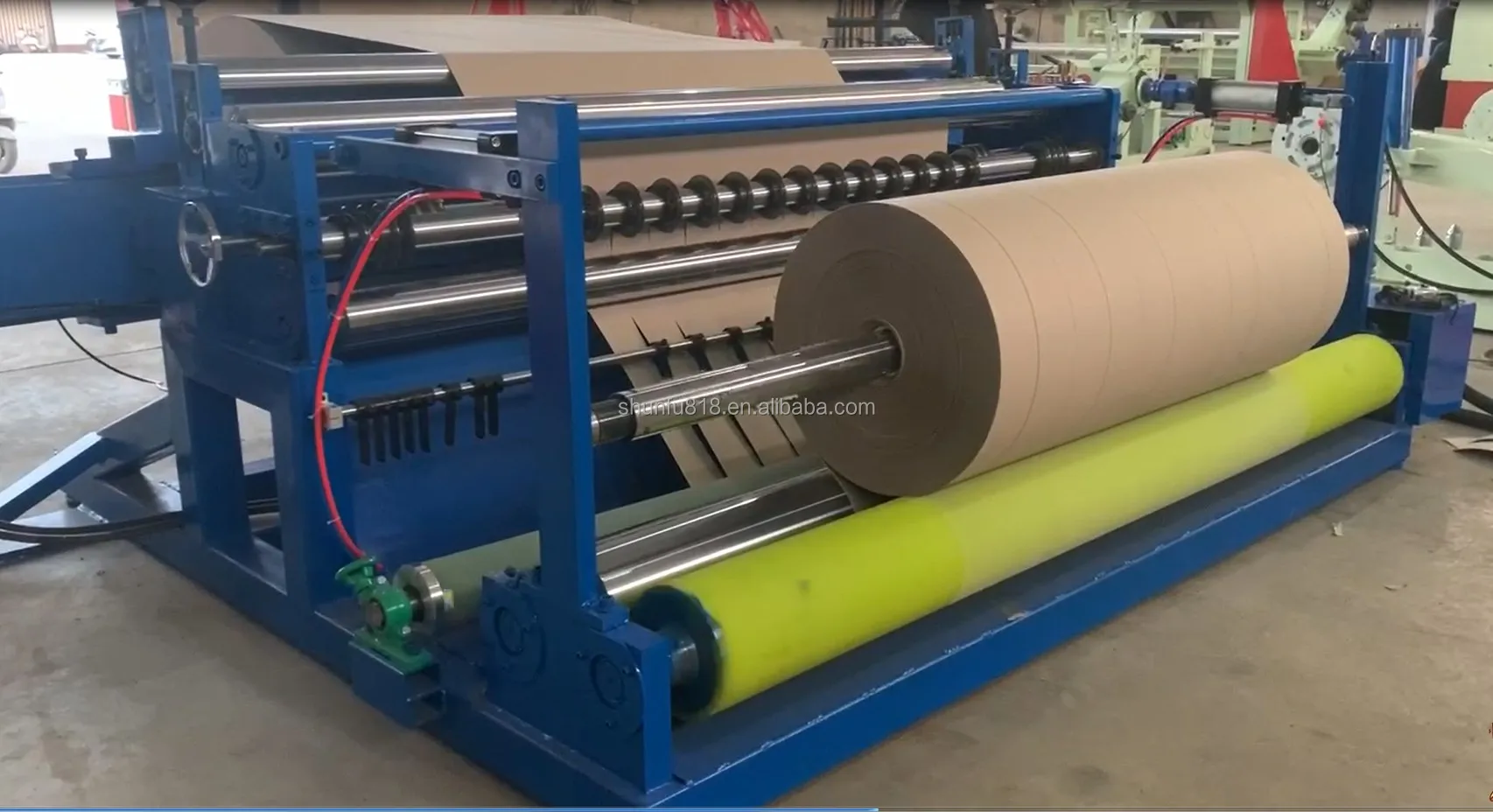

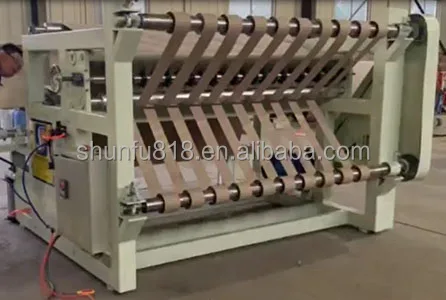

Slitting and Rewinding
Finished paper width can be adjusted.

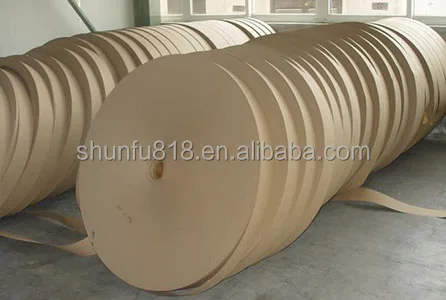

Finished Paper
A certain width of paper roll

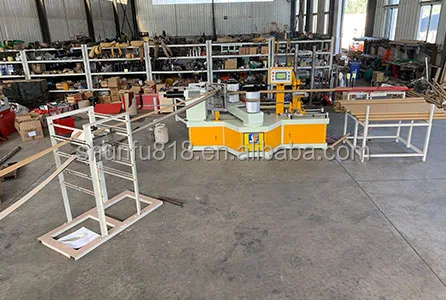

Curling Paper Tube
Using paper tube core machine.
Why Choose Us
Pre-Sales Service
* Inquiry and consulting support.
* Design of machine customization and workshop requirements
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | ||
Packaging | ||
Size | 123 (L) * 456 (W) * 789 (D) | |
Weight | 1.2 T | |
Packaging Details | ||
Our Company
Can I visit your company?
* Yes, you can.
* Our company located in Qinyang city of Henan province, if you take plane, it will need about 2 hours from Zhengzhou city, we will pick you up from airport as well as the train station.
* We will take you to see our machine running in our chinese clients' paper mill. welcome you and your team to visit us at any time!
