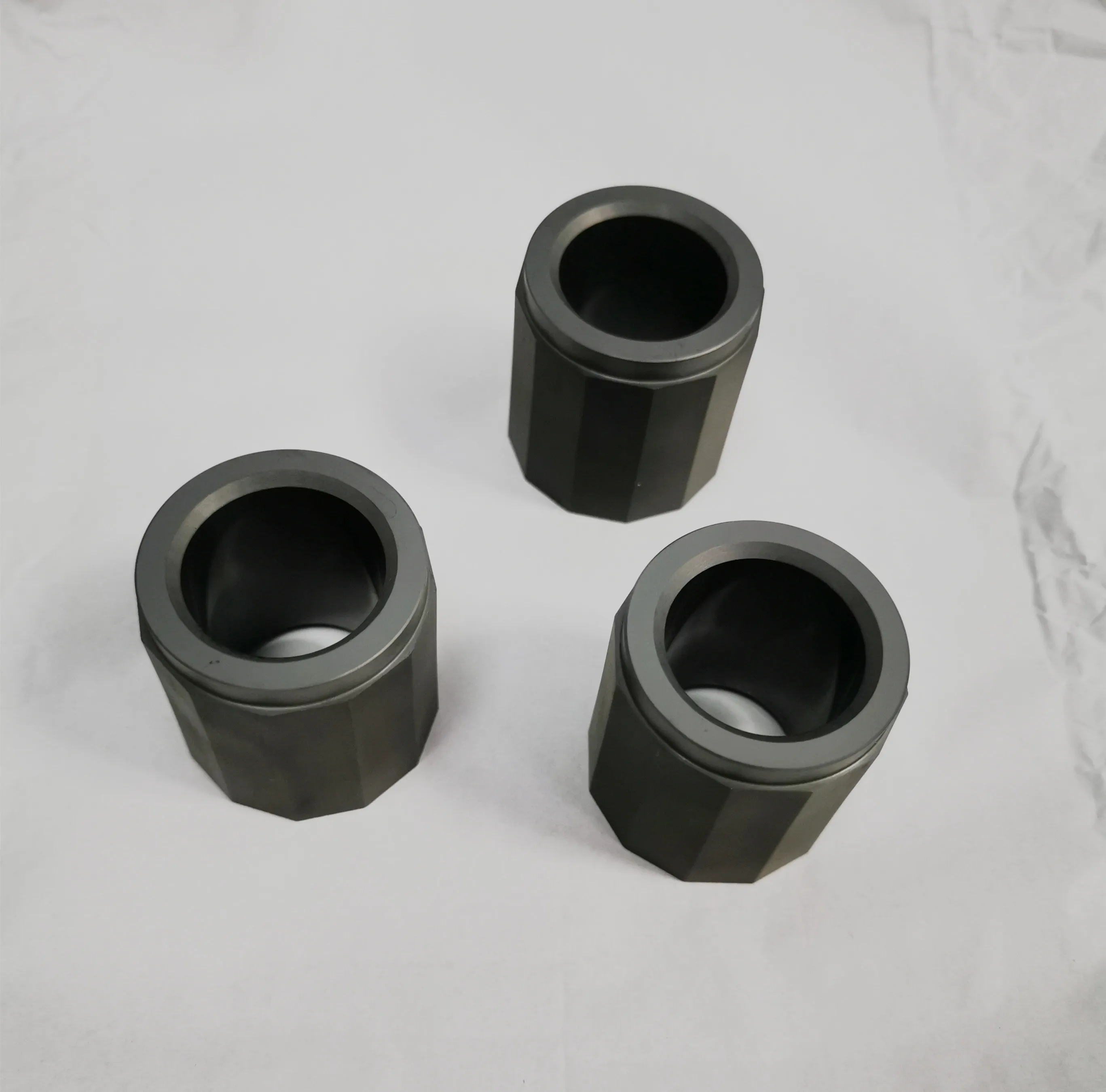

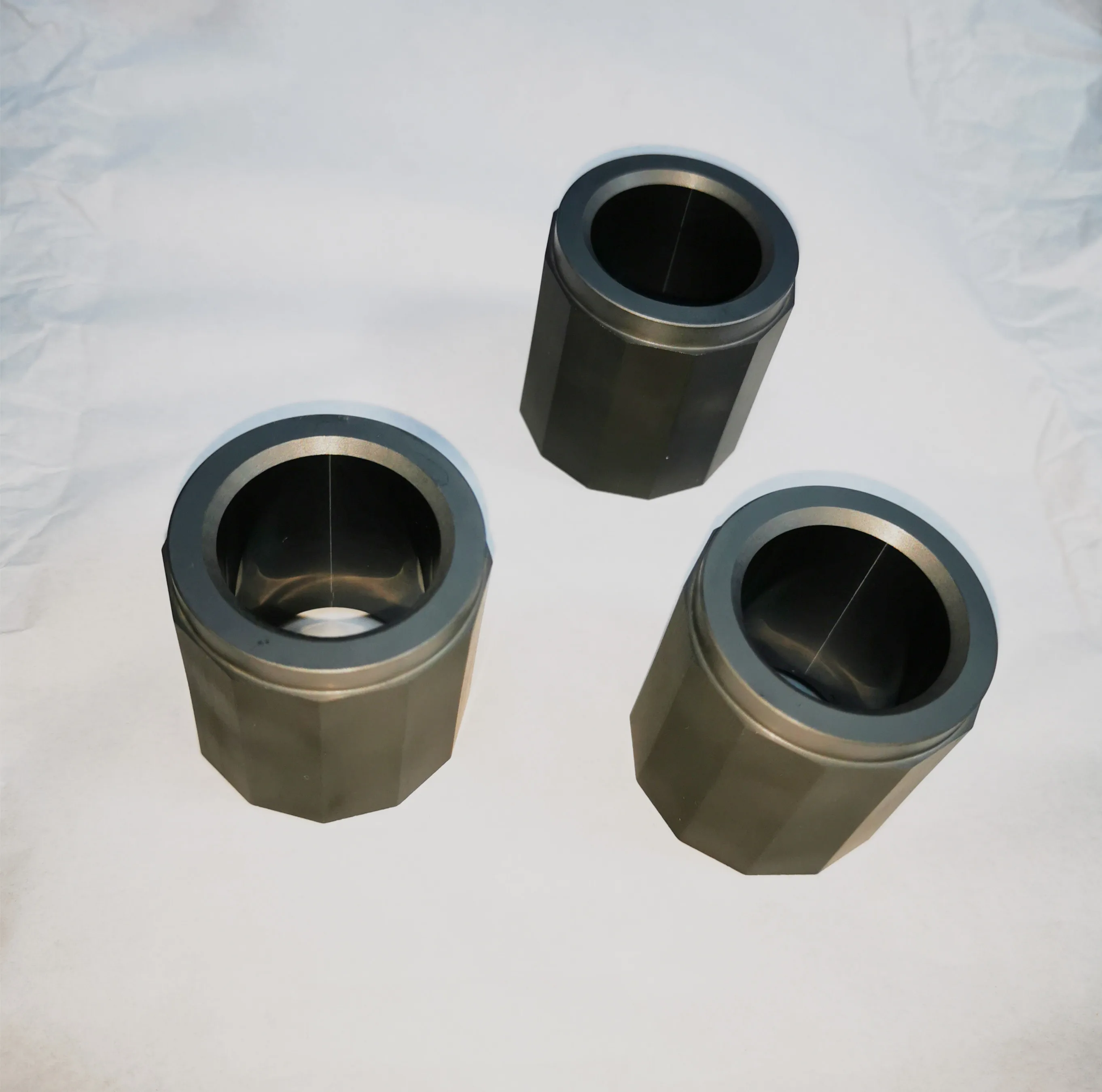

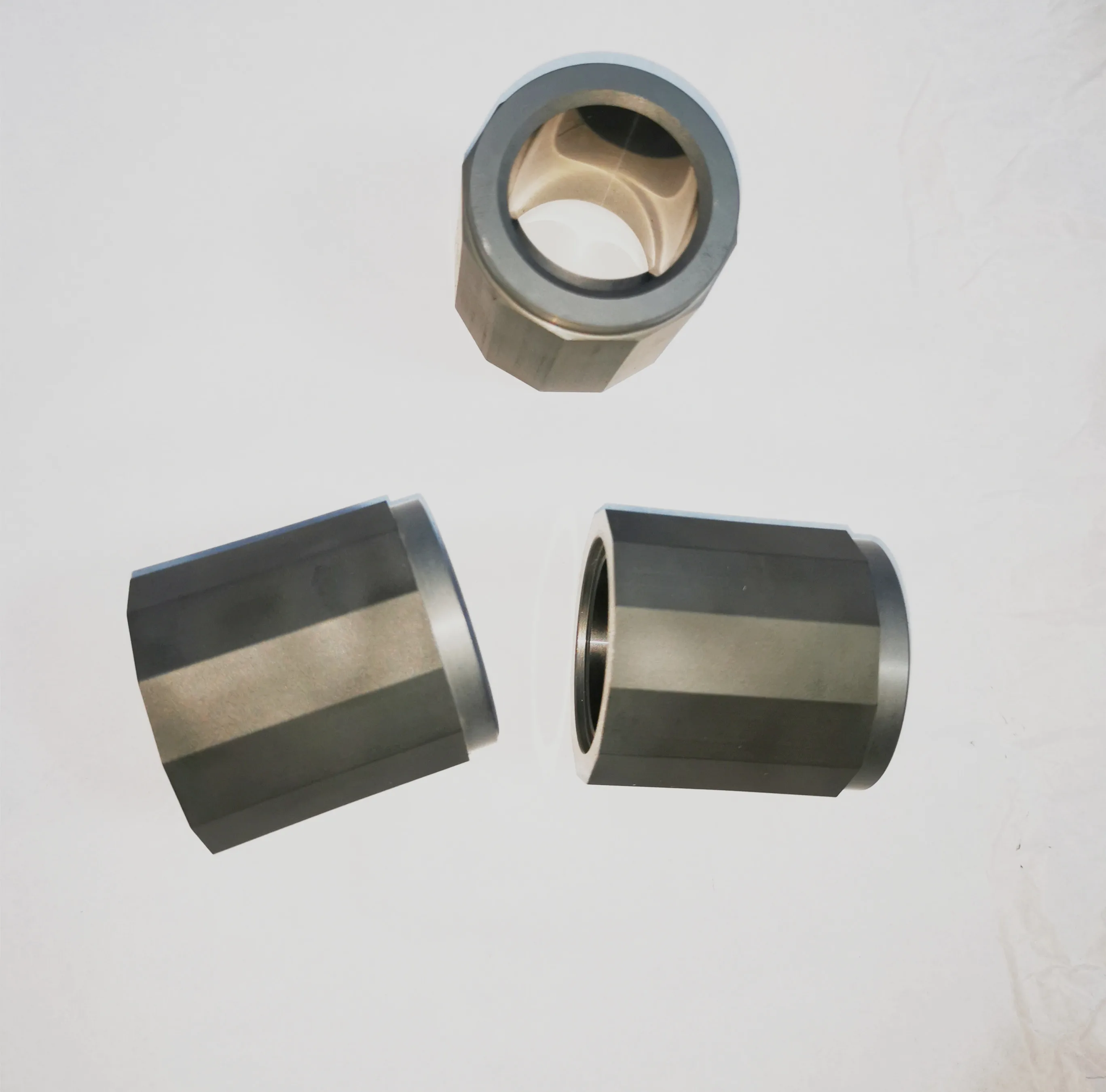

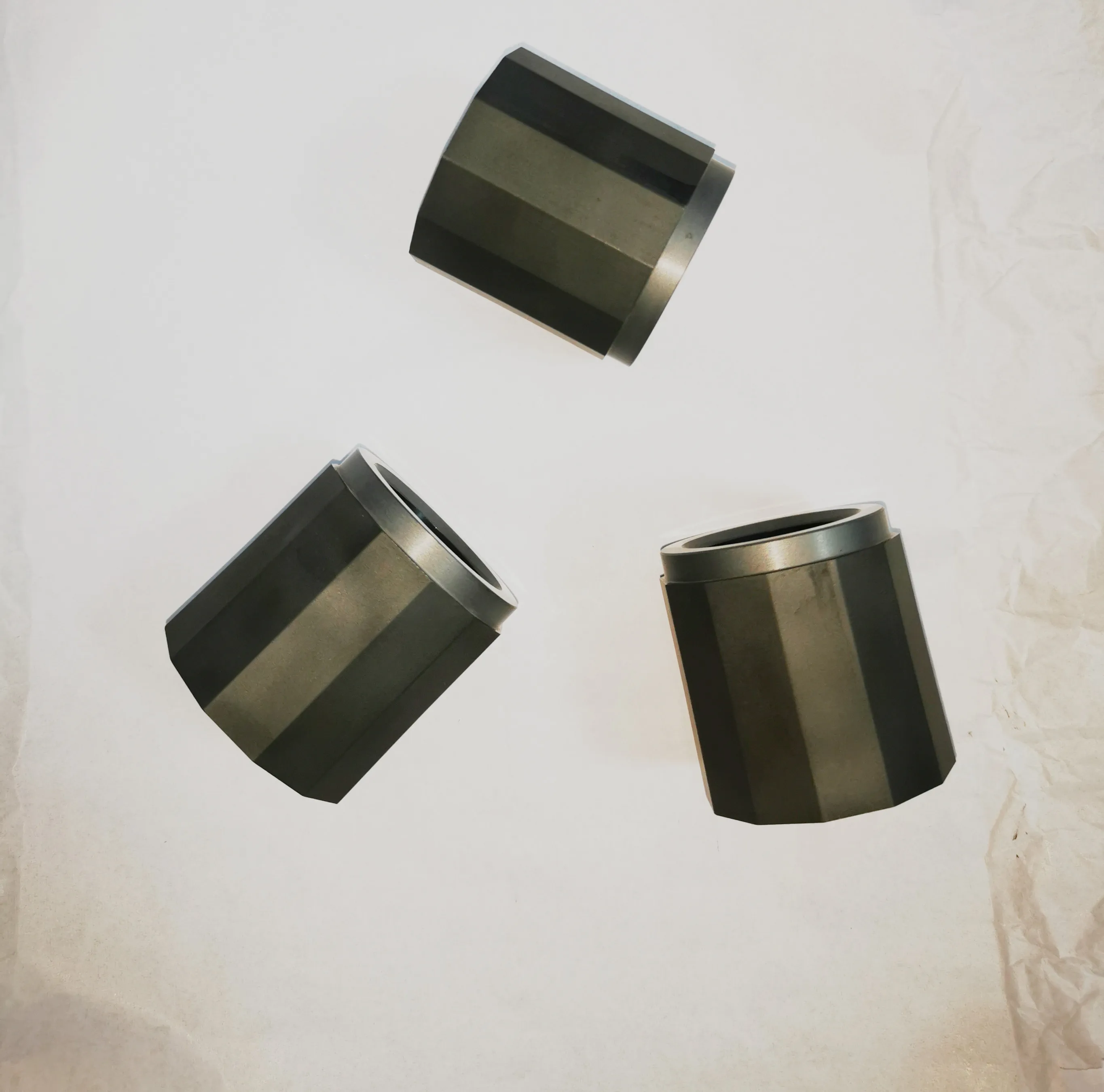

Industrial Silicon Carbide Bushings/ Sleeves

Product Overview

Description

      Industrial Silicon Carbide Bushings/Carbide Sleeves



Excellent corrosion resistance, high coefficient of heat conductivity, self-lubricity, low density  high hardness and also provide customized production.





1.Introduction of   sintered alpha green silicon carbide ceramic bushing    :













Parameter	SSiC	RBSiC
Purity( % )	>98	>90
Hardness( HRA )	≥92	≥90
Grain Size( um )	0.5~0.7	8~20
Density( g/cm3 )	3.10~3.15	3.03~3.08
Bend Strength( MPa )	400-580	350-450
Compressive Strength(MPa)	>2200	>2000
Fracture Toughness( MPA )	3.05-4.6	4.3
Elastic Modulus( GPa )	>400	>360
Thermal Conductivity(W/M.K)	100~120	50~100
Coefficient of heat Expansion( L/°C )	4.02x10-6	4.3x10-6
Poisson Ratio	0.14	0.15



2.Features of     sintered alpha green silicon carbide ceramic bushing  :



1)  Heat shock stablity

2) chemical corrosion-resistant( resistant to strong acid/strong alkali /salt / gas / deleterious )

3) High temper-endure(up to 1650°)

4) Wearing/corrosion/oxidation resistant

5) Highly performance of mechanical strength

6) Cleaning or etching the hardest sub-surfaces

7) long life high hardness resistant to wear; especially resistant to hydrofluoric acid

8) Used for grinding, lapping, and wire saw cutting as well as abrasive blasting





  3.why chose us?

Our advantages	High quality
	Competitive price
	Strict delivery time
	Good after-sales service
	Professional producer for 10 years
	Gold supplier 3th year
	Strict quality control





 4.Applications of sintered alpha green silicon carbide ceramic bushing   :



can adopt various materials and end combinations to meet wide industrial demands.

 usually used in magnetic pump seal ,mechanical seal , Water Lubricated Mechanical Seal for marine vessel ,









5.production lines:



Granulation-compression moulding-sintering-grinding -finishing and fining



 the inspection for each step of the production is conducted strictly.

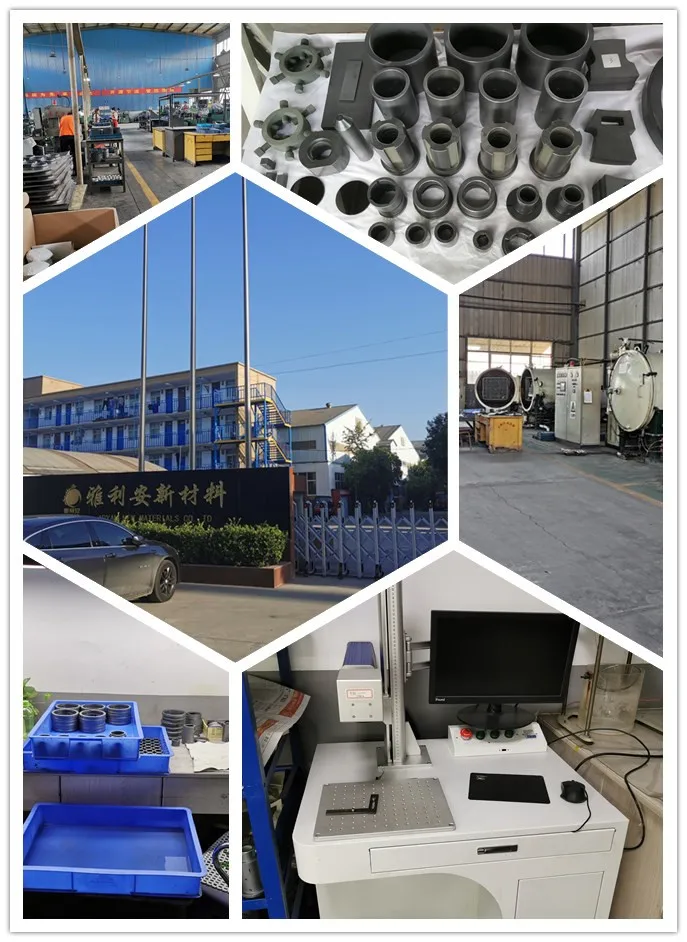

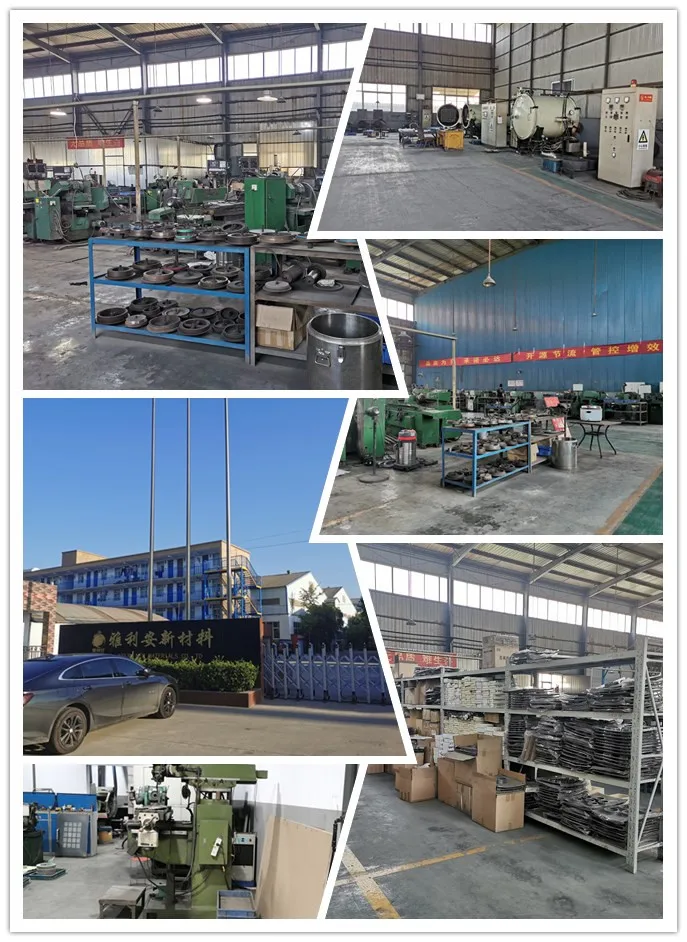

  6   Factory real landscape





7.contact us:







If you are interested in any product, please send your detail request to me. We will quote you competitive price with the superior standard professional technology .



We specialize in sintered alpha green silicon carbide ceramic bushing    .



If you are interested in our cooperation, please send us samples or drawing for further check,including  Dimension, Tolerance, Surface Roughness, Concentricity, Perpendicularity and other specification upon your requirements.



And we warmly welcome friends from all over the world to visit our factories for business.



Send your Inquiry Details in the Below, Click "Send" Now!
