Edan Oximetry M3/M3A/ M3B Reusable 6 pin Adult Clip Spo2 Sensor/Probe
- Category: >>>
- Supplier: Shenzhen Caremed Medical Technology Co. Ltd.
Share on (1600747594697):
Product Overview
Description
Edan Oximetry M3/M3A/ M3B Reusable 6 pin Adult Clip Spo2 Sensor/Probe
Product Description
1.Compatibility:
| Manufacturer | Model |
|---|---|
| Edan | Edan Oximetry M3,M3A, M3B, M8, M8A, M8B, M9, M9A,M50,M80,IM8,IM8A,IM8B,IM9,IM9A,IM50,IM80(Non-Oximaxx) |
2. Product Description:
Compatible Brand | Edan | ||
Sensor Type | Adult Finger | ||
Probe House | ABS shell (finger clip); Silicon rubber boot(soft and multi-site) | ||
Cable Material | TPU Light Gray jacket, 4.0mm diameter | Sensor Connector | Plastic adapter with gold plated pins |
LED | 660nm/905nm/940nm | Photo Detector | 4mm² /8mm²(size) |
Cable Length | 3.0m | Package | 1pc in one ziplock bag |
3. Product Technical Parameters:
LED | Red | 660nm normal |
Infrared | 880/905/940nm normal | |
Text Range | Oxygen Saturation(%SpO2) | 0% to 100% |
Pulse Rate(bpm) | 30 to 245 | |
Accuracy | SpO2 | ±1%(90~100%) |
±2%(80~90%) | ||
±3%(below 70%) | ||
Pulse Rate | ±2bpm(30-250bpm) | |
Storage and Transport Environment | -10℃~+40℃ | |
Operating Temperature | ±5℃~+40℃ | |
Operating/Storage/Transportation Humidity | 0%-80% | |
Hyperbaric Pressure | 86kPa-106kPa | |

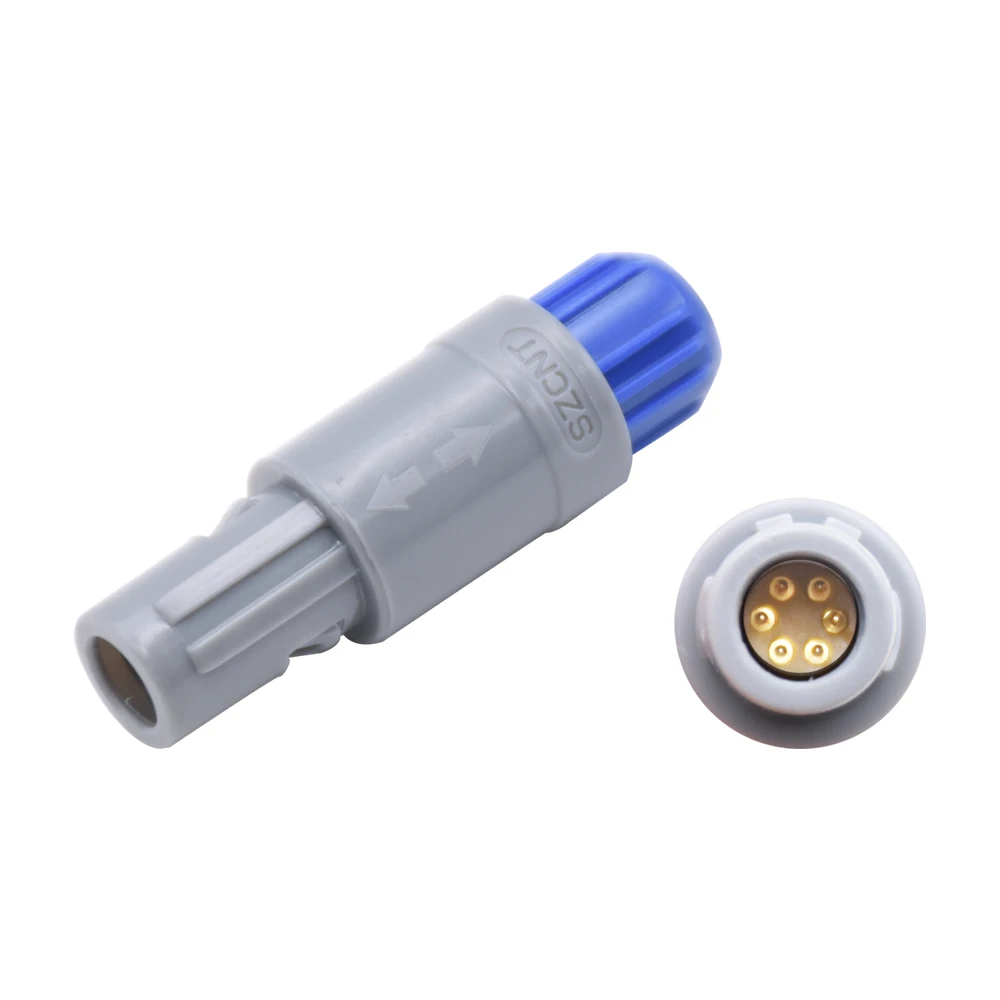

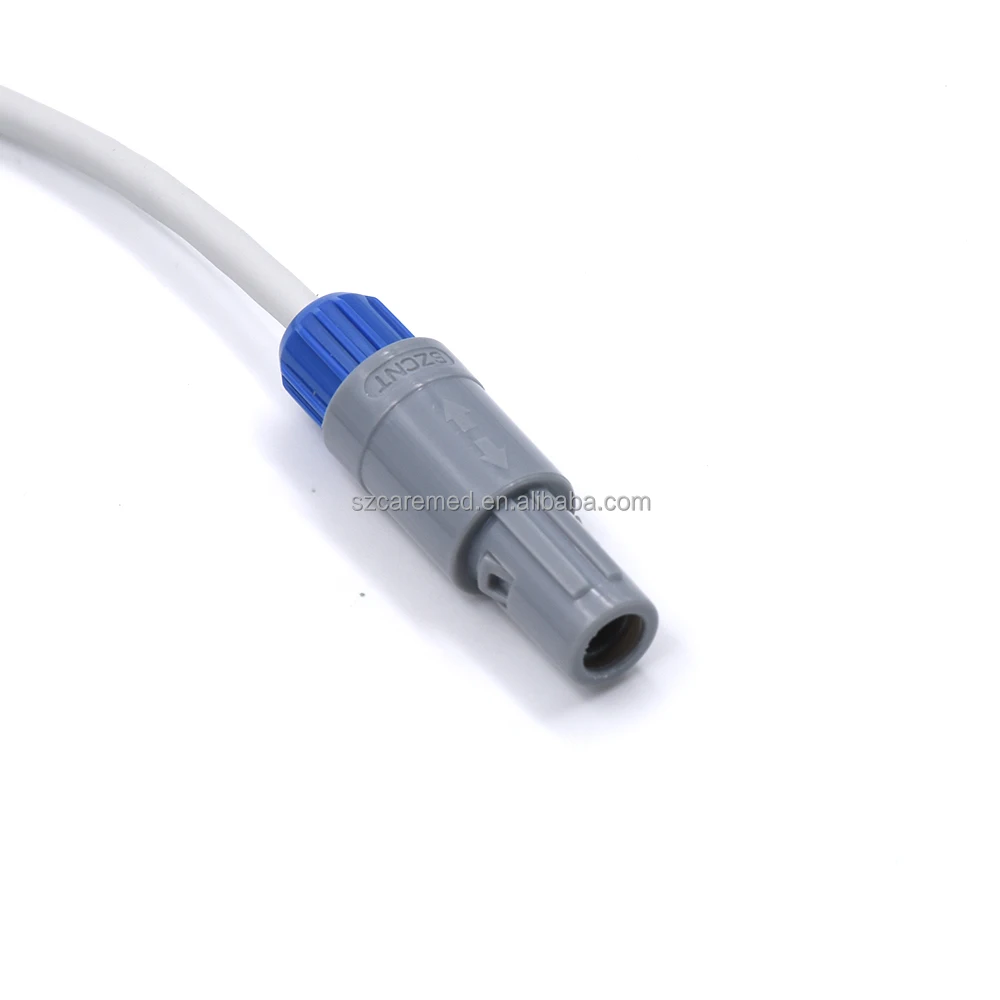

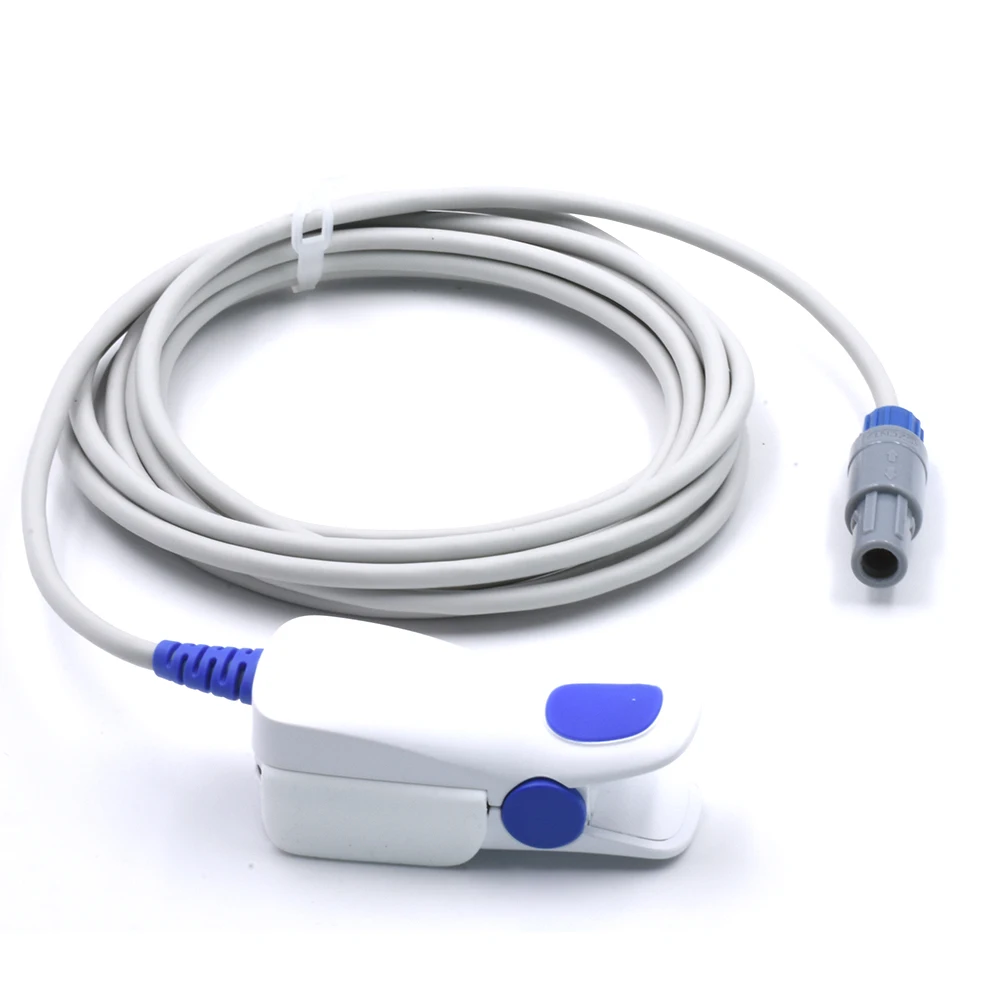

4. Caremed Product Pictures:
4. Caremed Product Test Report:
5. More Main Products from Caremed:
A. SpO2 Sensor, SpO2 Extension;
B. Holter ECG Cable;
C. ECG/EKG Cable, ECG/EKG Leadwire, ECG Electrodes;
D. IBP Transducer, IBP Cable;
E. NIBP Cuff, NIBP Hose;
F. Temperature Probe, Fetal Transducer, CTG Belt;
G. Ultrasound Transducer, Ultrasound Probe Repair.
All Compatible Brands Available for the above. (Contact Now, Save More)
