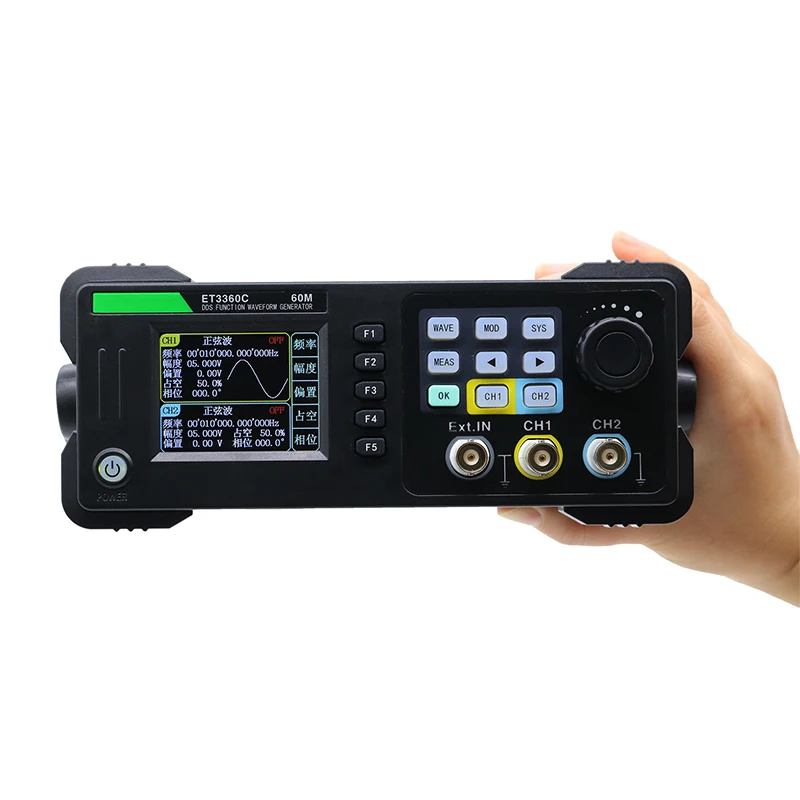

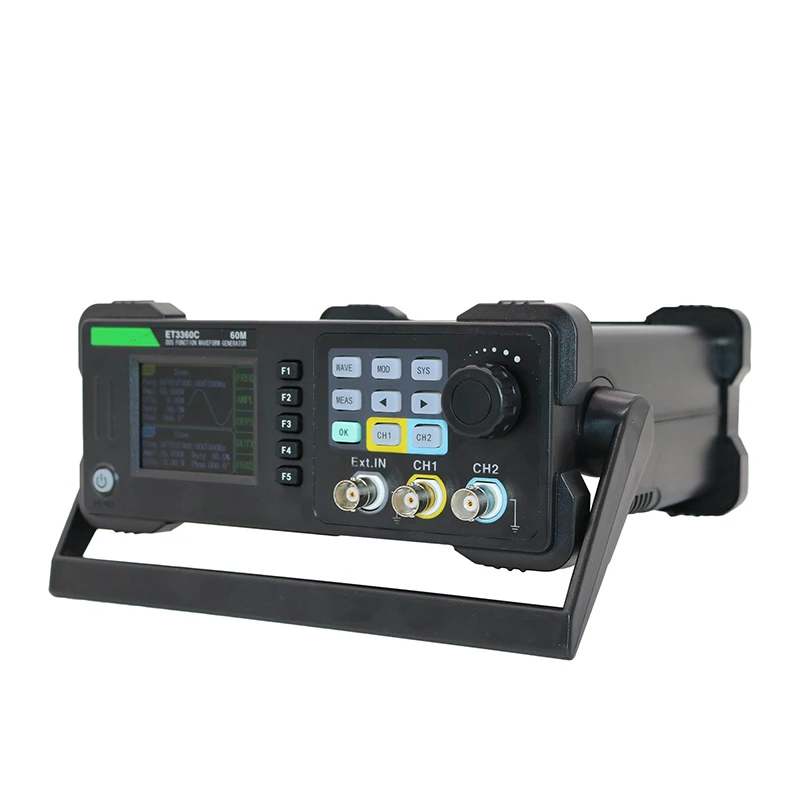

Factory Price 20MHz 40MHz 60MHz 2 channel Function Arbitrary Waveform Generator High Precision Frequency Meter Signal Generator
2.4-inch 320X240 TFT LCD with clear graphic interface
Chinese / English menu available
Both channels are independent of each other and have phase synchronization function.
Sampling rate: 200MSa/S, vertical resolution: 13 bit and storage depth: 8k
5 basic waveforms and 32 arbitrary waveforms in-built
waveform storage; Support internal storage of 50 groups of user-defined edited waveforms;
Pulse wave output set in edge time
Internal AM, FM, PM modulation function；
Internal/external ASK, FSK, PSK modulation function;
Dual channel output, maximum output frequency 60M;
Output of linear/logarithmic sweep and burst (pulse train) waveforms;
With 100MHz high precision frequency meter and 32 bit counter;
Standard USB Device interface;
Equipped with multifunctional arbitrary waveform editing software.
Power voltage：AC 110~240V，50~60Hz
Power consumer：<15W
Display：2.4 inch TFT LED
Temperature range：Operation：10℃~+40℃；Non-operation：-10℃~+60℃；
Humidity range：+35℃ below：≤90％ relative humidity；+35℃ ~ +40℃：≤60％relative humidity


Specification


Frequency Characteristics
Model
ET3320C
ET3340C
ET3360C
Sine
1μHz~ 20MHz
1μHz ~ 40MHz
1μHz ~ 60MHz
Square
1μHz ~ 15MHz
1μHz ~ 15MHz
1μHz ~ 15MHz
Triangle
1μHz ~ 15MHz
1μHz ~ 15MHz
1μHz ~ 15MHz
Pulse
100μHz ~ 6MHz
100μHz ~ 6MHz
100μHz ~ 6MHz
Arbitrary
1μHz ~ 6MHz
1μHz ~ 6MHz
1μHz ~ 6MHz
Frequency Resolution
1μHz
Frequency Accuracy
±20ppm
Frequency Stability
±1ppm/3 hour
Waveform Characteristics
Waveform Types
Sine, square, triangle, pulse, noise and arbitrary waves (including DC).
There are 32 kinds of arbitrary waves and 50 kinds of user-defined waves.
Waveform Length
8192 points
Waveform Sampling Rate
200MSa/s
Waveform vertical resolution
13bits
Sine Wave Characteristics
Sine Wave
Harmonic suppression degree
≥45dBc(<1MHz);
≥40dBc(1MHz~20MHz)
Total harmonic distortion
<0.8%(20Hz ~ 20kHz, 0dBm)
Square Wave Signal Characteristics
Square Wave
Rise/Fall
<20ns
Overshoot
<5%
Duty Cycle
freq<100kHz: 1%~99%;
100kHz≤freq<5MHz: 20% ~ 80%;
5MHz≤freq: 40% ~ 60%(0.1% resolution)
Pulse Wave Characteristics
Pulse Wave
Pulse Width
Min 20ns; 1ns resolution
Edge jump time
Min 20ns;
Overshoot
<5%
Jitter
6ns+0.1%Period
Sawtooth wave Characteristics
Sawtooth wave
Linearity Degree
≥98%(0.01Hz~10kHz)
Symmetry
0.0 ~ 100.0%(resolution0.1%)
Output Characteristics
Amplitude
Amplitude Range
freq＜10MHz
10MHz≤freq＜30MHz
30MHz≤freq
2mVpp ~ 20Vpp
2mVpp ~10Vpp
2mVpp ~5Vpp
Amplitude Resolution
1mV
Accuracy of amplitude
1% of set value +2mVpp（1kHz Sine，0 offset，>10mVpp）
Amplitude accuracy Amplitude flatness
±0.4dB <10MHz ；
(Relative to 1K sine wave, 1Vpp)
±1.0dB ≥10MHz。
Output Impedance
50Ω±10%（Typical）
Protection
All signal output terminals can work within 60s under load short circuit
Offset
Output Amplitude>0.1V
2mV
Output range
±10Vpk，ac + dc
±0.250Vpk，ac + dc
Offset Resolution
1mV
Phase characteristics
Phase Adjusting Range
0~359.9°
Phase Resolution
0.1°
External Measurement Function
Frequency Meter Function
range
1Hz ~ 100MHz
Gate time
0.01s ~ 10s continuously adjusted
Counter Function
Counting region
0 ~ 4294967295
Counting method
Manual operation
Input Signal Voltage Range
2Vpp~20Vpp
Coupled Mode
AC or DC
Pulse Width Measurement
1ns(resolution，MAX measuring time 20s
Period Measurement
1nsresolution，MAX measuring time 20s
AM Modulation
Output Channel
CH1 or CH2
Carrier Wave
Sine, square, sawtooth wave, pulse and arbitrary waveforms (excluding DC)
Source
Internal/External VCO(external optional)
Modulation Wave
Sine wave, square wave, triangle wave, upper oblique wave, lower oblique wave
Modulation Frequency
2mHz~20kHz
Modulation depth
0%~120%
FM Modulation
Output Channel
CH1 or CH2
Carrier Wave
Sine, square, sawtooth wave, pulse and arbitrary waveforms (excluding DC)
Source
Internal/External VCO(external optional)
Modulation Wave
Sine wave, square wave, triangle wave, upper oblique wave, lower oblique wave
Modulation Frequency
2mHz~20kHz
Frequency Offset
0~Maximum carrier frequency
PM Modulation
Output Channel
CH1 or CH2
Carrier Wave
Sine, square, sawtooth wave, pulse and arbitrary waveforms (excluding DC)
Source
Internal/External VCO(external optional)
Modulation Wave
Sine wave, square wave, triangle wave, upper oblique wave, lower oblique wave
Modulation freq.
2mHz~20kHz
Frequency Offset
0°~360°
ASK Modulation
Output Channel
CH1 or CH2
Carrier Wave
Sine, square, sawtooth wave, pulse and arbitrary waveforms (excluding DC)
Source
Internal/External
Modulation Wave
A square wave with 50% duty cycle
Modulation freq.
2mHz~1MHz
Amplitude modulation
0~Carrier wave amplitude
FSK Modulation
Output Channel
CH1 or CH2
Carrier Wave
Sine, square, sawtooth wave, pulse and arbitrary waveforms (excluding DC)
Source
Internal/External
Modulation Wave
A square wave with 50% duty cycle
Modulation rate
2mHz~1MHz
Frequency hopping
Carrier frequency range
PSK Modulation
Output Channel
CH1 or CH2
Carrier Wave
Sine, square, sawtooth wave, pulse and arbitrary waveforms (excluding DC)
Source
nternal/External
Modulation Wave
A square wave with 50% duty cycle
Modulation rate
2mHz~1MHz
The phase modulation
0°~360°
Frequency sweep function
Sweep frequency channel
CH1 or CH2
Frequency sweep type
Linear scan, logarithmic scan
Frequency sweep time
1ms ~ 999.999s
Setting range
Arbitrarily set the start and end points
Frequency sweep direction
Forward, reverse, round trip
Trigger source
Internal, external, manual
Burst Characteristic
Output Channel
CH1 or CH2
Carrier Wave
Sine wave, square wave, sawtooth wave, pulse wave, noise, arbitrary wave (except DC)
Pulse count
1 to 1048575 or Unlimited or gated
Start/stop phase
0~360°
Intercycle
1μs~500s
Door control source
external
Trigger source
Internal, external, manual
Trigger input
Input signal voltage range
2Vpp~20Vpp
Coupled mode
DC or AC
Pulse width
>100ns
Response time
<500ns（pulse train）
<10μs（sweep frequency）
Analog modulation input (optional)
Input inpedance
1MΩ
Singal range
±2.5V ac+dc
