Product Overview

Description





With over 30 years of experience,ZENITH ,We had already build many mining projects in China & Overseas.

Come and inquire for free design solutions!







Zenith Cone rock crusher Qualified cone crusher

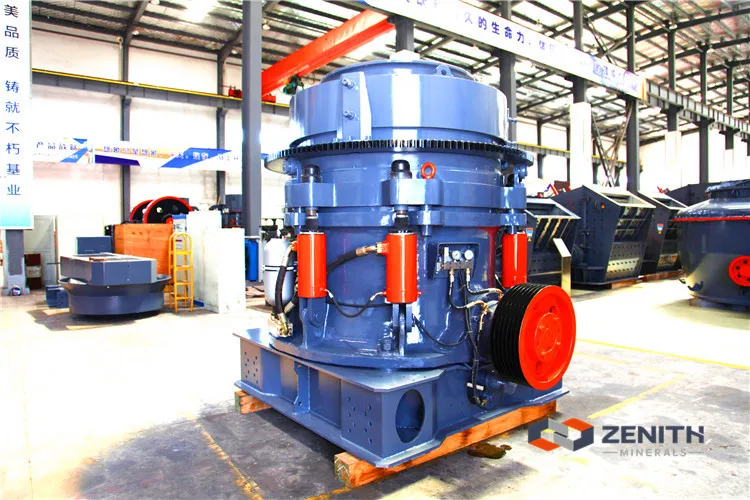

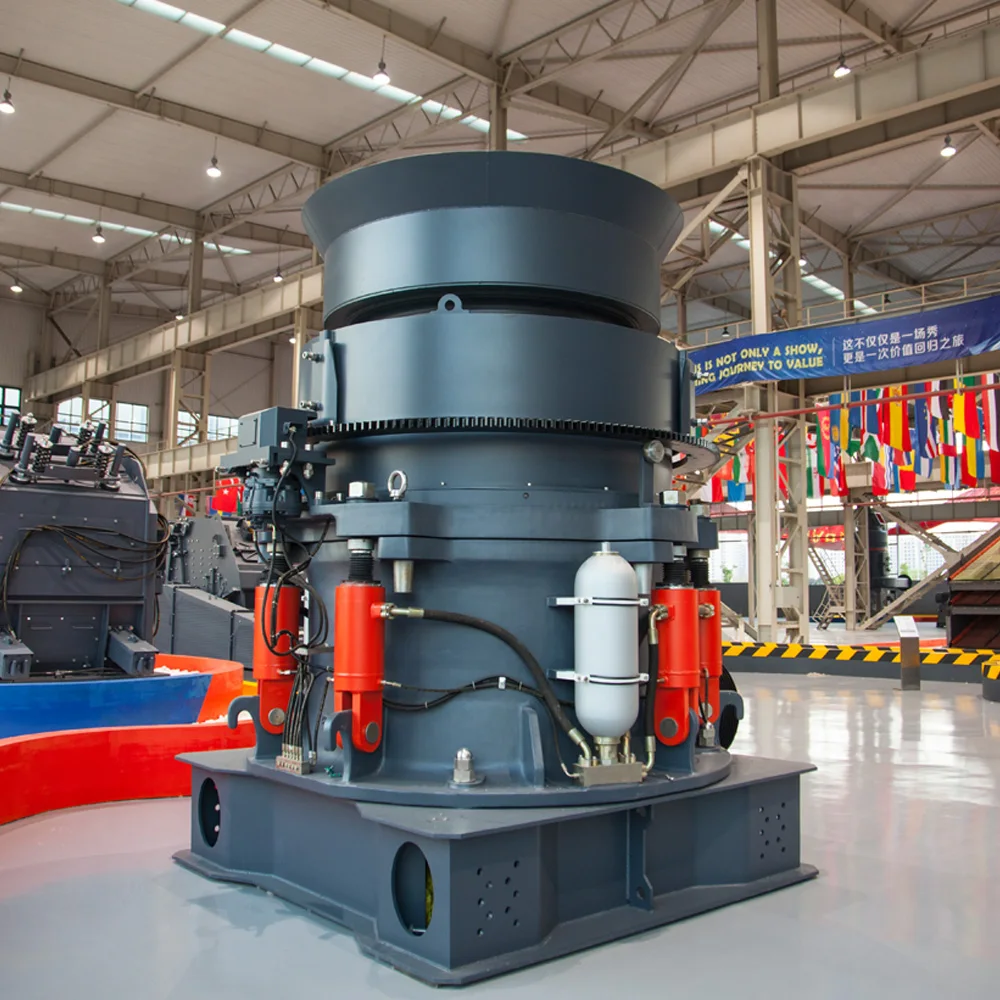

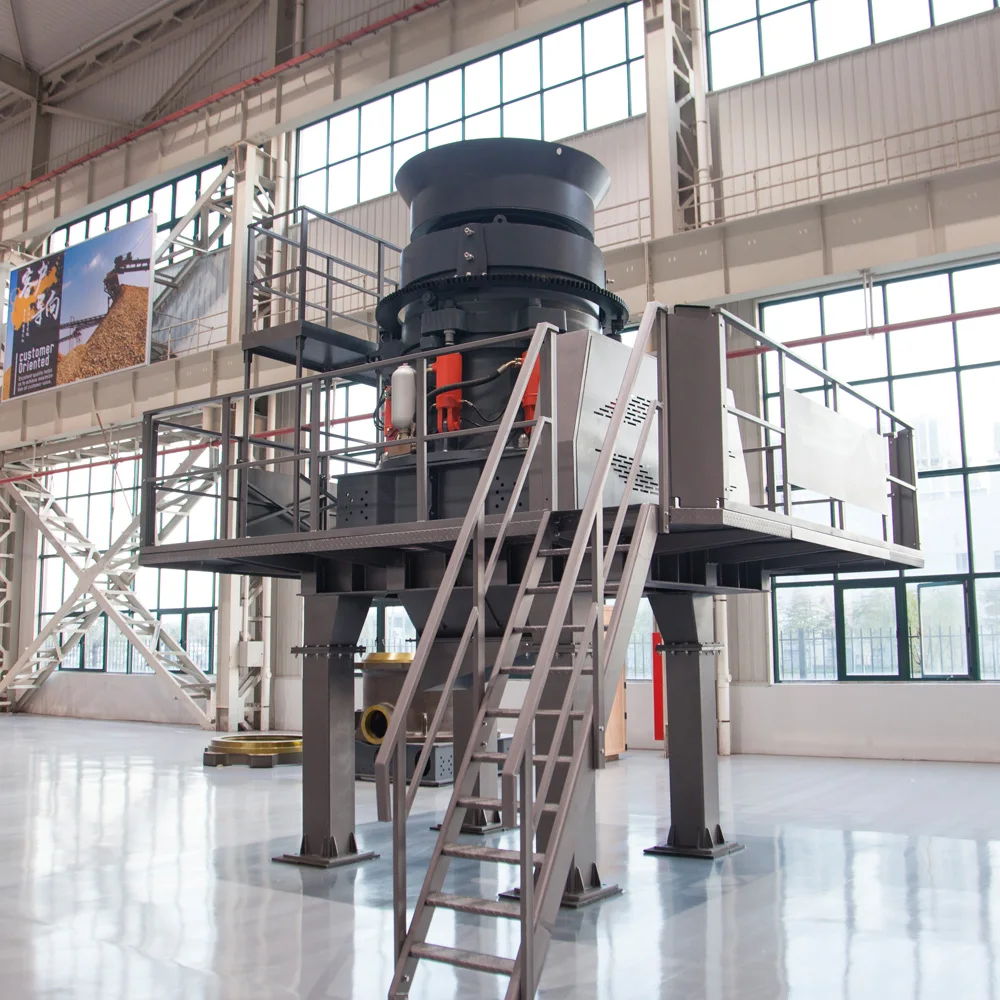

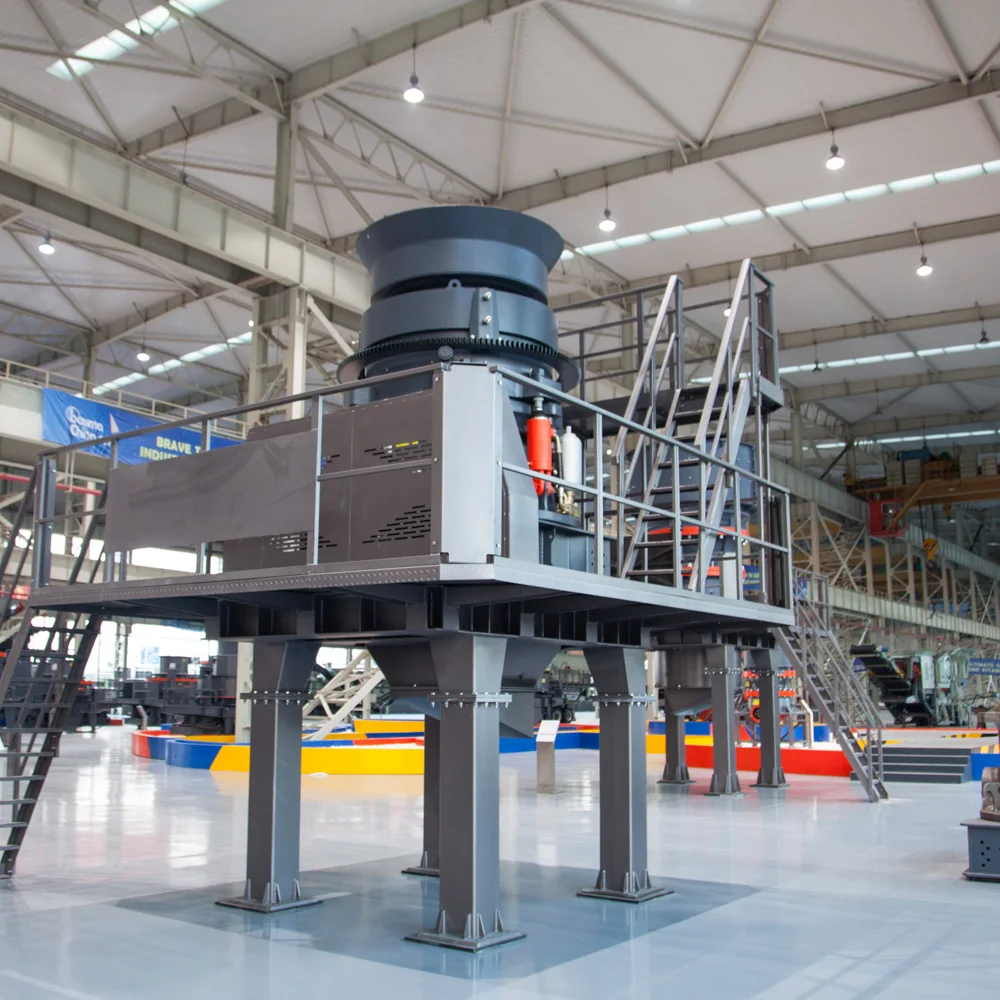

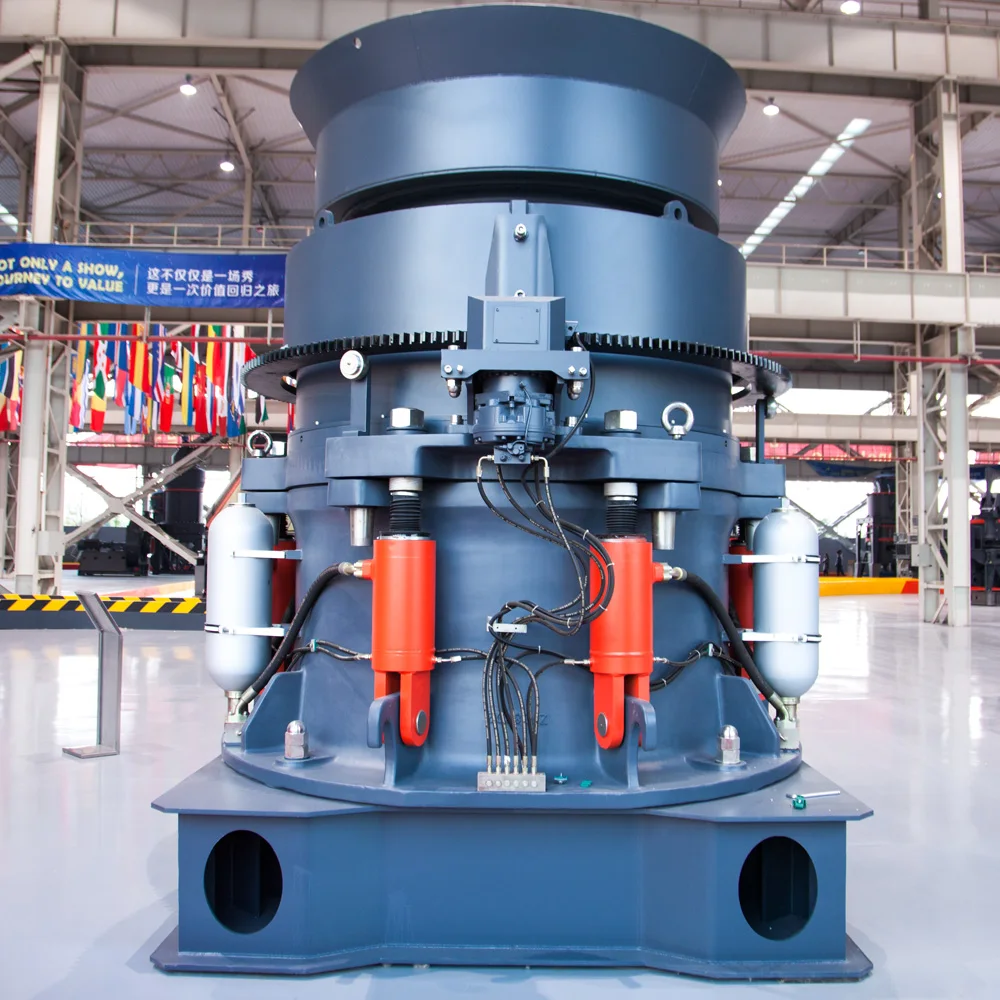

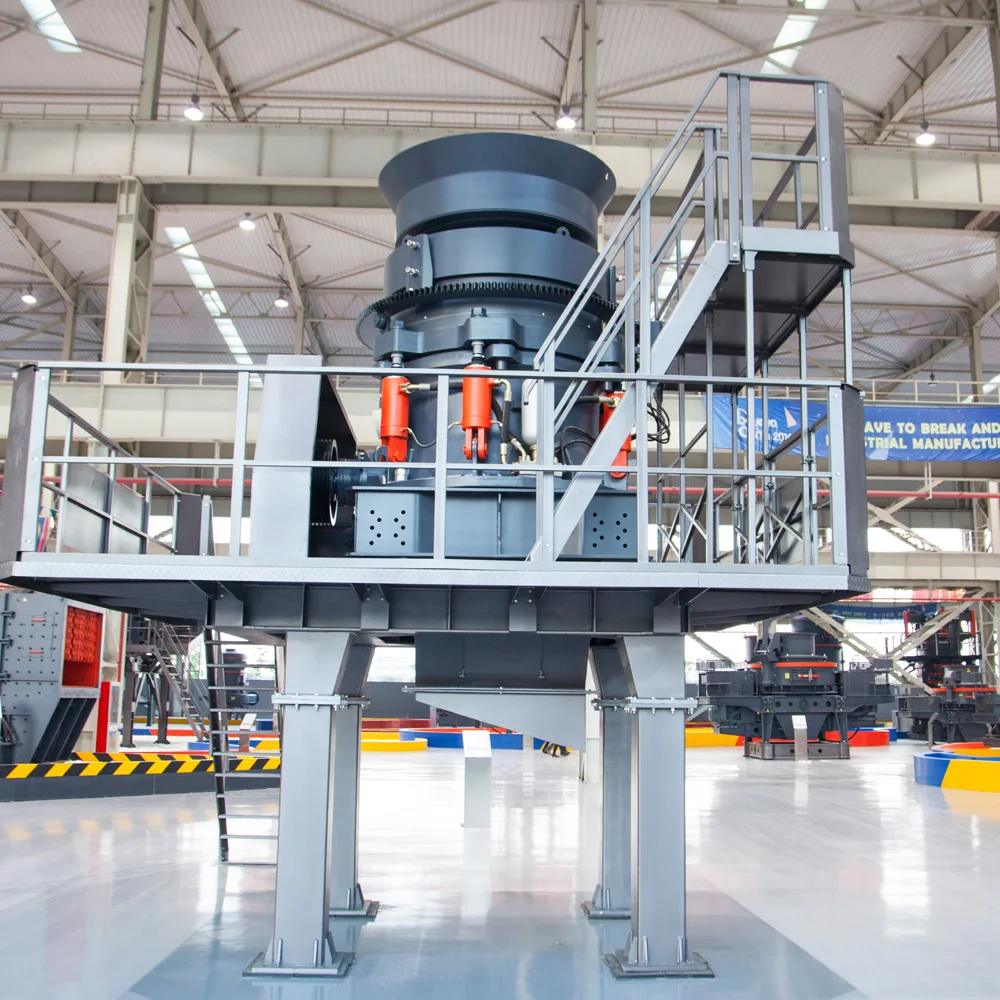

HPT Multi-cylinder Hydraulic Cone Crusher



Higher crushing ratio, larger processing capacity, better granularity and shape of finished materials

Based on the structure of traditional multi-cylinder hydraulic cone crusher with the fixed main shaft and the eccentric bushrotating around the main shaft, and the laminating crushing principle,ZENITH greatly optimizes the structure of HPT Multi-cylinder Hydraulic Cone Crusher, which greatly improves the performance and crushing capability. Meanwhile, the hydraulic lubrication system of HPT Cone Crusher ensures more intelligent and more stable operation.

Materials:Granite, diabase, basalt, pebble, limestone, dolomite, metallic ores and non-metallic ores, etc.

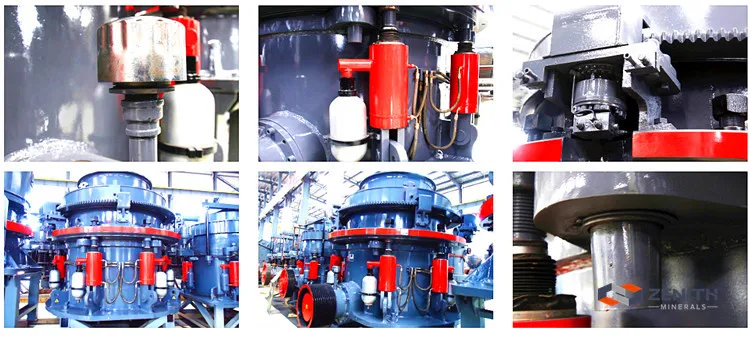

Product Advantages

Working Principle of Cone rock crusher Qualified cone crusher

---

When Cone rock crusher Qualified cone crusher  is working, the motor drives the transmission shaft rolling through the pulley and the V-belt. The transmission shaft drives the eccentric bush rolling around the main shaft through the large and small bevel gears.The eccentric bush drives the moving cone to do the swing motion, to make the moving cone sometimes close to and sometimes far from the concave. Then the materials are impacted, extruded constantly in the crushing cavity formed by concave and mantle and then are crushed and the broken materials are discharged from the lower port.



Product Parameters

 Cone rock crusher Qualified cone crusher



Model	Cavities	Feed opening (mm)	Capacities (t/h)	Maximum installed power (kw)	Overall dimension (mm)
HPT100	C1(Extra Coarse)	140	75-140	90	1705×1510×1583
	C2(Coarse)	100	60-110
	M(Medium)	70	52-100
	F1(Fine)	50	50-95
	F2(Extra Fine)	20	45-90
HPT200	C2(Coarse)	185	145-250	160	2135×1750×1927
	M(Medium)	125	135-235
	F1(Fine)	95	115-220
	F2(Extra Fine)	75	90-190
HPT300	C1(Extra Coarse)	230	220-440	250	2725×2110×2871
	C2(Coarse)	210	190-380
	M(Medium)	150	175-320
	F1(Fine)	105	145-280
	F2(Extra Fine)	80	110-240
HPT400	C1(Extra Coarse)	295	300-630	315	2775×2370×2295
	C2(Coarse)	251	285-560
	M(Medium)	196	250-490
	F1(Fine)	110	180-345
	F2(Extra Fine)	90	135-320
HPT500	C1(Extra Coarse)	330	425-790	400	2800×3480×4050
	C2(Coarse)	290	370-700
	M(Medium)	210	330-605
	F1(Fine)	135	270-535
	F2(Extra Fine)	95	220-430
HPT800	C1(Extra Coarse)	350	570-1200	630	3970×3345×4235
	C2(Coarse)	299	520-1050
	M(Medium)	265	475-950
	F1(Fine)	220	370-800
	F2(Extra Fine)	150	310-600













1. Are you a manufacturing or trading company?

We are a factory

2. How long is your delivery time?

7-10 days for the stock, 15-30 days for the mass production.

3. What is your payment method?

30% deposit in T/T advance, 70% balance before shipment. can discussible

4. How long is the warranty? Does your company supply the spare parts?

One year. Spare parts for you at the lowest cost.

5. If I need the complete crushing plant can you help us to build it?

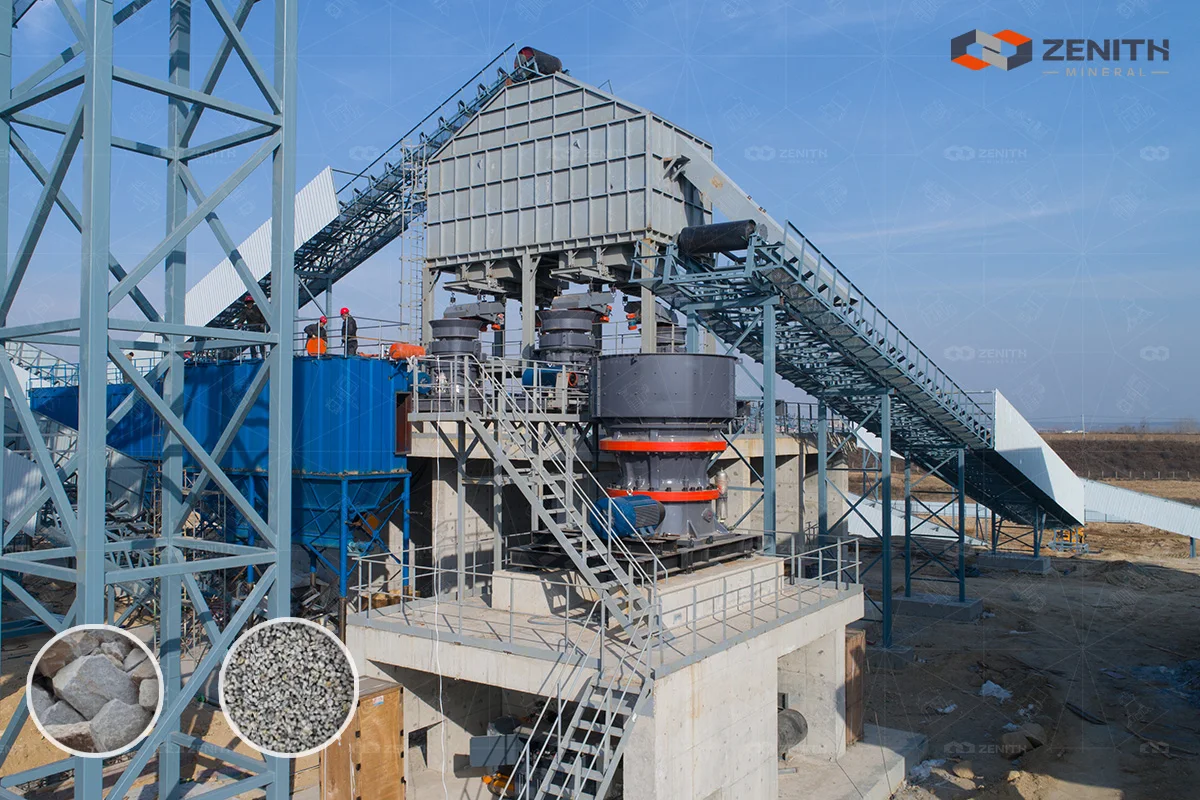

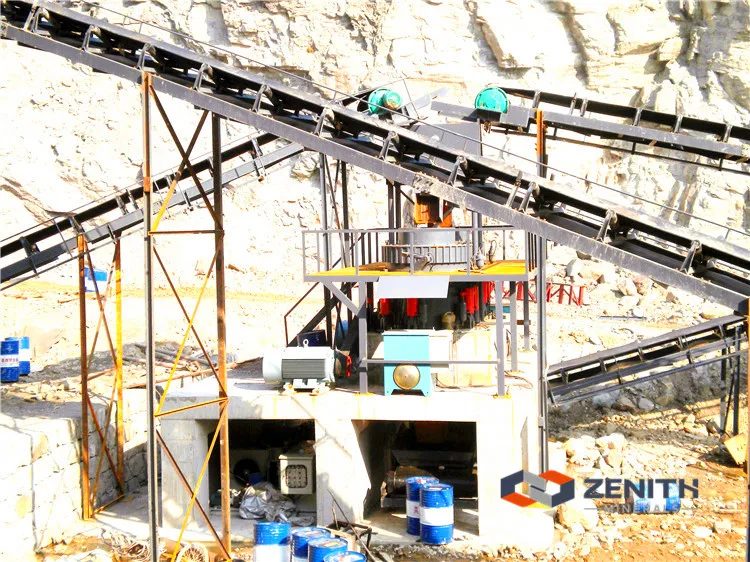

Yes, we can help you set up a complete production line and give you related professional advice. We had already built many mining projects in China & Overseas.





ZENITH Services

---

ZENITH is professional in providing services and technologies for crushing and grinding industry. For pre-sales service, ZENITH’s wide range of products provide customers with stand-alone machines or complete processing plants. For after-sales service, ZENITH has the most experienced technicians’ guidance for your reference. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary trainings about machine’s daily maintenance to local workers are provided also.



















In order to recommend the suitable models and supply prce for you, Send your Requiry Details in the below!



 Cone rock crusher Qualified cone crusher



Include:



1. Which kind of material you are going to process?

Soft stone (dolomite, limestone and others) or hard stone (granite, basalt, river pebble and others) ?



2. What's the production capacity you want?





And please tell me your email and phone, I will give you factory price with full specification and you will know all details about machine and discount.









Come and inquire for free design solutions!
