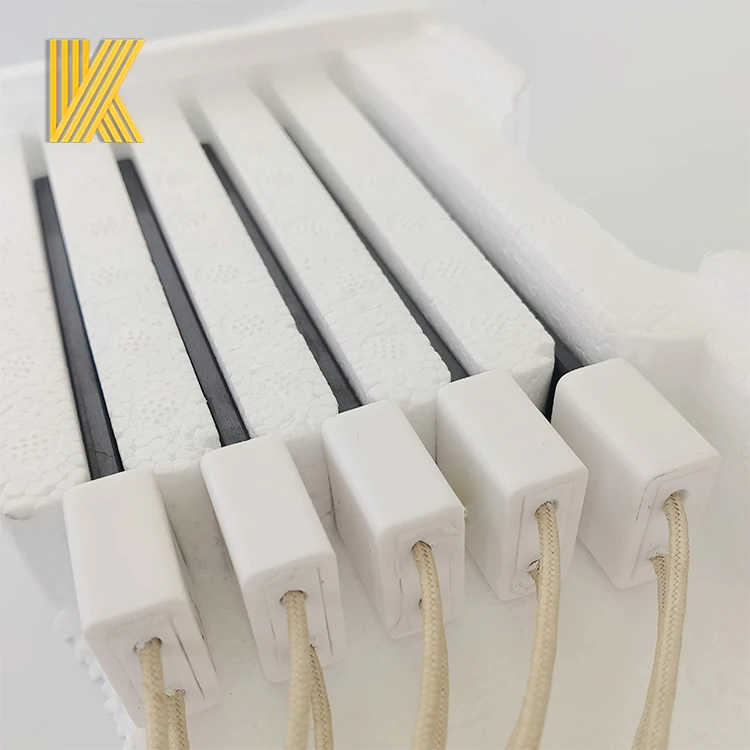

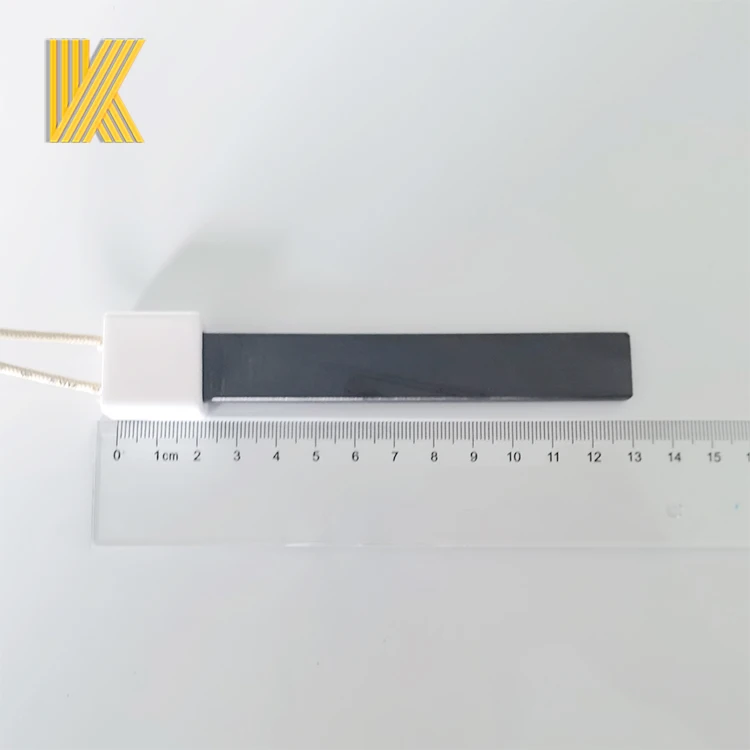

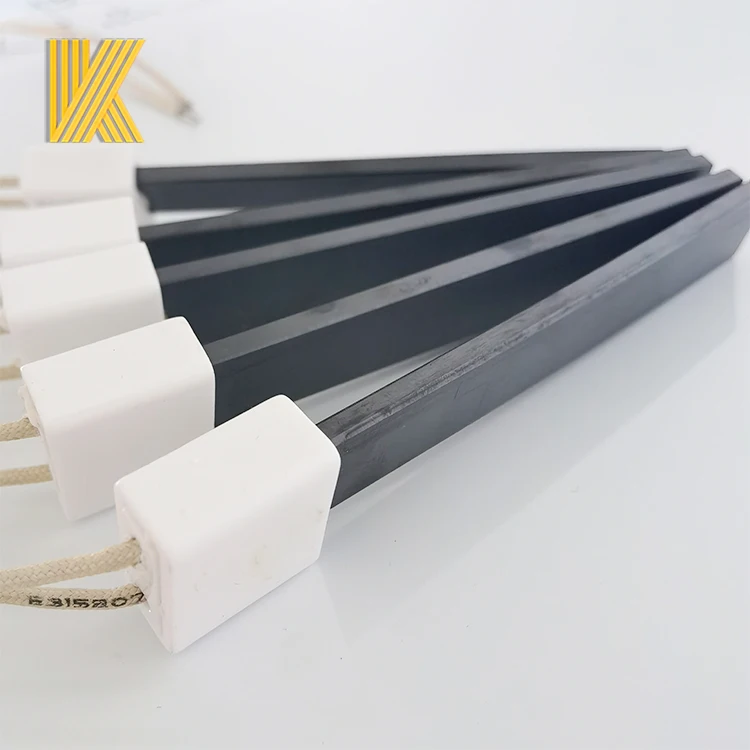

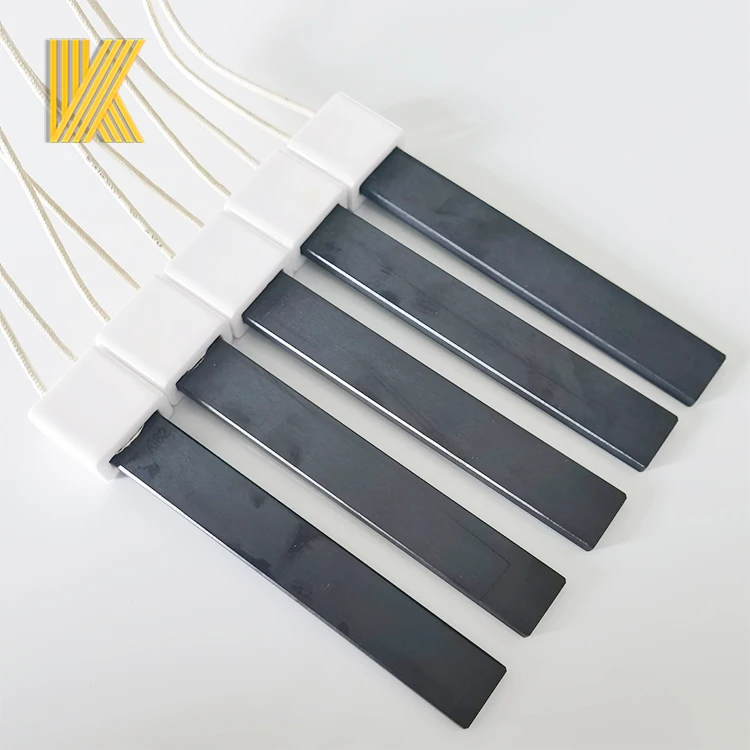

220V 600W Ceramic Heater Ignitor Black Quartz Igniter Silicon Nitride Pellet Igniter for Pellet Stove

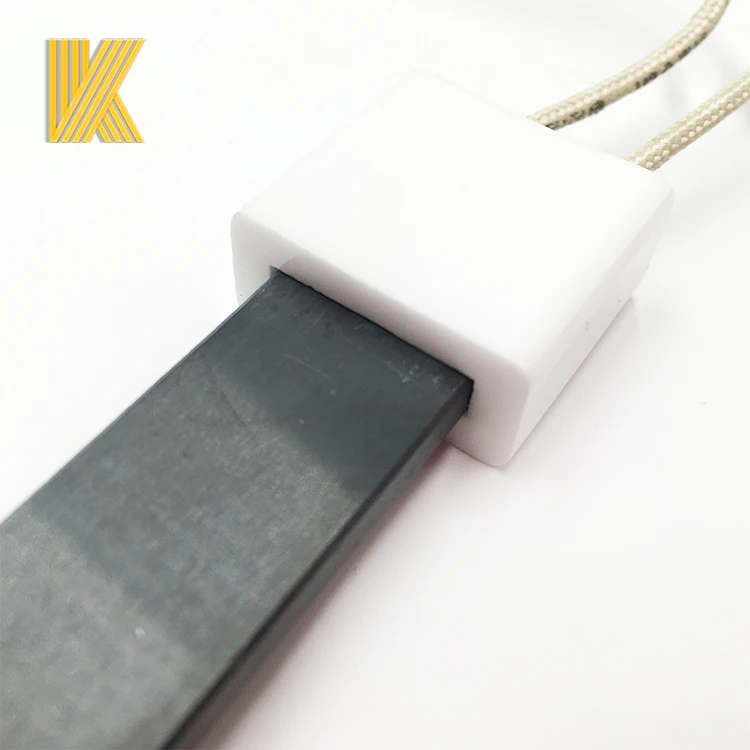

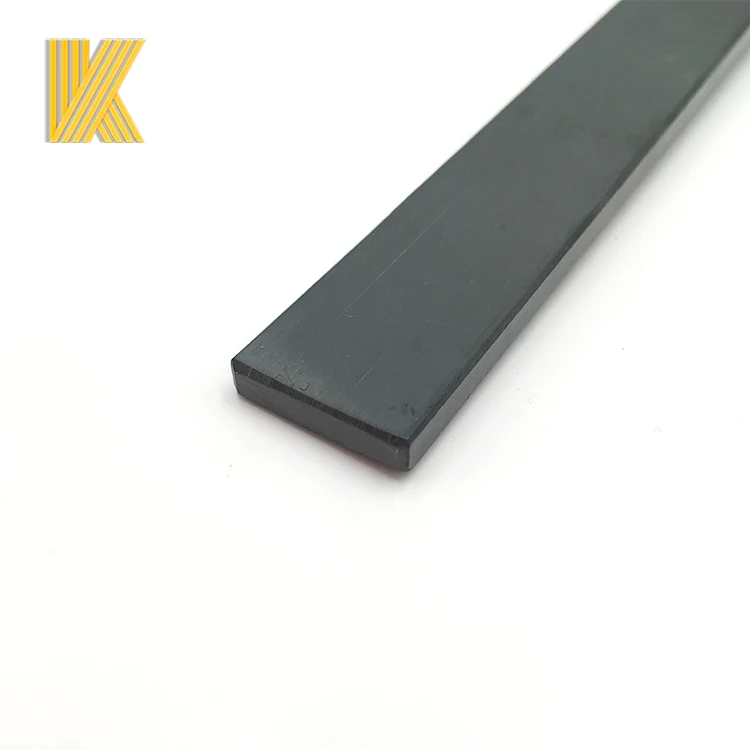

Silicon nitride heaters are normally in rectangular shape. Alloy wire is wrapped in dense silicon nitride ceramic body, where silicon nitride plays the role of heat transfer medium. These igniters have a lot operation zone up to 1000 degree C, and a cold zone in the contact area. Encapsulated terminal can prevent short circuit caused by conductive contamination. They can be operated with or without a controller. Silicon nitride igniters have several times the durability than that of silicon carbide products.
Silicon nitride igniter can heating up to 800 to 1000 degree within tens of seconds.
Silicon nitride ceramic igniter can sustain corrosion of melting metals. With proper instatllation and igniting process, the igniter can several years.
Silicon nitride ceramic heater is only 4 mm thickness. The maximum safe heat load can reach 70 W/cm , only 1/3 in size compared with traditional electric heater. Dimension, power and input voltage are customizable according to your requirement.
Silicon nitride igniter can heating up to 800 to 1000 degree within tens of seconds.
Silicon nitride ceramic igniter can sustain corrosion of melting metals. With proper instatllation and igniting process, the igniter can several years.
Silicon nitride ceramic heater is only 4 mm thickness. The maximum safe heat load can reach 70 W/cm , only 1/3 in size compared with traditional electric heater. Dimension, power and input voltage are customizable according to your requirement.
Item: | 220V 600W Ceramic Heater Ignitor Black Quartz Igniter Silicon Nitride Pellet Igniter for Pellet Stove | ||||||
Voltage: | 110v, 220v-240v | ||||||
Power: | 600w--900w | ||||||
Material: | Hot Pressed Silicon Nitride | ||||||
Temperature: | 500--1200 degree C | ||||||
Application: | Pellet stove igniter, wood pellet igniter etc. | ||||||
Silicone Nitride Igniter Application:
1.Ignition of solid fuels (e.g. wood pellets)
2.Ignition of gas or oil
3.Reburning or igniter of exhaust fumes
4.heating of process gases
5.Pyrotechnics
6.Brazing machines
7.Heater for corrosive atmosphere
8.R&D - laboratory equipment, measuring and testing equipment, reactors
9.Tool heating
10. Charcoal barbecue grill
2.Ignition of gas or oil
3.Reburning or igniter of exhaust fumes
4.heating of process gases
5.Pyrotechnics
6.Brazing machines
7.Heater for corrosive atmosphere
8.R&D - laboratory equipment, measuring and testing equipment, reactors
9.Tool heating
10. Charcoal barbecue grill
Silicone Nitride Igniter Advantage:
1.Silicone nitride igniter has very long life span,no breakage and no attenuation after 100000cycles of life testing
2.Big hot area,ensure successful ignition
3.High efficiency,17s reach 1000℃
4.Stable thermal function,no thermal and power attenuation,steady temperature 1100-1200℃.
5.High strength,toughness and hardness,anti-oxidation and anti-corrosion

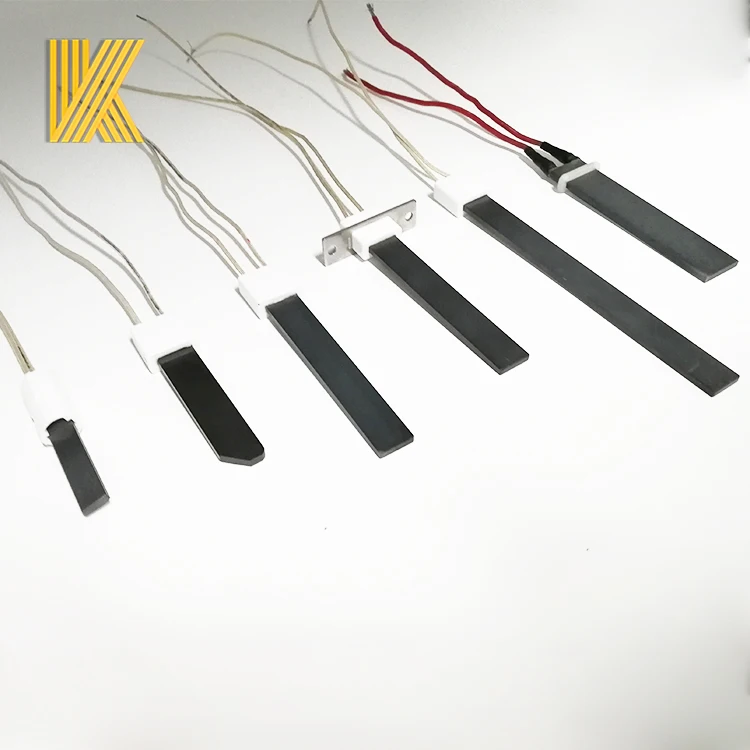

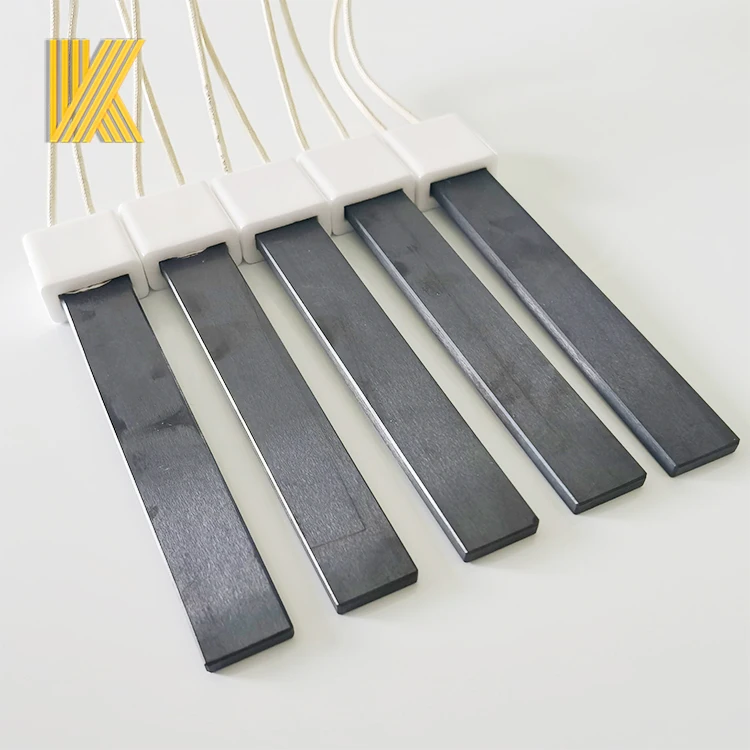

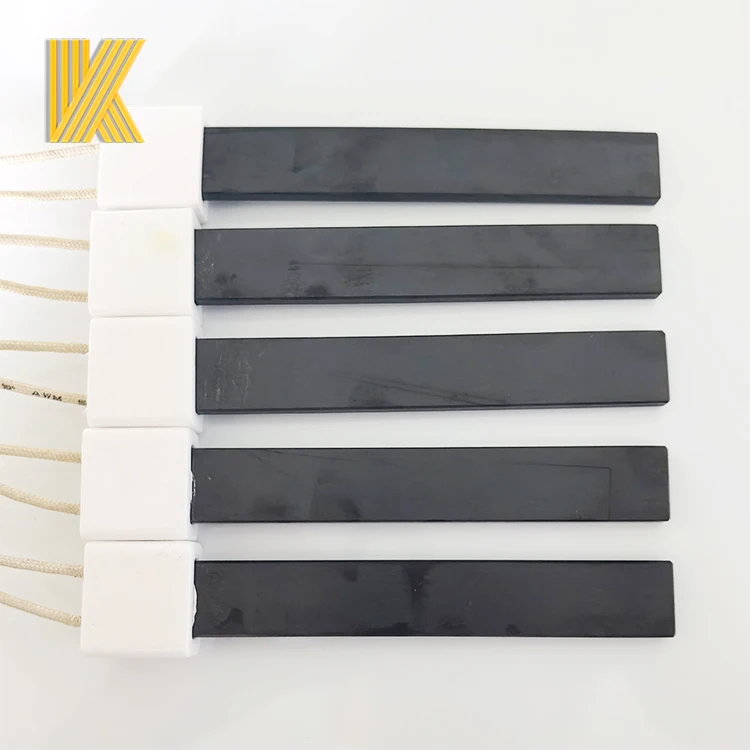

Product Display
Size for your reference, if you need different specifications, please feel free to contact us.

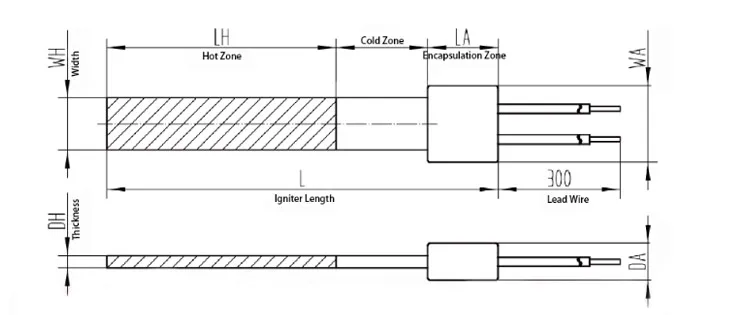

MODEL | DIMENSION | PARAMETER | ||||||||||||||
L | LH | WH | LA | WA | DA | DH | VOLTAGE(V) | POWER(W) | ||||||||
KYSN-138 | 138 | 94 | 17 | 23 | 25 | 12 | 4 | AC220-240 | 700/450 | |||||||
KYSN-128 | 128 | 84 | 17 | 23 | 25 | 12 | 4 | AC220-240 | 600/400 | |||||||
KYSN-95 | 95 | 58 | 17 | 23 | 25 | 12 | 4 | AC220-240 | 400 | |||||||
KYSN-52 | 52 | 15 | 17 | 23 | 25 | 12 | 4 | AC110 | 100 | |||||||
KYSN-135 | 135 | 98 | 23 | 23 | 31 | 12 | 4 | AC220-240 | 900/600 | |||||||
KYSN-115 | 115 | 76 | 30 | 25 | 38 | 12 | 4 | AC220-240 | 900/600 | |||||||
Related Products
YANCHENG KUNYI ELECTRIC INDUSTRIES CO., LTD is an industry and trade-oriented enterprises, we dedicate to the design, development, production, sale and technical services of electric heaters. The head office is located in Tinghu District, Yancheng City. Our company's main business is electric heating element, electric heating equipment, high temperature electric heaters and environmental protection equipment.
Our company adheres to the business philosophy of "quality first for survival and service-oriented development", and provide our customers with high quality products and services with an efficient and flexible management model and a truth-seeking and pragmatic attitude.
Our mission is: reputation, quality and service. Yancheng Kunyi Electric Industries Co., Ltd. is willing to have a long term cooperation with you and your company.
Our company adheres to the business philosophy of "quality first for survival and service-oriented development", and provide our customers with high quality products and services with an efficient and flexible management model and a truth-seeking and pragmatic attitude.
Our mission is: reputation, quality and service. Yancheng Kunyi Electric Industries Co., Ltd. is willing to have a long term cooperation with you and your company.

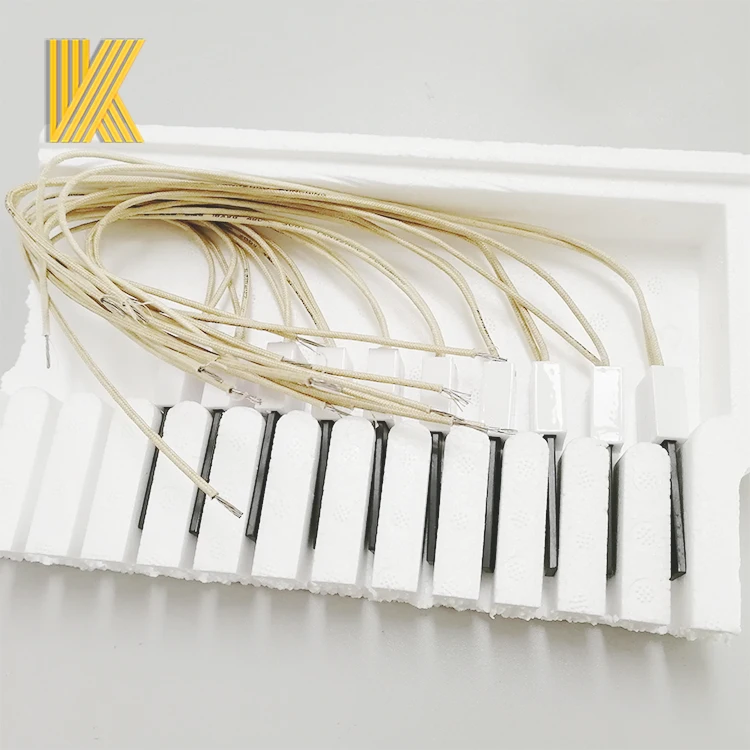

Packaging & Shipping
