Product Overview
Description

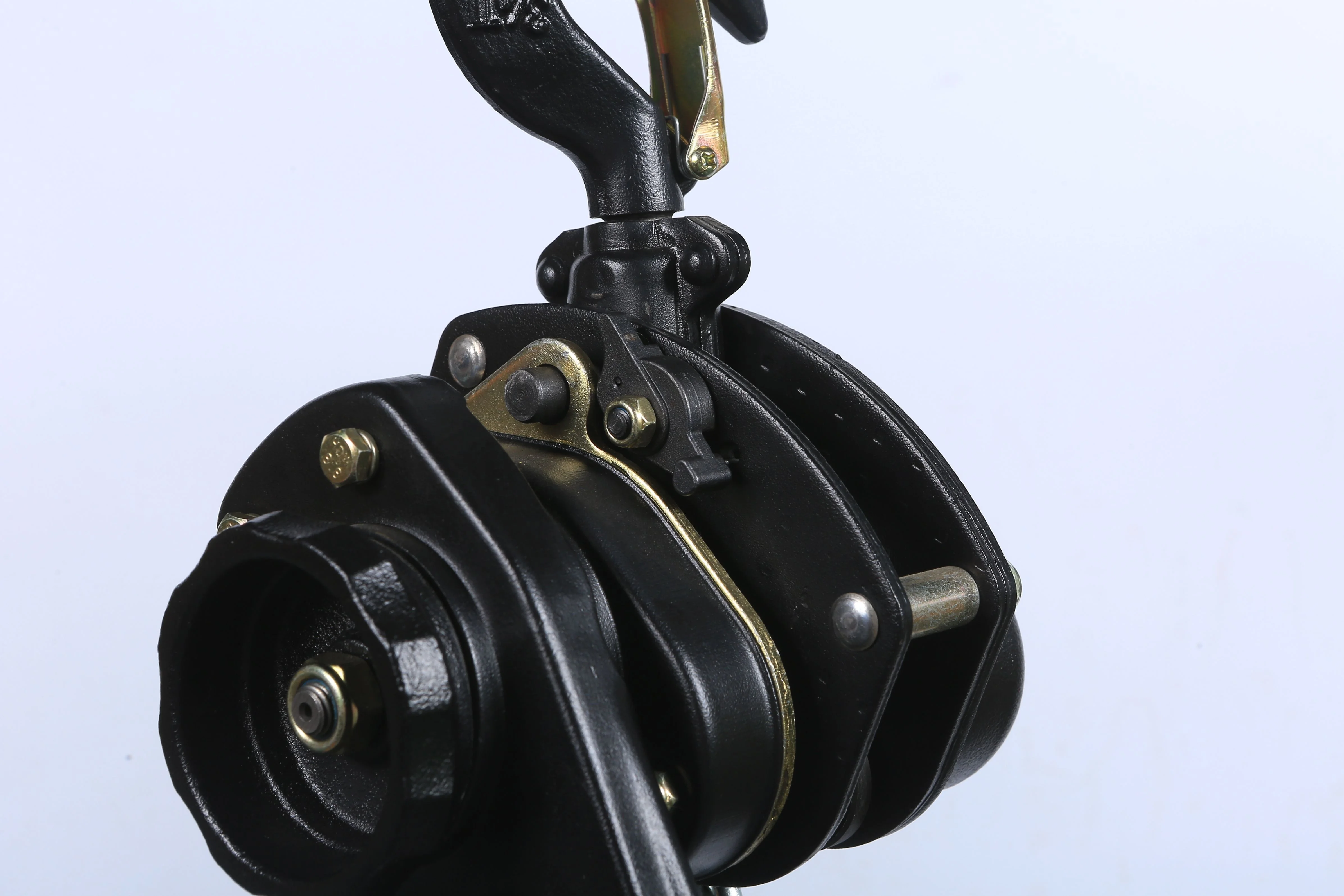

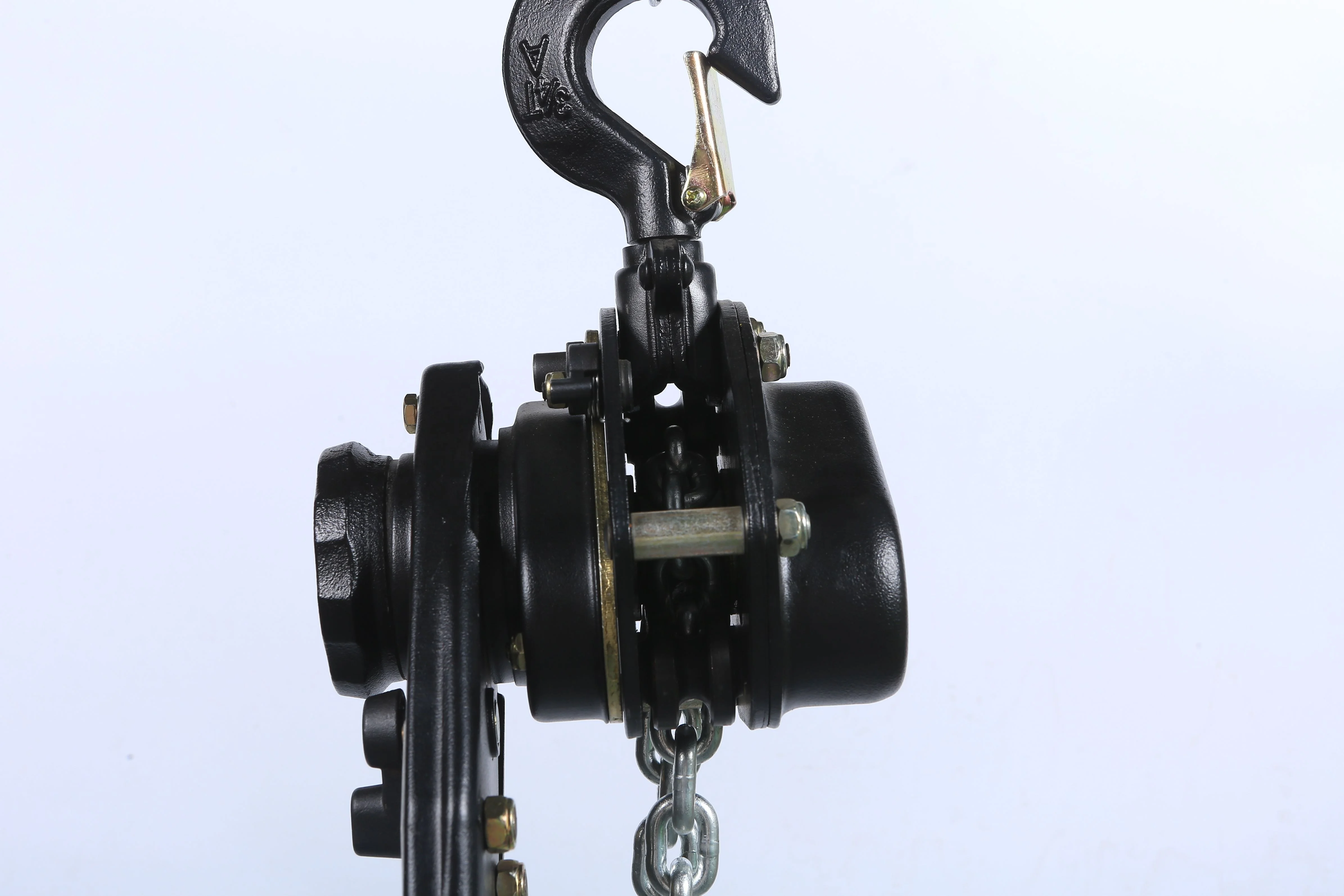

HSH-V型手扳葫芦是我公司在原有传统产品上重新设计开发的新一代产品。该产品具有体积小、重量轻、外形美观、手扳力小、安全可靠、使用寿命长等显著优点，特别适用于造船、邮电、矿山、电力、交通运输等部门在无电源场合用作重物起吊、设备安装、机械牵引等作业。本系列葫芦可在空载时快速拽动起重链，实现下吊钩的快速定位。

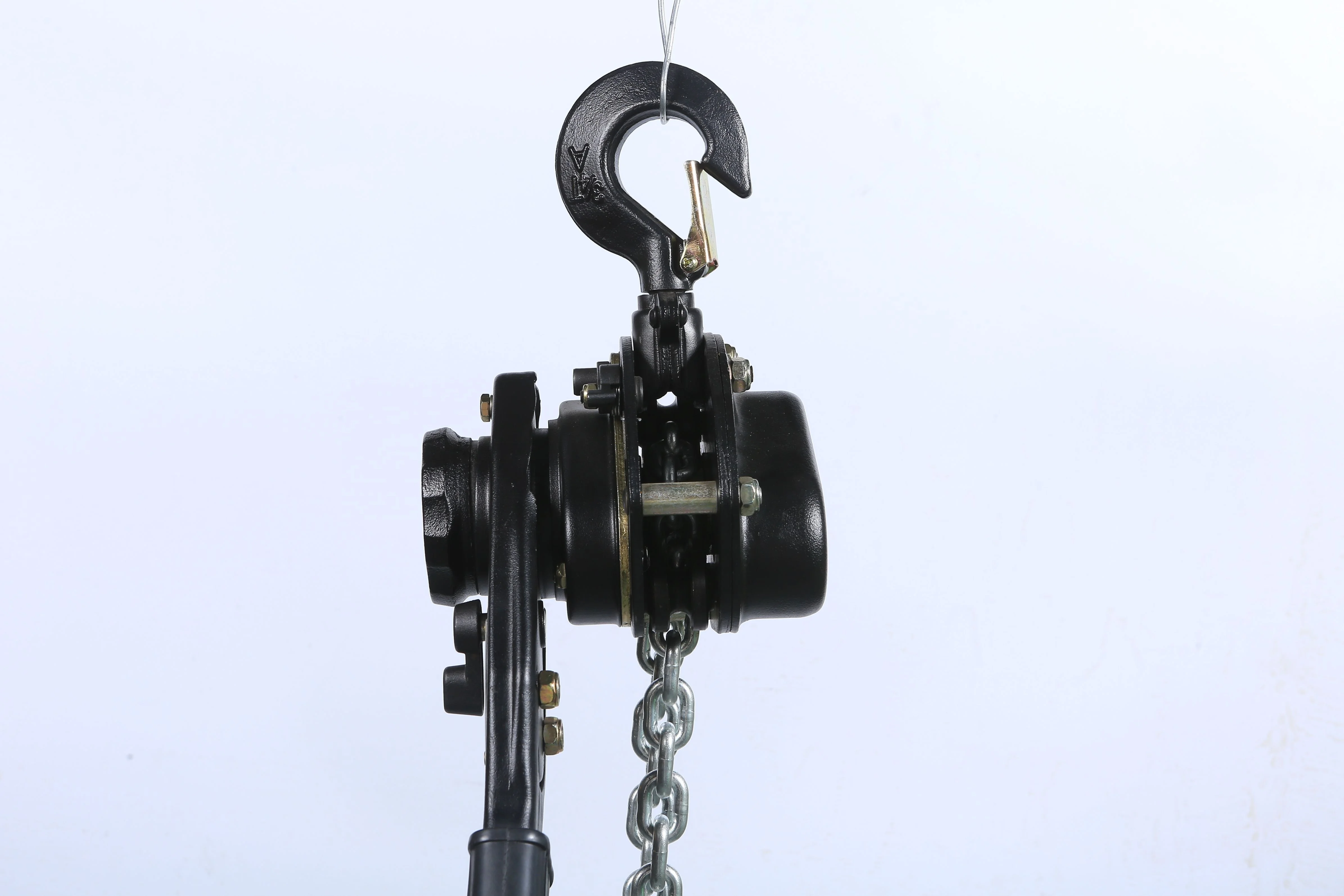

HSH-V manual lever block is a new kind of product which is ameltorated on the basis of introducing the advanced technology from primary goods.It has such distinct merits as small cubage，light weight beautful appearance
small manaul force, safety and reliability, and long operational life span.It is specialy used in occasion without power source such as ship building, post office, mines，electric power and transportation units in heavy goods suspending,equipment fixing, mechanism traction，and aerial exercise. It can rapidly unhitch brake equipment under unloaded condition, so that the flying hook can remove fleetly.We also can choose and add structure without light load limit according to the needs of clients.
HSH-V manual lever block is a new kind of product which is ameltorated on the basis of introducing the advanced technology from primary goods.It has such distinct merits as small cubage，light weight beautful appearance
small manaul force, safety and reliability, and long operational life span.It is specialy used in occasion without power source such as ship building, post office, mines，electric power and transportation units in heavy goods suspending,equipment fixing, mechanism traction，and aerial exercise. It can rapidly unhitch brake equipment under unloaded condition, so that the flying hook can remove fleetly.We also can choose and add structure without light load limit according to the needs of clients.
额定载荷 Capacity(T） | 0.75 | 1 | 1.5 | 2 | 3 | 6 | 9 | ||
标准提升高度 Standard Lift(M) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||
实验载荷 Running test load(KN) | 11 | 15 | 22.5 | 25 | 37.5 | 75 | 112.5 | ||
额定手扳力 Effort required of lift load(ND) | 145 | 150 | 200 | 220 | 280 | 310 | 320 | ||
起重链行数 Strands of load chain | 1 | 1 | 1 | 1 | 1 | 2 | 3 | ||
起重链直径 Dia. of load chain | 6x18 | 6X18 | 7.1 | 8 | 10x30 | 10x30 | 10x30 | ||

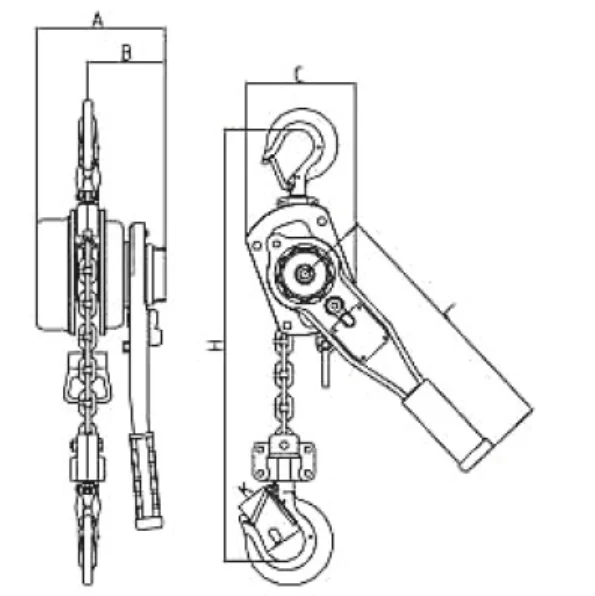

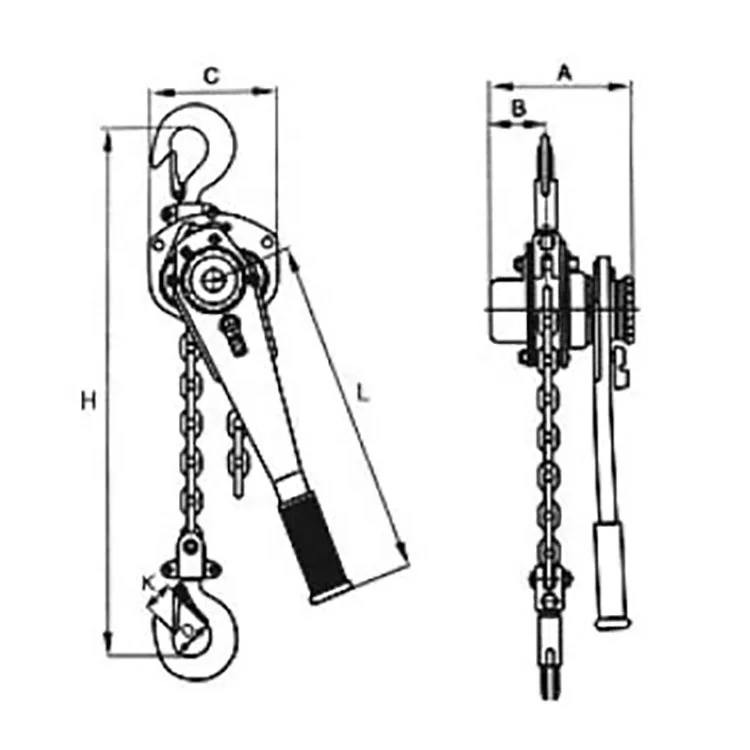

主要尺寸 Dimensions(mm) | A | 155 | 155 | 165 | 178 | 200 | 200 | 200 | |
B | 56 | 56 | 65 | 76 | 83 | 83 | 83 | ||
C | 130 | 130 | 148 | 152 | 187 | 250 | 335 | ||
D | 36 | 36 | 44 | 46 | 48 | 62 | 85 | ||
K | 27 | 27 | 34 | 36 | 38 | 48 | 55 | ||
H | 300 | 300 | 350 | 350 | 400 | 550 | 700 | ||
L | 255 | 255 | 365 | 365 | 365 | 365 | 365 | ||
净重Net Weight(Kg) | 7 | 7 | 10 | 12 | 18 | 28.5 | 45 | ||
提升高度每增加1M增加重量（Kg) Extra per meter of extra lift | 0.8 | 0.8 | 1.1 | 1.4 | 2.2 | 4.4 | 6.6 | ||
包装尺寸 Packages sizes | 32*16*16 | 32*16*16 | 44*18*17 | 44*18*17 | 46*20*19 | 49*20*22 | 56*32*23 | ||

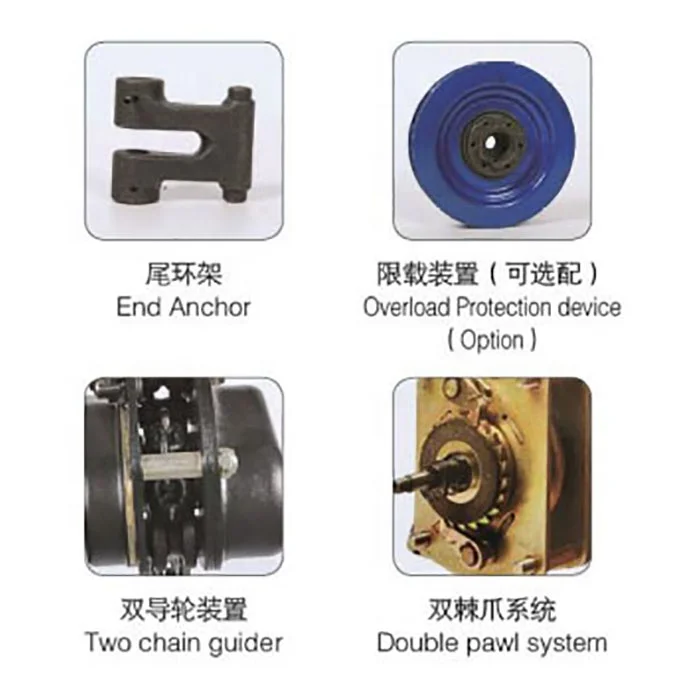

G80 LOAD CHAIN
END ANCHOR

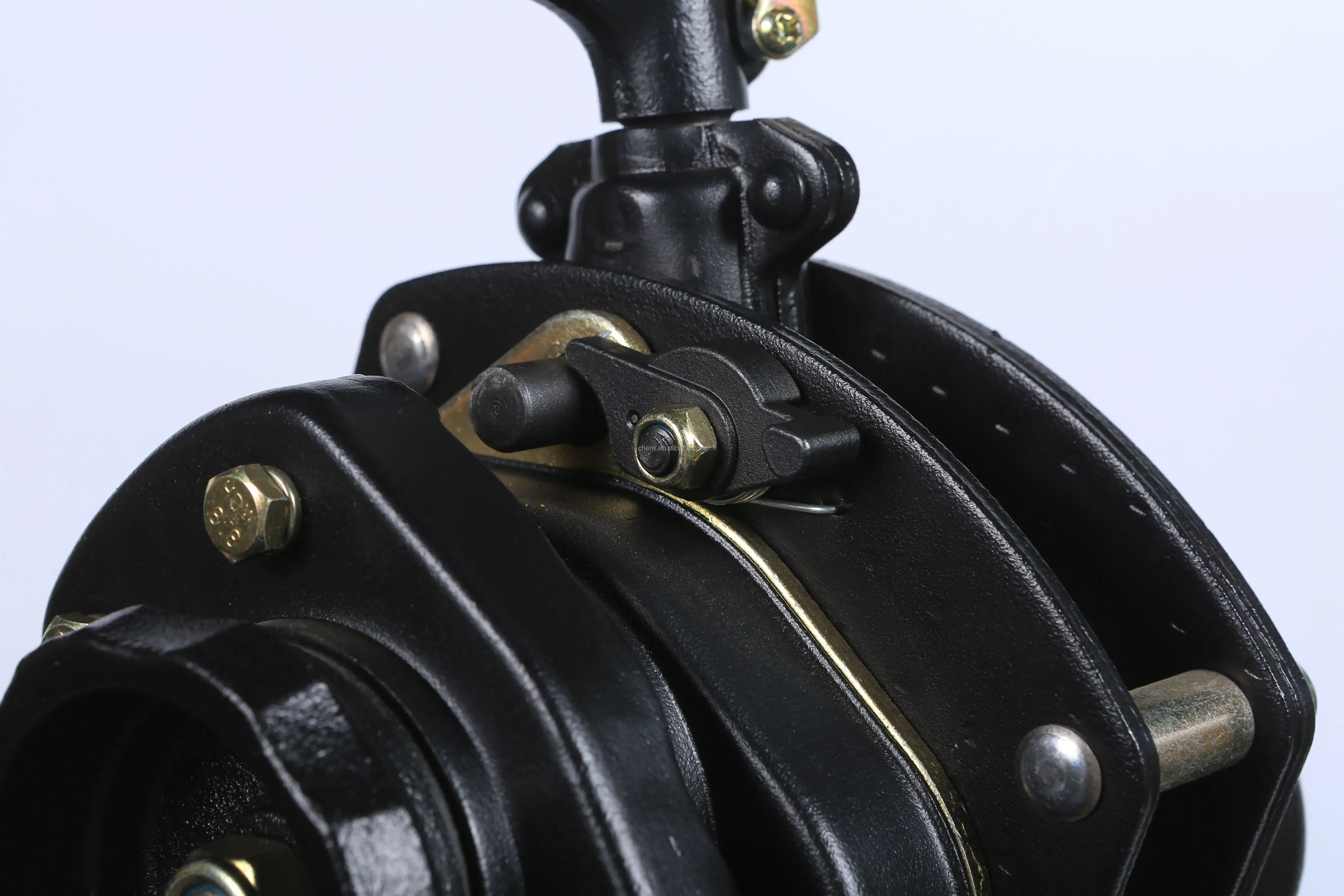

OVERLOAD PROTECTION DEVICE(OPTION)
Packing & Delivery
Company Profile

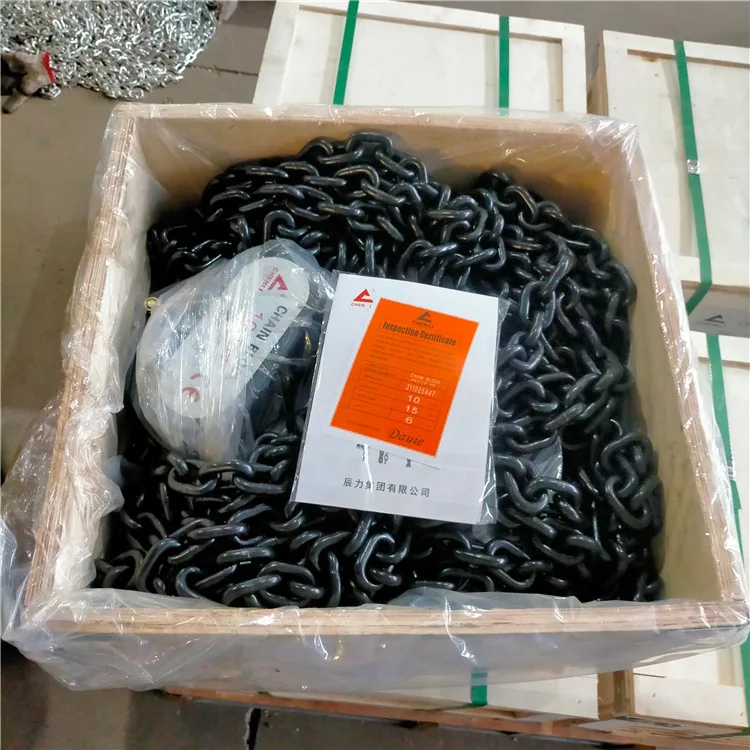

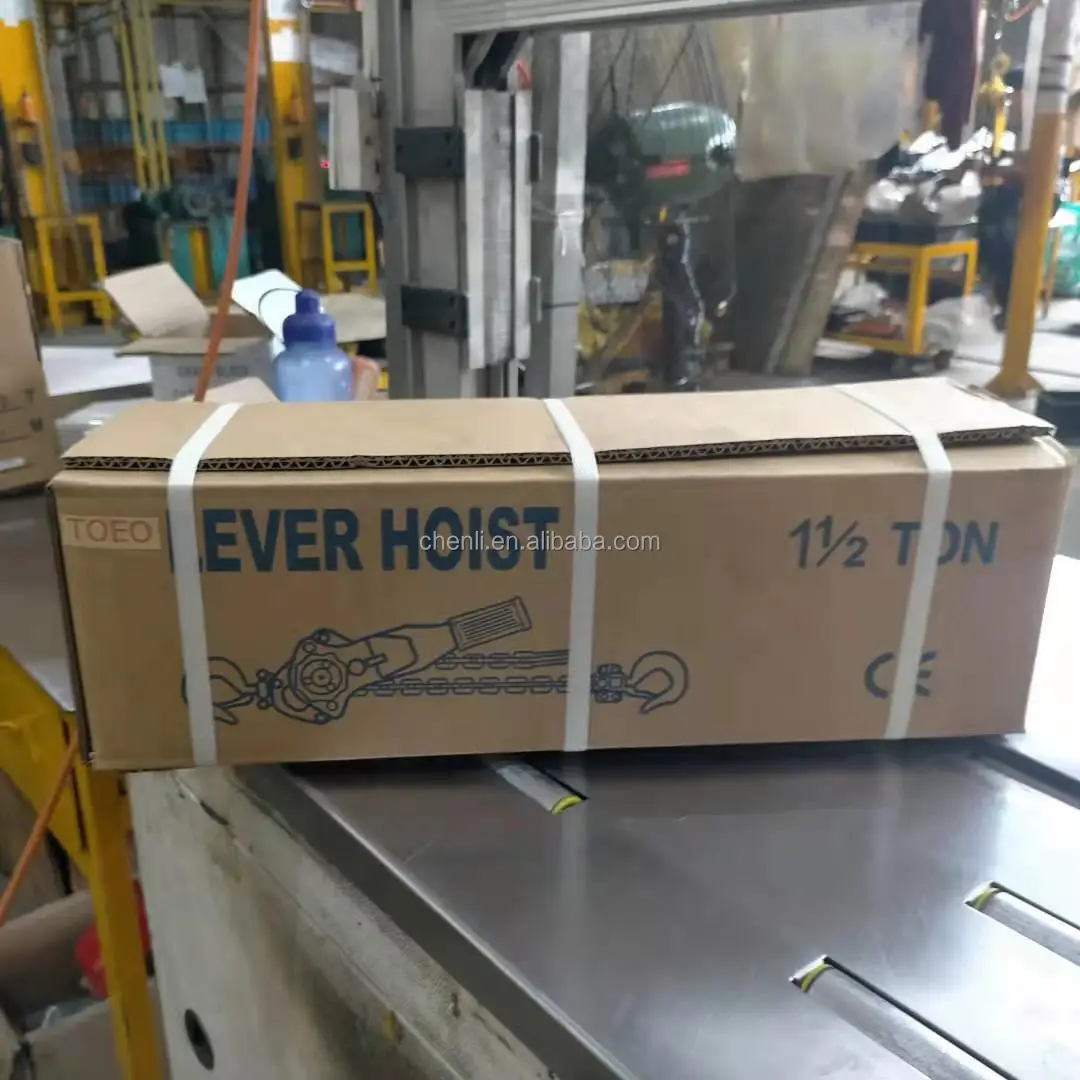

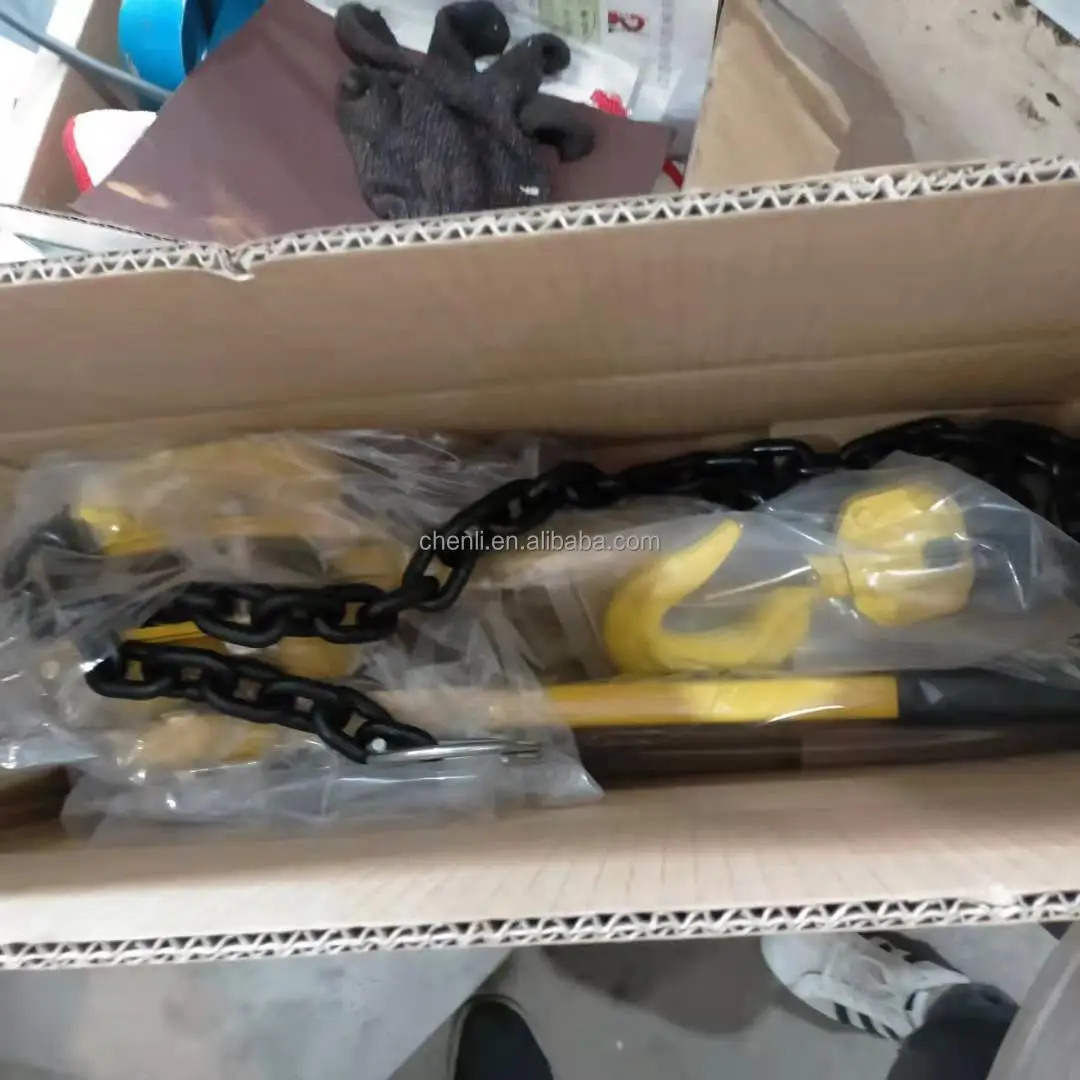

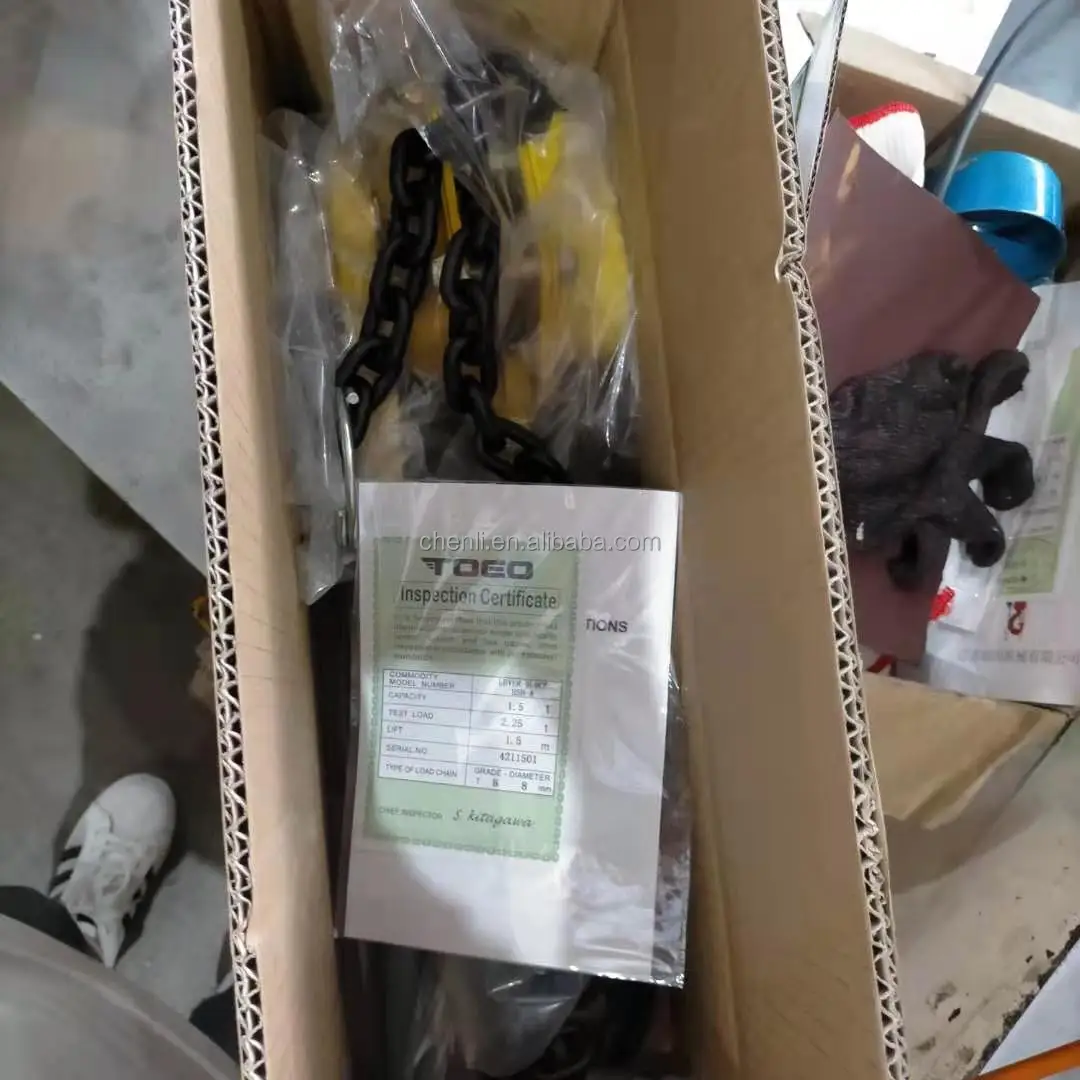

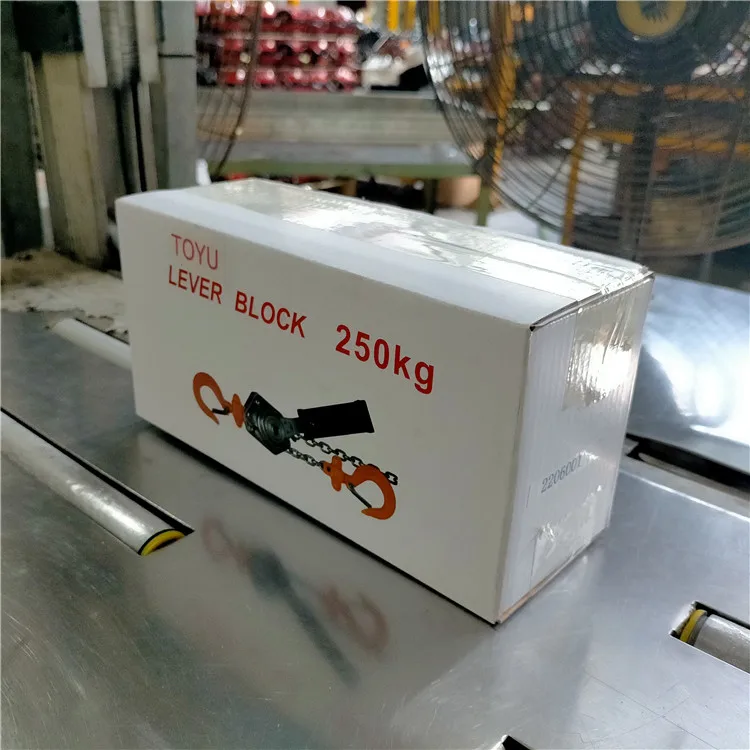

PACKAGING DETAILS
1.Standard exporting package；
2.Cartons packed with wooden pallet；
3.Belt packed with big carton box；
4.As per customized specifications such as logo or others；
DELIVERY TIME
30 DAYS
1.Standard exporting package；
2.Cartons packed with wooden pallet；
3.Belt packed with big carton box；
4.As per customized specifications such as logo or others；
DELIVERY TIME
30 DAYS
Large-Scale Advantage
1.founded in 1991, is located in Qingyuan District , Baoding City, Hebei Province
2.covers an area of 200000 square meters , total assets is 500 million RMB and 650 employees. Chenli Group manages 3 subsidiaries, as following:Sling Company；Chain Company；Chain hoist Company
Qualification Advantage
1.passed ISO9001.TUV,CE, GS quality safety certification
Technical Advantage
1.main products are chain block series, electric hoist series，synthetic fibre sling series,chain series,lifting rigging series, lifting clamp series, lifting equipment series etc,
2.rich experience in product production,long production line and complete product range,which is convenient for customers to purchase one-stop.
Examination Advantage
1.build group company quality testing center ,
2.testing equipment at material testing, material analysis ,product process control ,tensile testing ,finished product export sampling link etc reached effective overall process science control ,we ensure factory product the batch pass rate is 100%.
1.founded in 1991, is located in Qingyuan District , Baoding City, Hebei Province
2.covers an area of 200000 square meters , total assets is 500 million RMB and 650 employees. Chenli Group manages 3 subsidiaries, as following:Sling Company；Chain Company；Chain hoist Company
Qualification Advantage
1.passed ISO9001.TUV,CE, GS quality safety certification
Technical Advantage
1.main products are chain block series, electric hoist series，synthetic fibre sling series,chain series,lifting rigging series, lifting clamp series, lifting equipment series etc,
2.rich experience in product production,long production line and complete product range,which is convenient for customers to purchase one-stop.
Examination Advantage
1.build group company quality testing center ,
2.testing equipment at material testing, material analysis ,product process control ,tensile testing ,finished product export sampling link etc reached effective overall process science control ,we ensure factory product the batch pass rate is 100%.
1.who are we?
We are based in Hebei, China, start from 1991,covers an area of 200000 square meters , total assets is 500 million RMB and 650 employees
2.how can we guarantee quality?
We have build quality testing center
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What?is?our?factory?product?range?
We?are?specialize?in?webbing sling ,cargo lashing ,G80&G100 cbain ,chain block ,lever block ,electric chain hoist ,pressing machine ,rigging hardware,etc.
4.why should you buy from us not from other suppliers?
main products are chain block series, electric hoist series，synthetic fibre sling series,chain series,lifting rigging series, lifting clamp series, lifting equipment series etc,
rich experience in product production,long production line and complete product range,which is convenient for customers to purchase one-stop.
5.what services can we provide?
Delivery Terms: FOB,CFR,CIF,EXW；
Payment Currency:USD,EUR,CNY;
Payment Type: D/P,D/A,T/T?or?L/C?at?sight.,Cash;
We are based in Hebei, China, start from 1991,covers an area of 200000 square meters , total assets is 500 million RMB and 650 employees
2.how can we guarantee quality?
We have build quality testing center
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What?is?our?factory?product?range?
We?are?specialize?in?webbing sling ,cargo lashing ,G80&G100 cbain ,chain block ,lever block ,electric chain hoist ,pressing machine ,rigging hardware,etc.
4.why should you buy from us not from other suppliers?
main products are chain block series, electric hoist series，synthetic fibre sling series,chain series,lifting rigging series, lifting clamp series, lifting equipment series etc,
rich experience in product production,long production line and complete product range,which is convenient for customers to purchase one-stop.
5.what services can we provide?
Delivery Terms: FOB,CFR,CIF,EXW；
Payment Currency:USD,EUR,CNY;
Payment Type: D/P,D/A,T/T?or?L/C?at?sight.,Cash;
