Car Battery Charge Level Indicator 2.5 40V/40 120V Lithium Meter Display LED Voltmeter

Feature
This fuel gauge is suitable for 2.5-40V 40-120V battery cars and can also measure lithium batteries, polymer batteries, and
nickel-metal hydride batteries.

It can also be used for other power/voltage measurement purposes.

Double display battery + voltage at a glance.

The display is more intuitive.

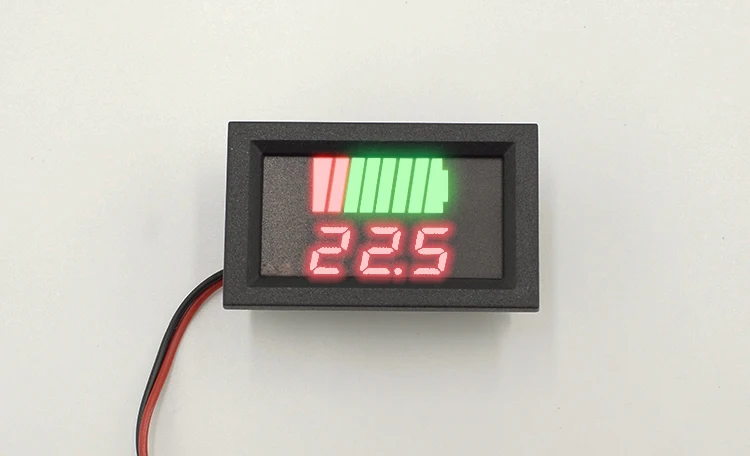

The upper 8 bars show the battery power (2 red and 6 green).

Downlink voltmeter (display battery voltage), voltmeter decimal point automatic shift accuracy is higher.

It has a wide range of applications, including lithium battery packs, lead-acid batteries, car batteries, electric car batteries,
and many other types of batteries and electric equipment.

The calculation of the existing voltage is the same as that of the power display meter of an electric vehicle.

The meter head automatically recognizes the voltage and electricity, and has a reverse connection protection function (reverse
connection will not burn).

Instructions for use:
The two-wire system of the meter head can directly test the battery.

Parameter:
Voltage tolerance: ±1%;

8 levels of power: 10% 25% 40% 50% 60% 75% 90% 100%full

Working current: 5-15 ma

Refresh speed: 300mS once

Display mode: three-digit 0.56" LED digital tube

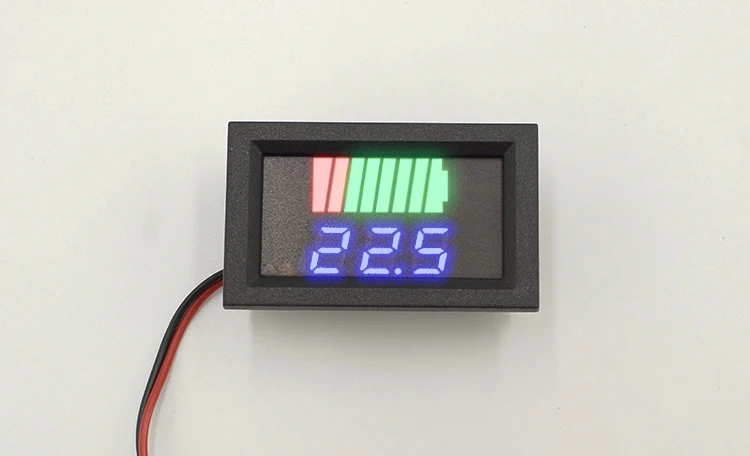

Voltage color: red, blue

Lead length: about 20cm

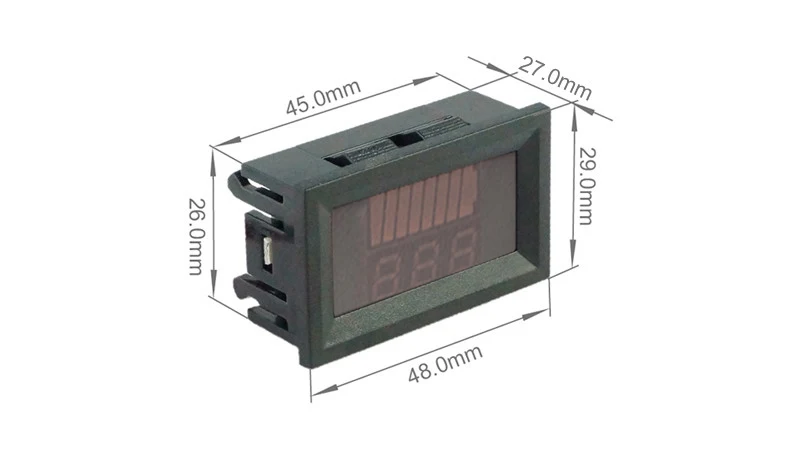

Dimensions: 48 x 29 x 27mm, length X width X thickness;

Mounting hole: 46 x 27 mm

Working temperature: -20℃~65℃

Application range:

6V 12V 24V 36V 48V 60V 72V 96V 120V lead-acid battery.
Lithium batteries, polymer batteries, nickel-metal hydride batteries, lead-acid batteries.

Cars, motorcycles, bicycles, trucks, etc.

The Sun can generate system

Product support customization:

Factory

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

A: We are factory.

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
