RZ016 Dimmable time delay DC12V 24V LED lighting Wireless Motion Sensor Kit
- Category: >>>
- Supplier: Shenzhen Bester Energy Saving Technology Ltd.
Share on (1600747729530):
Product Overview
Description
Specification
RZ016A | Controller-Receiver |
Name | Controller-Receiver |
Input Voltage | DC 12~24V |
Output Voltage | Equal to input voltage |
Load current | ≤ 5A |
Static power | ≤ 10 uA |
Time Delay | 15s, 30s, 60s, 180s, 300s, 900s Adjustable |
Light Level | 20%~100% Adjustable |
Mode | Auto/ON/OFF |
RZ016W | Motion Sensor-Emitter |
Name | Motion Sensor-Emitter |
Input Voltage | 2pcs AAA batteries powered |
Output Voltage | Equal to input voltage |
Mode | 1. Sensor ON/OFF, 2. Light Sensor ON(≤35lux)/OFF |
Detect range | 5~8 Meters |
Wireless transmission range | 7-20 Meters (7M when batteries voltage is lower than 2.5V) |
Product Description
The RZ016A is the main controller, which connects with the load. The RZ016A turns On/Off the load by pressing the button or by
receiving the wireless signal from the motion sensor(RZ016W). If the motion sensor detects the motion, it will give out a signal
to the main controller (RZ016A) to turn on the load.
If the motion sensor(RZ016W) does not detect the motion, after the time delay(adjustable) expires, the main controller will turn
off the sensor.
If the motion sensor detects the motion again, the motion sensor will give out a signal to turn on the load immediately. You can
also adjust the time delay and the light level via the main controller if it’s connected to a light.
receiving the wireless signal from the motion sensor(RZ016W). If the motion sensor detects the motion, it will give out a signal
to the main controller (RZ016A) to turn on the load.
If the motion sensor(RZ016W) does not detect the motion, after the time delay(adjustable) expires, the main controller will turn
off the sensor.
If the motion sensor detects the motion again, the motion sensor will give out a signal to turn on the load immediately. You can
also adjust the time delay and the light level via the main controller if it’s connected to a light.

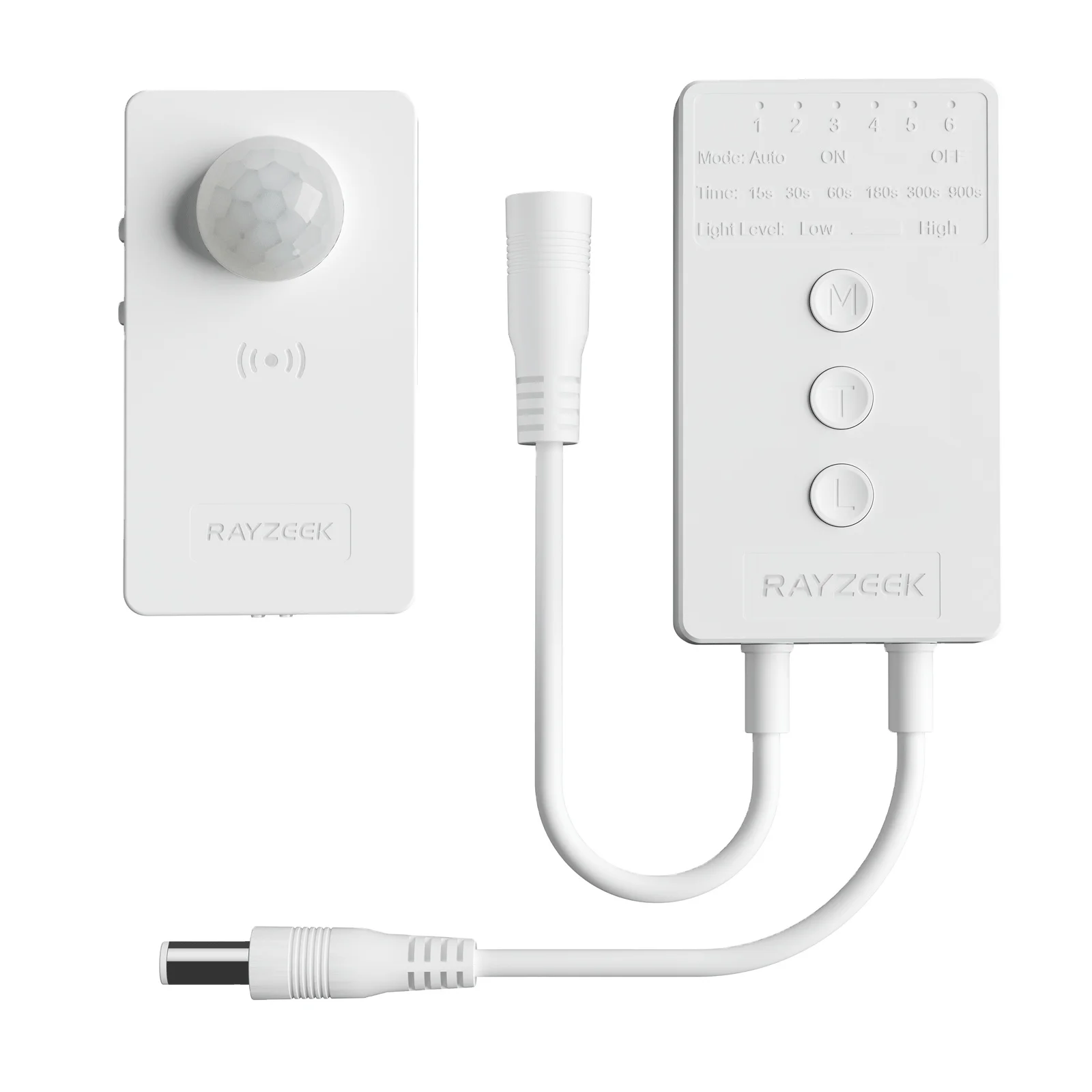

Motion Sensor Switch Kit RZ016

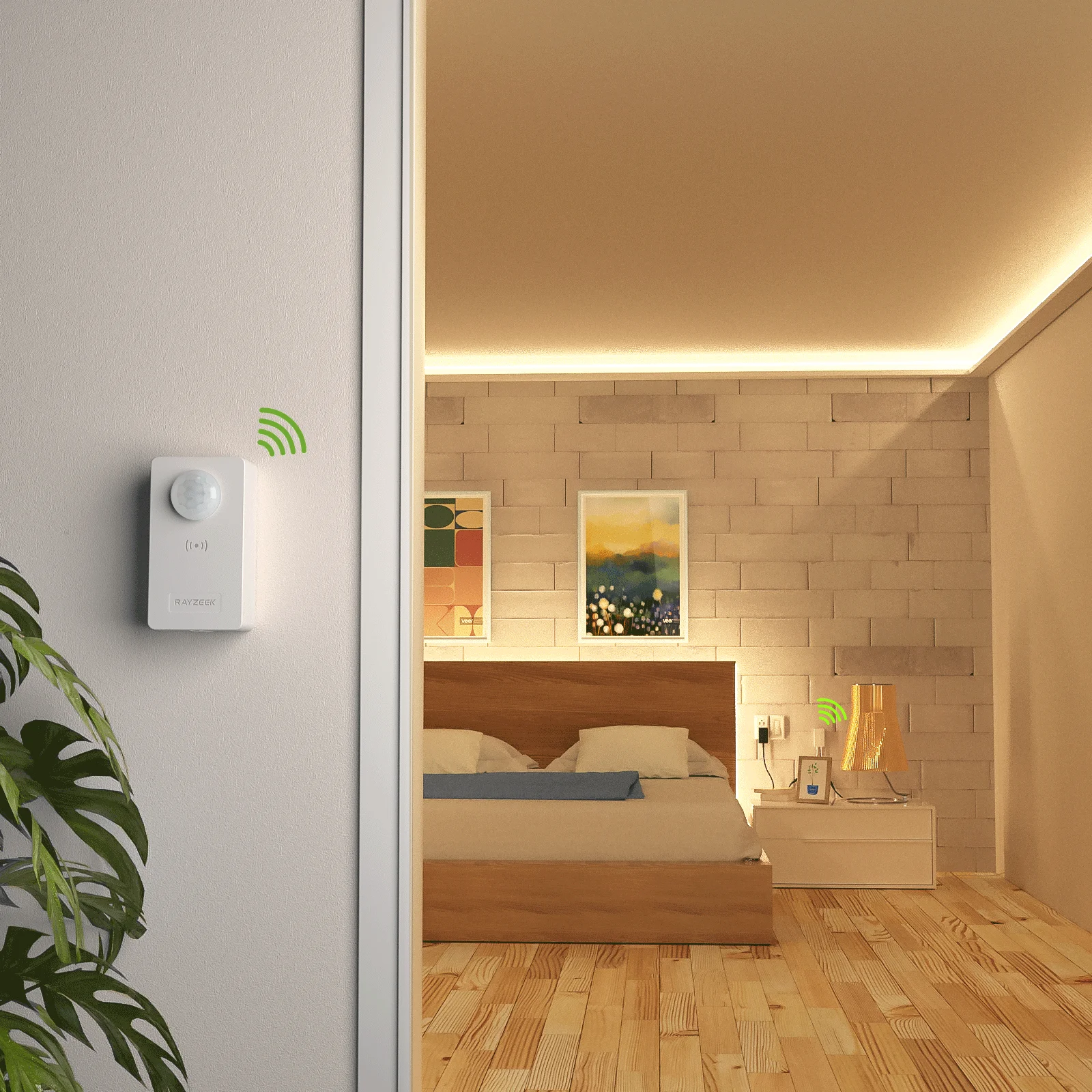

The RZ016 motion sensor & controller is a remote control motion sensor kit for DC 12/24V light strips. With this kit, you can
transform any light strip into motion activated style in no time.

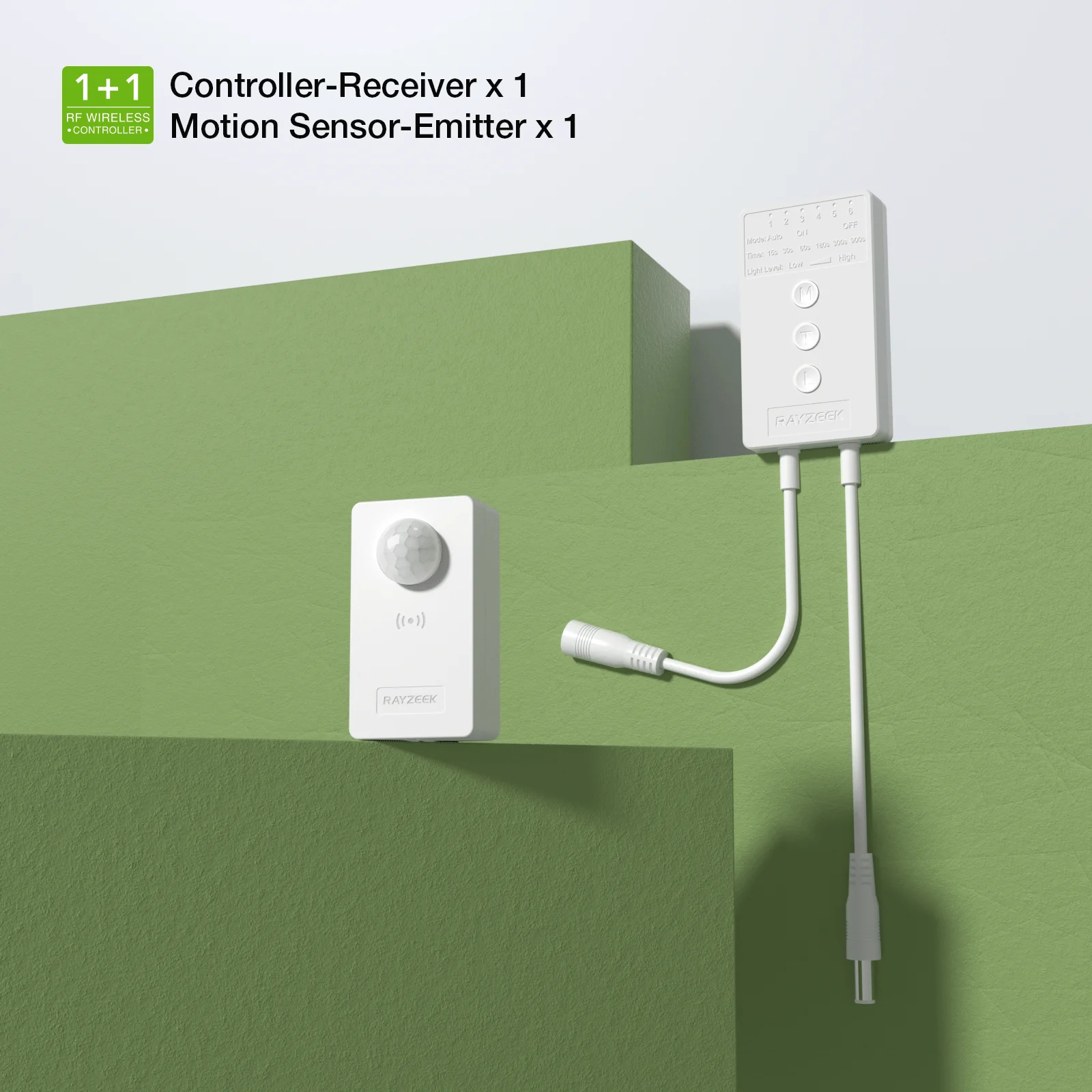

The kit consists of two devices: The RZ016A controller and the RZ016W motion sensor. Connect the controller with your light
strips, and it’s done. When the motion sensor detects your presence within the range, it will send a signal to the controller to
turn on the connected light.
transform any light strip into motion activated style in no time.
The kit consists of two devices: The RZ016A controller and the RZ016W motion sensor. Connect the controller with your light
strips, and it’s done. When the motion sensor detects your presence within the range, it will send a signal to the controller to
turn on the connected light.

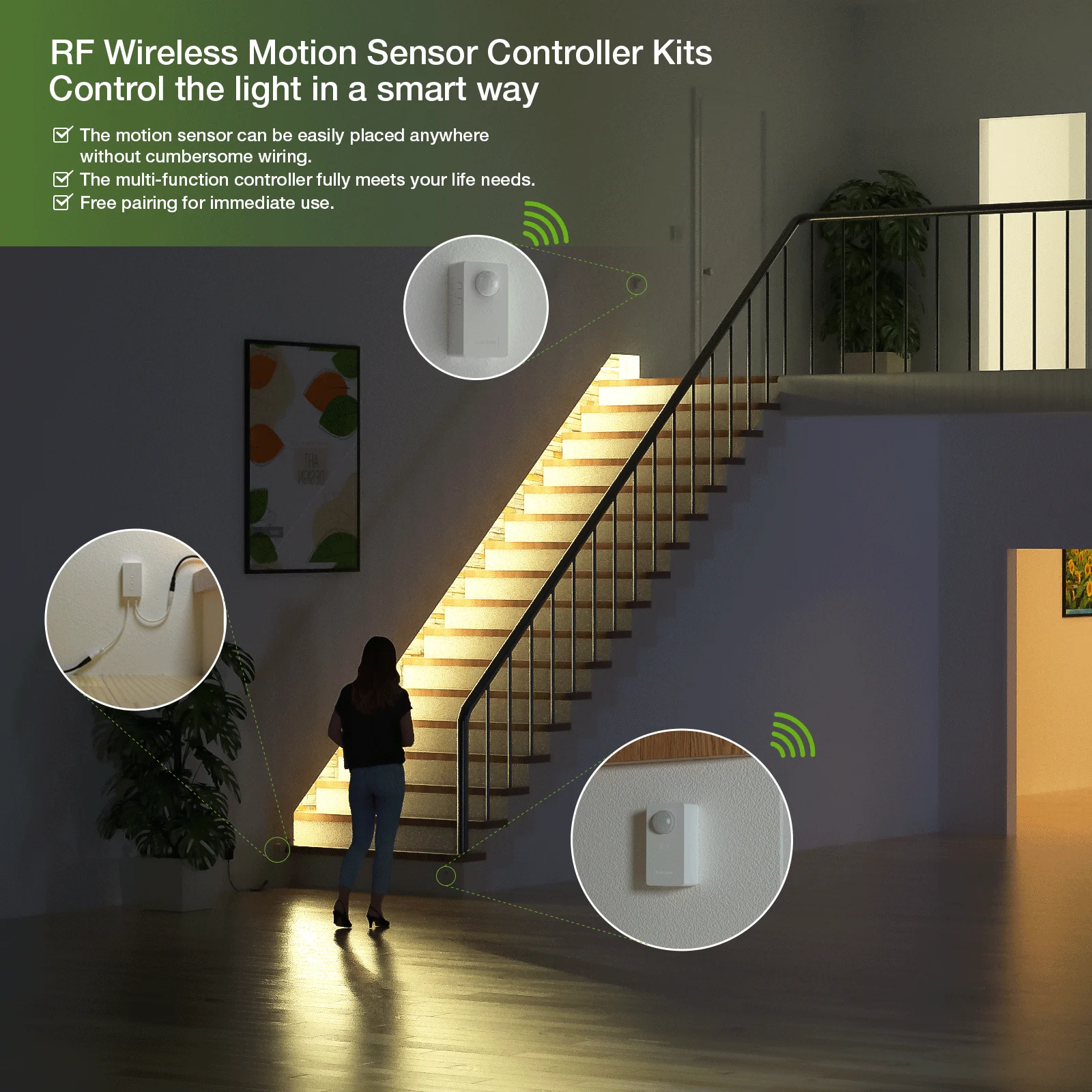

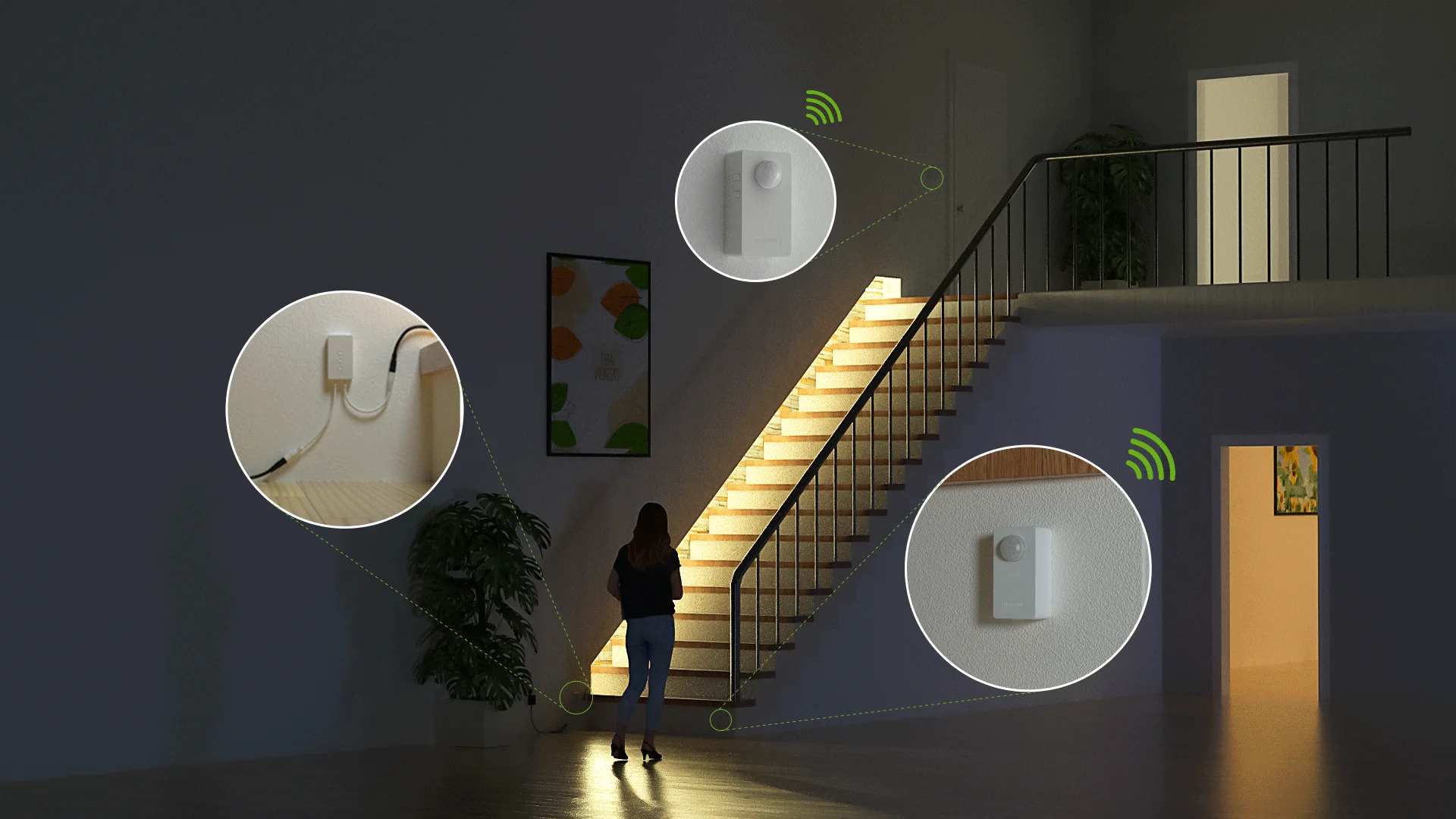

Multi-location Use Case
The RZ016 motion sensor kit can be used for multi-location control. The controller can pair with one, two, or multiple sensors. As
long as either sensor detects motion and sends signals to the controller, the controller will turn on the light.
As the sensors are remotely connected with no wiring needed, it’s incredibly flexible and convenient for all types of complicated
applications.
long as either sensor detects motion and sends signals to the controller, the controller will turn on the light.
As the sensors are remotely connected with no wiring needed, it’s incredibly flexible and convenient for all types of complicated
applications.
User-Friendly Operation
The RZ016 kit has 3 working modes. ON, OFF or Auto. In ON/OFF mode, the RZ016A controller can work standalone as a normal dimmer
switch without the motion sensor.
* Turn the light ON or OFF like a manual switch.
* Adjust the light level like a dimmer switch.
In auto mode, the light is controlled by motion sensors automatically. You can additionally:
* Select time delay from 15s to 900s.
* Enable or disable the light sensor(35lux).
switch without the motion sensor.
* Turn the light ON or OFF like a manual switch.
* Adjust the light level like a dimmer switch.
In auto mode, the light is controlled by motion sensors automatically. You can additionally:
* Select time delay from 15s to 900s.
* Enable or disable the light sensor(35lux).

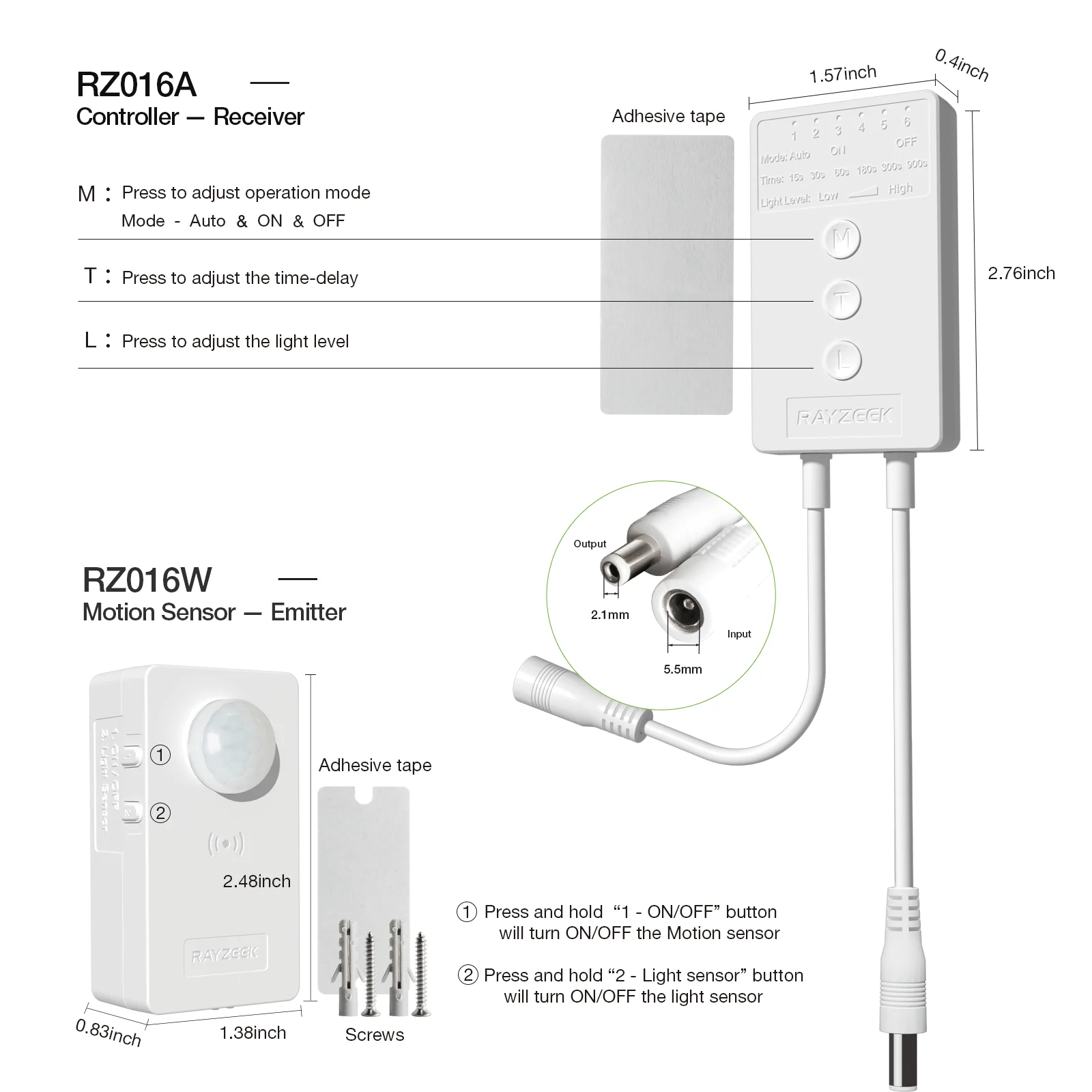

Features & Benefits
* Time-Delay: Press this button to adjust the time delay, the time setting on the sensor from the last detected motion until the
lights are turned OFF. There are 6 options for time delay:15s, 30s, 60s, 180s, 300s, 900s.
* Light Level: Press this button to adjust the lighting light level. The light level will change from 20%~100%
* Auto Mode: The main controller will be controlled by motion sensor (RZ016W) and turns on/off by receiving the signal from the
motion sensor (RZ016W).
* ON Mode: The main controller will turn on the load all the time. The motion sensor will not take effect.
* OFF Mode: The main controller will turn off the load all the time. The motion sensor will not take effect.
lights are turned OFF. There are 6 options for time delay:15s, 30s, 60s, 180s, 300s, 900s.
* Light Level: Press this button to adjust the lighting light level. The light level will change from 20%~100%
* Auto Mode: The main controller will be controlled by motion sensor (RZ016W) and turns on/off by receiving the signal from the
motion sensor (RZ016W).
* ON Mode: The main controller will turn on the load all the time. The motion sensor will not take effect.
* OFF Mode: The main controller will turn off the load all the time. The motion sensor will not take effect.

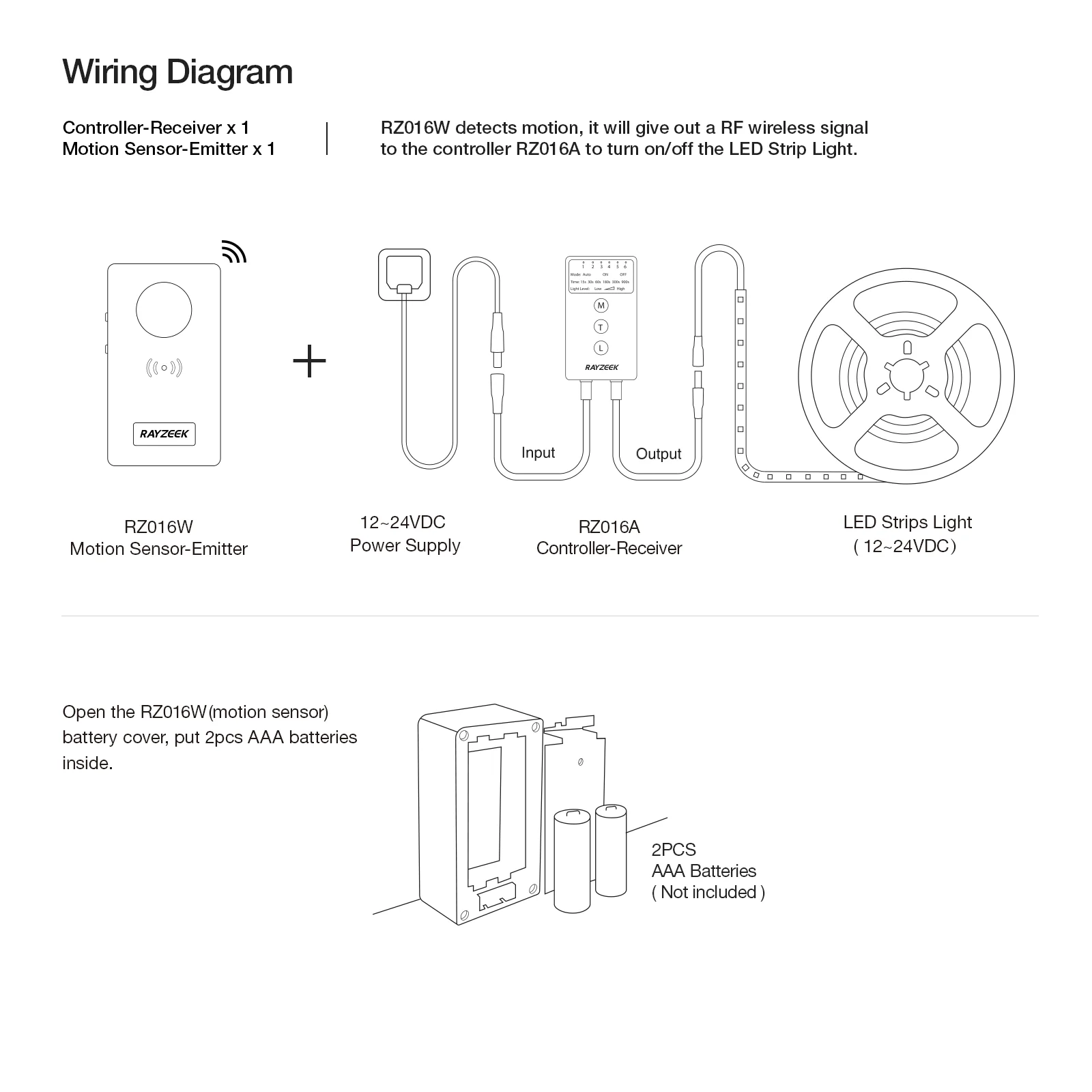

Plug and Play
The installation is as easy as it gets. The controller is a plug-in switch. You simply plug it in and replace the existing light
strip inline switch.
Install two AAA batteries in the motion sensor. Turn on the motion sensor, and that’s it. The sensor and controller are already
pre-paired from the factory.
strip inline switch.
Install two AAA batteries in the motion sensor. Turn on the motion sensor, and that’s it. The sensor and controller are already
pre-paired from the factory.
Company Profile
Company Information:
Shenzhen BESTER Energy Saving Technology LTD (Shenzhen Bester Tech Ltd) was established in February 2007. It is now one of the top 10 professional manufactures of LED components and Motion Sensor Switch in China
Bester has her factory, and have necessary requirement for the production steps and test steps, we call it well regulated, So wecan fast & flexible for customer requirement.
Our brand is Bester and Rayzeek.

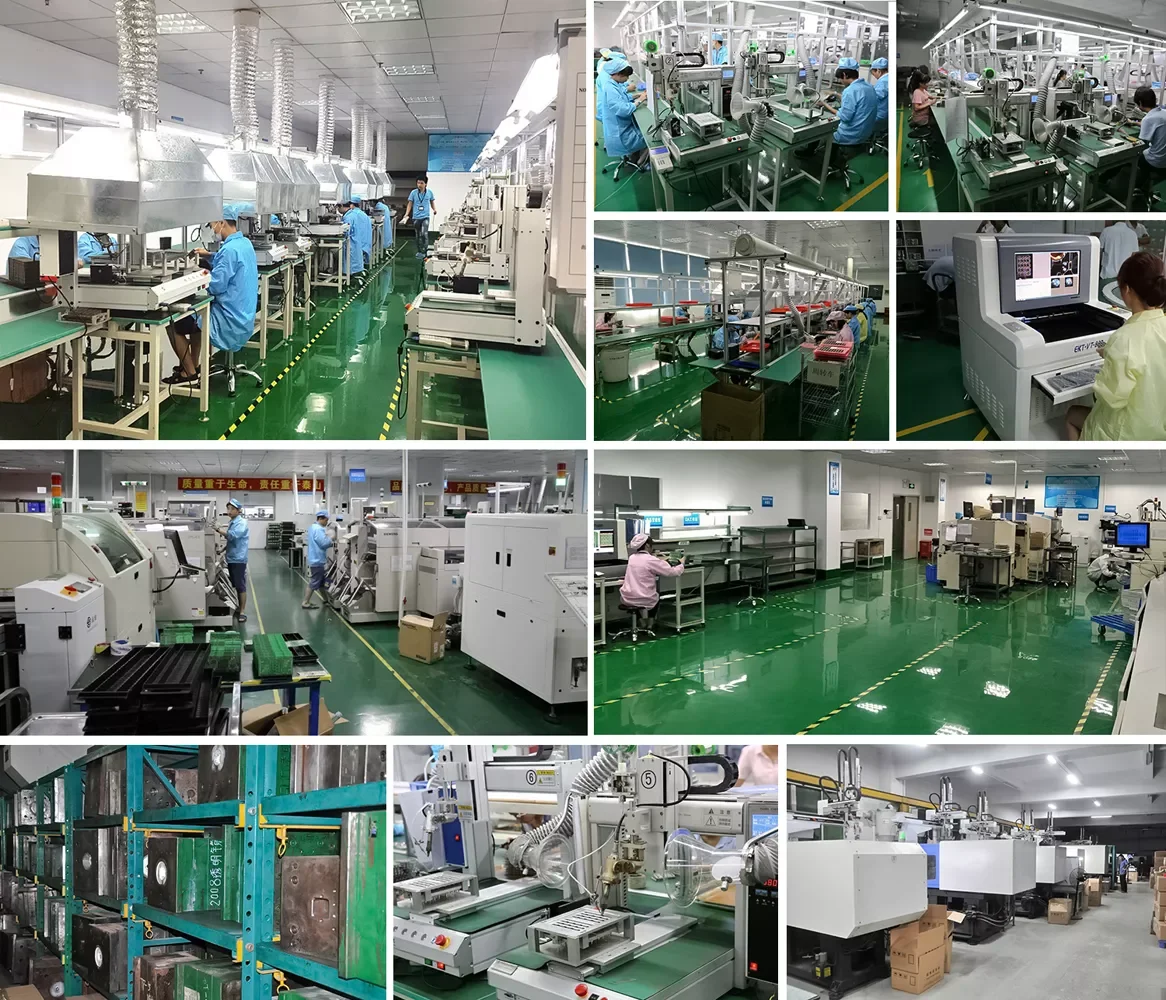

We have modern production lines with more than 200 professional workers, their rich experience of making products ensure efficiency and stability .With two warehouses both are more than 500 square meters, to store the finished products, the space is sufficient and safe.
