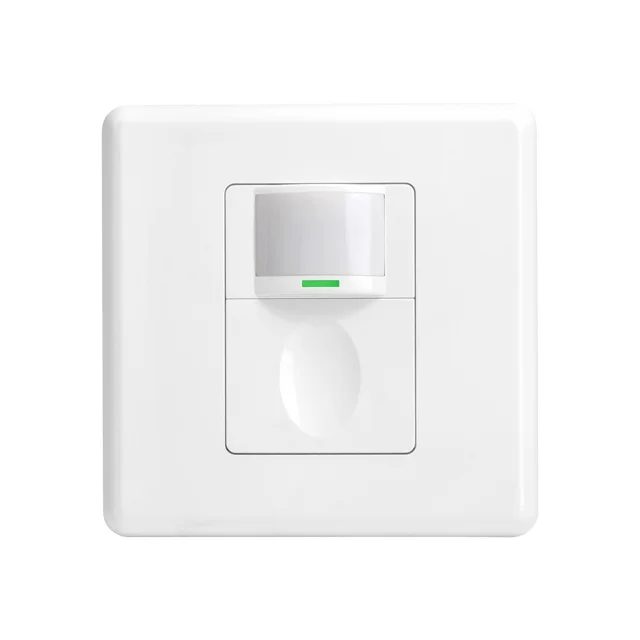

EU Standard Wall Mounted PIR Motion Sensor Switch RZ022 Light Control Occupancy Switches
- Category: >>>
- Supplier: Shenzhen Bester Energy Saving Technology Ltd.
Share on (1600747733063):
Product Overview
Description
The RZ022-10A is an Euro style 10A wall mounted occupancy sensor switch which uses advanced passive infrared sensor(PIR) and MCU
control. Compared to traditional motor sensor, it can automatically turn lights or fan on/off by detecting heat emitted from the motion, and have better stability and energy saving performance.
Function: Occupancy, vacancy, manual mode all-in-one
Main Spec: 110V~277VAC, 10A, Europe standard
Certification: FCC, RoHS certified
control. Compared to traditional motor sensor, it can automatically turn lights or fan on/off by detecting heat emitted from the motion, and have better stability and energy saving performance.
Function: Occupancy, vacancy, manual mode all-in-one
Main Spec: 110V~277VAC, 10A, Europe standard
Certification: FCC, RoHS certified
It’s never too late to experience convenient, energy-saving, and hands-free motion-activated lighting. Easily save up to 60% of
energy and reduce your electricity bills with a simple upgrade to motion sensor light switches.
energy and reduce your electricity bills with a simple upgrade to motion sensor light switches.
The versatile RZ022 motion sensor switch is applicable for every residential and commercial application with occupancy, vacancy, and ON/OFF modes integrated for max compatibility, flexibility, and ease of use.
The RZ022-10A series is designed for the EU markets for single-pole applications. The 100V-265V voltage range works well in homes
and offices and the 10A current rating is capable of high load commercial grade applications.
RZ022-10A is a 3-wire switch and requires a neutral wire to work.
Features, Benefits, Specs
* Occupancy, Vacancy, Manual ON/OFF mode 3 in 1
* Exclusive ON/OFF mode allows the sensor switch to work the same as a standard light switch
* Time delay options: 15s, 1 min, 3 mins, 5 mins, 15 mins, 30 mins
* Enable ambient light sensor to keep lights off when there is ample natural light
* Low and high sensitivity adjustable
* Adjust settings by tapping buttons without removing the switch plate
* Magnetic latching relay provides better performance
* Made of fire-resistant materials for your safety
* RoHS, CE, FCC certified
Products Description
Features | Sensor Mode | Vacancy mode, Occupancy mode, Manual ON/OFF mode | ||||
Time-Delay | 15 s, 1 min(default), 3 mins, 5 mins, 15 mins, 30 mins | |||||
Light Sensor | Off, 15 Lux, 25 Lux (default), 35 Lux | |||||
Sensor Sensitivity | Low Sensitivity, High Sensitivity | |||||
Features | Power Source | 110V~277VAC | ||||
Power Frequency | 50 / 60Hz | |||||
Installation Height | 1.2 m ~ 1.6 m | |||||
Working Humidity | < 93%RH | |||||
Working Temperature | -20 ~ +40℃ | |||||
Detection Capability | Detection Distance | 6 m ~ 9 m (<27℃) | ||||
Detection Range | ≤150° | |||||
Detection Speed | 0.6 ~ 1.5m/s | |||||
Bulb Compatibility | Fluorescent / Ballast / LED | 1000 W / 220 VAC | ||||
Incandescent / Halogen | 2200 W / 220 VAC | |||||
* 10A Load: Ideal for high load applications, i,e, controlling multiple lights or HVAC

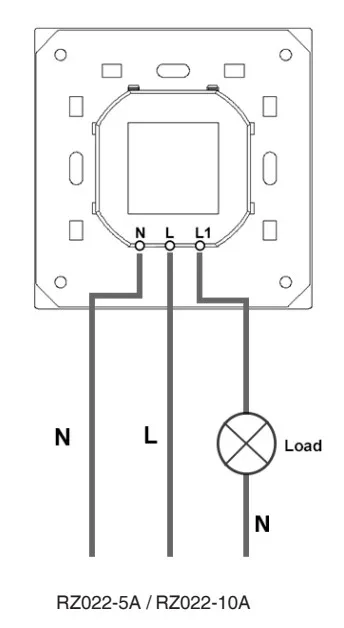

* 3-Wire Wiring: Hot Wire, Load Wire, Neutral Wire

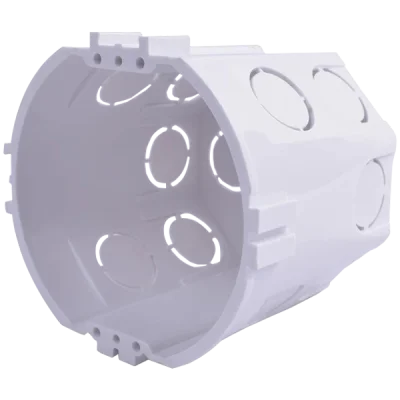

RZ022 motion sensor switch is designed for replacing light switches in the EU region where the round electrical switch boxes are
commonly used. Also suitable for regions using the European standard switch boxes:
* Austria
* Germany
* France
Applications
EU Standard Wall Mounted PIR Motion Sensor Switch RZ022 Series
Europe standard wall switch RZ022 combines occupancy mode, vacancy mode, on-off mode. It's perfect for normal family, and disabled, and where need save electricity and do not like hand touch everytime.
Product Paramenters

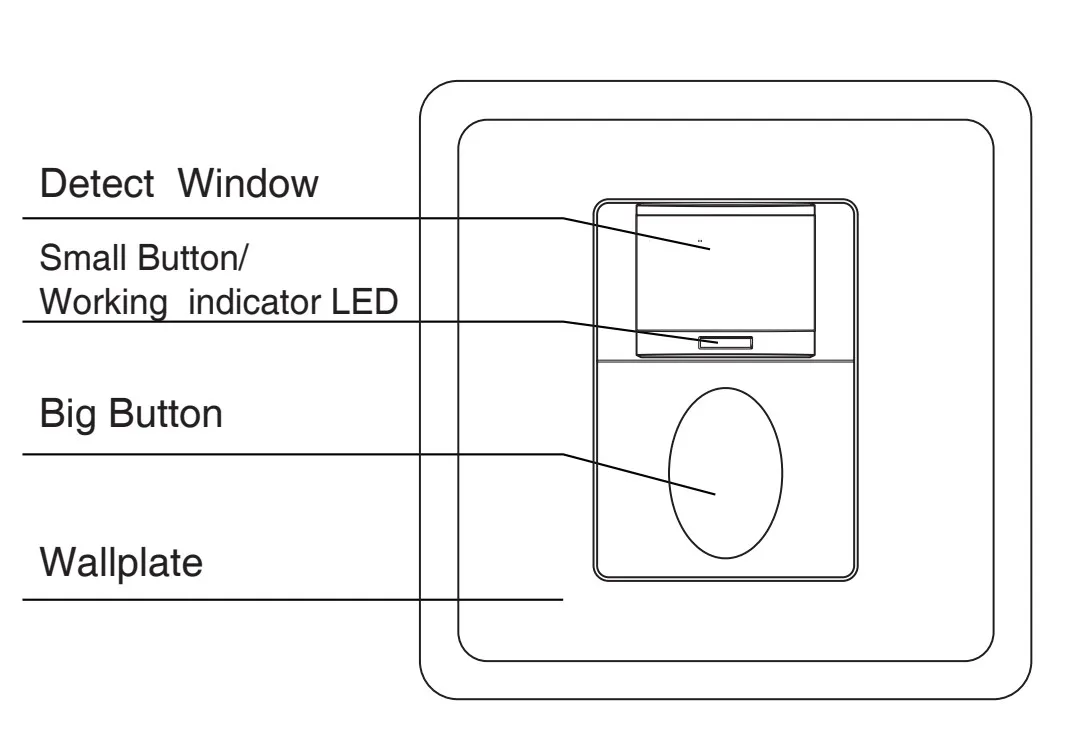

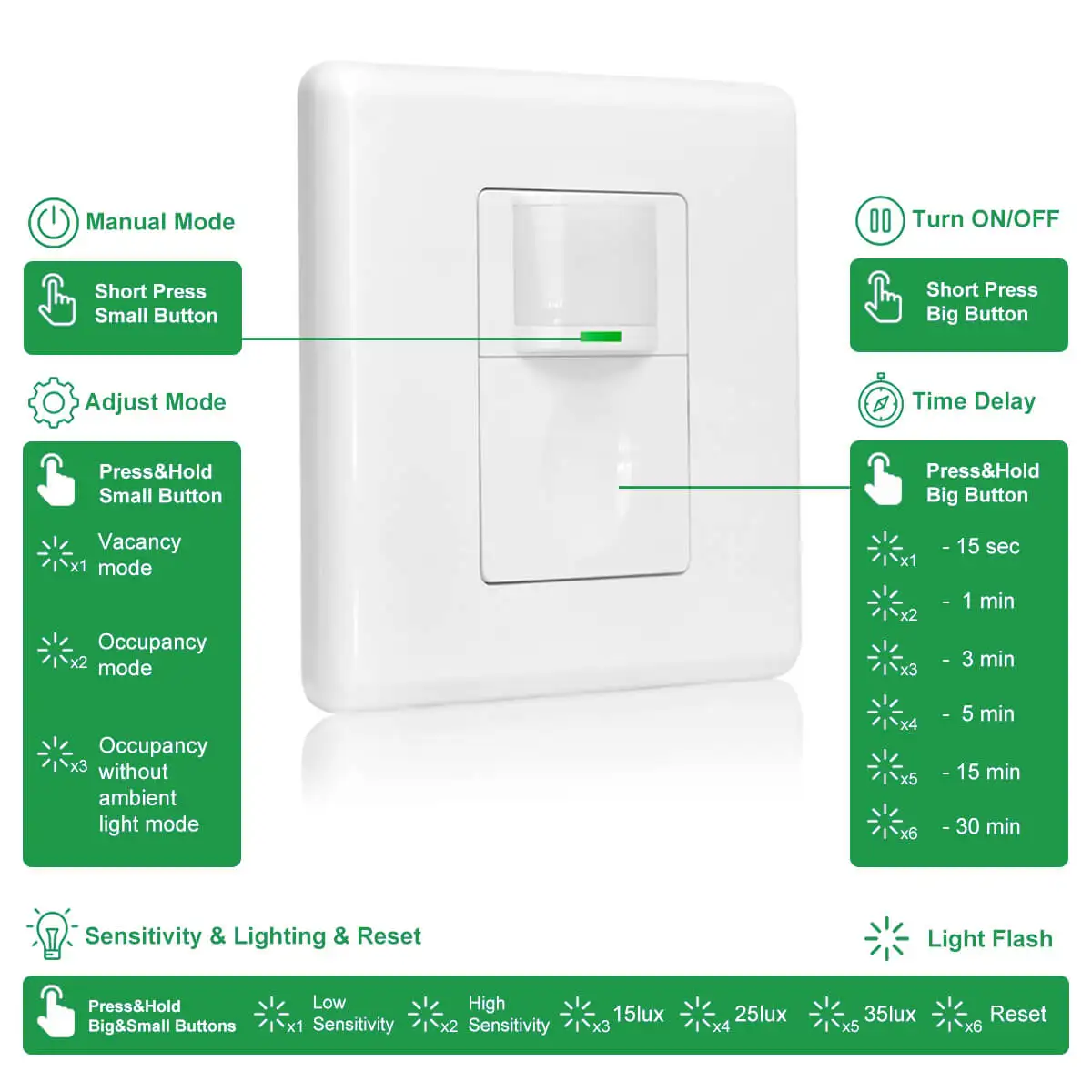

Light Control PIR Wall Switch RZ022 Series | Small Button | Long Press > 4 seconds | 1. Enter into Vacancy. | Button pressing ends when indicator flash red for 1 time. |
2(1). Enter into Occupancy. | Button pressing ends when indicator flash red for 2 times. | |||
2(2). Enter into Occupancy without light sensor. | Button pressing ends when indicator flash red for 3 times. | |||
Control Way: Short press < 4 seconds | Indicator will not flash when pressing button. | |||
Controlled by: Big Button | Control Way: Short press < 4 seconds | Indicator will not flash when pressing button. |
Options for Light Control PIR Wall Switch RZ022 Series | Big Button | Control Way: Long Press > 4 seconds | 15 seconds | Button pressing ends when indicator flash for 1 time. |
1 minute | Button pressing ends when indicator flash for 2 times. | |||
3 minutes | Button pressing ends when indicator flash for 3 times. | |||
5 minutes | Button pressing ends when indicator flash for 4 times. | |||
15 minutes | Button pressing ends when indicator flash for 5 times. | |||
30 minutes | Button pressing ends when indicator flash for 6 times. |
User Adjustable Sensor Sensitivity Options for Light Control PIR Wall Switch RZ022 Series | Controlled by: Small Button and Big Button | Control Way: Long Press > 4 seconds | Button pressing ends when indicator flash yellow for 1 time. | |
Button pressing ends when indicator flash yellow for 2 times. |
User Adjustable Light Sensor Illuminance Options for Light Control PIR Wall Switch RZ022 Series | Controlled by: Small Button and Big Button | > 4 seconds | 15 Lux | Button pressing ends when indicator flash yellow for 3 times. |
25 Lux | Button pressing ends when indicator flash yellow for 4 times. | |||
35 Lux | Button pressing ends when indicator flash yellow for 5 times. |
User Reset for Light Control PIR Wall Switch RZ022 Series | Controlled by: Small Button and Big Button | Control Way: Long Press > 4 seconds | Reset to Factory Settings. | flash yellow for 6 times. |
User Temporary ON or OFF for Light Control PIR Wall Switch RZ022 Series | Indicator will not flash when pressing button. |

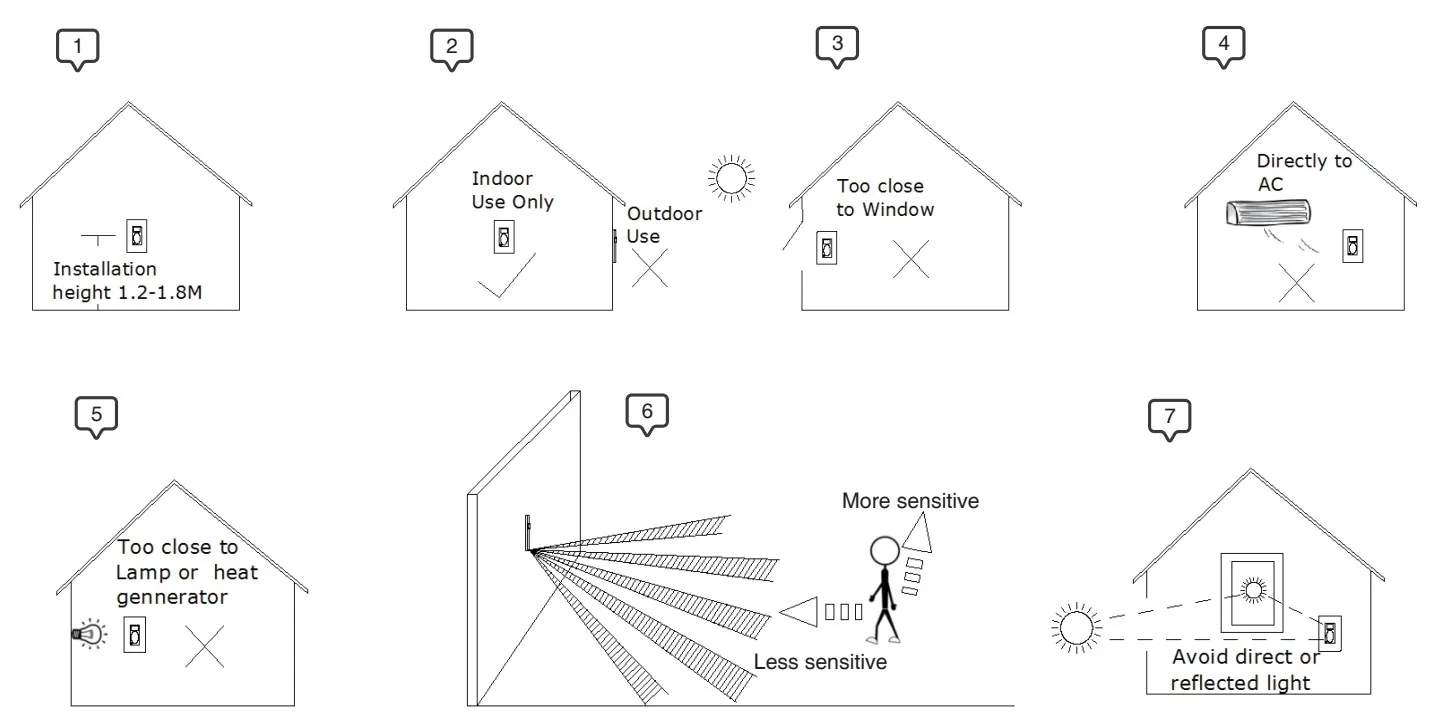

Installation Instructions
