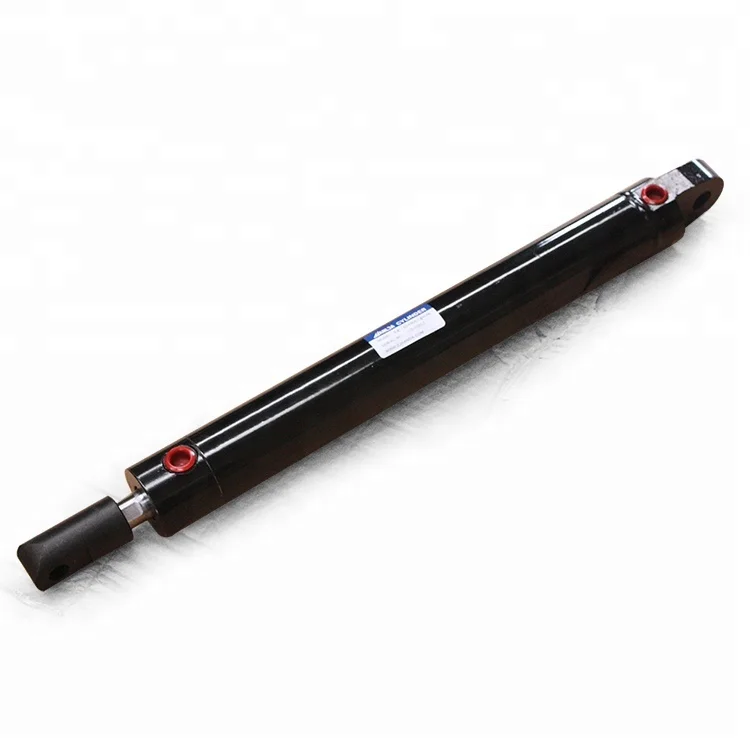

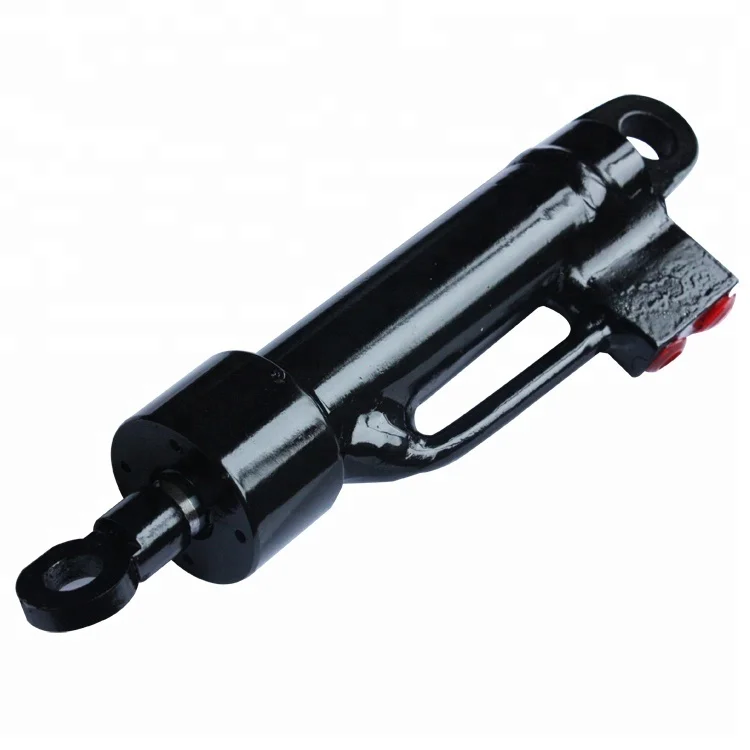

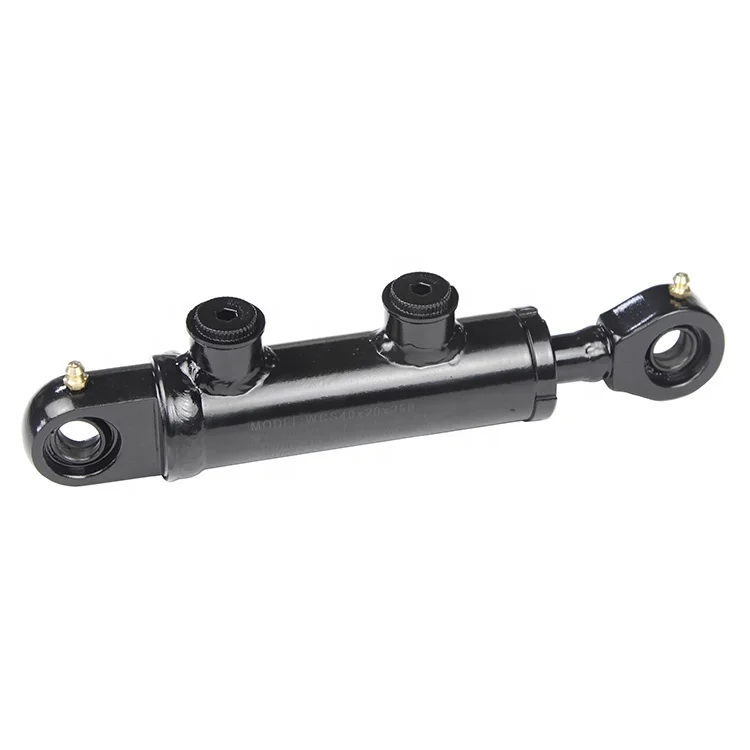

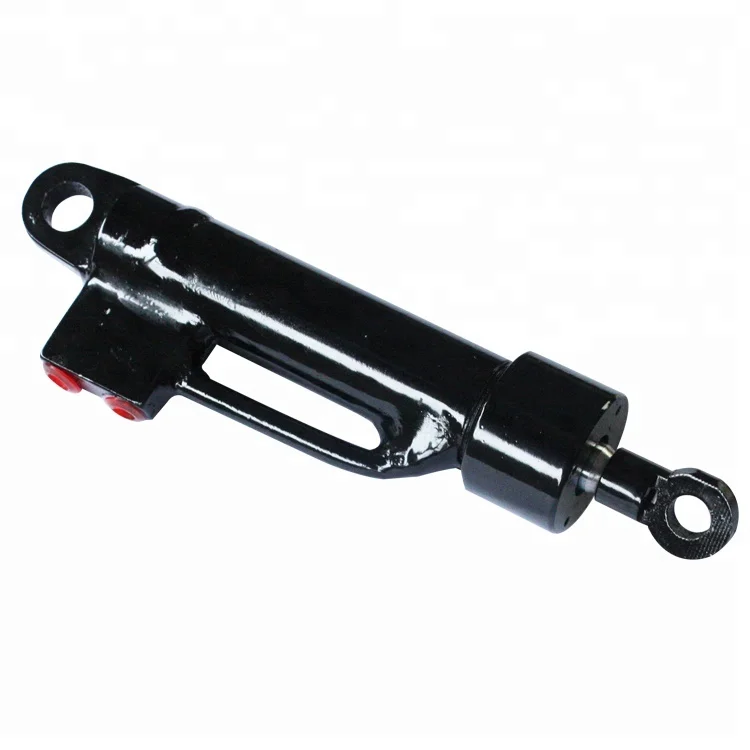

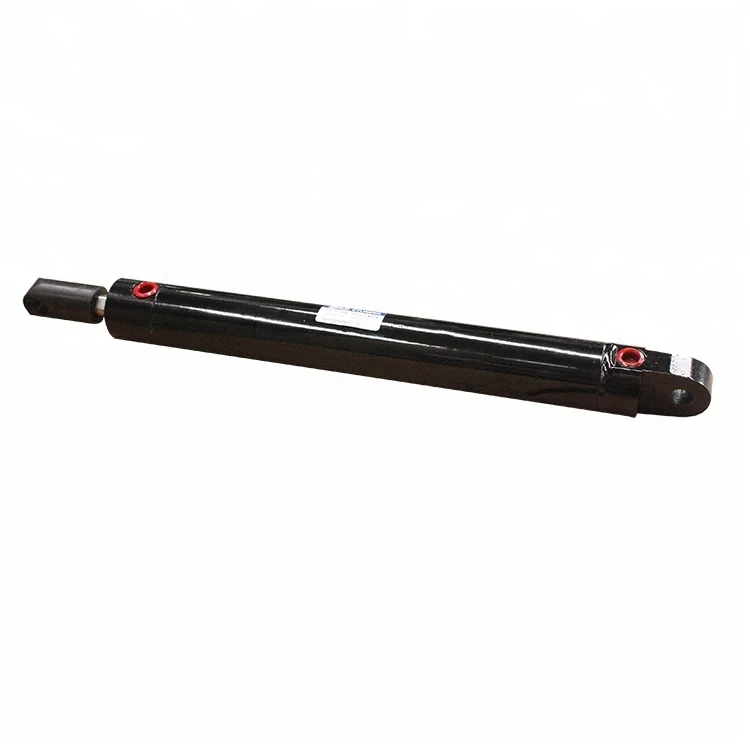

Hydraulic Cylinder Agricultural Trailer Tractor Crane Standard Cylinder Tie Rod Welded Cylinder
- Category: >>>
- Supplier: Zhejiang Handa Machinery Co. Ltd.
Share on (1600747746284):
Product Overview
Description
5x24 hydraulic cylinder
Product Overviews
| Bore Diameter | φ25-320mm(1" to 5") |
| Working Medium | Clean Standard Hydraulic Oil |
| Cylinder Tube Material | Steel C1045 |
| Operating Pressure Rang | 0.3-30MPa (45-4300PSI) |
| Temprature Rang | -10 to 60°C |
| Speed Rang | 0-300(mm/s) |
| Rod Diameter | φ12-200mm |
| Stroke | 0-4000mm |
| Oil Port | BSP/NPT/ZG/M/Customized |
| Mounting Type | Flange, Trunnion, Fixed Eye, Clevis, Welded Tube, Adjustable Nut and etc. |
DATA SHEET DOWNLOAD
Product Description
Agricultural Tie Rod Hydraulic Cylinder Technical Parameters
| Bore Diameter | 2"-5" |
| Rod Diameter | 1 1/8" - 2" |
| Working Pressure | 3000PSI(2"-4") , 2500PSI(5") |
| Port Size | 3/8 NPT-1/2NPT. |
| Retra Pin Dia. | 1" |
| Mounting type | Both ends with clevis |
| Seals | Hallite |

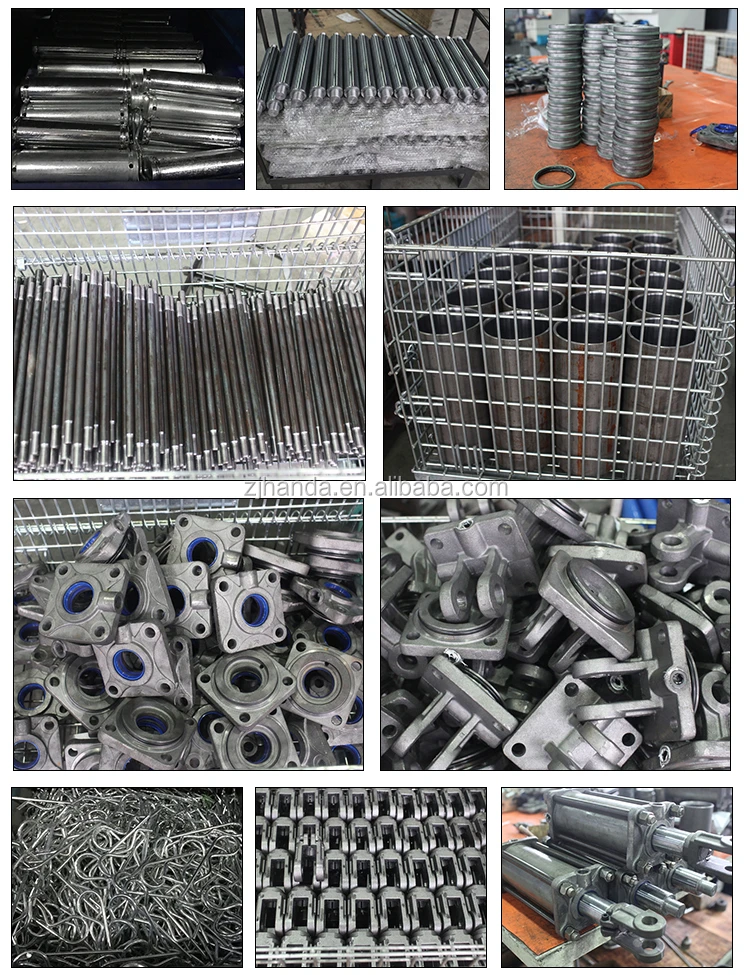

Product Photos
Application
Customized Solutions
Customized Hydraulic cylinder Solutions.
All of the designs in the HANLiDA Hydraulics portfolio of Tie Rod Hydraulic Cylinder, Welded Hydraulic Cylinder, Agricultural Tie Rod Hydraulic Cylinder, Agricultural Welded Clevis Hydraulic Cylinder, Agricultural Welded Tube Hydraulic Cylinder, Single Acting Hydraulic Cylinder, Telescopic Hydraulic Cylinder are fully and easily customized (see some of the many customization options listed below) offering OEMs high quality, cost effective options that meet their OEM application specific demands. Choosing to customize one of the hydraulic Cylinders in our portfolio, enables OEMs to meet their Custom Hydraulic cylinder requirements while allowing for faster development times.
Company Information
Our Services
Favorable Comment
5x24 hydraulic cylinder
