1024X600 10.1 Inch Security Monitor COG Normally White RGB Stripe TN LCD Display Module
- Category: >>>
- Supplier: Shenzhen,Zhanhui,Optoelectronic,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
| Item | Specifications |
| Part Number | ZH101BH015-05 |
| Size | 10.1 inch |
| Resolution | 1024x600 |
| Display Mode | TN(Normally White) |
| Viewing Angle | 80/80/60/70 (Typ.) |
| Contrast Ratio | 600:1 (Typ.) |
| Response Time | 16(Typ.)(Tr+Tf) ms |
| Active Area | 222.72(W)x125.28(H) mm |

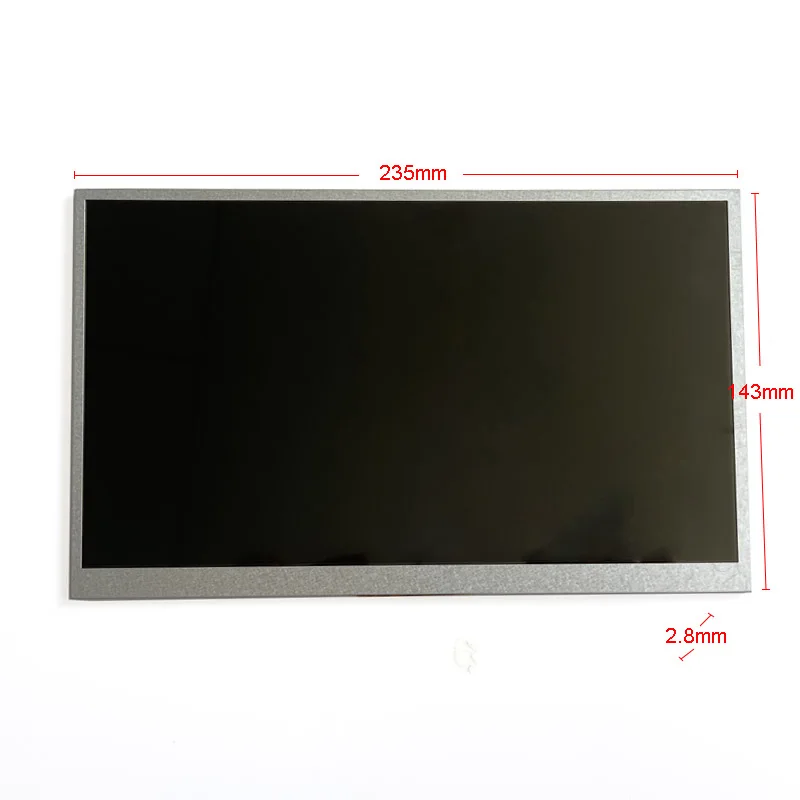

| Module Size | 235.0(W)x143.0(H)x2.8(T) mm |
| LCM Luminance | 250cd/m² (Typ.) |
| Backlight Type | 27-chip WLEDs(3S9P), 9.0V/180mA |
| Lifetime | 20000Hours (Min.) |
| Interface | LVDS, FPC 40pins |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -30℃~+70℃ |
| Touch Panel | Optional Touch Panel |

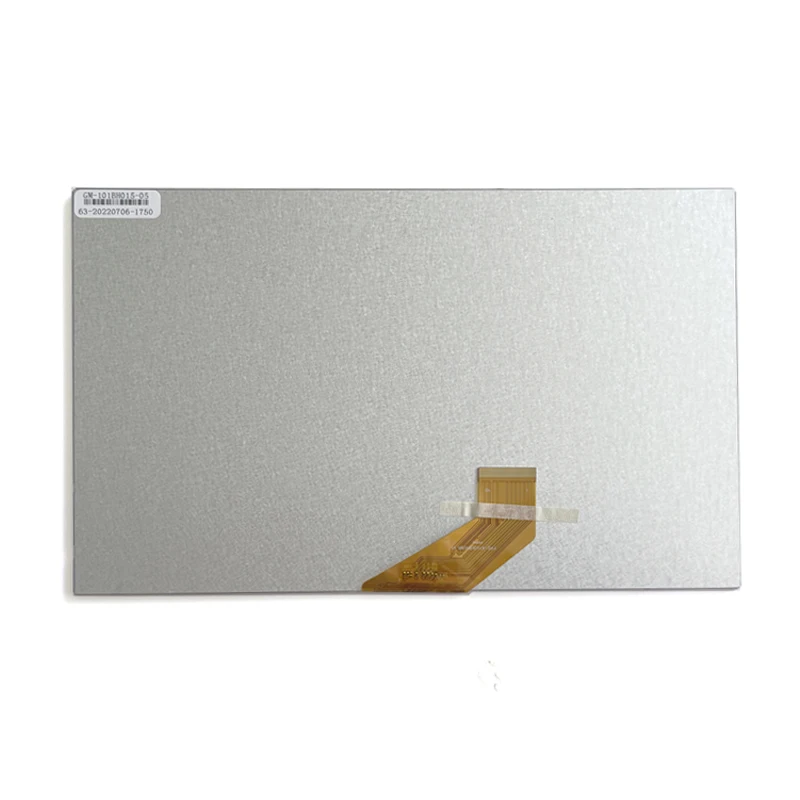

Product Details

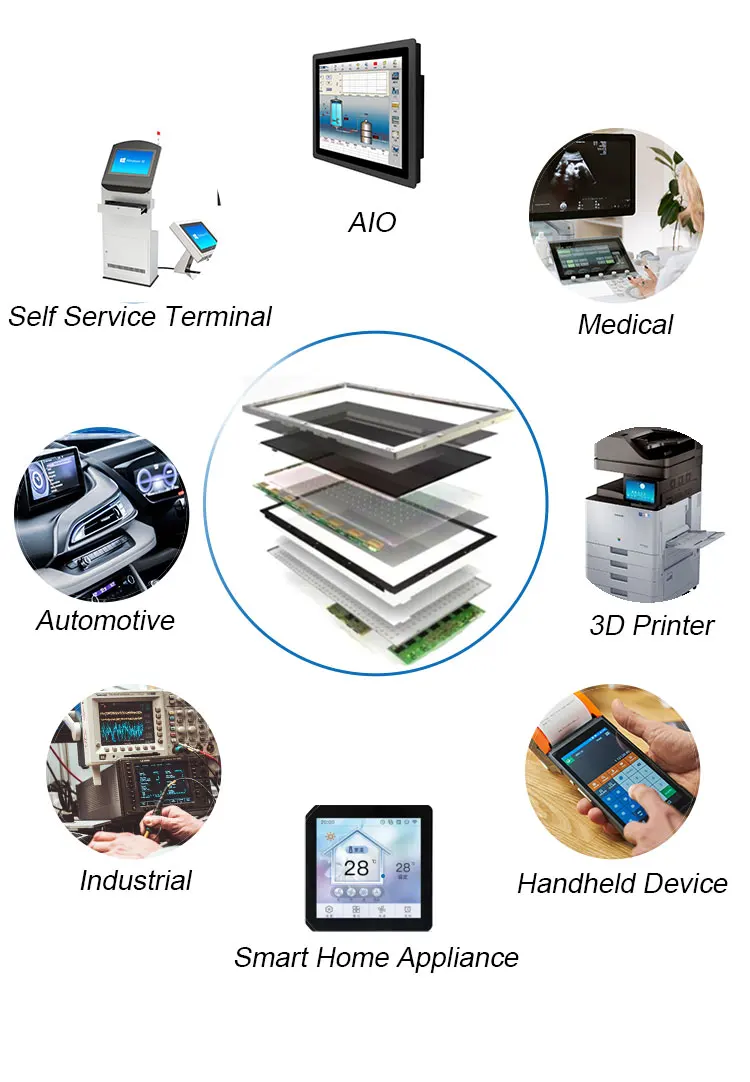

Product Application

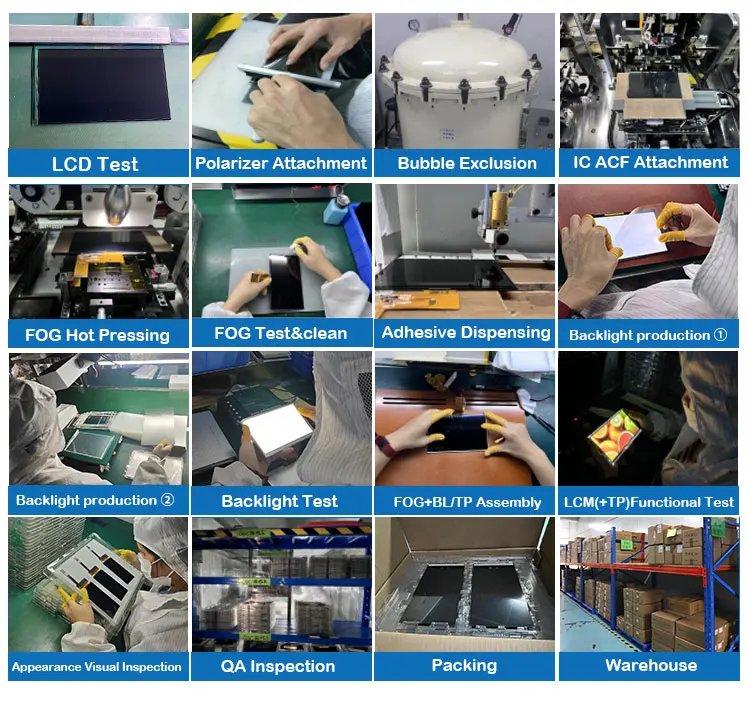

Production Process
About US
Shenzhen Zhanhui Optoelectronic Technology Co., Ltd., founded in 2016, is one of the outstanding enterprises engaged in the development, production, agency and sales of LCD products. Now it has eight years of professional technology and service system, providing professional products and services for tens of thousands of enterprises. Currently, the company has branches in Dongguan, Guangdong, Shenzhen Fuyong, Hong Kong.
Our company has rich professional experience and strong R&D strength, with a factory area of 5000 square meters, 6 production lines, a monthly output of 600k, and 10 R&D teams. In the fierce market competition, we have always been in the forefront of the industry. With unremitting efforts, we have achieved leapfrog development. We will continue to develop leading LCD products, which can provide customers with one-stop functional design and product customization services. The company can provide a variety of functional products, accept customized samples, and more than 200 kinds of screens for selection. We have always been customer-centric, providing high-quality products and stable supply, enthusiastic service, striving for survival with integrity, and being the leader in the development of LCD in China!
The main LCD screen of our company includes (2.0 " - 23.8 "); LCD products are widely used in smart home, military, notebook computers, outdoor highlight monitors, industrial control integrated machines, subway equipment, game consoles, portable handheld devices, drones and other products.
Packaging & Shipping
FAQ
Q1: What kind of products can you offer?
A1: We can offers:
√ Small and Medium size TN/IPS/OLED modules(Size from 2.0 inch to 23.8 inch)
√ Original Panel:BOE, TINAMA, INNOLUX, AUO etc.(Size from 3.95 inch to 32.0 inch)
√ LCD Module + Capacitive Touch Panel or Cover Glass:Air Gap Bonding or OCA/OCR Optical Bonding
√ LCD Module + Resistive Touch Panel
√ Wide Temperature & High Resolution
√ High Brightness backlight:1000cd/m²~2000cd/m²
√ Touch displays + Driver Boards + Cables +Accessories
Q2: Can you support customization service?
A2: Yes. We can customize the display according to your product requirements:
√ FPC Design:Interface,Pin definition,FPC shape,Logo screen printing content etc.
√ Backlight Type and Brightness:Backlight structure, internal LED light bar design, improve the brightness, etc.
√ Touchscreen:RTP design,FPC shape;CTP design, CTP Interface,FPC shape,IC selection etc.
√ Cover Lens:Size of the Cover Lens,Logo screen printing content,surface treatment with UV/AG/AF/AR etc.
Welcome to provide your customized requirements.
Q3: What is the advantage of your company?
A3: Our main advantages are:
√ Our factory has cooperated with BOE, TINAMA, INNOLUX, AUO and other panel factories for a long time, and established stable upstream resources,so we can also supply the Original Panel if you need.
√ We can provide you with comprehensive solutions, high quality products and efficient services.
√ Professional engineering teams provide integrated services.
Q4: What is the products application?
A4: Our LCD products are widely used in smart home, military, notebook computers, outdoor highlight monitors, industrial control integrated machines, subway equipment, game consoles, portable handheld devices, drones and other products.
Q5: What about the product MOQ,lead time,package,shipping and product warranty?
A5: √ Welcome sample order to test and check quality,no sample MOQ
√ Sample lead time:standard sample needs 1-3 days, customized sample needs about 2~3 weeks.
√ Mass production lead time:about 2~3 weeks after you confirmed the sample.
√ Professional packaging staff use safe packaging to ensure the safety of material transportation.
√ Shipping via Alibaba platform, or choose DHL / UPS / FedEx etc, or ship to your specified forwarder in China.
√ We provide 12 months warranty from the start of shipping. There is no warranty if Man-made damage or not our company's display product.
