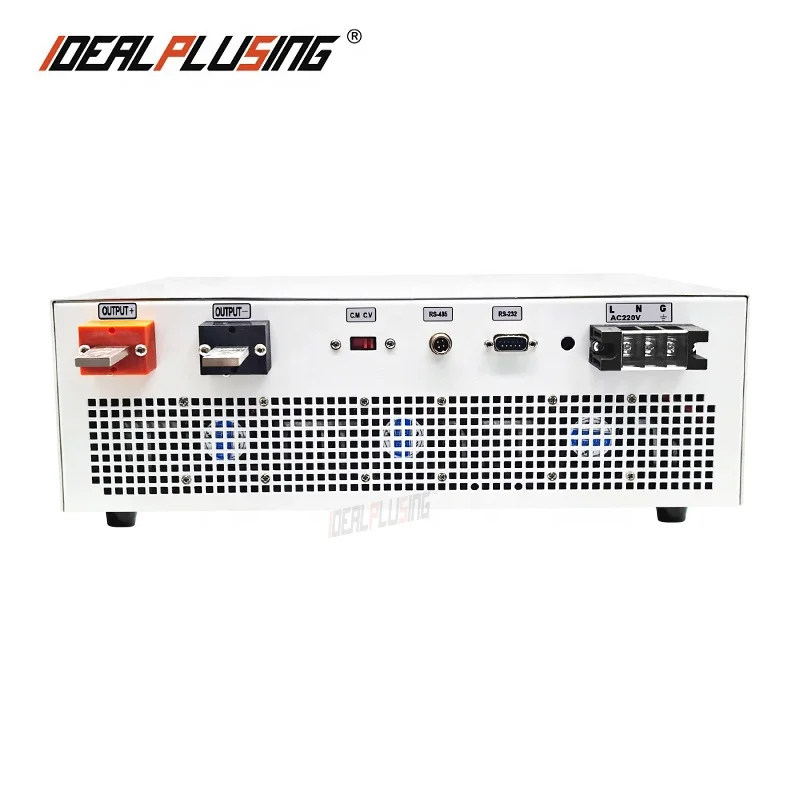

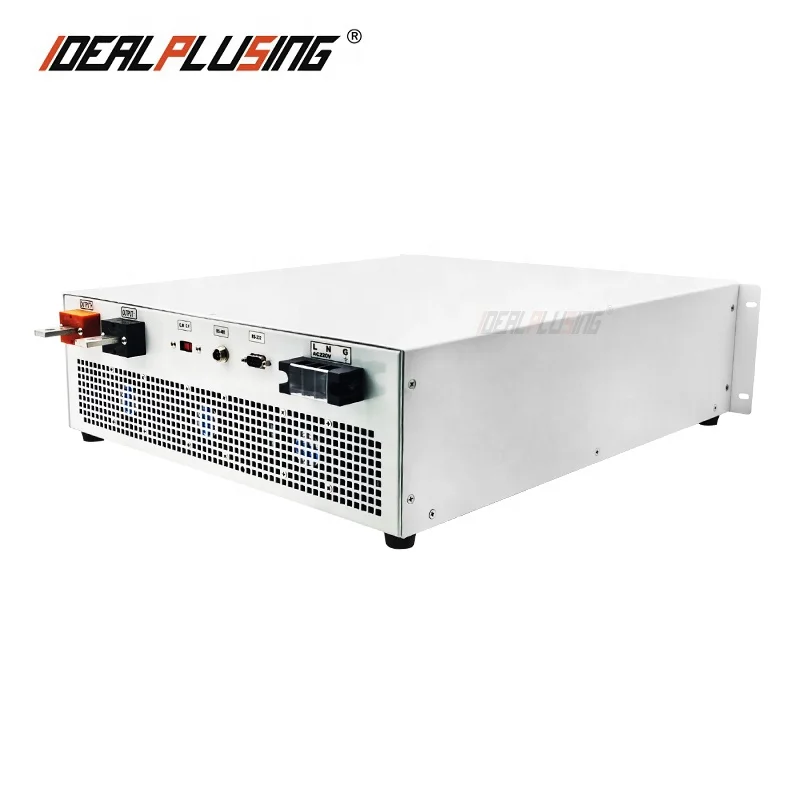

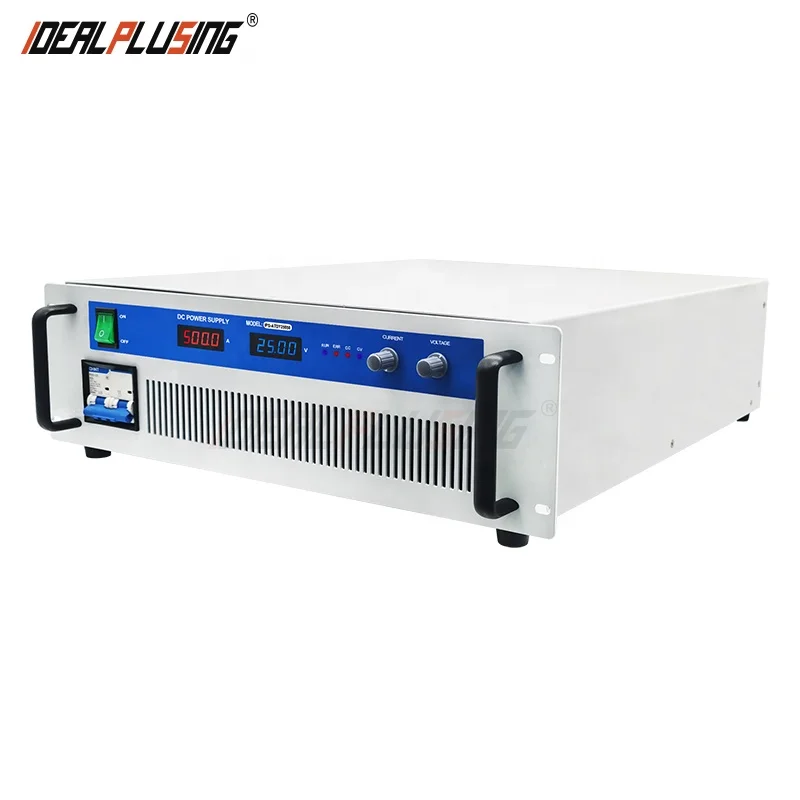

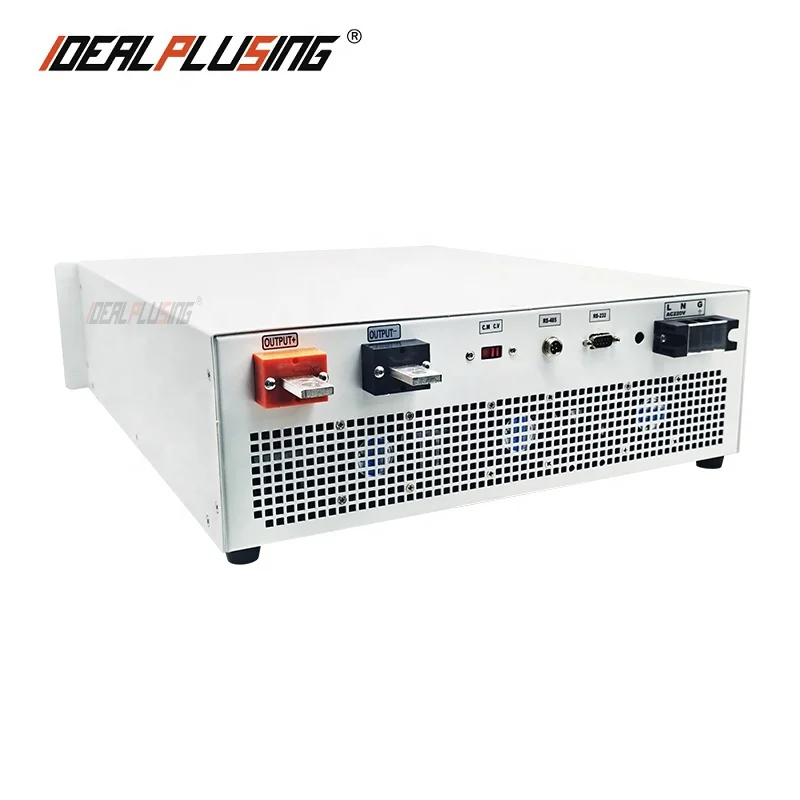

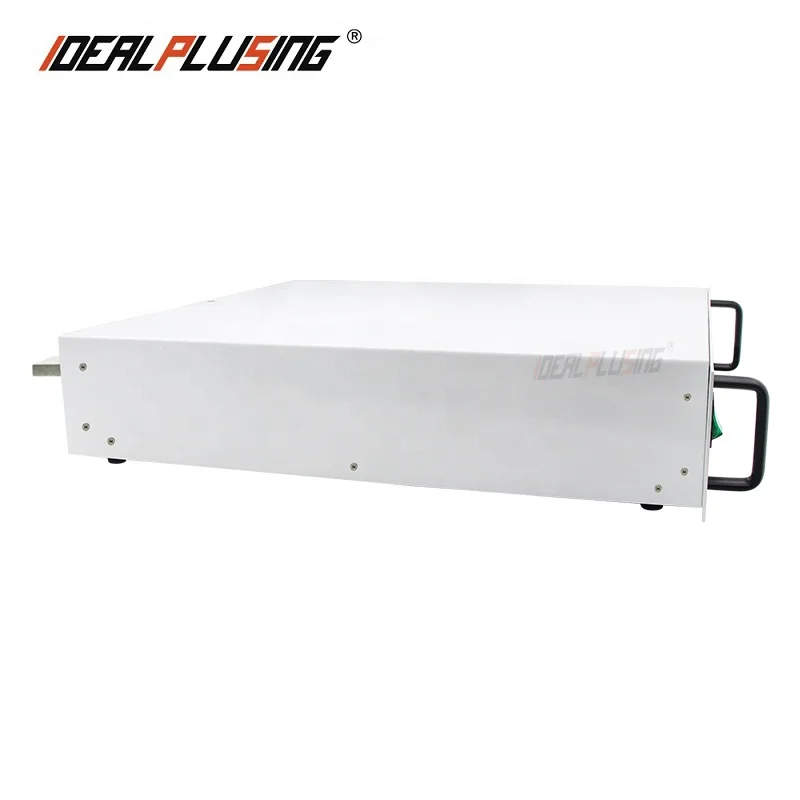

New Design 0 500A Adjustable Digital Display 5000W Power Supply Voltage ac to dc 0 10V switching power supply with RS232

Model

IPS-ATDY10500

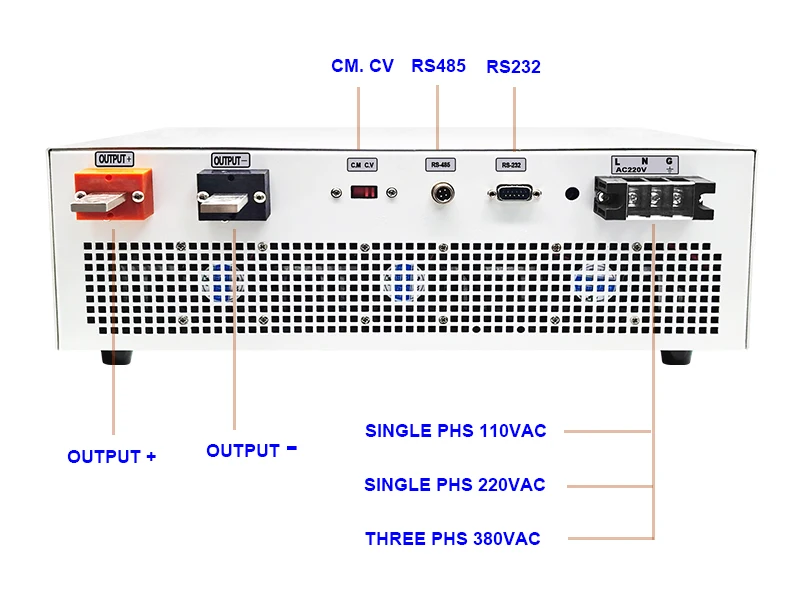

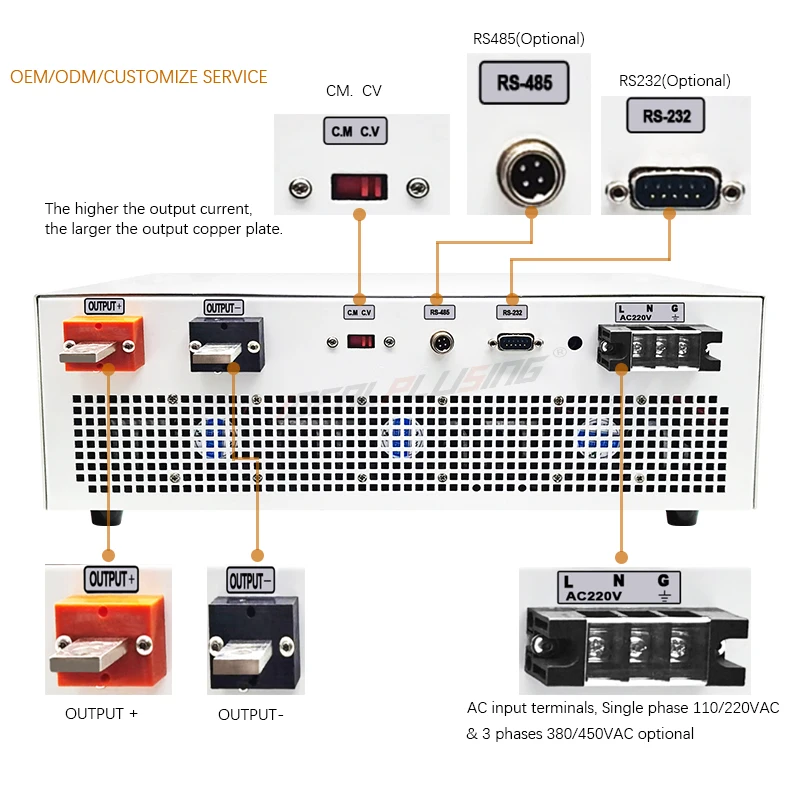

AC Input

(Inquiry Customization)

Single Phase :110VAC/120VAC±15%,50/60HZ

Single Phase :220VAC/230VAC±15%,50/60HZ

3 Phases :220VAC/230VAC±15%,50/60HZ

3 Phases :380VAC/415VAC±15%,50/60HZ

Input Voltage Range

220VAC±15%

Input frequency

50Hz/60Hz

Output voltage

0~10VDC

Output current

0~500A

Output Power

5000W

Voltage Stabilization

≤0.3%+10mV

Load Stabilization

≤0.5%+30mV

Ripples and Noises

≤0.5%+10mVrms

Voltage Display Accuracy

4-digit Accuracy:±1%+1 word (10%-100% rating)

Display Format

0.000V-9.999V; 0.00V-99.99V; 0.0V-999.9V

Current Display Accuracy

4-digit Accuracy:±1%+1 word (10%-100% rating)

Remote Adjustment(Optional)

(Analog control:Voltage adjustable):0-5VDC;
(Current adjustable):0-5VDC

Remote Display(Optional)

(Analog control: Voltage adjustable):0-5VDC;
(Current adjustable):0-5VDC

Output Over Voltage Protection

Built-in O.V.P. protection, protection limited value is rated +5%

Output Over Load Protection

Overload, current limit, constant current output

Over Temperature Protection

Built-in O.T.P. protection, Protection value 85℃±5%  heat sink temperature

Voltage Setting

10-turn precision potentiometer

Current Setting

10-turn precision potentiometer

Output Polarity

Output Positive(+) negative(- ) Can be grounded at will

Heat Dissipation Way

Forced fan cooling

Work Conditions

Indoor use design,Temperature:0℃~40℃;

 Humidity:10%~85%RH

Storage Conditions

Temperature:-20℃~70℃;

Humidity:10%~90%RH

Product Dimension

483*485*135(MM)

Net Weight

22KG
