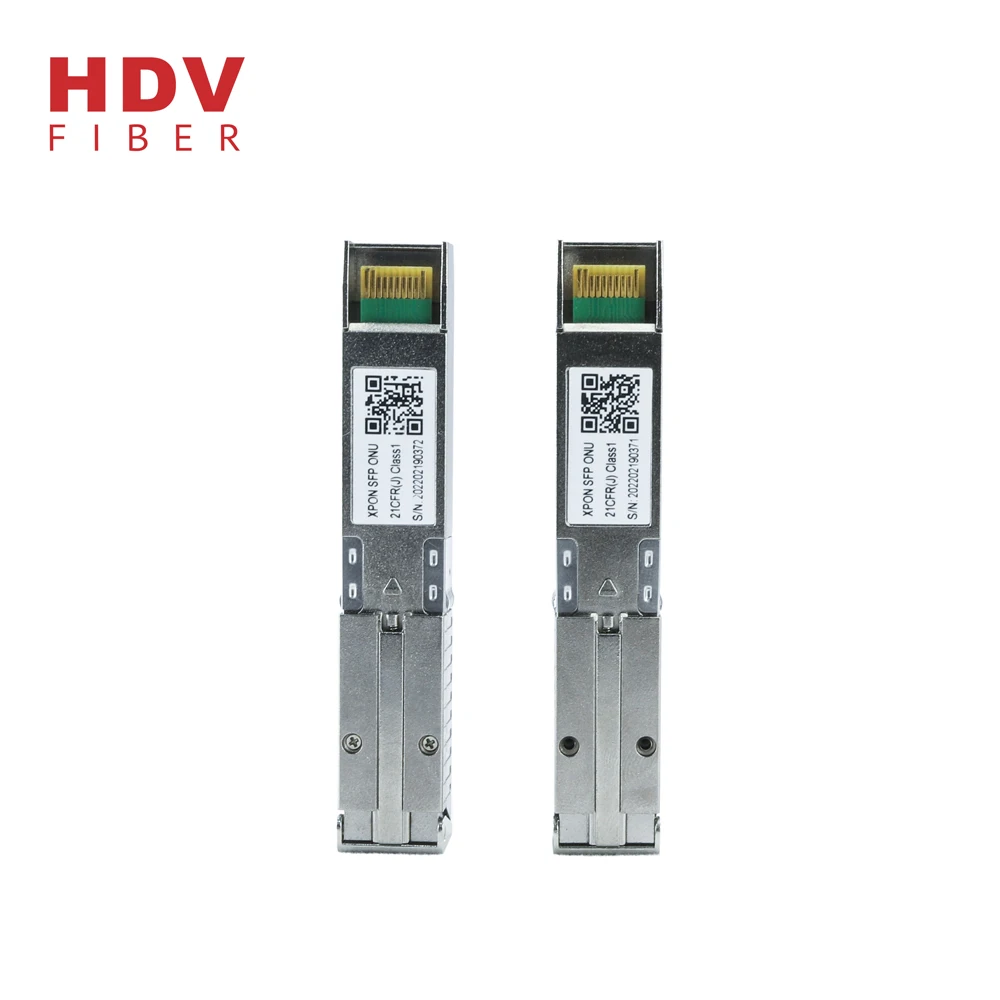

XPON STICK GPON/EPON SFP FTTH FTTX Fiber Equipment Easy Operation Pon Router Gepon Onu Price India Onu Gpon Epon Xpon ONU
- Category: >>>
- Supplier: Shenzhen Hdv Photoelectron Technology Ltd.
Share on (1600747836783):
Product Overview
Description

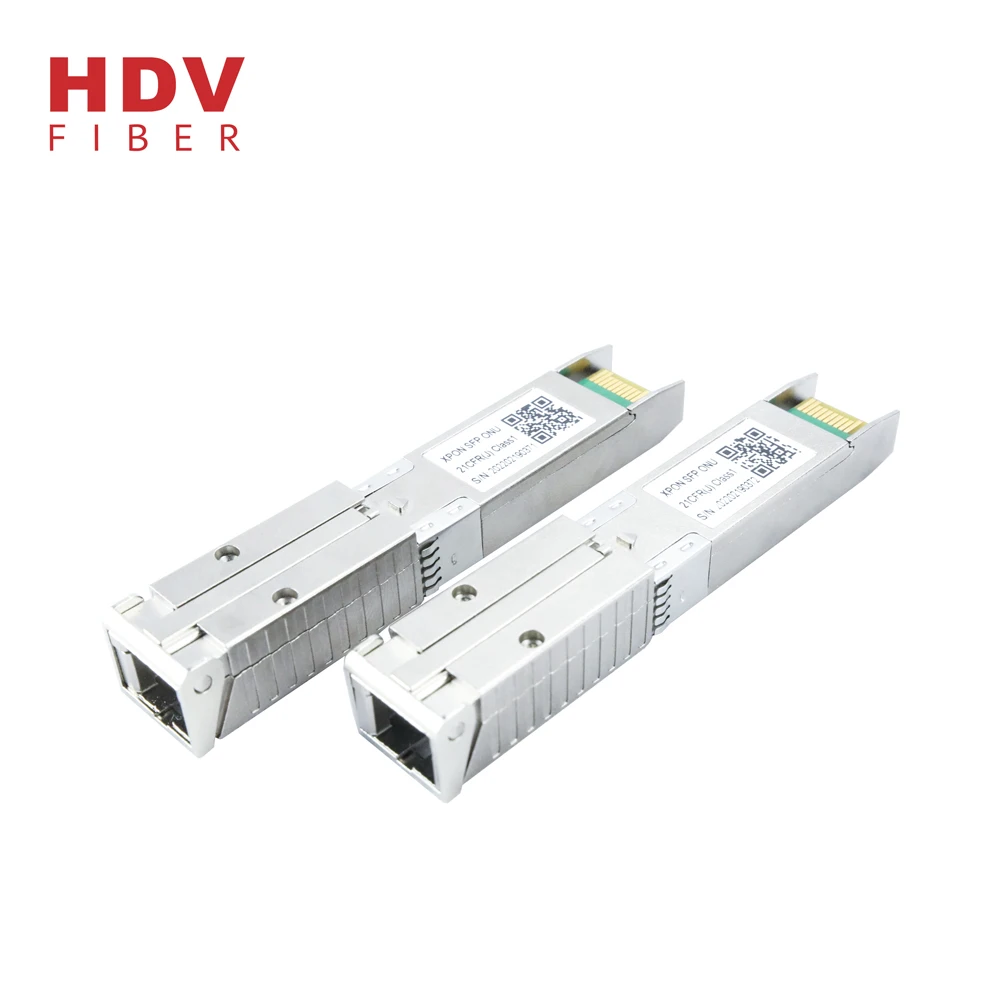

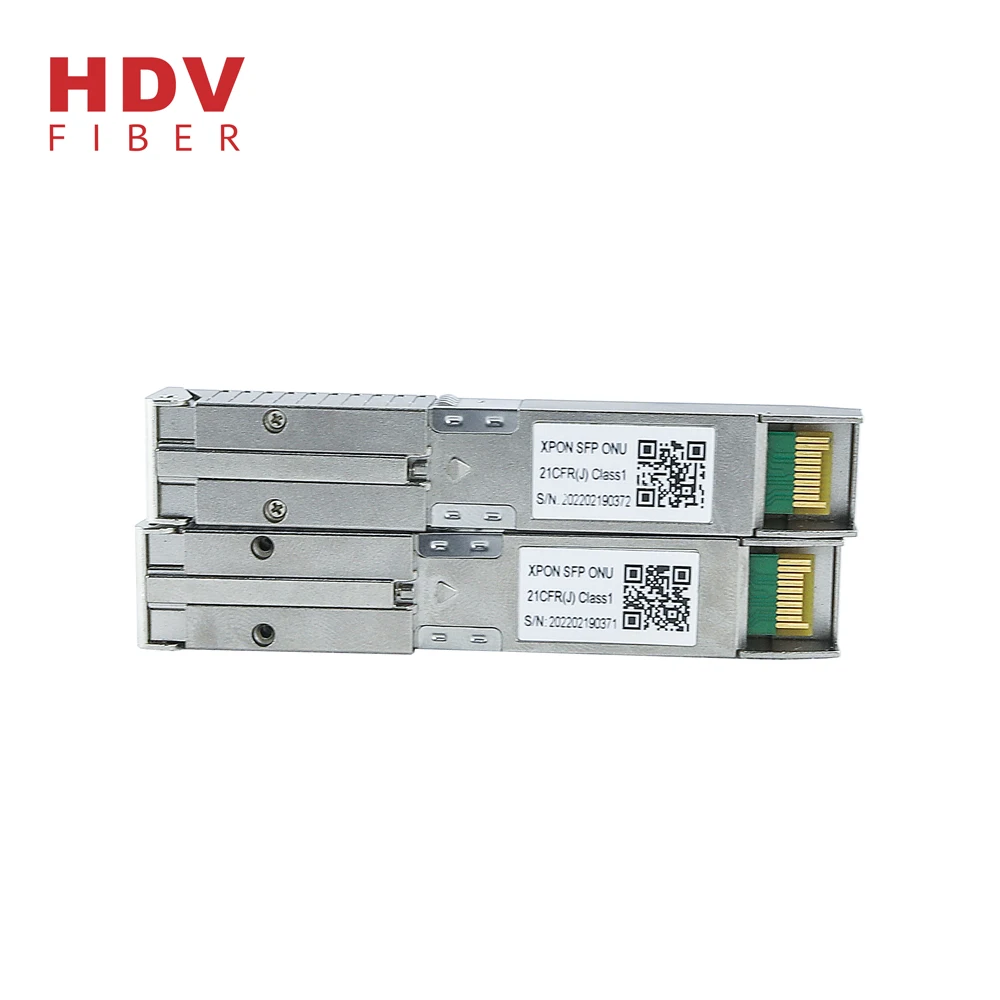

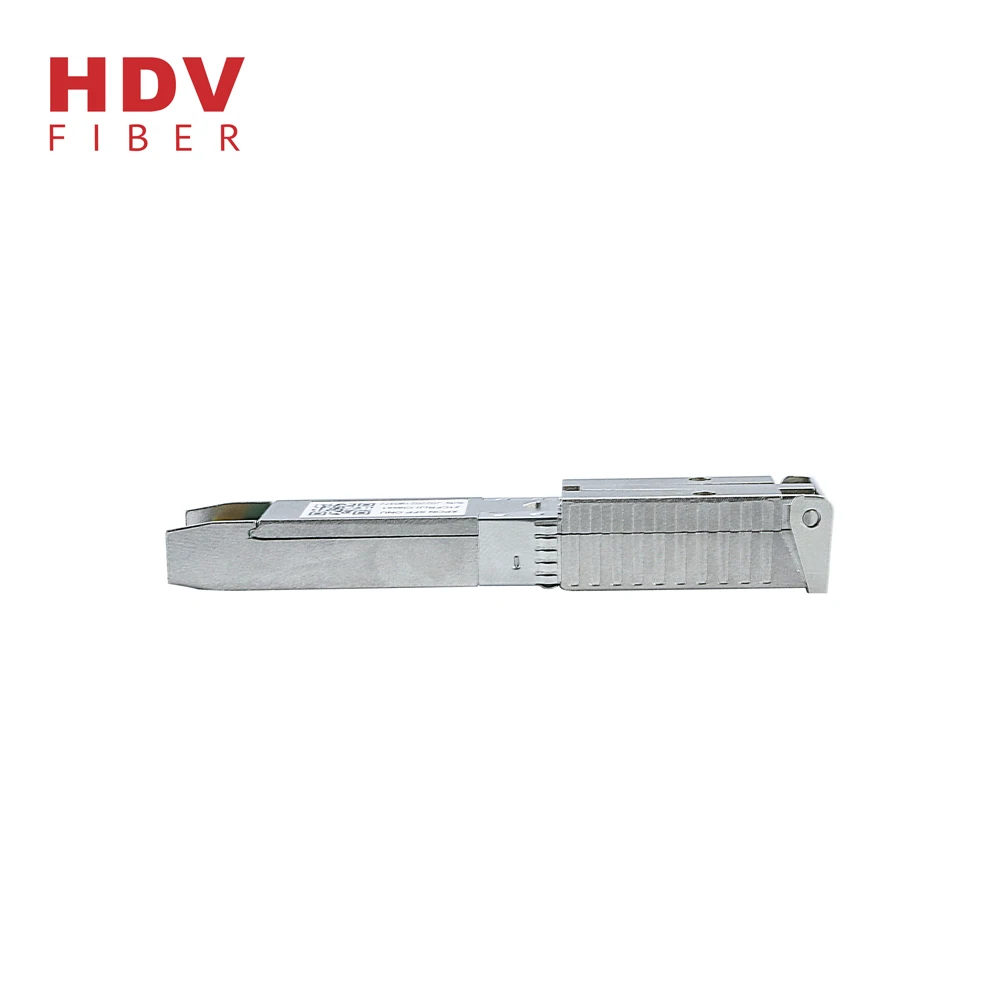

New Arrivals 1.25Gbps SFP FTTH FTTX Fiber Equipment Easy Operation Pon Router Gepon Onu Price India Onu Gpon Epon Xpon ONU

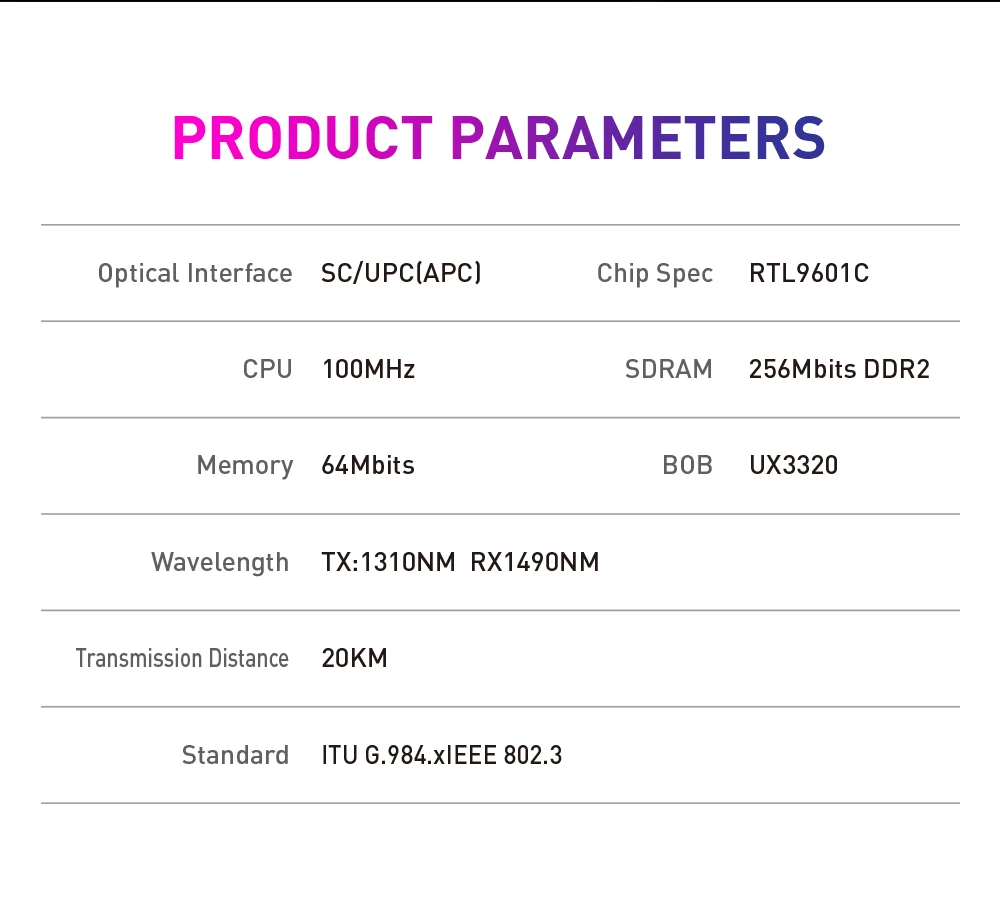

1. Product Features
*Single fiber bi-directional data links asymmetric TX 1.25Gbps / RX 2.5Gbps GPON ONU application with GPON MAC function *Support EPON/GPON mode and switch mode automatically

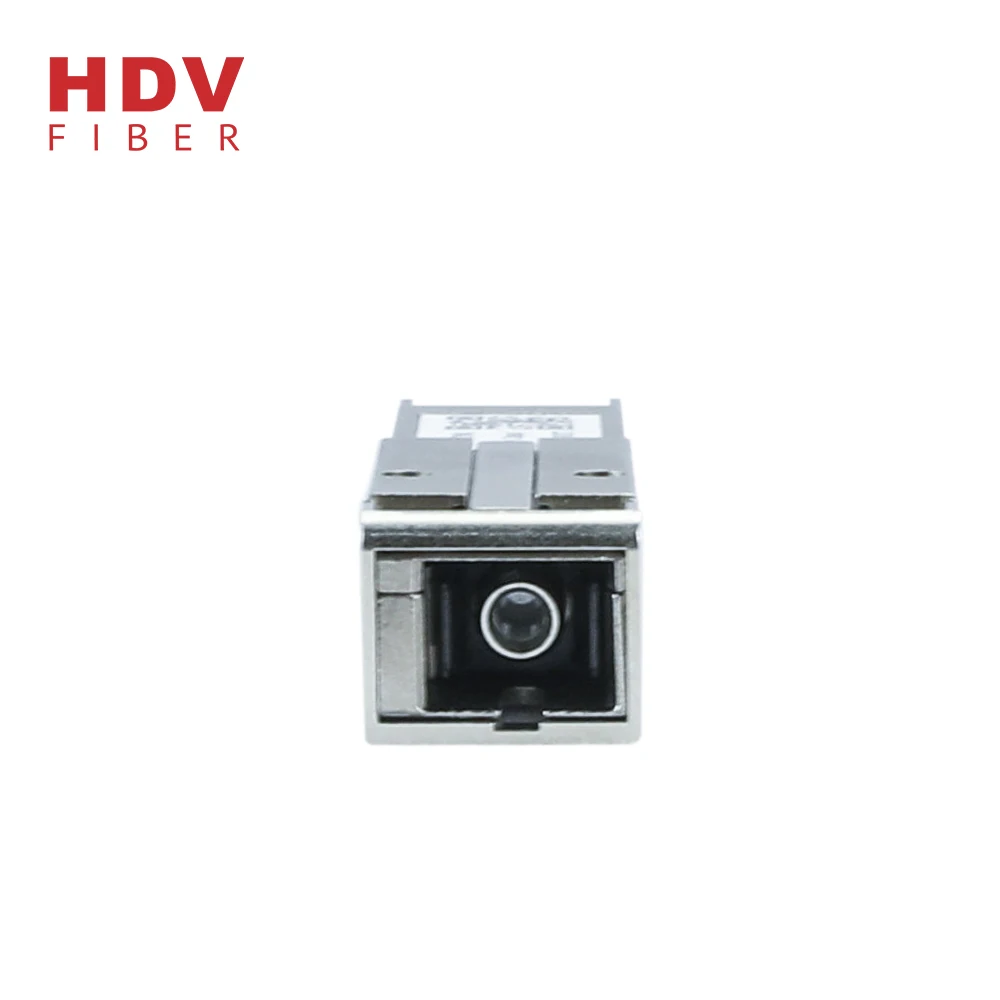

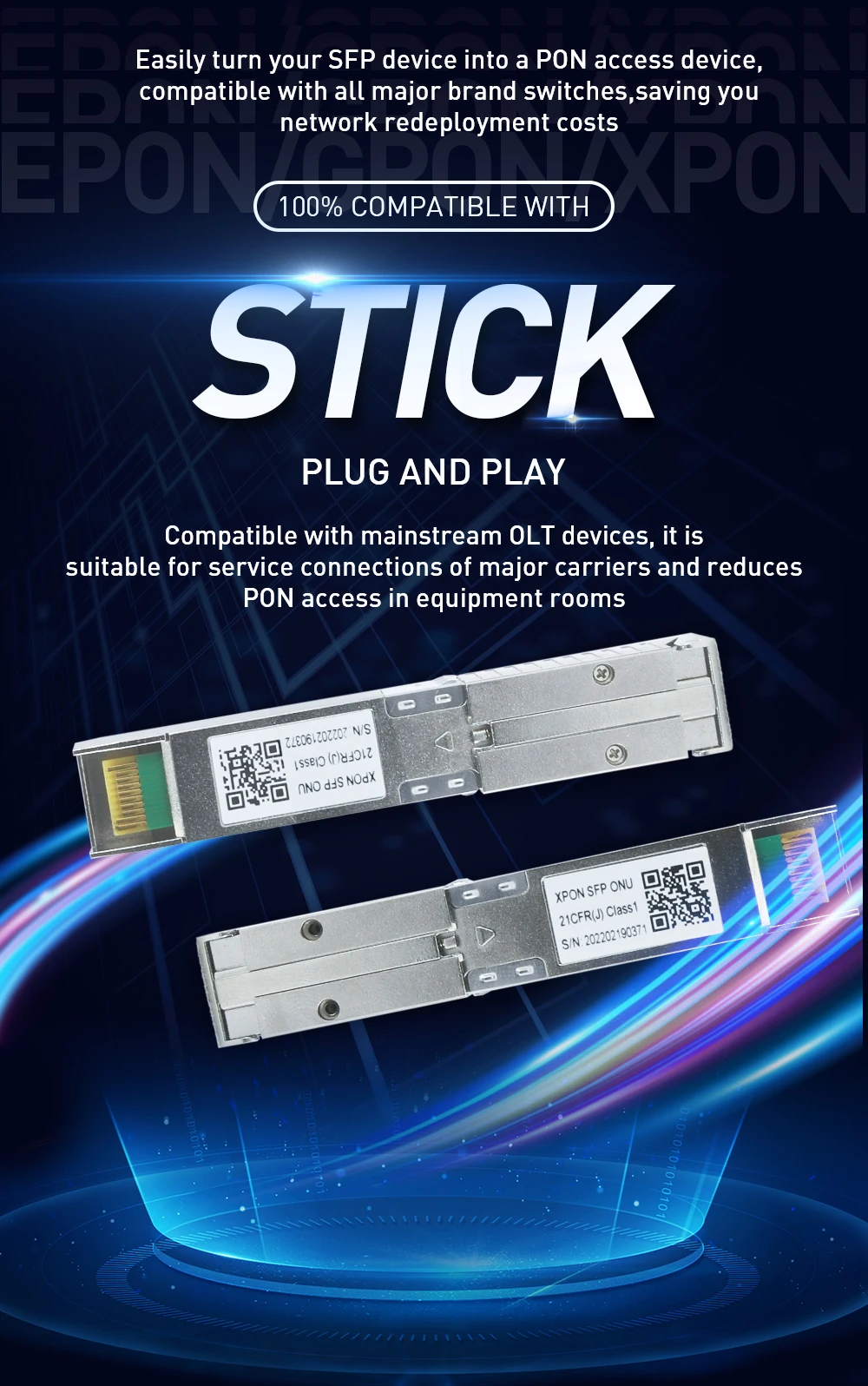

*SC/UPC receptacle SFP with GPON ONU MAC inside, “Plug-and-play” via auto-discovery and configuration
*1310nm DFB burst mode transmitter, 1490nm APD-TIA continuous mode receiver for 20km transmission
*0 to 70°C operating case temperature for HTR6001X
*Single 3.3V power supply *Digital diagnostic monitor interface compatible with SFF-8472
*SFP MSA compliance *Low EMI and excellent ESD protection
*Class I laser safety standard IEC-60825 compliant *RoHS-6 compliance
2. Standard
* Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
* Complies with ITUT-T G.984.2, G.984.2 Amendment 1
* Complies with ITUT G.988 ONU management and control interface (OMCI) specification
* Complies with SFF 8472 V9.5
* Complies with FCC 47 CFR Part 15, Class B
* Complies with FDA 21 CFR 1040.10 and 1040.11
3. General Description
The HTR6001X series transceiver is a high performance module for single fiber communications using a 1310nm burst- mode transmitter and a 1490nm continuous-mode receiver. It is used in the optical network terminal (ONT) for GPON ONU Class B+ applications with Mac inside.
The Transmitter is designed for single mode fiber and operates at a nominal wavelength of 1310nm. The transmitter module uses a DFB laser diode with full IEC825 and CDRH class 1 eye safety.
The receiver section uses a hermetic packaged APD-TIA (APD with trans-impedance amplifier) and a limiting amplifier. The APD converts optical power into electrical current and the current is V1.0 page 2 of 10 transformed to voltage by the trans-impedance amplifier. The differential DATA and /DATA CML data signals are produced by the limiting amplifier.

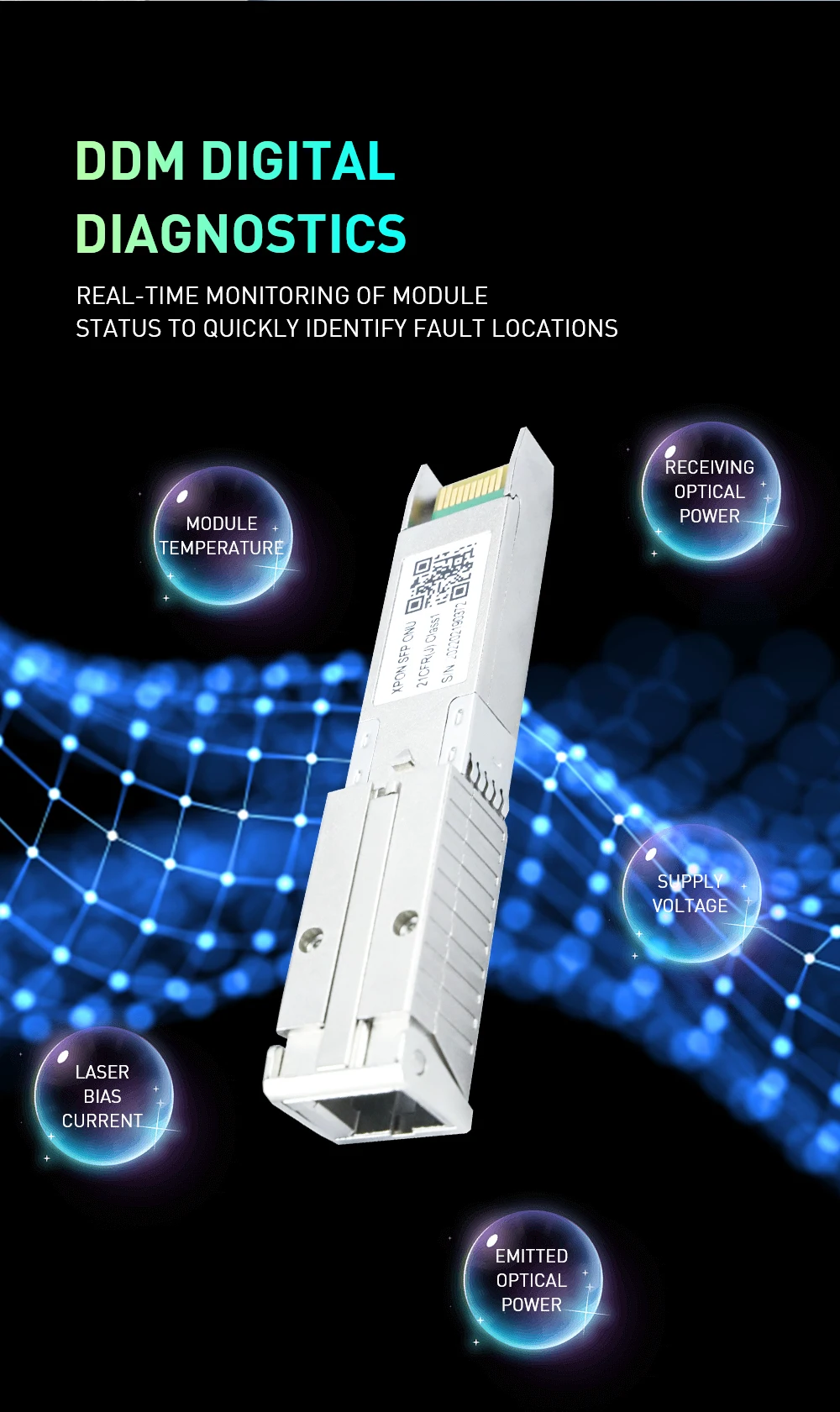

An enhanced Digital Diagnostic Monitoring Interface has been incorporated into the transceivers. It allows real time access to the transceiver operating parameters such as transceiver temperature, laser bias current, burst mode transmitted optical power, received optical power and transceiver supply voltage by reading a built-in memory with I2C interface.
4. Applications
* Gigabit-capable Passive Optical Networks (GPON)

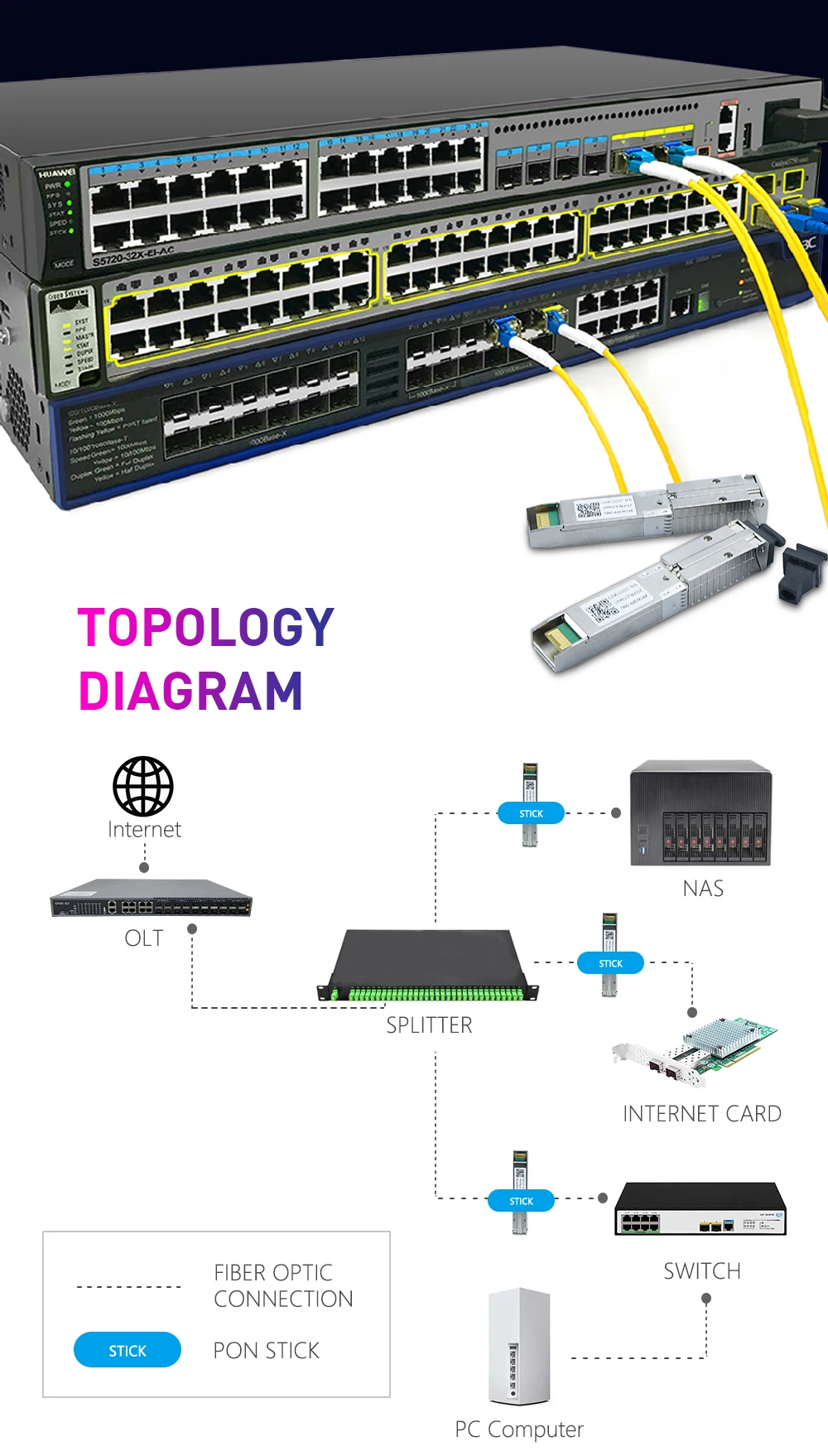

* HTR6001X is a MSA-compliant SFP that incorporates not just the optics for an ONU, but all of the electronics need as well. It is a “PON on a Stick” that an entire FTTH ONU in a slightly oversized SFP. It can be plugged into networking equipment. Allowing the data interfaces on a switch, router, PBX, etc. to be customized for different fiber environments and distance requirements
* The HTR6001X is designed as dual-mode ONU stick, it also supports the EPON ONU OAM. It can be applied both on EPON system and on the GPON system .It will automatically establish an EPON link with the EPON OLT or GPON link with the GPON OLT.
