Outdoor GYXTW aerial FRP strength menber loose tube armored black fibre optical cable 2 4 6 8 12cores singlemode MM cable fiber




PRODUCT DESCRIPTION


GYXTW(FRP)

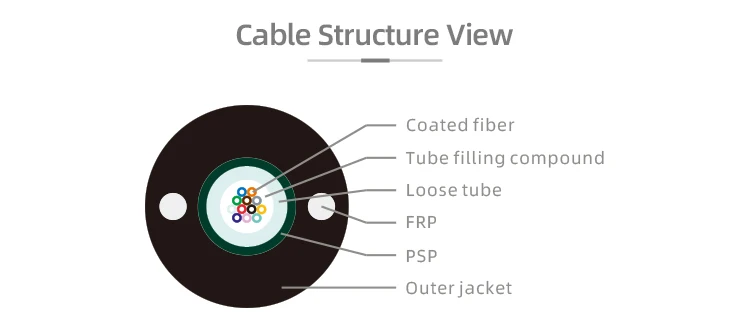

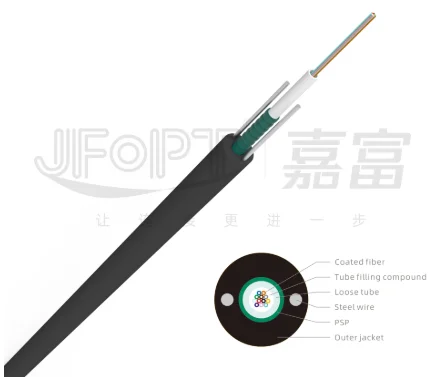

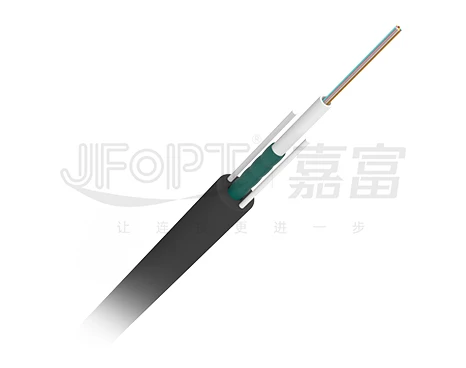

The structure of GYXTW(FRP) optical cable is to sheath 125μm fiber into a high modulus loose tube, which is filled with water-resistant compound. The Loose tube is wrapped with a layer of double-side plastic coated steel tape(PSP) longitudinally. The water blocking material is filled between PSP and the loose tube to ensure the compactness and longitudinal water blocking. Two parallel FRP are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.


ORDERING INFORMATION


Items
Parameter
Fiber Count
1~24
Cable Model
GYXTW(Central Loose Tube Armored Outdoor Cable)
Fiber Type
SM: G652D, G657A1, G657A2;
MM: OM1, OM2, OM3, OM4

        Outer Sheath
Material
PE/customized
Diameter
 8.0±0.3mm
Color
Black/customized


PRODUCT DETAILS






Items
Specifications
Fiber Count
1~24

Colored Coating Fiber
Diameter
0.25±0.015mm
Color
Blue/Orange/Green/Brown/Gray/Natural/Red/Black/Yellow/Purple/Pink/Aqua


Loose Tube
Diameter
1.9±0.1mm
Material
PBT
Color
Natural

Strength Member
Diameter
0.8mm±0.1mm
Material
FRP


Outer Jacket
Diameter
8.0±0.3mm
Material
PE
Color
Black




Items
Specifications
Fiber Count
1~24
Tension（Long Term）/N
300
Tension（Short Term）/N
500
Crush（Long Term）/N/100mm
1000
Crush（Short Term）/N/100mm
2000
Min. Bend Radius（Dynamic）/mm
30D
Min. Bend Radius（Static）/mm
15D
Installation Temperature/℃
-20～+60
Operating Temperature/℃
-40～+70
Storage Temperature/℃
-40～+70




Single mode
Items
Unit
G.652D
G.657A1
G.657A2

Mode Field Diameter
1310nm
μm
9.1±0.4
8.8±0.4
8.8±0.4
1550nm
μm
10.4±0.5
9.8±0.5
9.8±0.5
Cladding Diameter
μm
125±1
125±0.7
125±0.7
Cladding Non-Circularity
%
≤1
≤0.7
≤0.7
Core-Cladding Concentricity Error
μm
≤0.6
≤0.5
≤0.5
Coating Diameter
μm
245±7
245±5
245±5
Coating Non-Circularity
%
≤6.0
≤6.0
≤6.0
Cladding-Coating Concentricity Error
μm
≤12.0
≤12.0
≤12.0
Cable Cutoff Wavelength
nm
λcc≤1260
λcc≤1260
λcc≤1260

Attenuation (max.)
1310nm
dB/km
≤0.34
≤0.35
≤0.35
1550nm
dB/km
≤0.2
≤0.21
≤0.21


Multi-mode
Items
Unit
62.5/125
50/125
OM3-150
OM3-300
OM4
Core Diameter
μm
62.5±2.5
50±2.5
50±2.5
50±2.5
50±2.5
Cladding Diameter
μm
125±1.0
125±1.0
125±1.0
125±1.0
125±1.0
Core Non-Circularity
%
≤5.0
≤5.0
≤5.0
≤5.0
≤5.0
Cladding Non-Circularity
%
≤1.0
≤1.0
≤1.0
≤1.0
≤1.0
Core-Cladding Concentricity Error
μm
≤1.5
≤1.5
≤1.0
≤1.0
≤1.0
Coating Diameter
μm
245±7
245±7
245±7
245±7
245±7
Coating Non-Circularity
%
≤6.0
≤6.0
≤6.0
≤6.0
≤6.0
Cladding-Coating Concentricity Error
μm
≤12.0
≤12.0
≤12.0
≤12.0
≤12.0

OFL Bandwidth
850nm
MHz·km
≥160
≥500
≥700
≥1500
≥3500
1300nm
MHz·km
≥500
≥500
≥500
≥500
≥500

Attenuation Coefficient
850nm
dB/km
≤3.0
≤2.5
≤2.3
≤2.3
≤2.3
1300nm
dB/km
≤0.8
≤0.7
≤0.6
≤0.6
≤0.6
