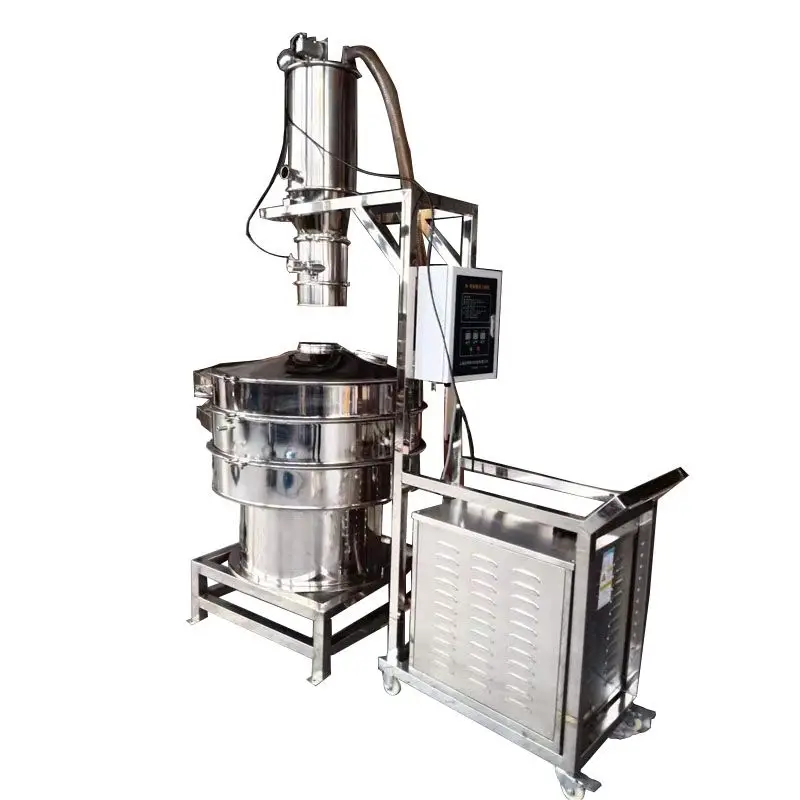

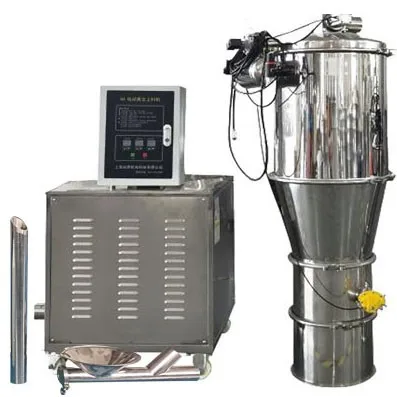

Pneumatic Vacuum Powder Feeder Milk Powder vacuum Powder Delivery System
- Category: >>>
- Supplier: Trenfull Industrial (shanghai) Co. Ltd.
Share on (1600747892599):
Product Overview
Description
Product Description

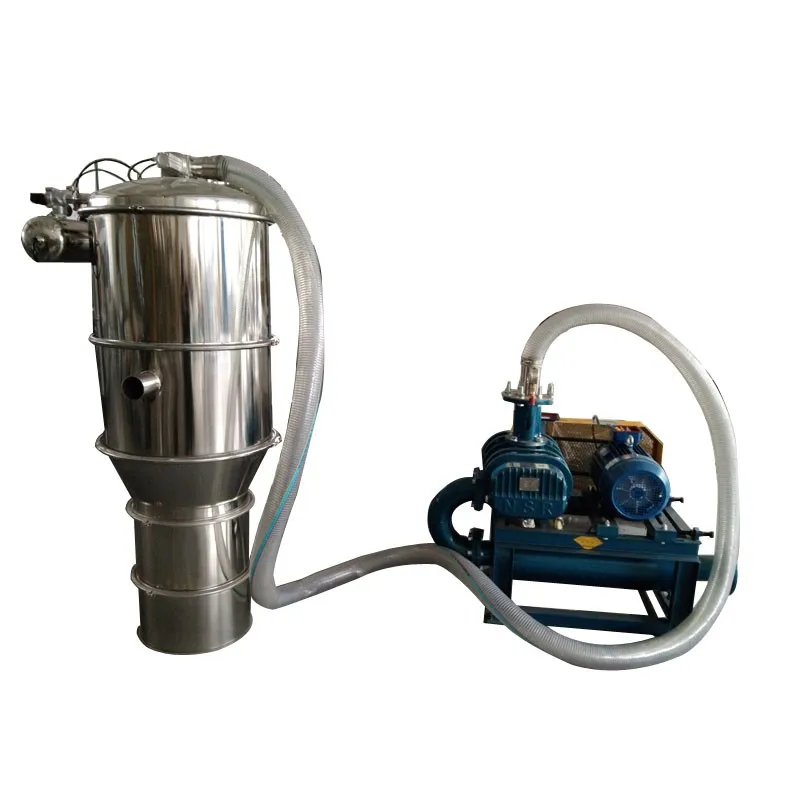

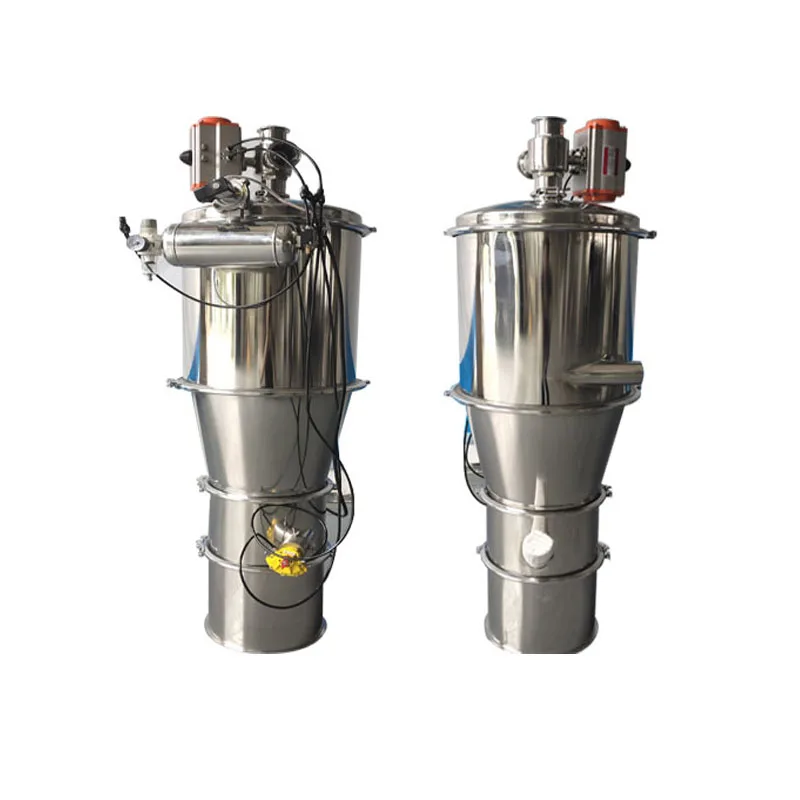

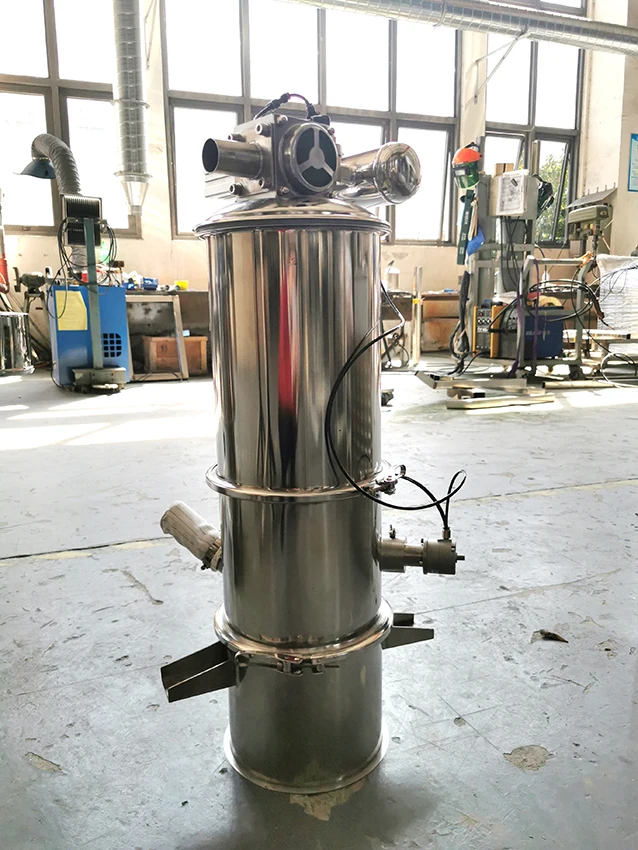

Pneumatic Vacuum Powder Feeder Milk Powder vacuum Powder Delivery System

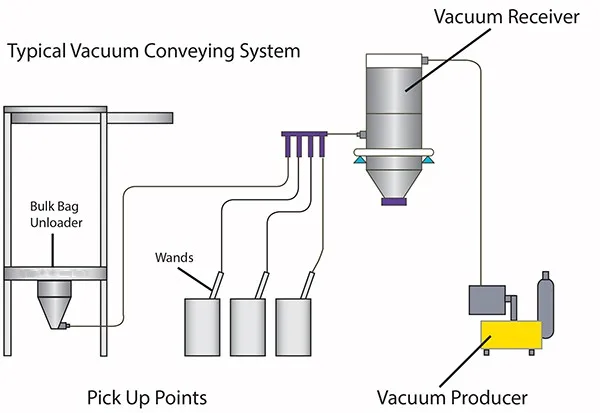

Pneumatic Vacuum Powder Feeder Milk Powder vacuum Powder Delivery System is working on the vacuum pump which driven by electric motor, it has lower vacuum energy consumption, no energy conversion, high efficiency and wide application. When vacuum pump work to suction the air, the inlet of the suction nozzle and the whole system are in a certain vacuum state. The powder particles are sucked into the nozzle along with the outside air to form a air stream, which passes through the suction pipe and reaches the hopper. Air and material separation. The separated
material enters the receiving equipment. The feeding and discharging are completed by continuously opening and closing the pneumatic three-way valve, and the opening and closing of the pneumatic three-way valve is controlled by the control center.
material enters the receiving equipment. The feeding and discharging are completed by continuously opening and closing the pneumatic three-way valve, and the opening and closing of the pneumatic three-way valve is controlled by the control center.

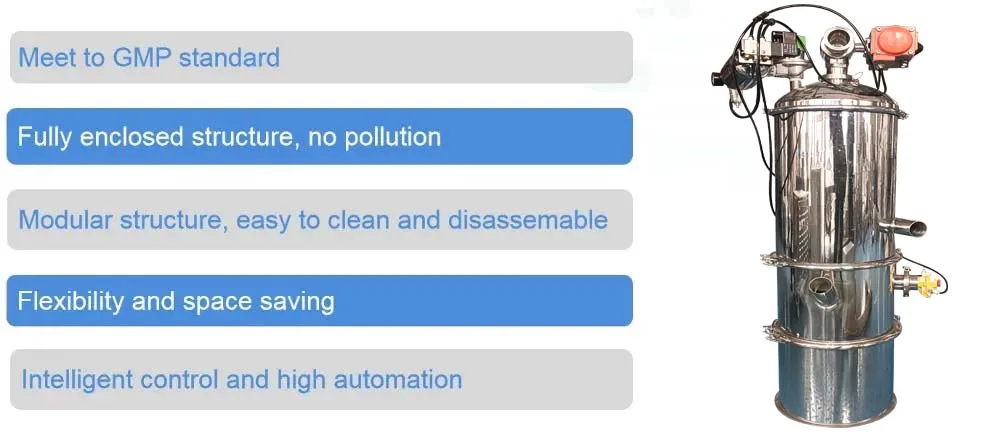

Product advantages

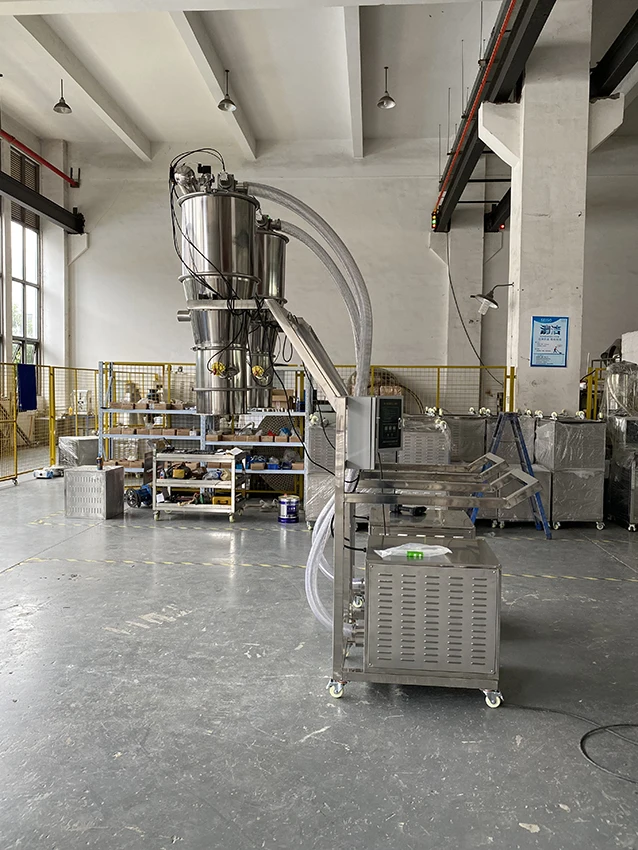

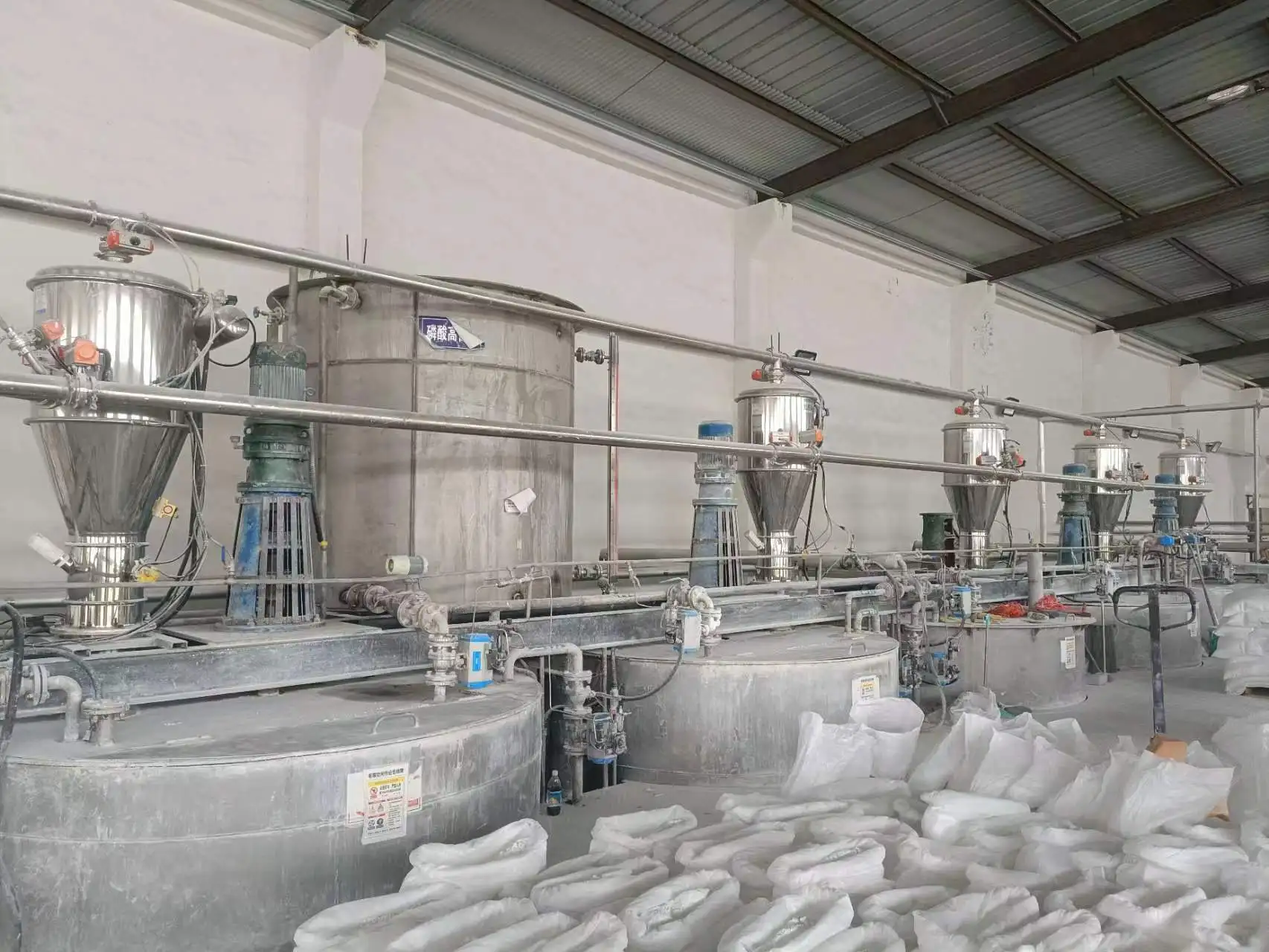

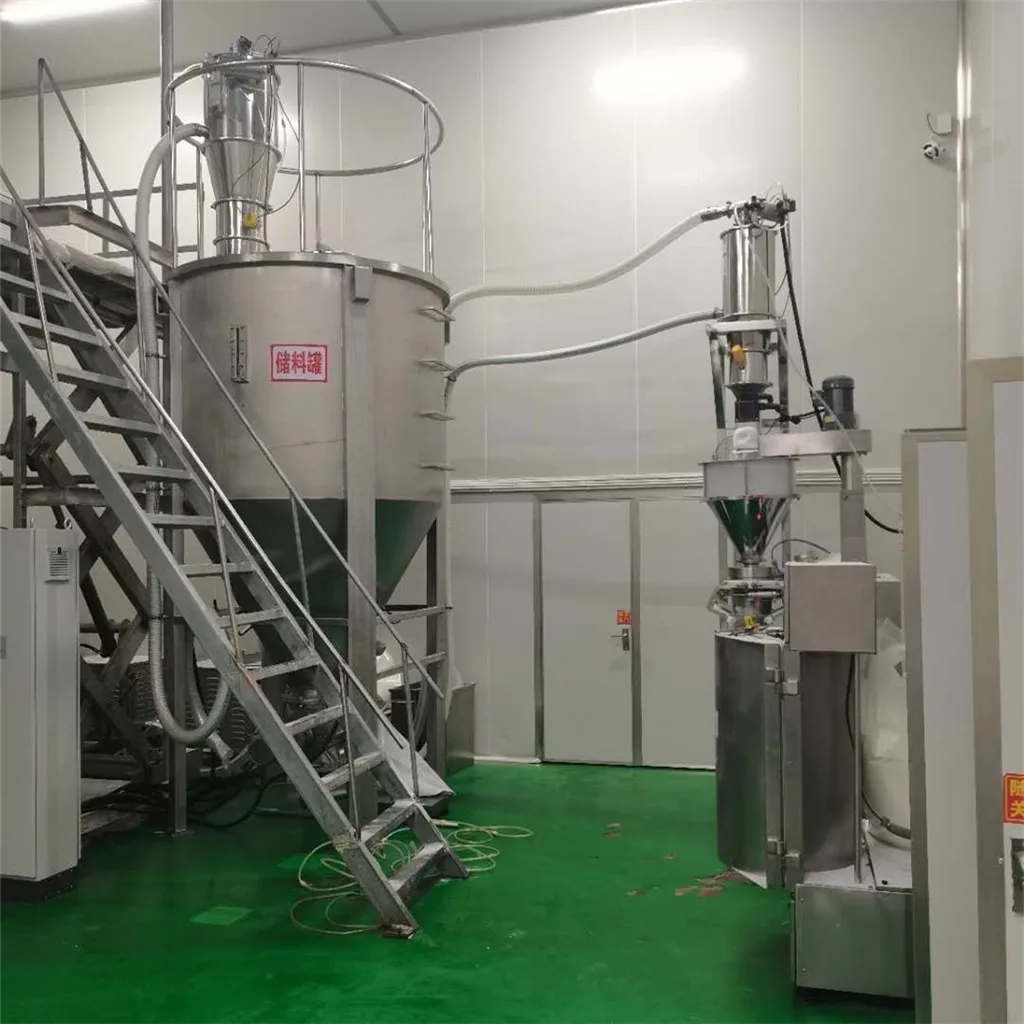

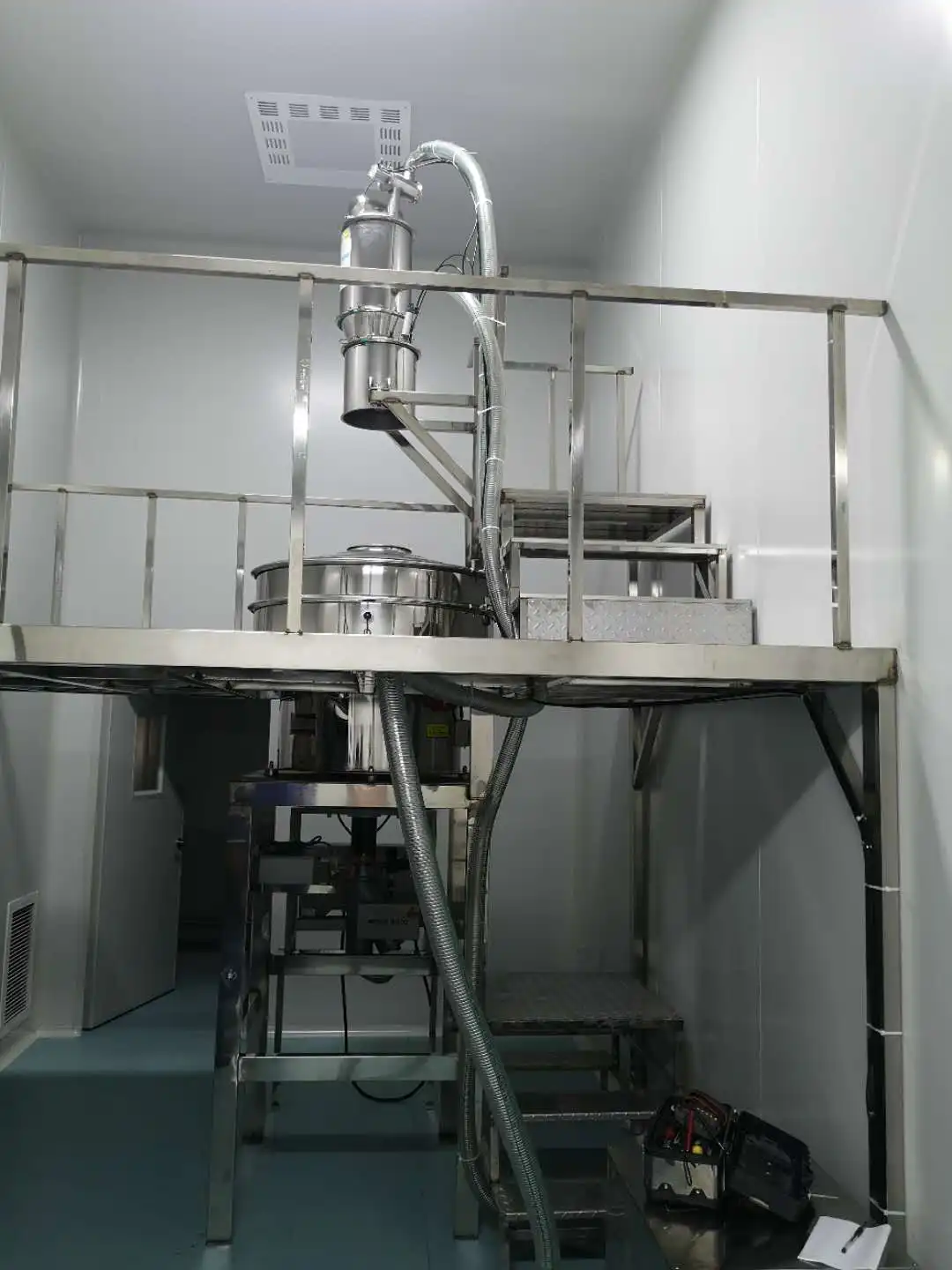

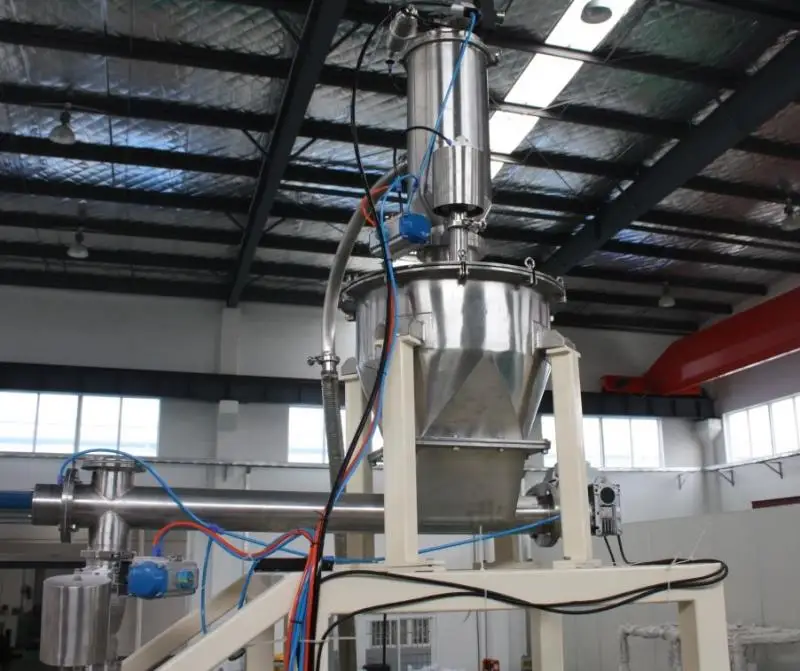

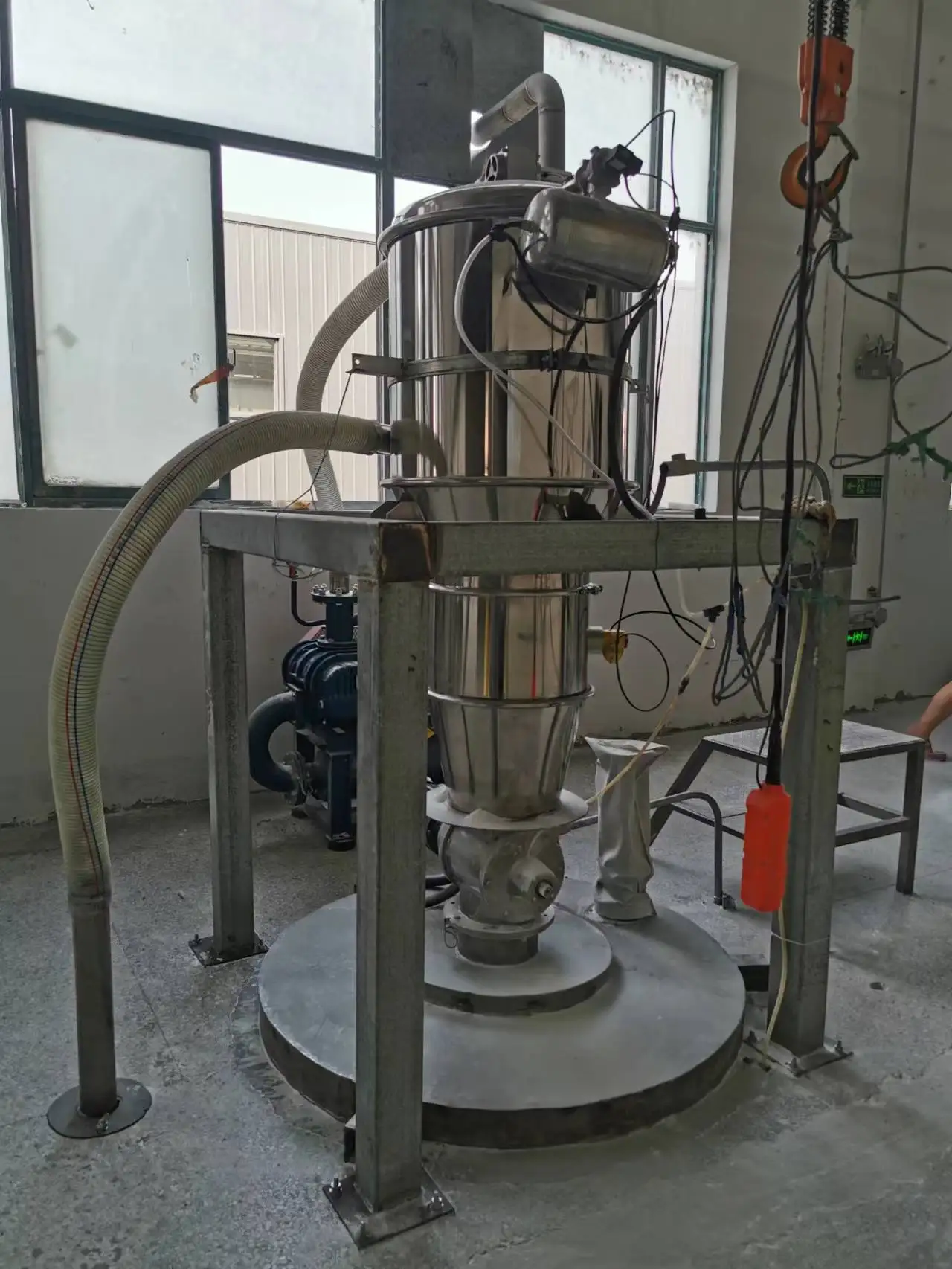

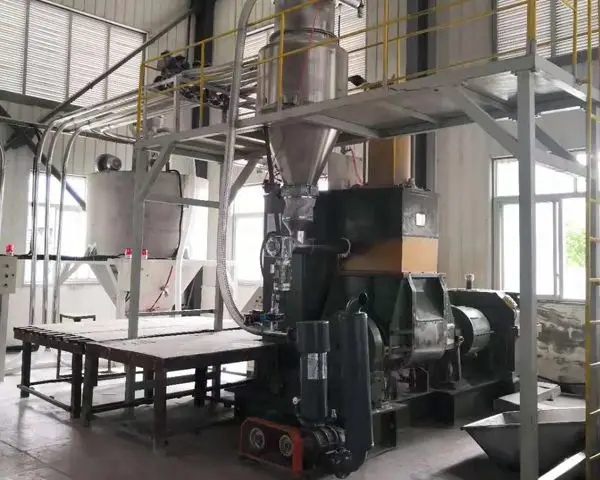

Application Cases
Technical Parameters
Model | Power （kw） | Conveying capacity （kg/h） Based on flour as the work mat. | Overall dimension | Feeding height |
CF-DZKS-220 | 2.2KW | 400KG | φ220*870 | 1-5M |
CF-DZKS-290 | 3KW | 1200KG | φ290*980 | 1-5M |
CF-DZKS-420 | 5.5KW | 3000KG | φ420*1420 | 1-5M |
CF-DZKS-420 | 7.5KW | 4000KG | φ420*1420 | 1-5M |
CF-DZKS-600 | 11KW | 5000KG | φ600*1960 | 1-5M |
CF-DZKS-800 | 15KW | 6000KG | φ800*2140 | 5-15M |

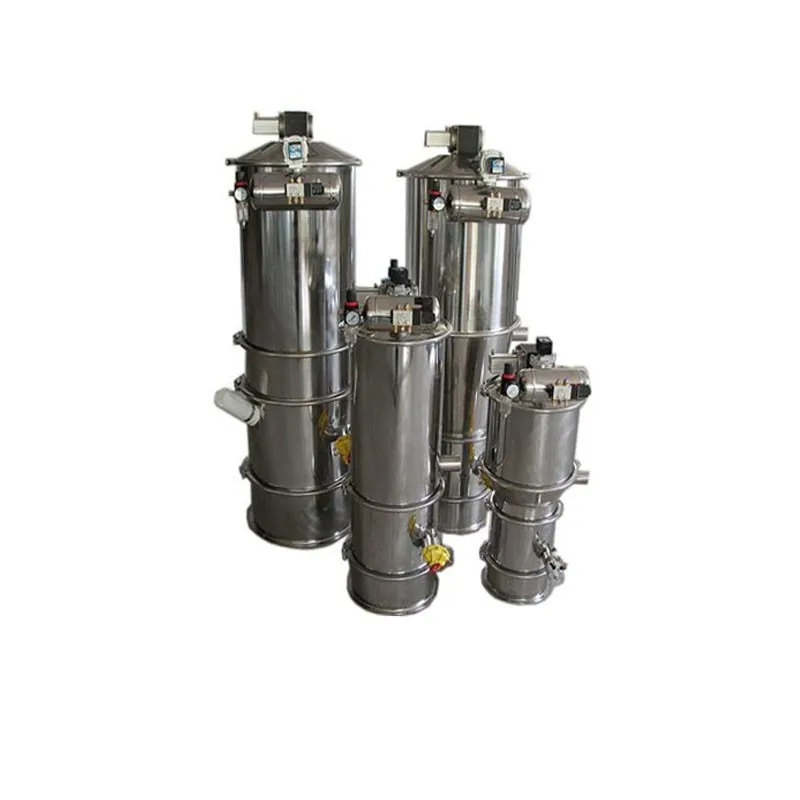

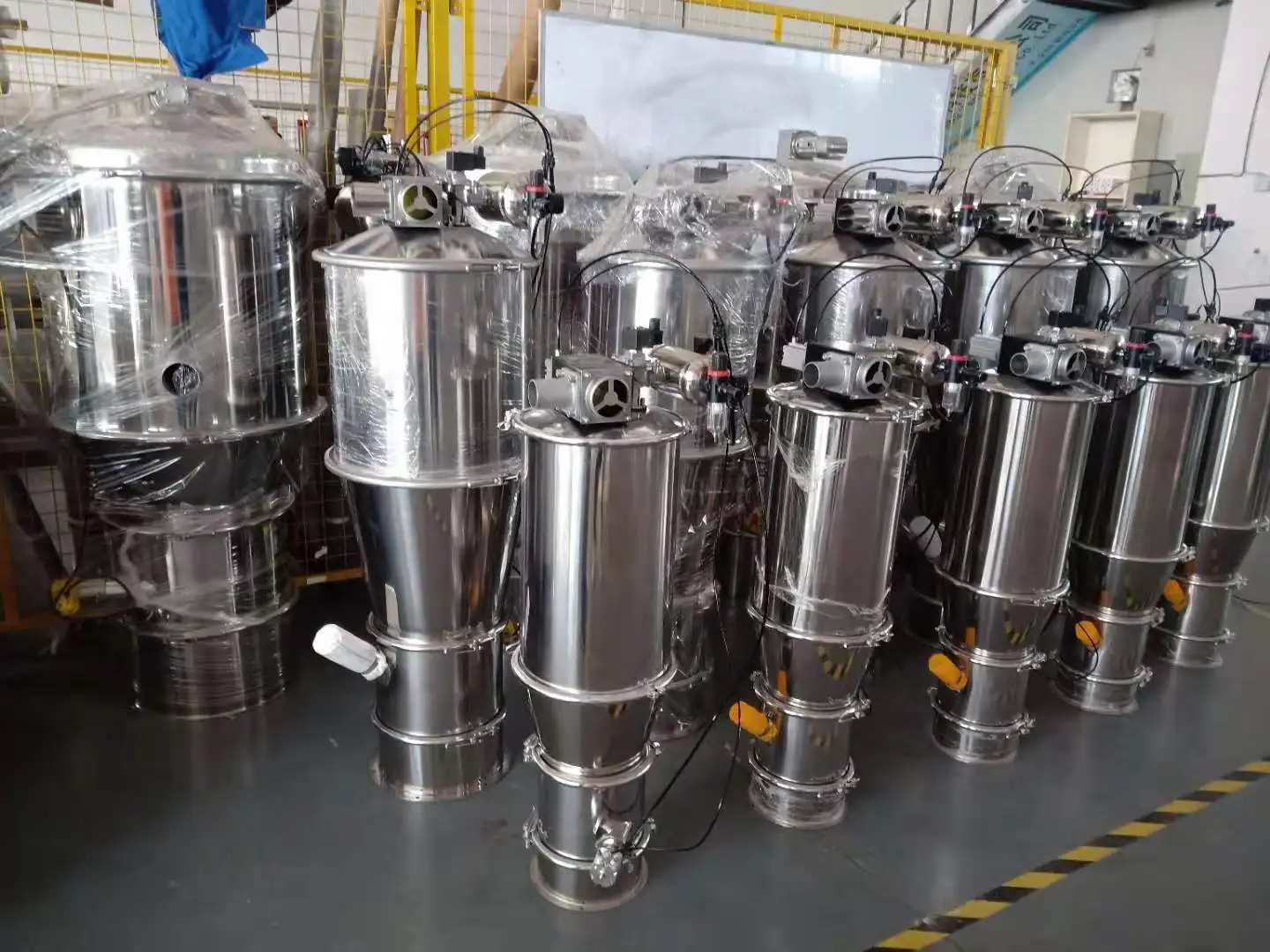

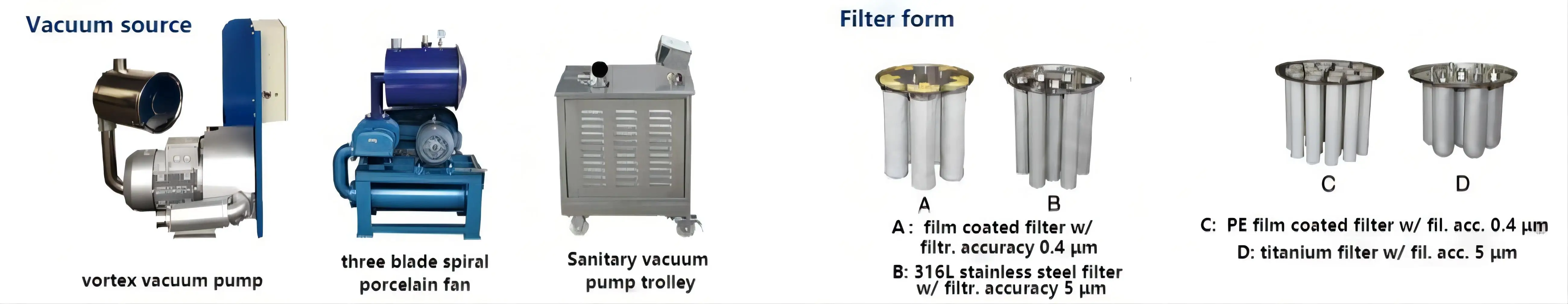

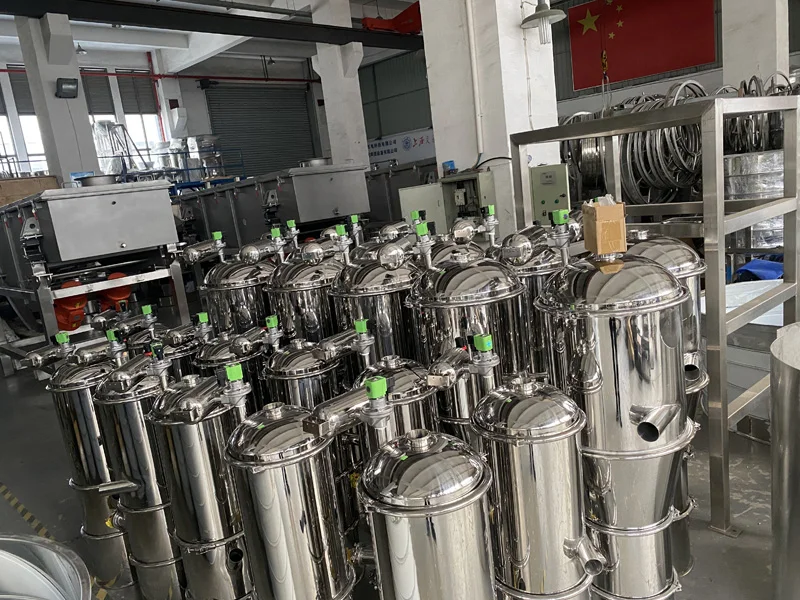

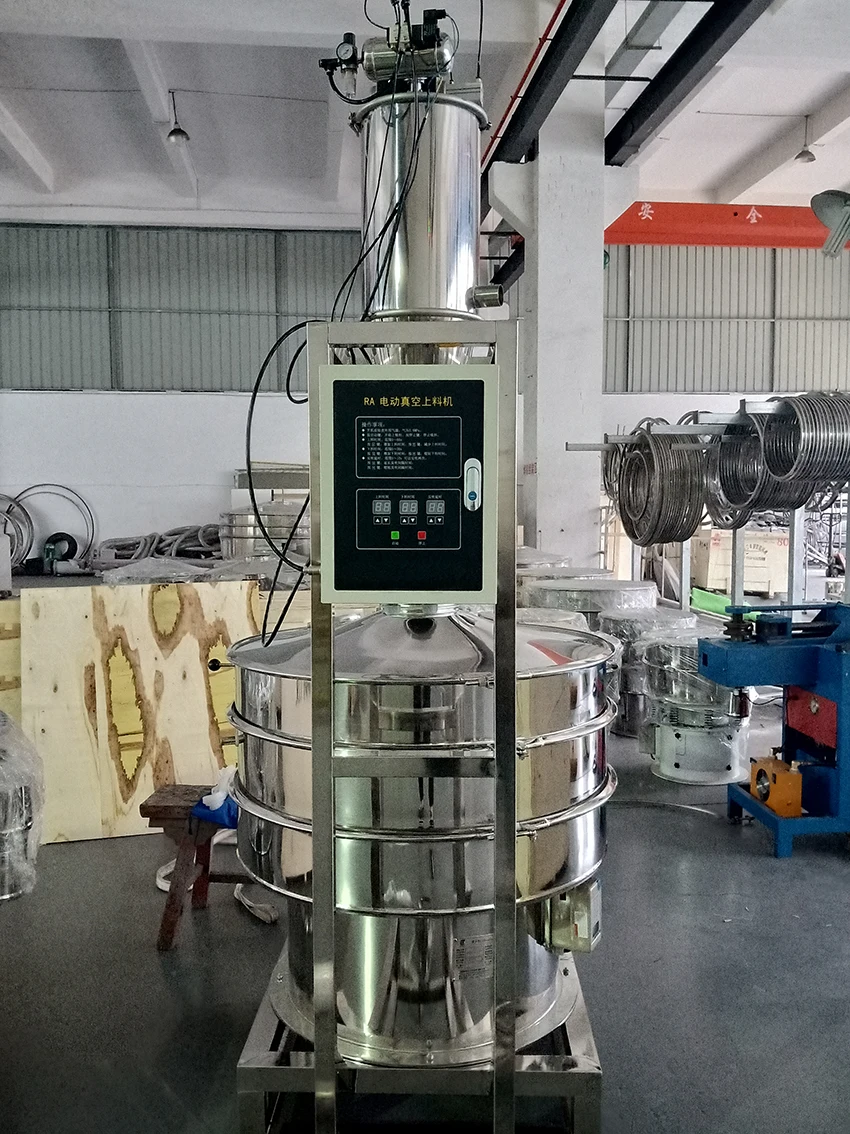

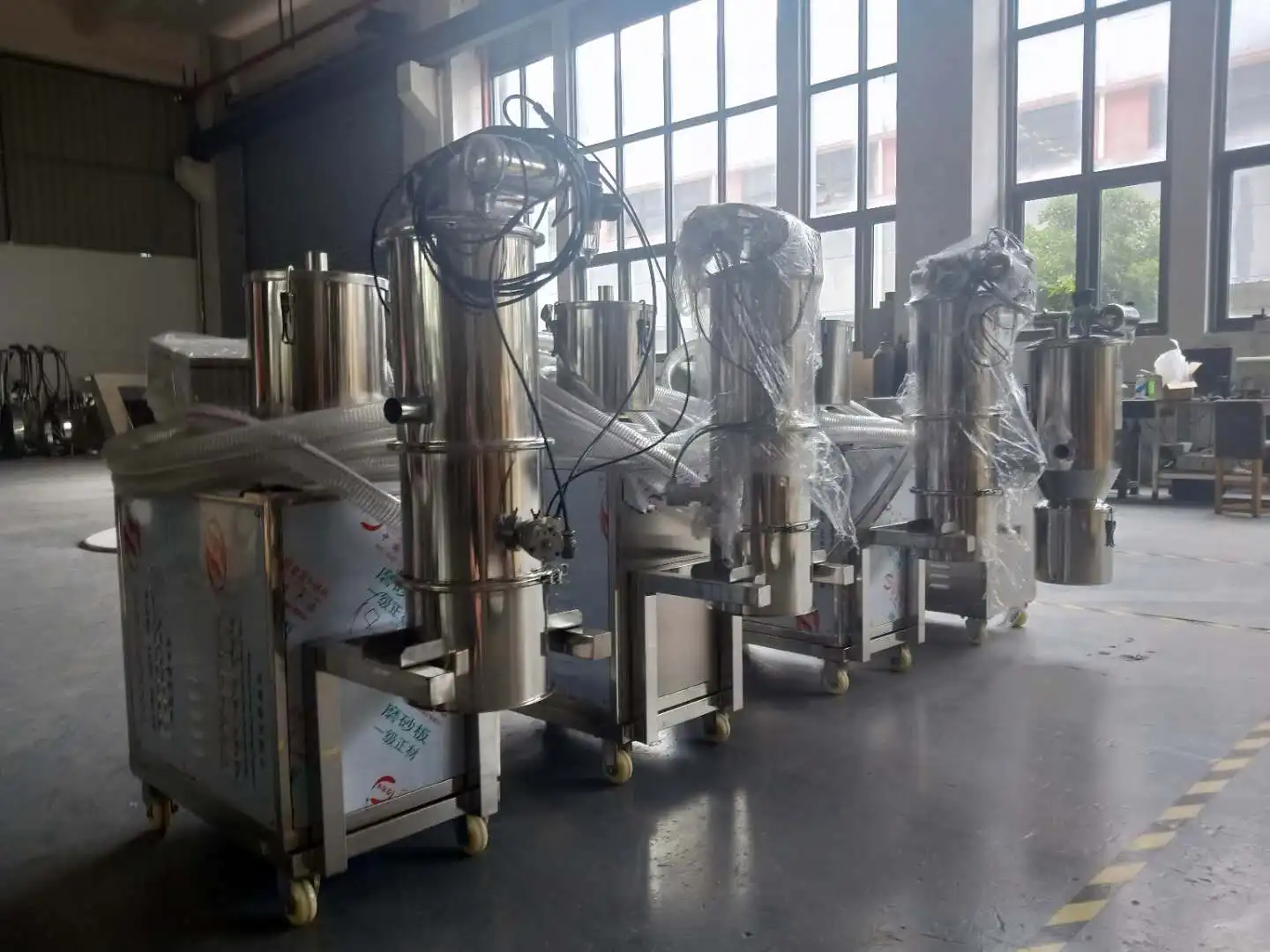

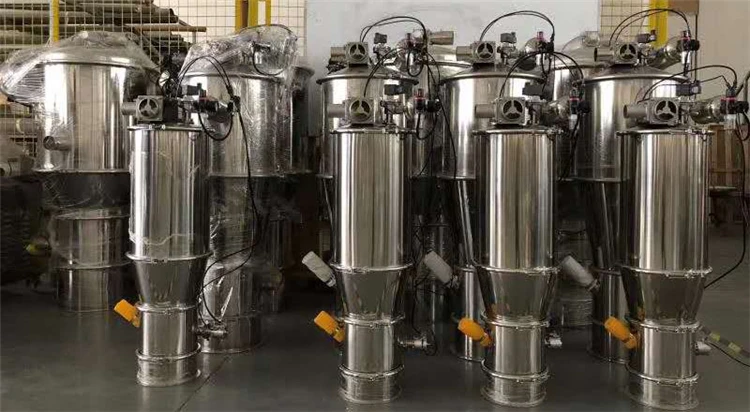

Details Images
Application Range:
1.Chemical Industry: colophony, industry leechdom, cosmetic, paint.2.Grinding Materials And china Industry: alumina, quartz, slurry, kaoline, carborundum, sprayer dust.
3.Food Industry: sugar,flour,amylum, rice powder,milk powder, soyabean milk, angel cake,juice,sauce,spice,salt,starch.
4.Metallurgy, Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate.
5.Pharmacy Industry: chinese herbal medicine ,medicine powder, particle.

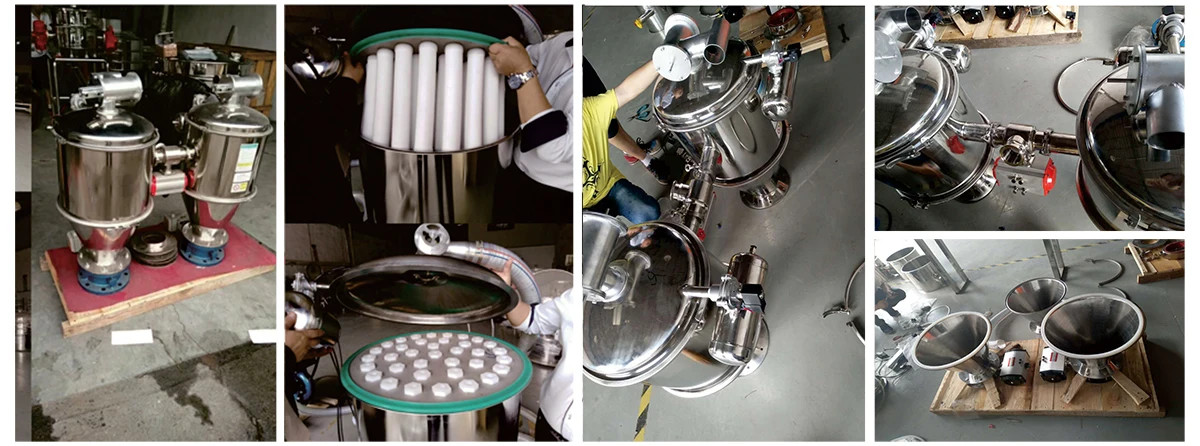

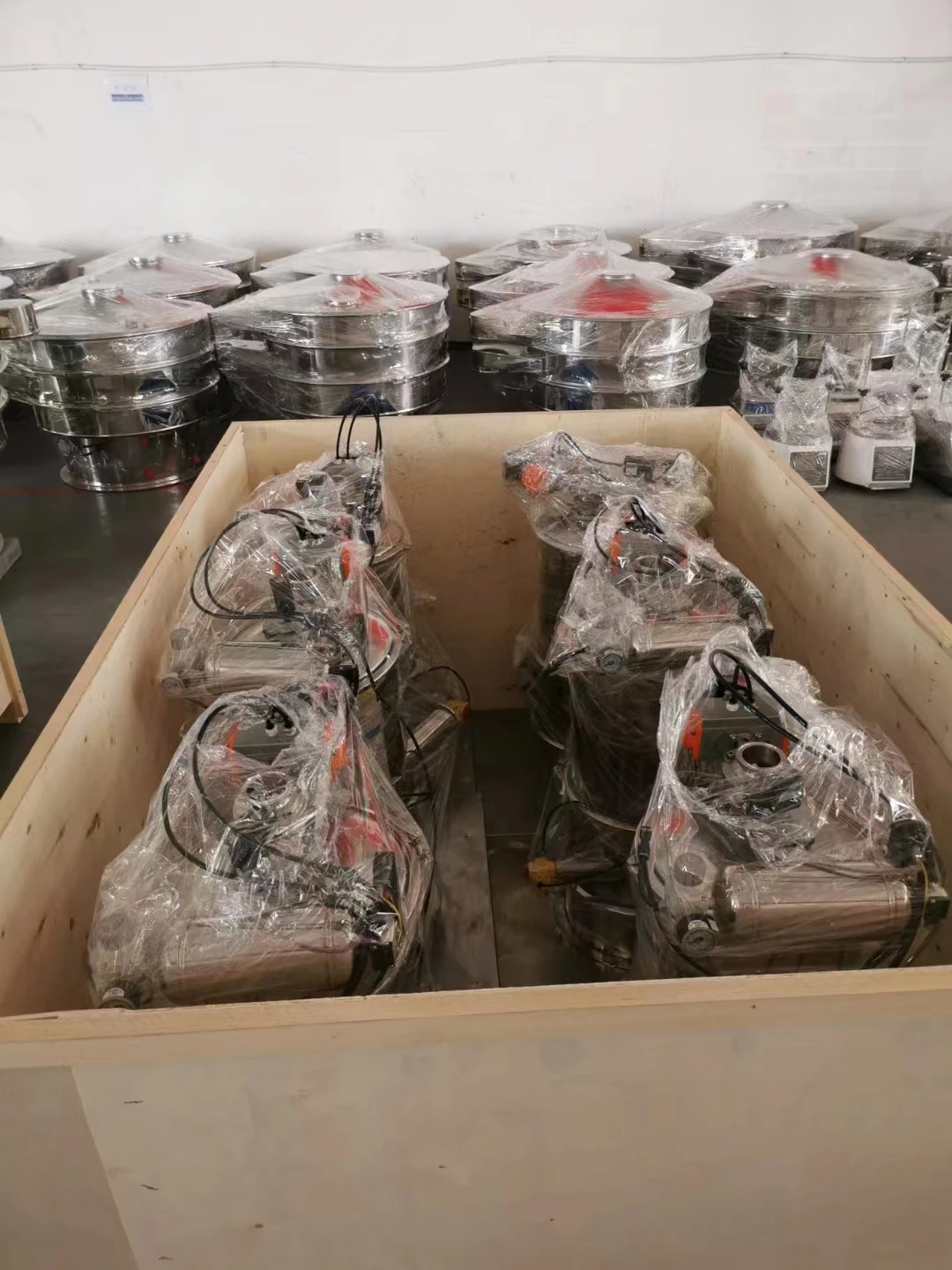

Packing & Delivery
Pneumatic Vacuum Powder Feeder Milk Powder vacuum Powder Delivery System
Outside package: standard export wood box. Inner package: stretch film for machine, accessories in carton.
Company Profile
Trenfull is an enterprise specializing in powder screening equipment, vacuum conveyor equipment, mixing equipment, and automation overall solutions. With reliable quality and advanced technology, our products enjoys good reputation among domestic and foreign customers.
Our products include: ultrasonic system equipment, three-dimensional rotary vibrating screen, linear screen, swing screen,
straight screen, 450 filter screen, test screen, etc.; vacuum conveying equipment: electric vacuum feeding machine, pneumatic vacuum feeding Mixing equipment: double-cone mixer, V-type mixer, three-dimensional mixer, horizontal ribbon mixer, single-cone twin-screw mixer, etc.
Our products include: ultrasonic system equipment, three-dimensional rotary vibrating screen, linear screen, swing screen,
straight screen, 450 filter screen, test screen, etc.; vacuum conveying equipment: electric vacuum feeding machine, pneumatic vacuum feeding Mixing equipment: double-cone mixer, V-type mixer, three-dimensional mixer, horizontal ribbon mixer, single-cone twin-screw mixer, etc.
Related products
FAQ
Q1: What’s your production lead time?
A1: Usually our production lead time is 30 days. Depending on the your order quantity and our production schedule, the time can be shorter or longer.
Q2: Can you do OEM for me?
A2: We accept OEM orders. Send us your logo and requirement, then we will arranged the production for you.
Q3: What's your payment terms ?
A3: T/T and LC at sight are both acceptable for us. 50% advance payment, and balance paid before shipment.
Q4: What’s your MOQ?
A4: We don’t have requirement of MOQ for the order. But for order of bigger quantity, we can provide more discount.
Q5: What packages do you use for the machine?
A5: Usually we use plywood boxes for packing, which requires no fumigation for exportation. If you have any special requirement for the package, please advise us when placing the order.
Q6: What warranty do you provide for the machine?
A6: The warranty period is one year, and we will be responsible for repair and replacement of any quality problems during the warranty period (except for improper operation and wearing parts); And for those problems beyond the warranty period, we will provide lifelong tracking service and wearing parts with preferential prices.
A1: Usually our production lead time is 30 days. Depending on the your order quantity and our production schedule, the time can be shorter or longer.
Q2: Can you do OEM for me?
A2: We accept OEM orders. Send us your logo and requirement, then we will arranged the production for you.
Q3: What's your payment terms ?
A3: T/T and LC at sight are both acceptable for us. 50% advance payment, and balance paid before shipment.
Q4: What’s your MOQ?
A4: We don’t have requirement of MOQ for the order. But for order of bigger quantity, we can provide more discount.
Q5: What packages do you use for the machine?
A5: Usually we use plywood boxes for packing, which requires no fumigation for exportation. If you have any special requirement for the package, please advise us when placing the order.
Q6: What warranty do you provide for the machine?
A6: The warranty period is one year, and we will be responsible for repair and replacement of any quality problems during the warranty period (except for improper operation and wearing parts); And for those problems beyond the warranty period, we will provide lifelong tracking service and wearing parts with preferential prices.
