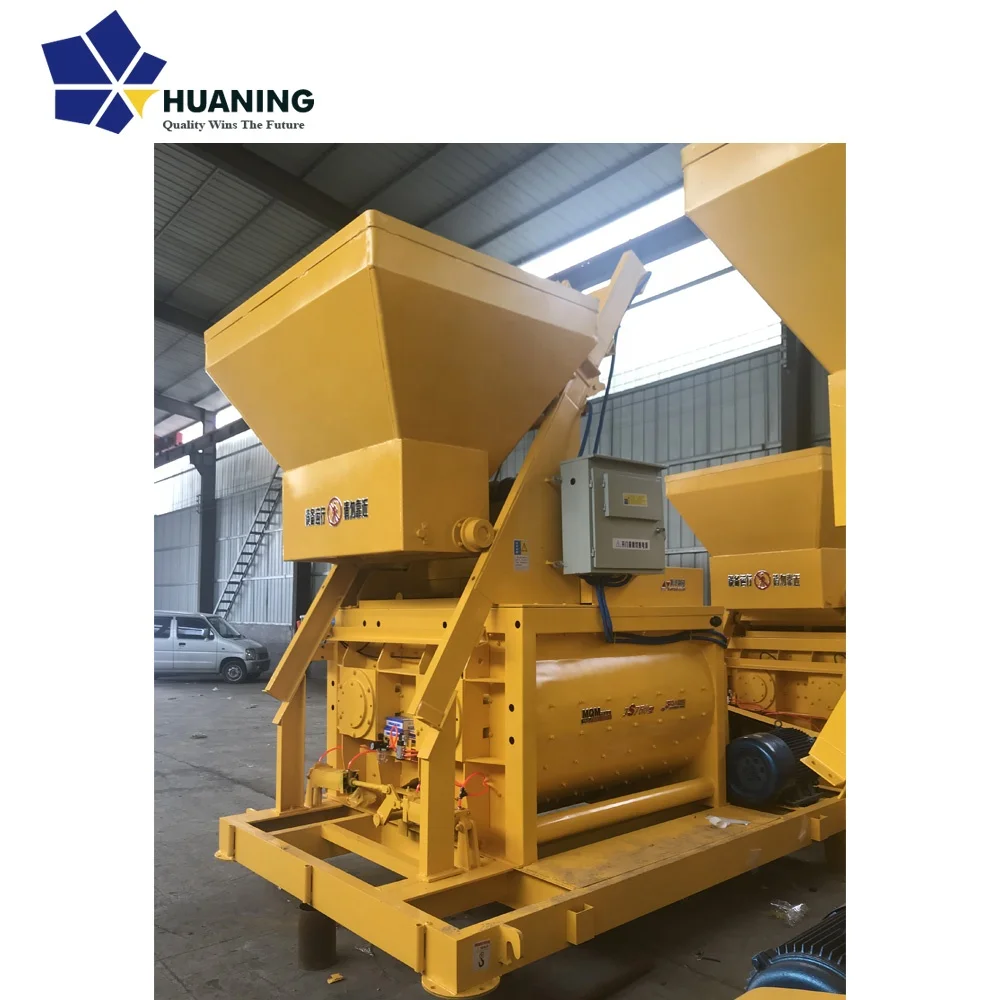

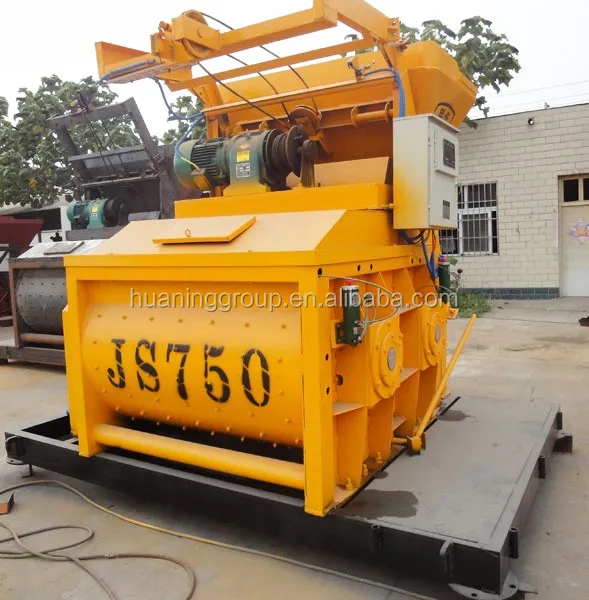

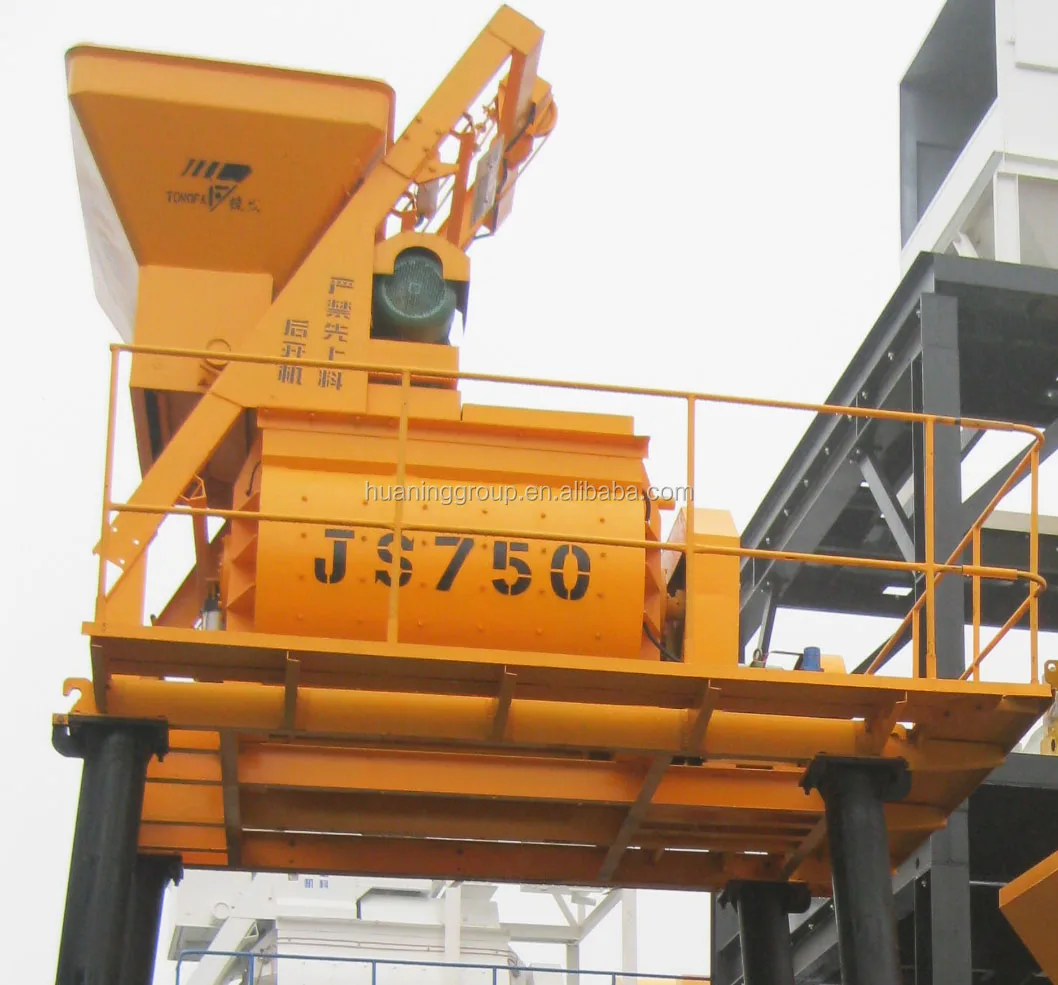

Pneumatic Discharge Grout Mixing Machine Js750 Concrete Mixer for Sale Mobile Diesel Engine Concrete Pump 30kw Water Pump 7.5 Kw
- Category: >>>
- Supplier: Henan Huaning Machinery Equipment Co. Ltd.
Share on (1600748180892):
Product Overview
Description

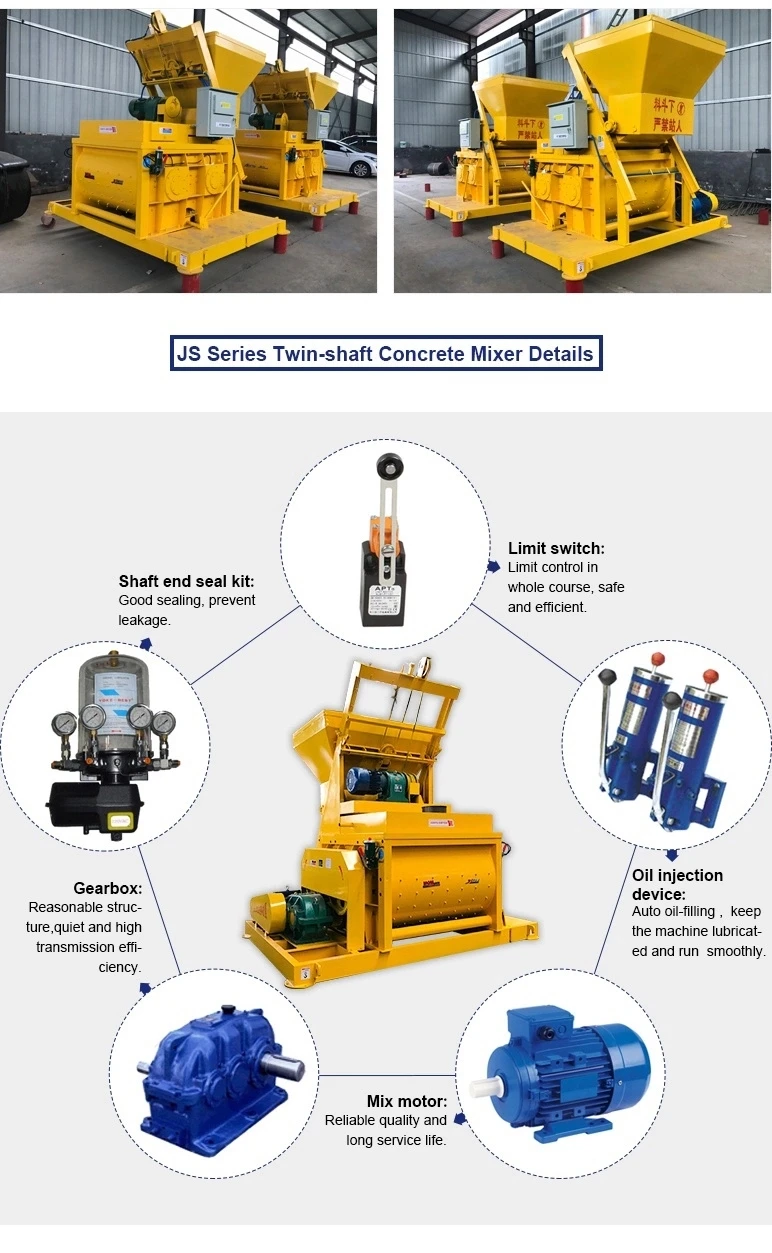

Features of Grout Mixing Machine
- High automation level, more convenient operation
- Low energy consumption, good mixing effect
- Longer service life of inteHigh discharging speedrnal accessories
- Pneumatic or hydraulic unloading, high automation level
Overview of Grout Mixing Machine
- JS Grout Mixing Machine is the twin-shaft forced mixing machine and generally used to mix dry rigid concrete, plastic concrete, fluid concrete, lightweight aggregate concrete and various mortar.

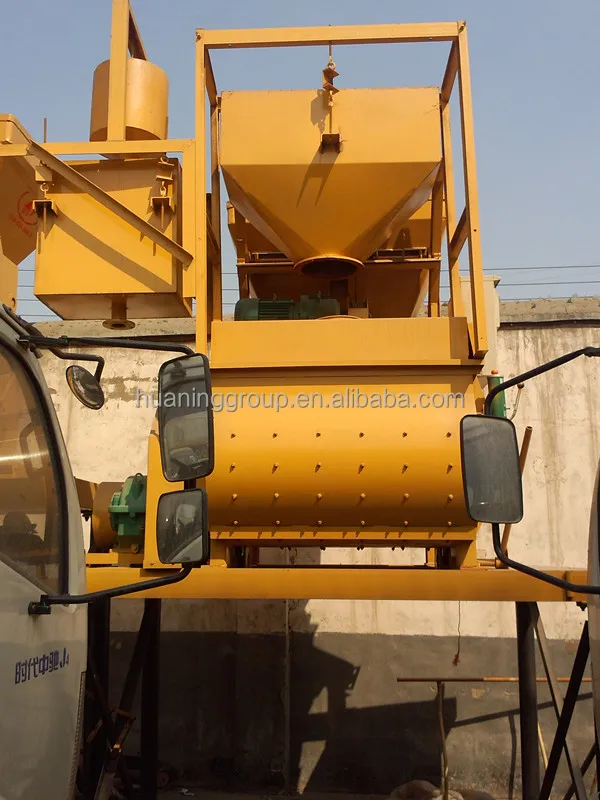

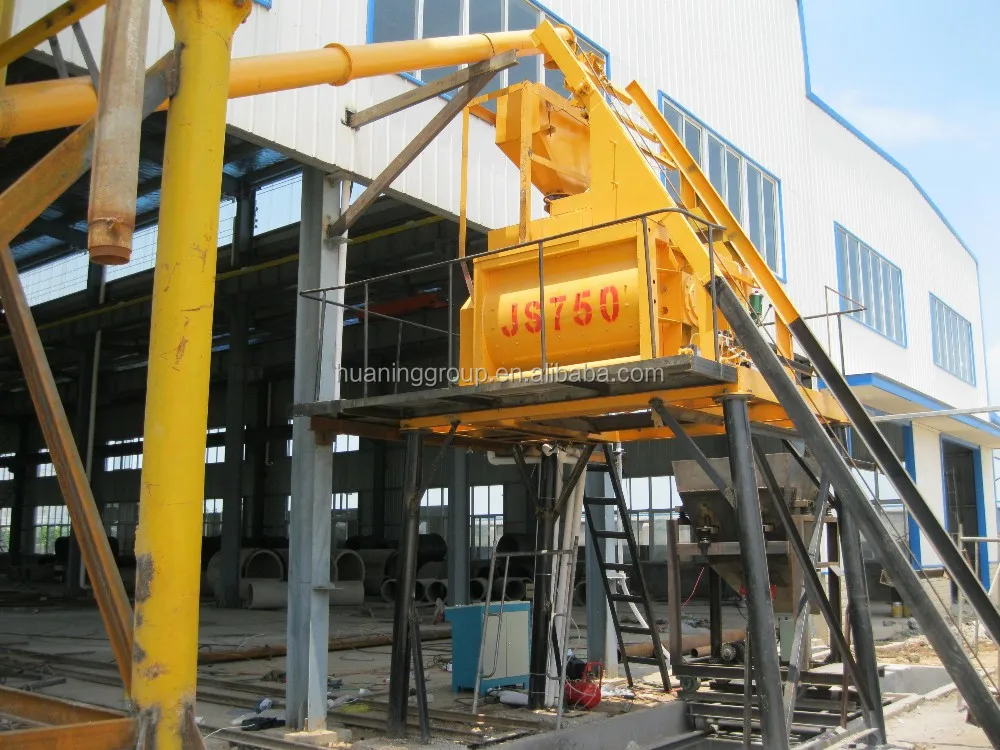

- It not only can work independently but also can work together with PLD series concrete batching machine to form simple concrete mixing plant.
- Besides, it also acts as the main machine for the corresponding mixing plant.
- This efficient machine is widely applied in all kinds of large, middle, and prefabricated concrete plants, highways, bridge project, water conservancy, wharf, etc. It can work together with the tilting cart.
Type | JS500 | JS750 | JS1000A | JS1000B | JS1500A | |
Discharge Capacity (L) | 500 | 750 | 1000 | 1000 | 1500 | |
Feed Capacity (L) | 800 | 1200 | 1600 | 1600 | 2400 | |
Productivity (m3/h) | ≥25 | ≥35 | ≥50 | ≥60 | ≥75 | |
Max. Aggregate Size: Pebble/Gravel (mm) | ≤40/50 | ≤40/60 | ≤60/80 | ≤60/80 | ≤60/80 | |
Work Cycle Time (s) | 72 | 72 | 60 | 60 | 60 | |
Mixing Blades | Speed (r/min) | 31 | 29.6 | 26 | 26 | 24.5 |
Quantity | 2×7 | 2×7 | 2×7 | 2×7 | 2×7 | |
Mixing Motor (kw) | 18.5 | 30 | 37 | 2×18.5 | 2x22 | |
Winch Motor (kw) | 5.5 | 7.5 | 7.5 | 13 | 15 | |
Pump Motor (kw) | 1.1 | 1.5 | 3 | 3 | 3 | |
Dimensions (L × W × H) | 2900×2530×2680 | 3110×2620×2580 | 4320×2200×3300 | 2800× 2200 ×2000 | 4720×2200×3000 | |
Total weight(kg) | 4000 | 5500 | 8700 | 6000 | 11130 | |
