Digital CNC Vibrating Knife Leather Cutting Machine for Fabric PU EPE EPDM EVA Foam
- Category: Leather Production Machinery >>>
- Supplier: Jinan,Tianhong,Mechanical,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Overview

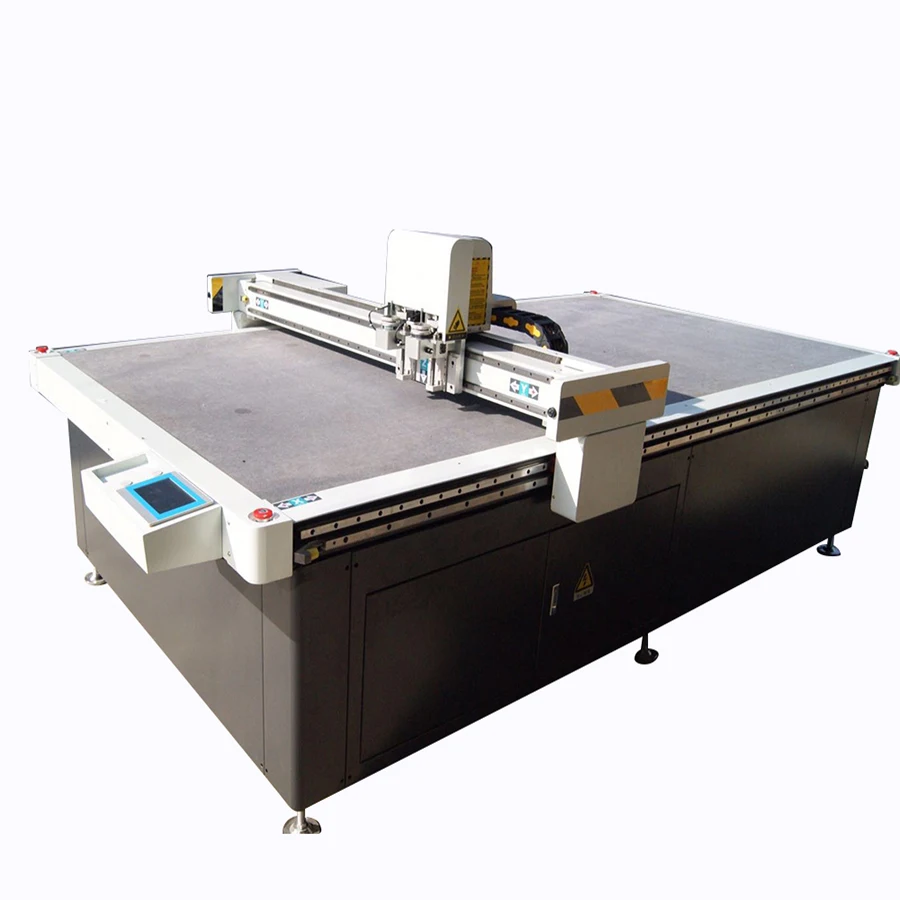

Digital CNC Vibrating Knife Leather Cutting Machine for Fabric PU EPE EPDM EVA Foam
1. The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
2. The high precision CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.
3. The anti-collision and the built-in auto-sensing devices ensure the security of cnc oscillating knife leather cutting machine.
4. High efficiency can be realized without making a high-cost knife model.
5. The high precision CNC oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy.
2. The high precision CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.
3. The anti-collision and the built-in auto-sensing devices ensure the security of cnc oscillating knife leather cutting machine.
4. High efficiency can be realized without making a high-cost knife model.
5. The high precision CNC oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy.
FEATURES AT A GLANCE
Right
Left
Front
Machine Introduction
1--Laser emergency stop device, four laser beams, as long as the laser beam is blocked, the machine automatically stops working, to avoid the human body being touched by the moving tool head or cardboard raised and stuck the tool head.
The signal line is placed in the crossbeam of the nose, so the machine runs more stably
2--Taiwan's imported linear guideway with belt drive ensures high-speed operation of the machine while cutting smoothly to achieve rapid and accurate cutting.
3--The steel frame designed by the machine adopts high density steel plate, which is not easy to deform, and the weight of the whole machine is increased. It ensures the stability of the machine and the better effect when the machine is cut.
4--The cabinet is structured and wiring is clear, which can prevent the interference of strong electricity and weak points and maintain the stability of the machine.
5--Motors and drives adopt Taiwan Delta driver and all motors are fully digital.
6--With modular working cylinder, the table surface has strong adsorptive force.
2--Taiwan's imported linear guideway with belt drive ensures high-speed operation of the machine while cutting smoothly to achieve rapid and accurate cutting.
3--The steel frame designed by the machine adopts high density steel plate, which is not easy to deform, and the weight of the whole machine is increased. It ensures the stability of the machine and the better effect when the machine is cut.
4--The cabinet is structured and wiring is clear, which can prevent the interference of strong electricity and weak points and maintain the stability of the machine.
5--Motors and drives adopt Taiwan Delta driver and all motors are fully digital.
6--With modular working cylinder, the table surface has strong adsorptive force.
PRODUCT SPECIFICATIONS
Working size | 2500X1600X40mm(L*W*H) | ||||
Package size | 3900X2260X1600mm(L*W*H) | ||||
Vacuum Pump | 9KW | ||||
Voltage | 380V+10% | ||||
Application materials | Leather,pvc,and the other flexible materials | ||||
Compatible format | DXF,PLT,SVG,etc | ||||
Display way | English LED touch screen | ||||
Machine structure | Welding of thickened square tube (five milling machining center) | ||||
Machine Table | Thickened aluminum sealing box(Honeycomb) | ||||
Gantry structure | Thickened aviation aluminum by machining center | ||||
Working Table cloth | 2.5mm/4mm felt | ||||
Material fixing method | 4-zone vacuum adsorption | ||||
Control system | Ruida LCD Touch Screen | ||||
Repeatability | ±0.1mm | ||||
Flatness of the table | ±0.2mm | ||||
Transmission | High-precision 20#/15# guide rail, 1.5m helical rack | ||||
Transmission cable | CNC dedicated high-flexible shielded cable | ||||
Data transfer way | Intel | ||||
Cutting head | High-power vibrating knife Single-head | ||||
Driving system | Taiwan Delta servo driver and motor | ||||
Security configuration | Intelligent anti-collision switch, four-corner emergency stop button | ||||
Cutting speed | 100-1500mm/s(According to materials) | ||||
Total Power | 12KW | ||||
PRODUCT CONFIGURATION
Multifunctional Cutting Head
Workingtable Cloth
Vacuum Adsorption Table
Taiwan High Precision Linear Guide
Oscillating Knife Blade
Taiwan Delta Servo Motor
Taiwan Delta Servo Drivers
LCD Touch Control Panel RD6584G
High Power 9KW Vacuum Pump
Samples
Application Industries and Materials
1--Mainly for home textile cutting such as sofa, curtain, carpet. leather, canvas, garment clothes, pvc cutting, can cut roll material.
2--Cutting Materials: fabric, banner, woven knitted textile, inflatable pvc, canvas, polyester, elastic fabric, upholstery, garment,leather, sheep shearing flannel, UV textile, carbon fiber, aramid, glass fiber, streamer banner, flag fabrics, light proof fabrics and other kind of textiles.
2--Cutting Materials: fabric, banner, woven knitted textile, inflatable pvc, canvas, polyester, elastic fabric, upholstery, garment,leather, sheep shearing flannel, UV textile, carbon fiber, aramid, glass fiber, streamer banner, flag fabrics, light proof fabrics and other kind of textiles.
Package details
Packing Details
1.Our wooden case is after fumigation treatment.
2.Needn’t timber inspection,saving shipping time.
3.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
4.Avoiding all damages that could happen in the delivery process.
Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
5.The out most is wooden case with fixed form work.
6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
2.Needn’t timber inspection,saving shipping time.
3.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
4.Avoiding all damages that could happen in the delivery process.
Then we’ll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
5.The out most is wooden case with fixed form work.
6.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Packing: (1)Standard export packing plywood package
(2)Both neutral and customized packaging can be available
Shipping: Courier shipping/Air shipping/Ocean shipping
Delivery deta: Within 7 days after confirmation of your order
(2)Both neutral and customized packaging can be available
Shipping: Courier shipping/Air shipping/Ocean shipping
Delivery deta: Within 7 days after confirmation of your order
Company Profile
FAQ
Q: Can I get a machine according to my own requirements?
A: Sure.We accept OEM and ODM .
Q: This is the first time I use this kind of machine, is it easy operate?
A: There are guide video that show how to use machine and English instruction book send to you with machine.
If there is still have any question, we will provide free professional guide for you until you could use machine well.
Q:What’s your MOQ and delivery?
A:Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
Q: How is your after sales service?
A: Our sales are online for 24-hours. We can also supply overseas install service.
Q: If my machine is broken. Can you repair it for me?
A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.
