DTH hammer is one of the necessary tools for drilling. There are low air-pressure DTH hammer, Middle air-pressure DTH hammer and High air-pressure DTH hammer. With them, there are also low pressure DTH button bit, medium pressure DTH button bit and high-pressure DTH drill bits. It is a kind of high air pressure DTH hammer without foot valve and it is our newest design. DTH hammer has powerful drilling capacity, great reliability and low operating cost. Advanced production technologies and skillful design, as well as high quality materials result in good performance, long service life, simplicity and endurance. They are widely used for drilling and quarry in mining industries and other construction fields. It is also one of the most advanced DTH hammers in the word.
Their characteristics are as follows:
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. high quality alloy steel bar and tungsten carbides, through heat treatment
3. Lower energy consumption and higher impact frequency.
The drilling speed is 15%~30% higher than the one with foot valve.
4. Simple structure, reliable parts, long life span, easy and cheap maintenance.
Product Paramenters
Hammer model | Working pressure | Impact rate 1.7 Mpa | Rotation speed | Air consumption |
K6 | 1.0~2.5 Mpa | 25Hz | 20-30 r/min | 9 m3/min (1.0Mpa) 18 m3/min(1.8Mpa) 26 m3/min(2.4Mpa) |

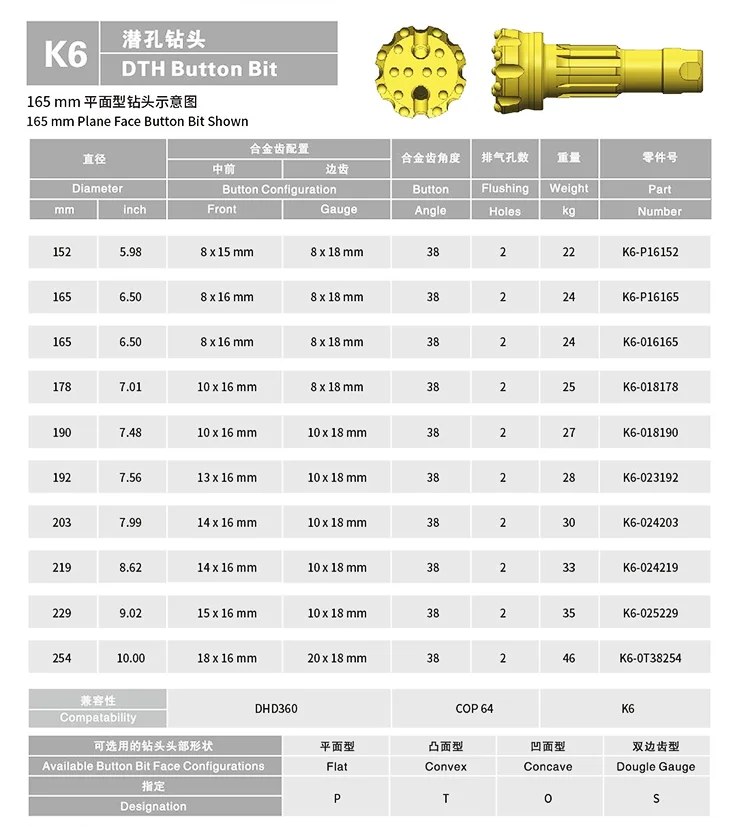

Above DTH button bits for K6 DTH hammer.
Recommend Products
Our Advantages

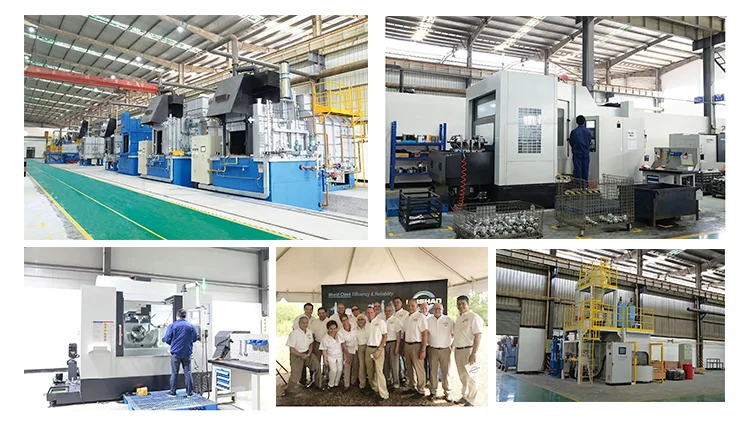

Company Profile
