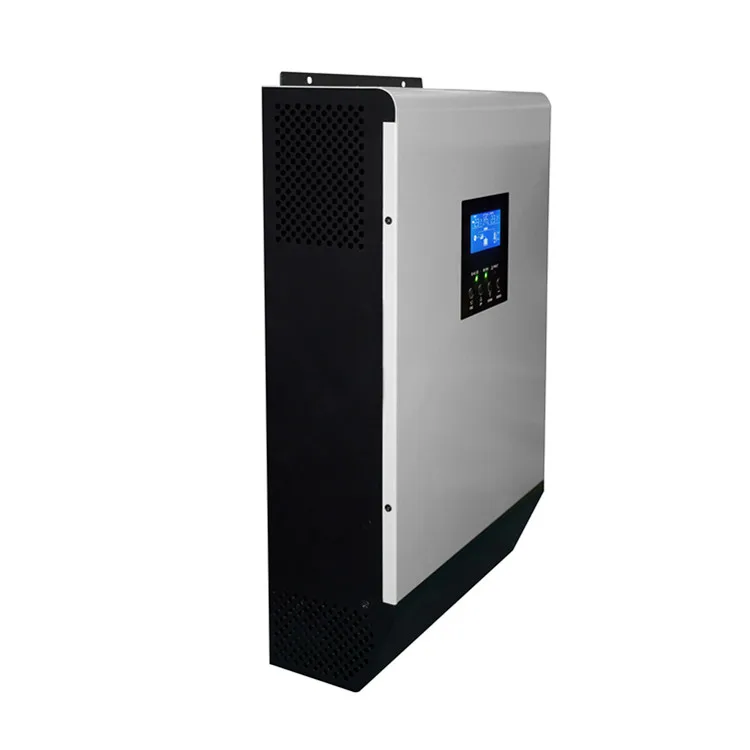

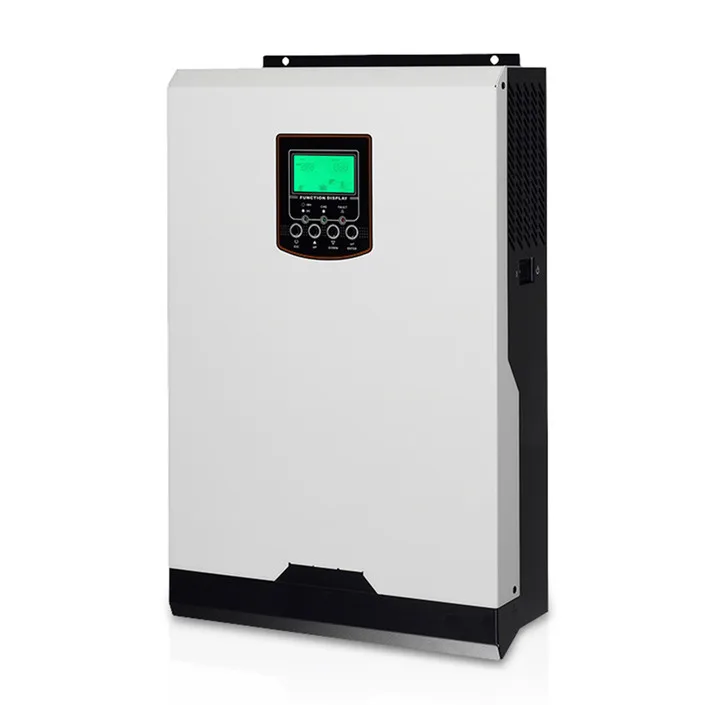

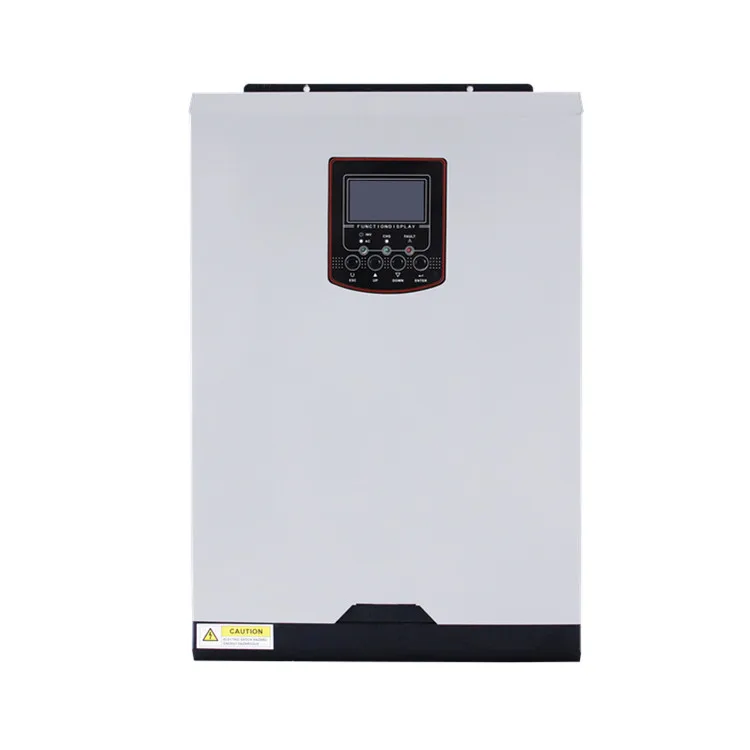

ZBND Factory Cheap Environment Protect Solar AC DC Inverter On Grid Electric 30kw 100kw Power Inverter

Share on (1600748256741):


Price:$350.00 - $388.00

Quantity:


Product Overview

Description

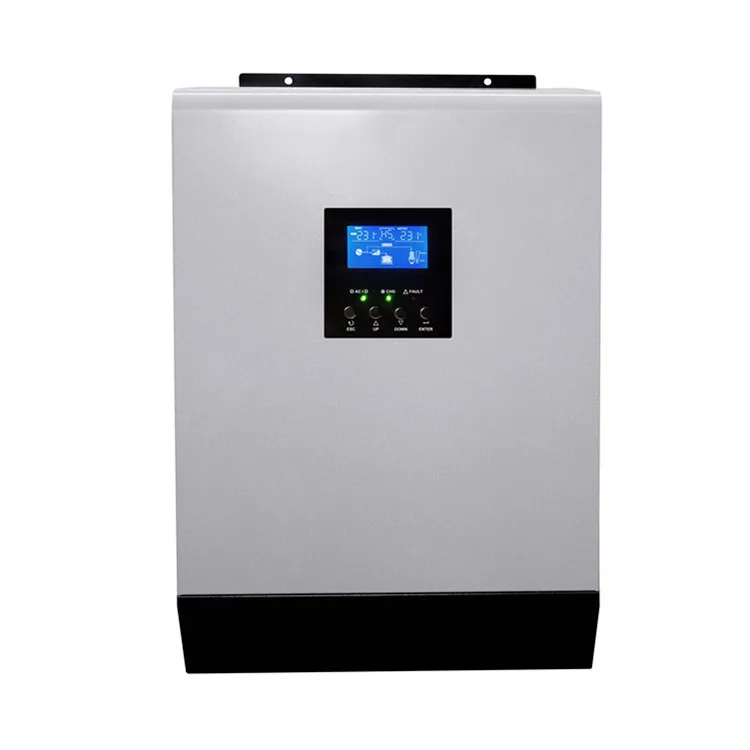

5KW Hybrid MPPT Parallel Solar Inverter

5KW Hybrid MPPT Parallel Solar Inverter



























Technical Specification

Technical Specification





































































































































Model Number



SC-MKSII 5KW



Rated Power



5KVA/5KW



Input


Voltage



230VAC




Voltage Range




170-280VAC(for personal pc), 90-280VAC(for home appliances)



Frequency Range



60/50Hz (Auto sensing)



AC Voltage Regulation



230VAC ± 5%



Surge Power



10kVA



Efficiency (peak)



90%



Transfer Time



10ms for Personal Computer; 20ms for Home Appliances



Waveform



Pure sine wave



Battery


Battery voltage



48VDC



Floating Charging Voltage



54VDC



Overcharge Protection



66VDC



Solar Charger & AC Charger


Solar Charger Type



MPPT



Max PV Array Open Circuit Voltage



450VDC



Max PV Array Open Circuit Power



4500W



MPPT Range @Operating Voltage



120VDC-430VDC



Maximum Solar Charge Current



80A



Maximum AC Charge Current



80A



Maximum Charge Current



80A



Physical


Dimension (L*W*H) mm



120*295*458mm



Net Weight (kgs)



11Kg



Communication Interface



USB / RS232



Environment


Humidity



5%-95% Relative Humidity (Non-condensing)



Operation Temperature



0℃ to 55℃



Storage Temperature



-15℃ to 60℃

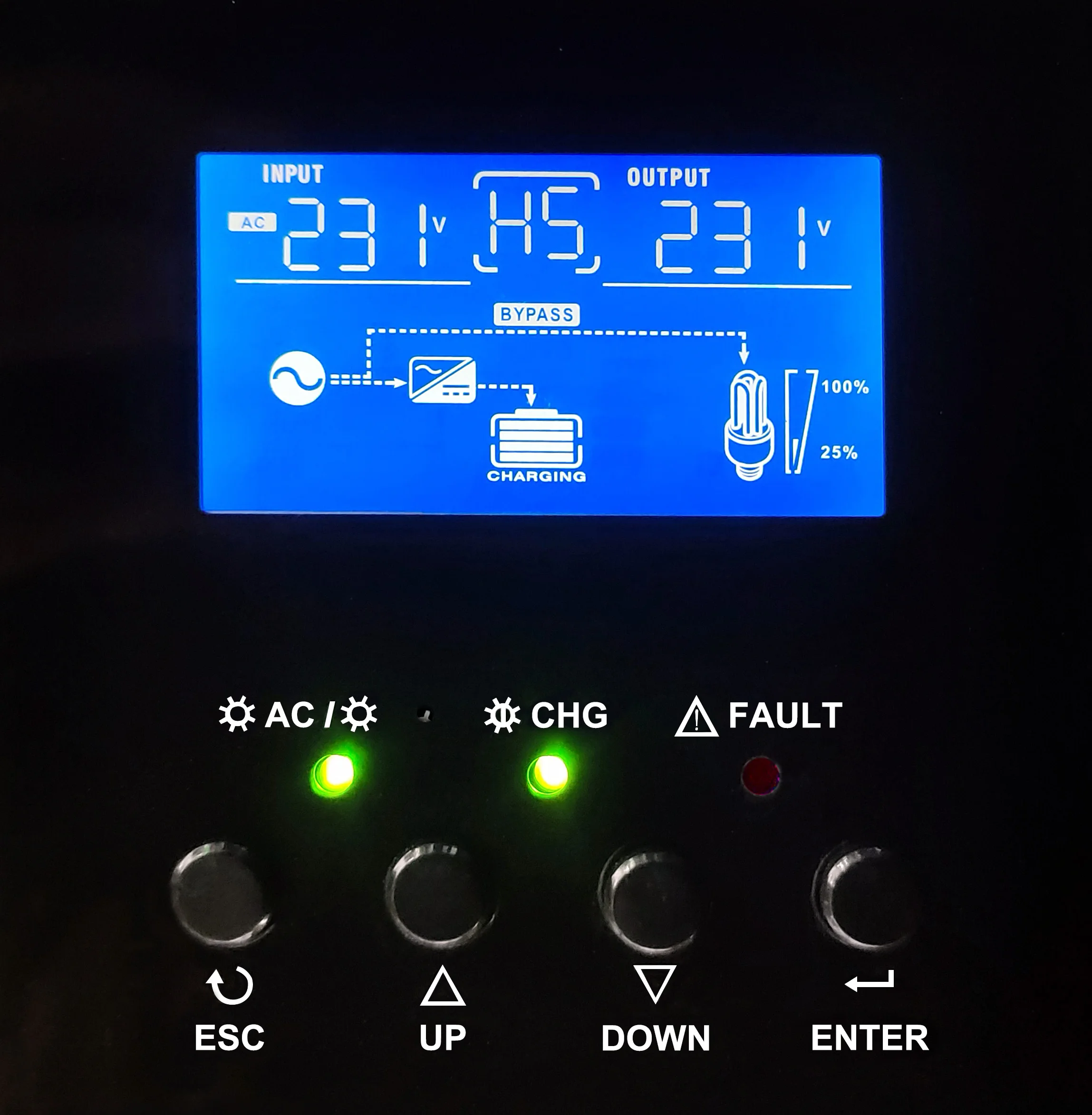

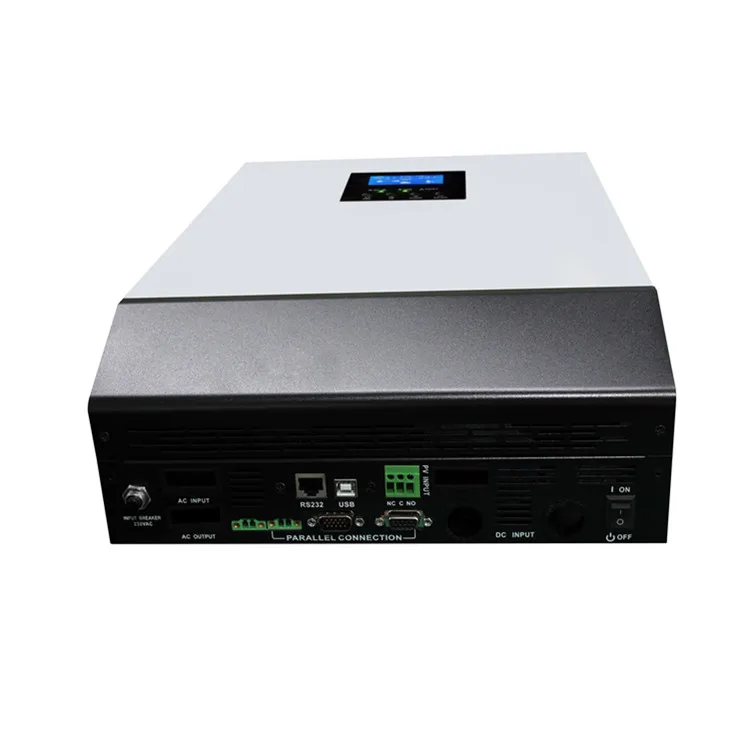

Details Images

Details Images

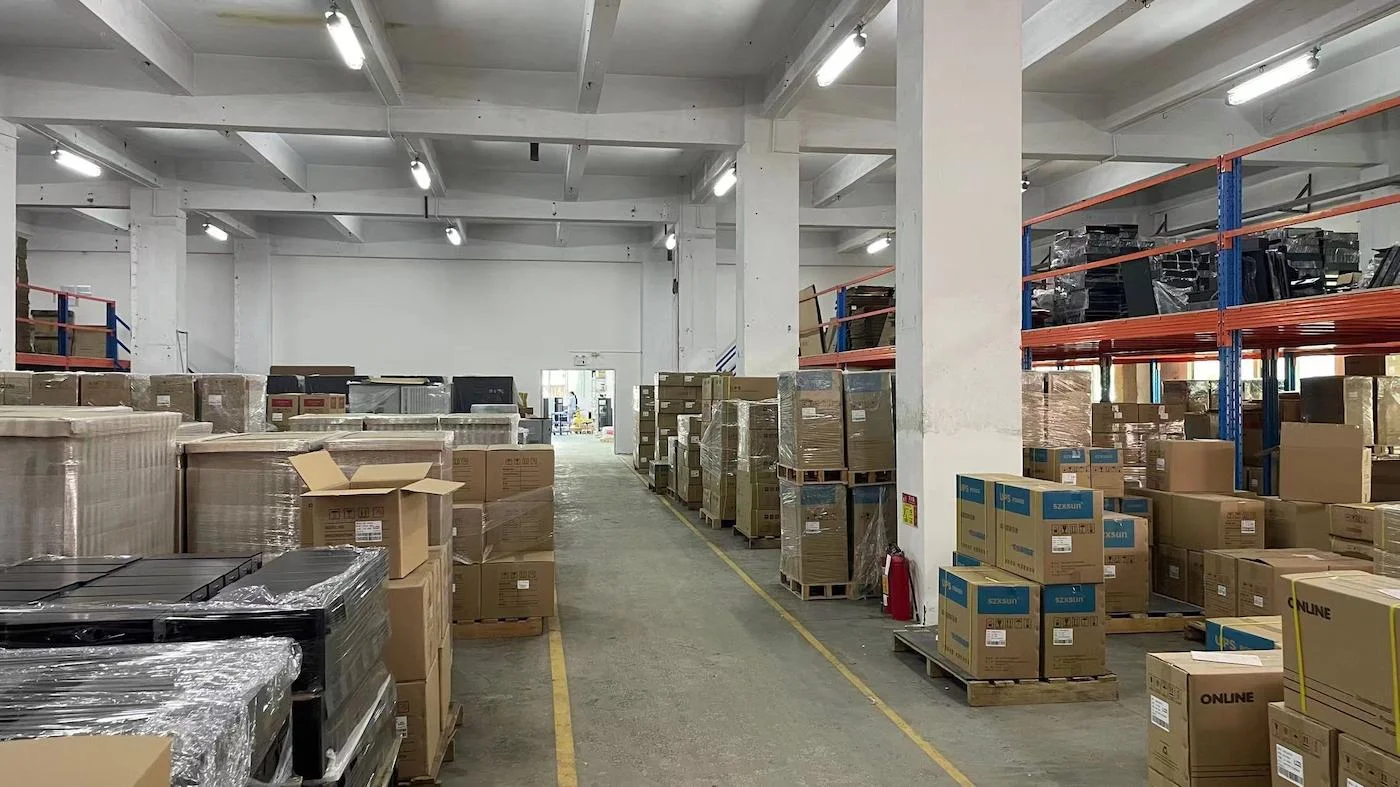

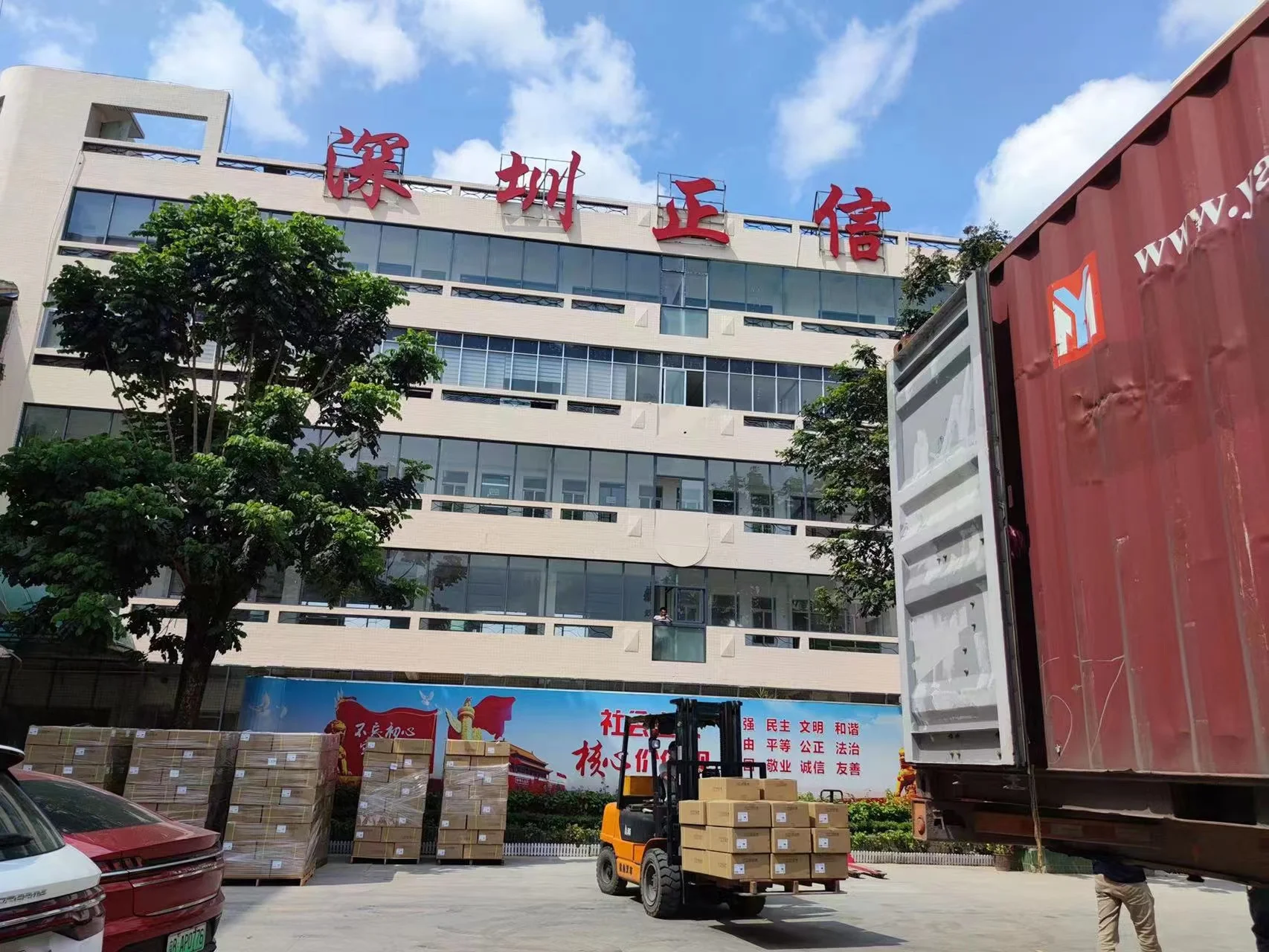

Packing & Delivery

Packing & Delivery







bikes 2

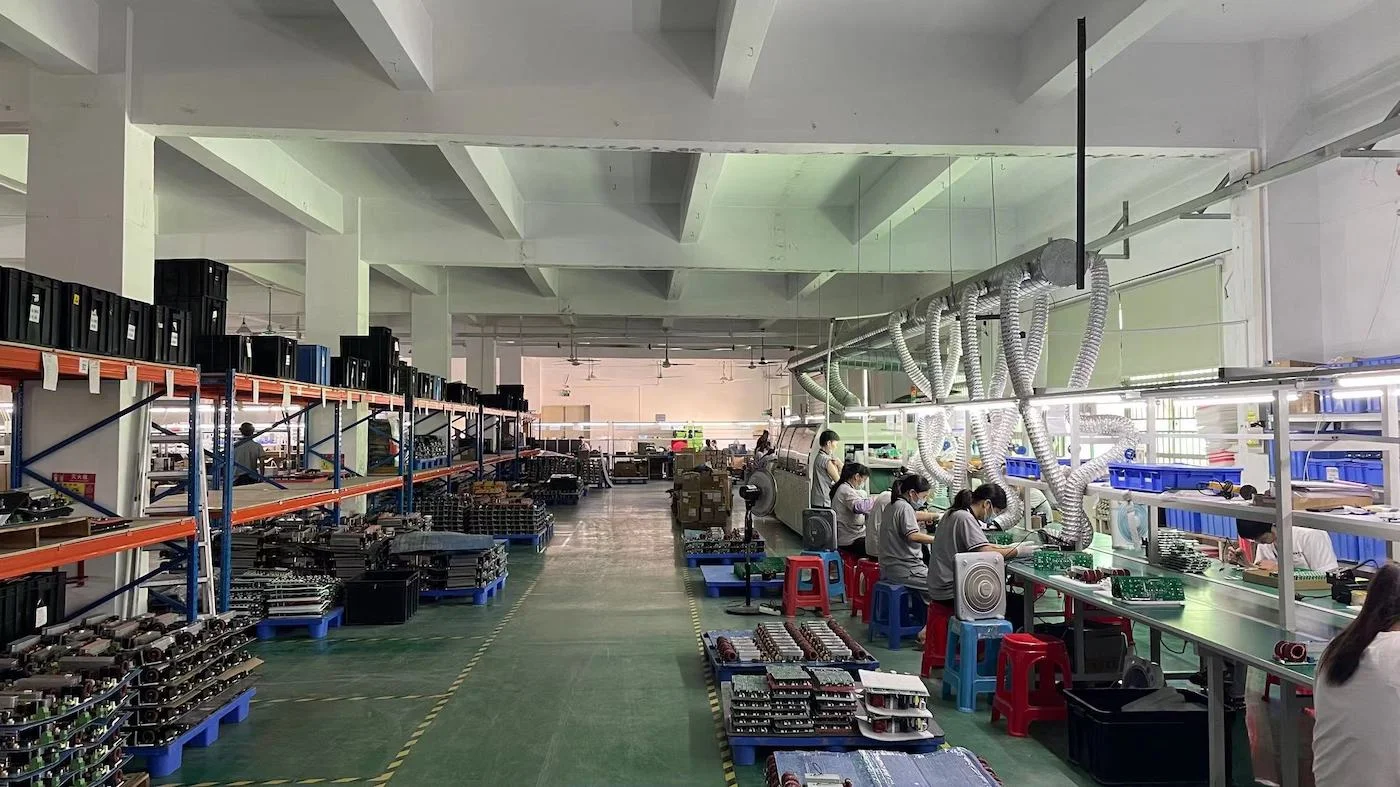

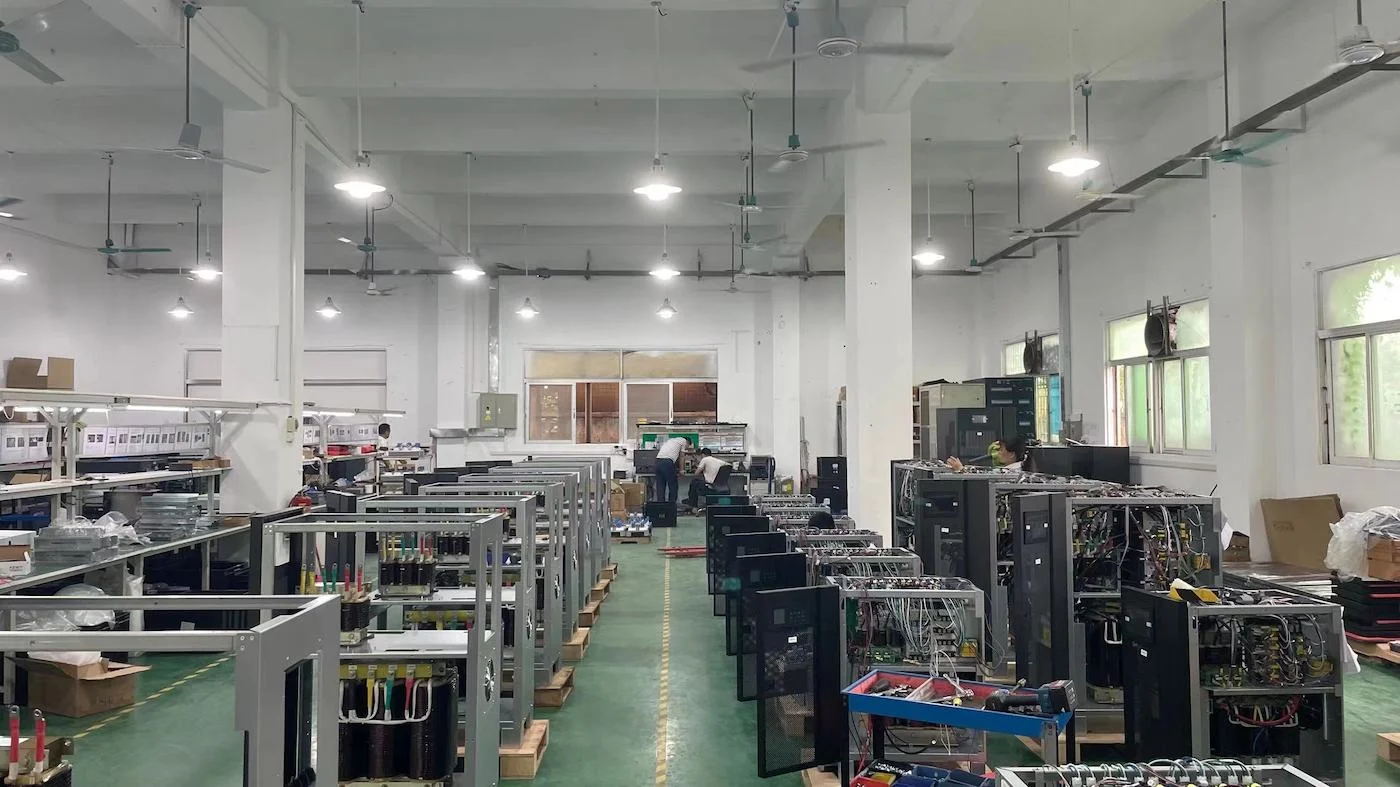

Company Profile

Company Profile






electric bike 1electric bike 2







Shenzhen ZBND Technology Co., Ltd. (abbr. SCMK) is a high-tech enterprise focusing on the R&D, production and sales of UPS systems and Photovoltaic inverters. It is committed to providing customers with complete power supplies, data centers and new Energy solutions. Relying on the strong supply chain and manufacturing capability of our parent company ZhengXin Electronics , we have over 10 years industrial experience in power electronics field. From our base in Shenzhen, we offer good OEM & ODM service and serve markets across China and around the world. SCMK UPS power supply has several decades history, and our products are all over the world. Products range from backup, on-line 450VA to 30000 KVA high-power and machine series, power UPS, power inverter, communication UPS, communication inverter, iron lithium battery UPS, photovoltaic inverter, Communications, government, education, finance, etc.


















Our Service

Our Service















Why Choose Us

Why Choose Us







SCMK's Business personnel are familiar with photovoltaic industry knowledge !

Quickly answer any questions.


With superior quality and best price in the market, we are the source solar inverter factory for 8 years, located in Shenzhen,Guangdong.



One-year warranty, troubleshooting and free repair/replacement.



There is no requirement for MOQ, please feel free to disturb me at any time !



Make your company's exclusive logo for free.


Welcome product shell, color, packaging and other customization.




I Can also help you with other things, because I'm Always your friend !
