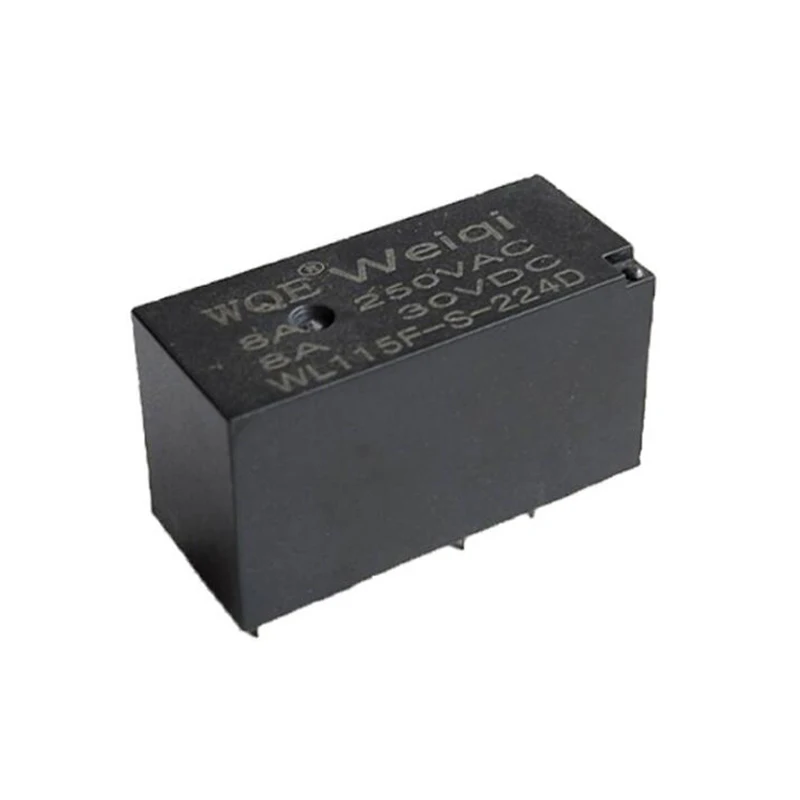

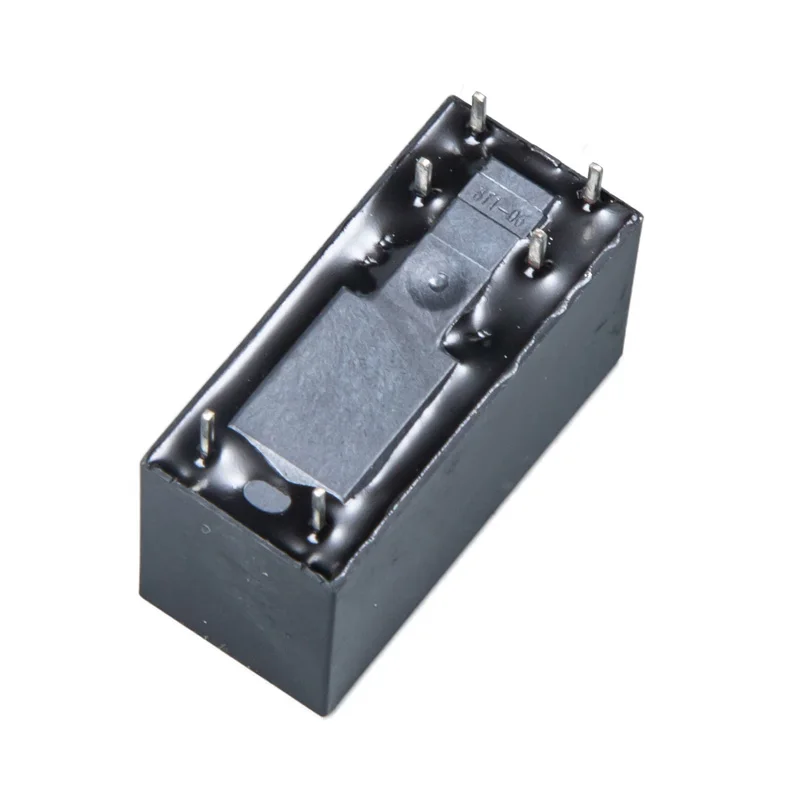

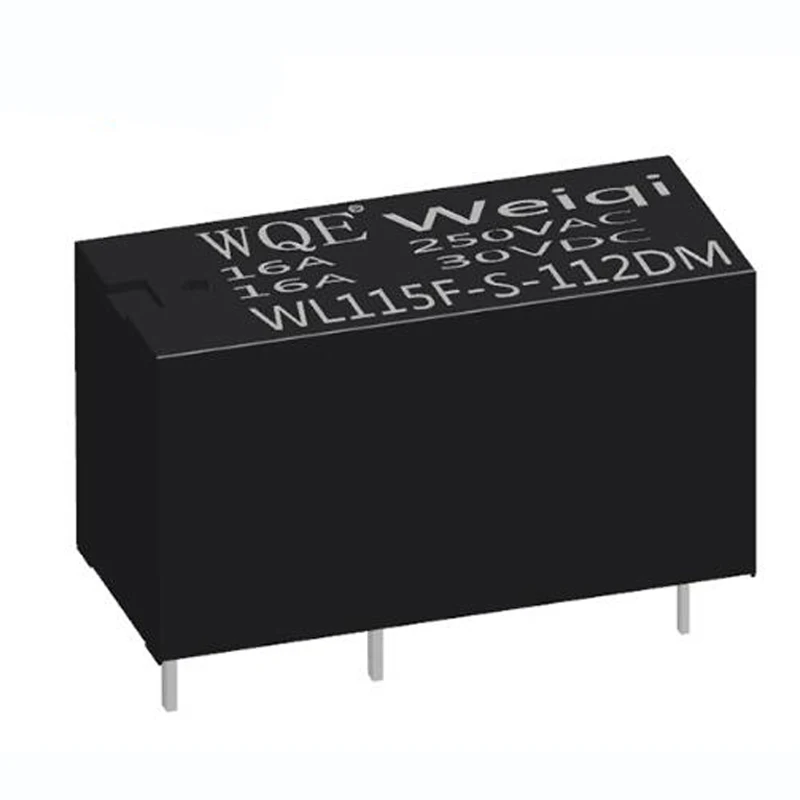

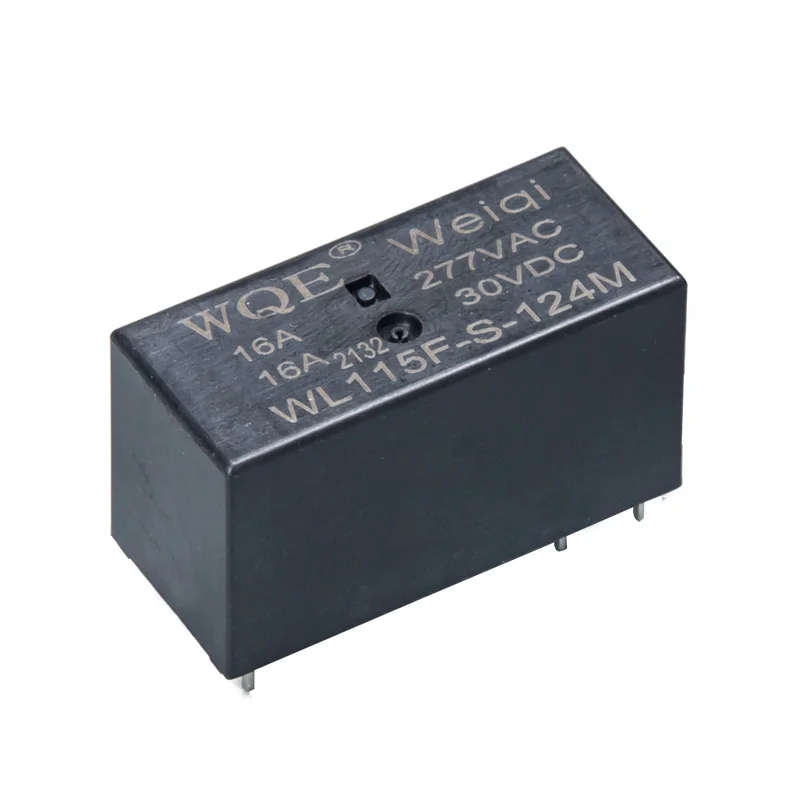

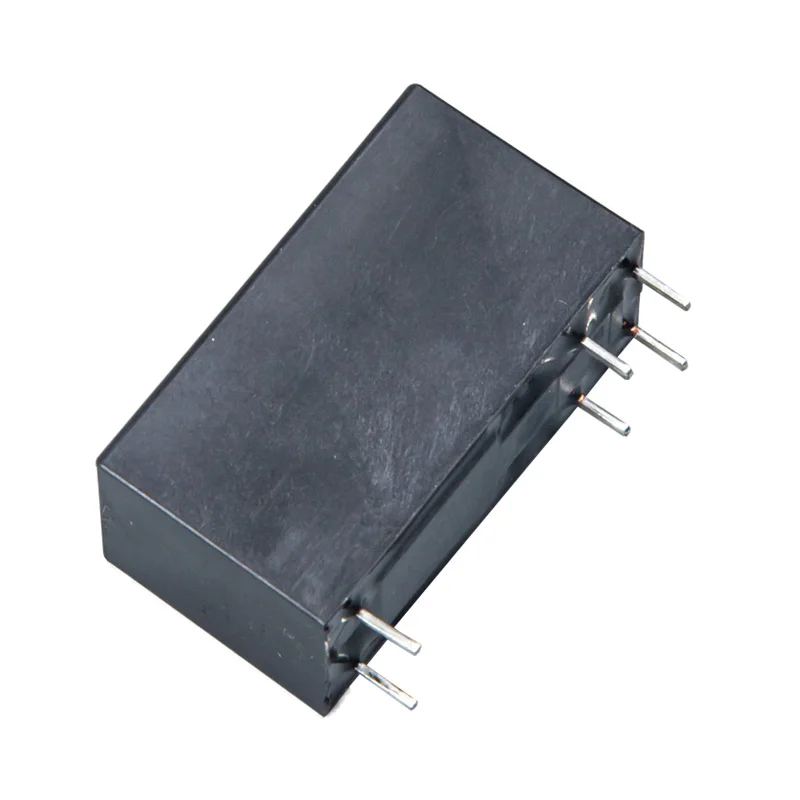

WL115F-S-124M
1、16A contact switching capability
2、 Plastic and flux proof are available
3、 5KV dielectric strength（between coil and contacts）

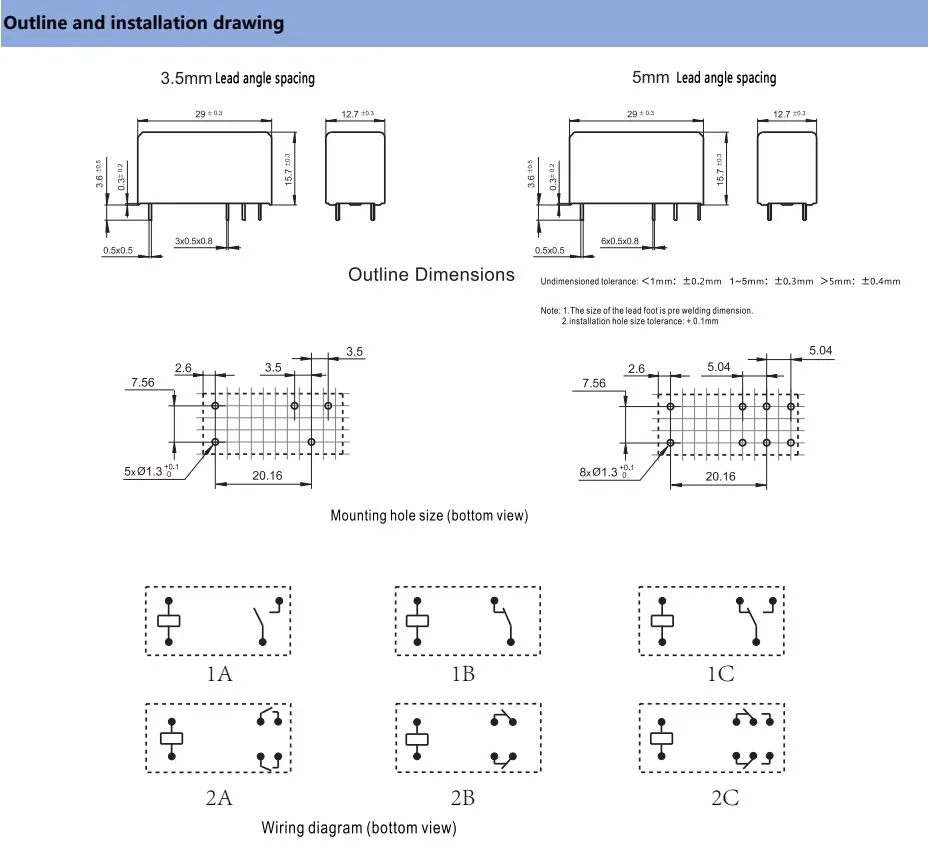

4、 Overall dimensions
4、 Overall dimensions
（29×12.7×15.7）mm

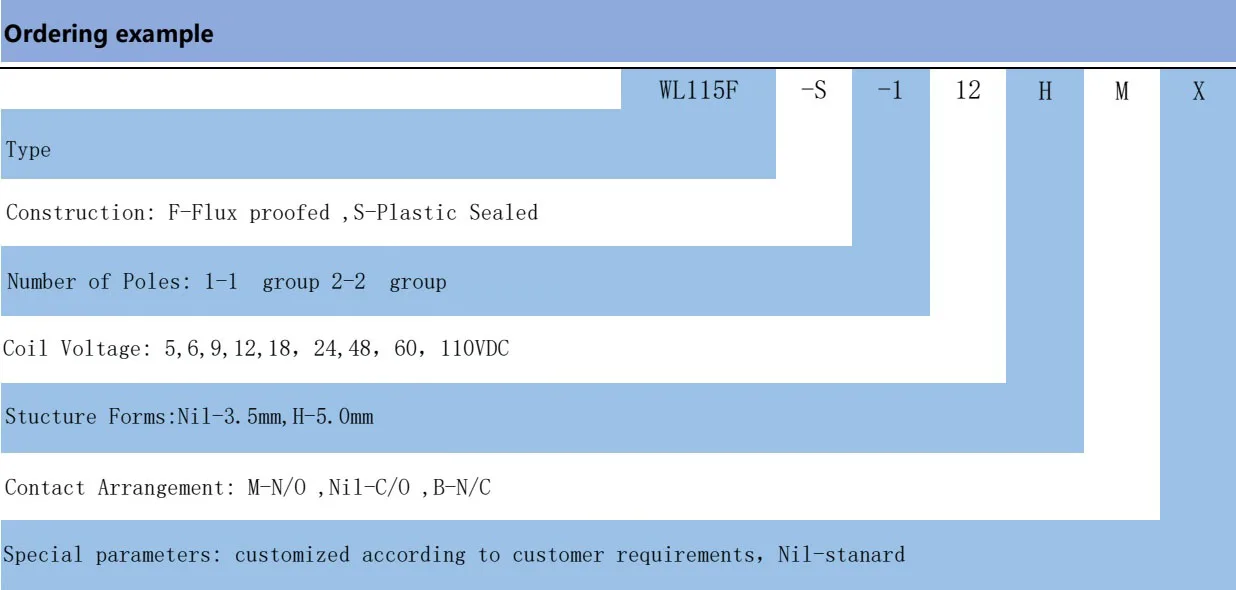

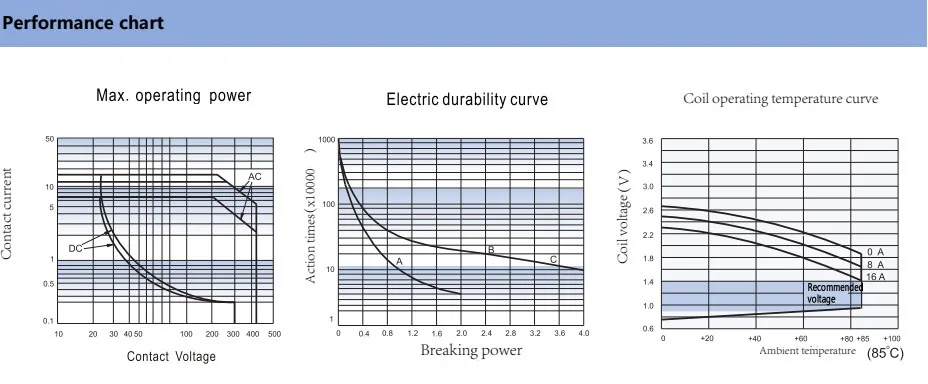

Contact load | ||||||
Model | WL115F | |||||
Contact Arrangement | 1A，1B，1C | 2A，2B，2C | ||||
Maximum switching current | 20A | 10A | ||||
Maximum switching voltage | 277VAC | 277VAC | ||||
Maximum switching power | 5540VA/3000VA | 2700VA | ||||
Rated load (resistive) | 12A/16A 250VAC | 8A 250VAC | ||||
Performance parameter | ||||||
Contact material | Ag alloy | |||||
Contact resistance | Max100MΩ(1A 6VDC) | |||||
Action time | ≤15ms | |||||
Release time | ≤10ms | |||||
Insulation resistance | Min 100MΩ （500VDC) | |||||
Dielectric Strength | Between contacts | AC 1000VAC 50/60Hz 1min | ||||
Between contact coils | AC 5000VAC 50/60Hz 1min | |||||
Contact contact sets | AC 2500VAC 50/60Hz 1min | |||||
To attack | Stability | 98m/S2 | ||||
Strength | 980m/S2 | |||||
Vibration | 10~55Hz 1.5mm Double Amplitude | |||||
Mechanical endurance min | 1×107 | |||||
Electrial eddurance min | 1×105 | |||||
Humidity | 5%~85%RH | |||||
Ambient temperature | -40℃~85℃ | |||||
Weight | Approx.13.5g | |||||
Surge voltage | 5KV | |||||
Coil parameters （at 20°C） | ||||||||||
Coil Voltage | Coil Resistance | Pick-up Voltage 70% of rated voltage | Drop-out Voltage 10% of rated voltage | Coil Power | ||||||
Rated | Max | |||||||||
VDC | Ω±10% | VDC | VDC | W | ||||||
5 | 7.5 | 63 | 3.75 | 0.5 | 0.4 | |||||
6 | 9 | 90 | 4.5 | 0.6 | ||||||
9 | 13.5 | 203 | 6.75 | 0.9 | ||||||
12 | 18 | 360 | 9 | 1.2 | ||||||
18 | 27 | 810 | 13.5 | 1.8 | ||||||
24 | 36 | 1440 | 18 | 2.4 | ||||||
48 | 72 | 5760 | 36 | 4.8 | ||||||
60 | 90 | 9000 | 45 | 6 | ||||||
110 | 165 | 30250 | 82.5 | 11 | ||||||
5 | 7.5 | 47 | 3.75 | 0.5 | 0.53 | |||||
6 | 9 | 68 | 4.5 | 0.6 | ||||||
9 | 13.5 | 153 | 6.75 | 0.9 | ||||||
12 | 18 | 272 | 9 | 1.2 | ||||||
18 | 27 | 611 | 13.5 | 1.8 | ||||||
24 | 36 | 1087 | 18 | 2.4 | ||||||
48 | 72 | 4347 | 36 | 4.8 | ||||||
Safetu standard | ||||||||||
Certification category | CQC | TUV | UL | |||||||
Certified load | 16A 250VAC 12A 250VAC 2Poles: 8A 250VAC | 1Pole: 16A 250VAC 12A 250VAC 10A 250VAC 2Poles: 8A 250VAC | 1Pole(16A): 16A 250VAC,Resistive &G.P. 20A 277VAC,Resistive &G.P. 1HP,480/240VAC 1/2HP,120VAC 10FLA/60LRA,240VAC PilotDuty:A300360VA,120VAC 1Pole(12A): 12A 250VAC,Resistive &G.P. 10A 277VAC,Resistive &G.P. 3/4HP,3.5FLA,480VAC 1/2HP,4.9FLA,240VAC 1/3HP,120VAC 10FLA/48LRA,240VAC PilotDuty:A300360VA,120VAC 2Poles: 10A 250VAC,Resistive &G.P. 8A 277VAC,Resistive &G.P. 10A 30VDC,Resistive&G.P. 8A 30VDC,Resistive&G.P. 1/2HP,240VAC 1/4HP,120VAC 6FLA/34.8LRA,120VAC 5FLA/17.4LRA,240VAC PilotDuty:B300 | |||||||
