Product Overview
Description
Application：
MY5815 series Solid-shaft Incremental Encoders are widely used in area of automatic control, measurements, robotic X-Y labor and printing. High reliability, long life, strong anti-interference ability and wide range temperature adaption. Square flange, be used in numerical control machine.
Output circuit | Open-collector output | Voltage output | Push-pull complementary outputs | driver |
Supply voltage | 5~26V | 5~26V | 5±0.25 5~26V | 5±0.25 5~26V |
Current consumption | ≤80mA | ≤80mA | ≤80mA | ≤150mA |
Load current | 40mA | 40mA | 40mA | 60mA |
Output high | Min Vcc*70% | Min Vcc-2.5V | Min Vcc-1.5V | Min 3.4V |
Output low | MAX 0.4V | MAX 0.4V | MAX 0.8V | MAX 0.4V |
Rise time Tr | MAX 1us | MAX 1us | MAX 1us | MAX 200ns |
Fall time Tf | MAX 1us | MAX 1us | MAX 1us | MAX 200ns |
Highest frequency response | 300kHz | 300kHz | 300kHz | 300kHz |
Max speed r/min | Starting torque | Axis maximum load | Impact | Anti-vibration |
5000 | <0.12Nm | Radial 85N, Axial 50N | 50G/11ms | 10G 10-2000Hz |
Moment inertia | Work Temperature | Storage Temperature | Protection Degree | Weight |
4 x 0.00001kgm² | -30~85ºC | -30~95ºC | IP51 | 600g |

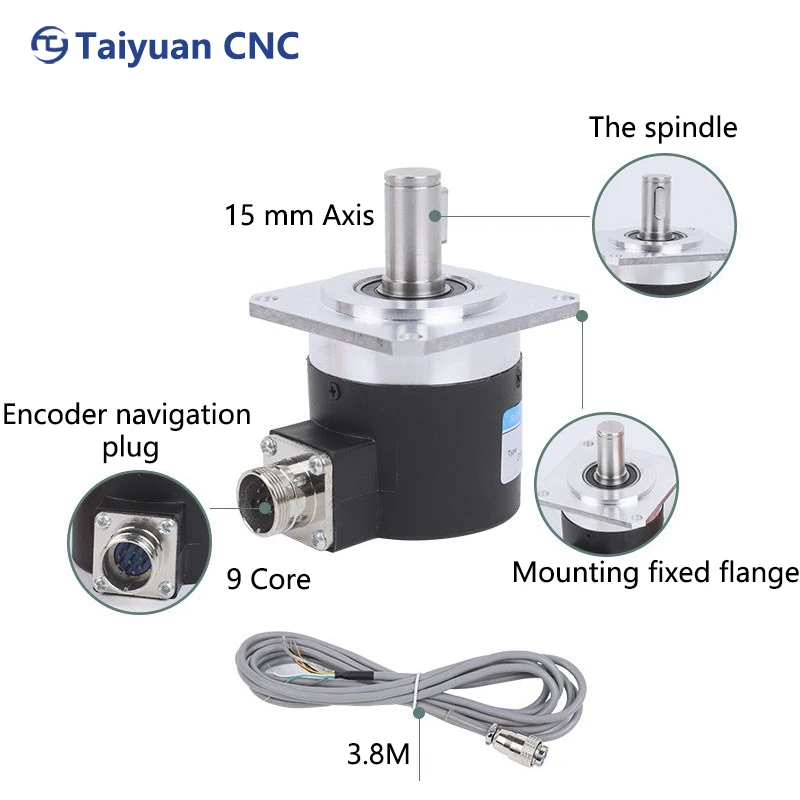

* High speed rotarybearing：
The main shaft is made of stainless steel, not easy to rust, quality assurance, the top of the shaft with M5 thread hole.
* Imported chip：
The internal use of imported chip, high resolution, 1024/1200 can choose signal stability.

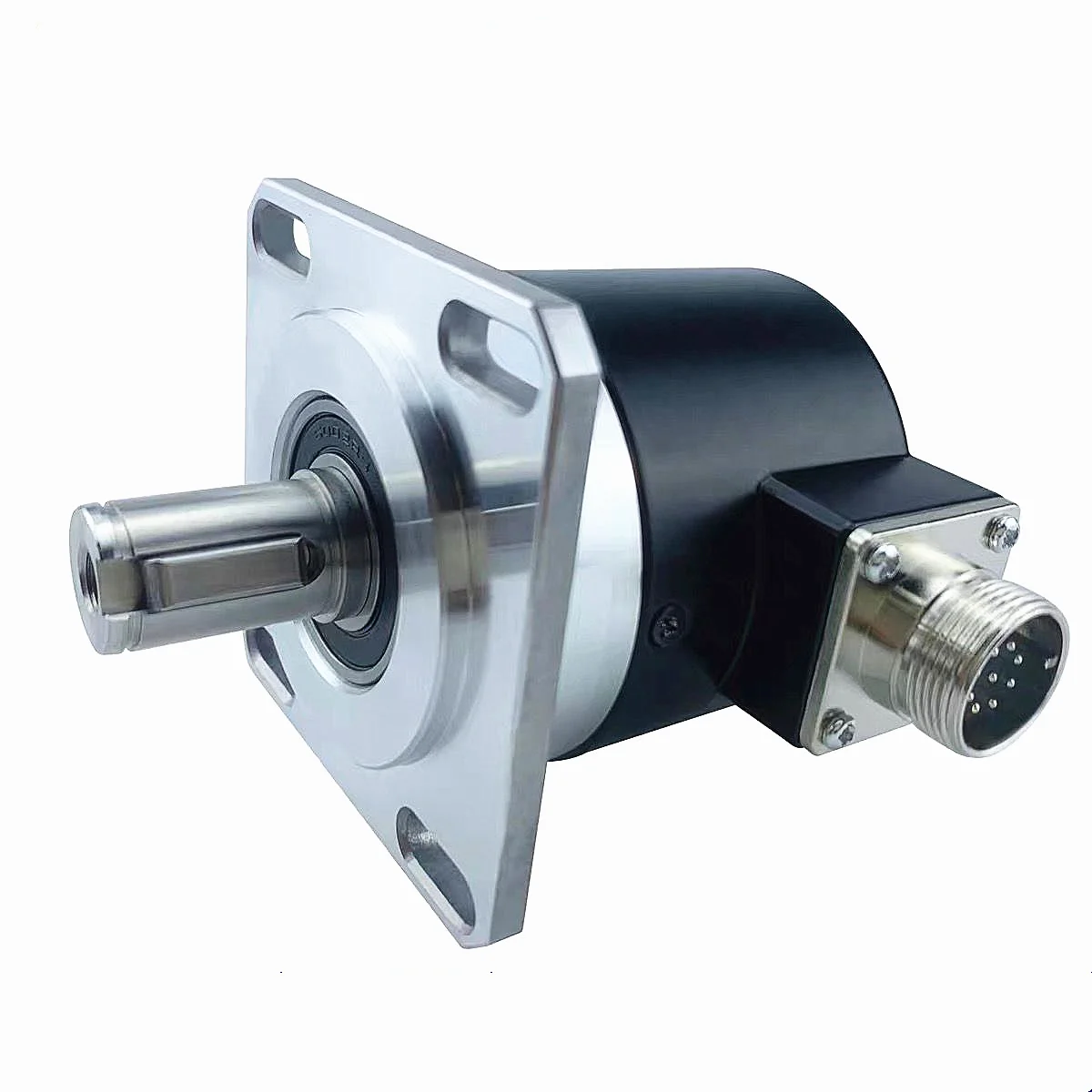

*One piece molding：
The main body is made of aviation aluminum die casting.
