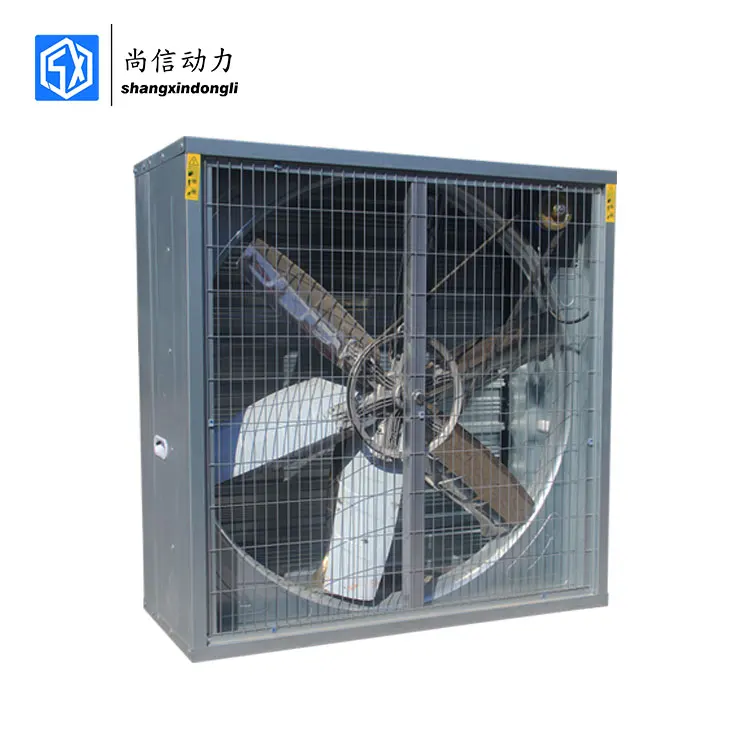

Big High Speed 50 Inch 1380mm Exhaust Fan Push Pull Ventilation Industrial Fan For Greenhouse Poultry Farm
- Category: >>>
- Supplier: Qingzhou Shangxin Power Machinery Co. Ltd.
Share on (1600748416897):
Product Overview
Description

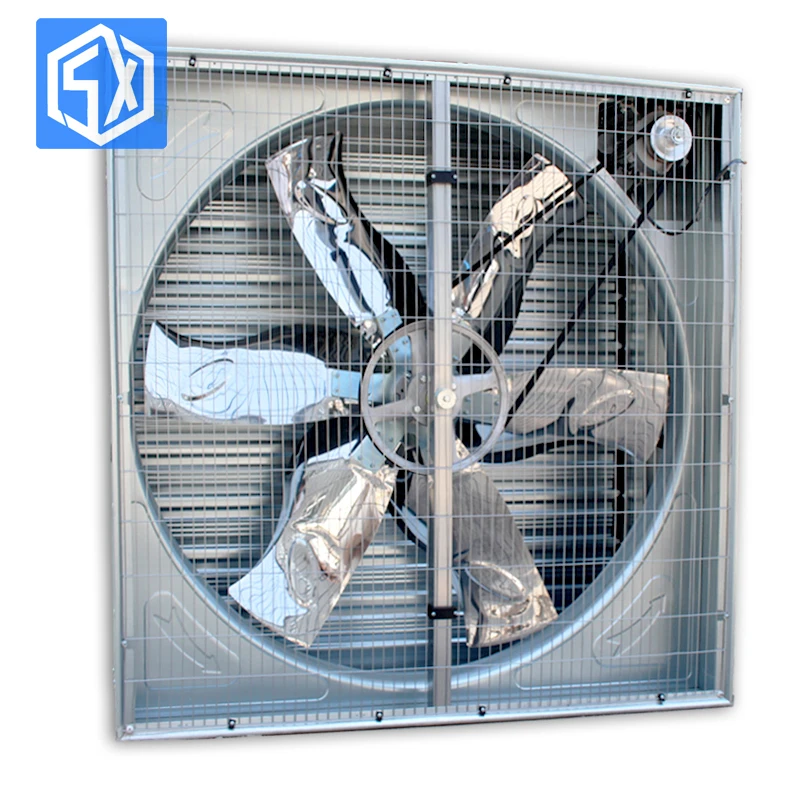

Big High Speed 50 Inch 1380mm Exhaust Fan Push Pull Ventilation Industrial Fan For Greenhouse Poultry Farm
Product description
The Greenhouse Exhaust Fan is popular in recent years.The Greenhouse Exhaust fan is a new environmentally friendly and energy-saving plant ventilation cooling equipment, because of the exhaust fan's large amount of ventilation, ventilation and cooling effect is good, low noise, the installation of the use of the site of the smallest destructive, cheap to buy, wide range of applications, Long life and other significant features, more and more users are loved.
Specification
Model | Size (mm) | Blade diameter (mm) | Motor （w） | Drive | Air Flow （m³/h ) | Voltage |
SX-800A | 800*800*450 | 710 | 370 | Belt | 18000 | 380/220 |
SX-1000A | 1000*1000*450 | 900 | 750 | Belt | 32000 | 380/220 |
SX-1100A | 1100*1100*450 | 1000 | 750 | Belt | 38000 | 380/220 |
SX-1220A | 1220*1220*450 | 1100 | 750 | Belt | 40000 | 380/220 |
SX-1380A | 1380*1380*450 | 1270 | 1100 | Belt | 44800 | 380/220 |
SX-1530A | 1530*1530*450 | 1400 | 1500 | Belt | 58000 | 380/220 |

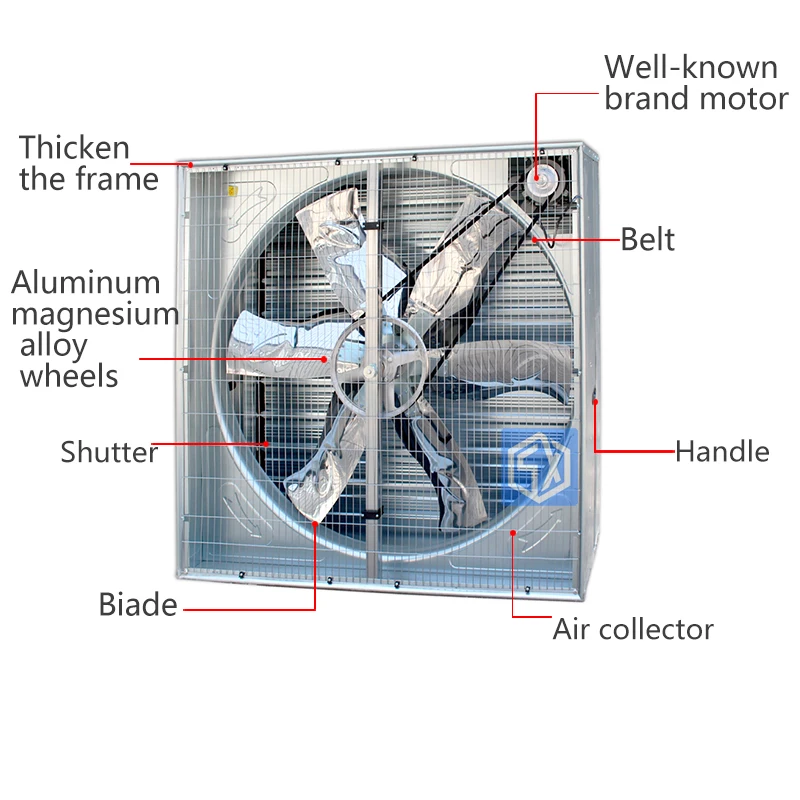

Products Description
Centrifugal System
1.Material: High quality Nylon PA66 2.Guide Rod:
304 stainless steel with special material outside, high strength, no rust, reduce friction.
304 stainless steel with special material outside, high strength, no rust, reduce friction.
3.Rivet: 304 stainless steel ,wear-resisting, no rust. It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.
Motor
1. Brand: Chinese famous motor；Siemens motor, ABB motor and WEG motor
2.Motor Protection Grade: IP55
3. Isulation Class: F grade
Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.
Motor voltage and frequency can be customized. Chinese famous motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity.

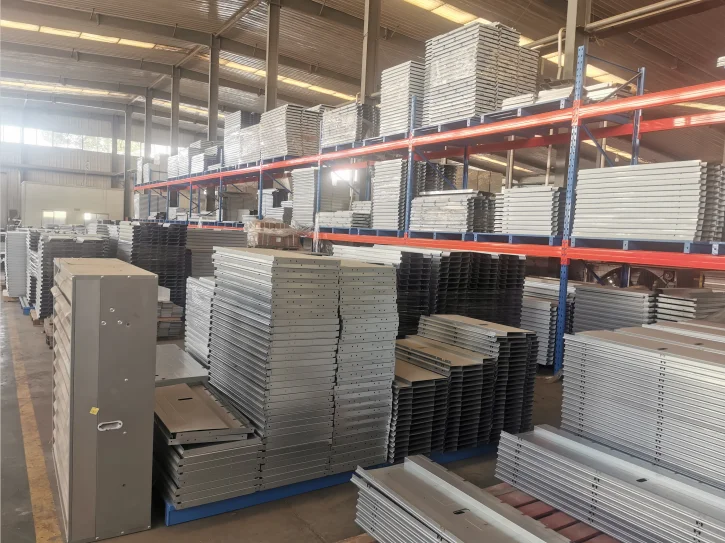

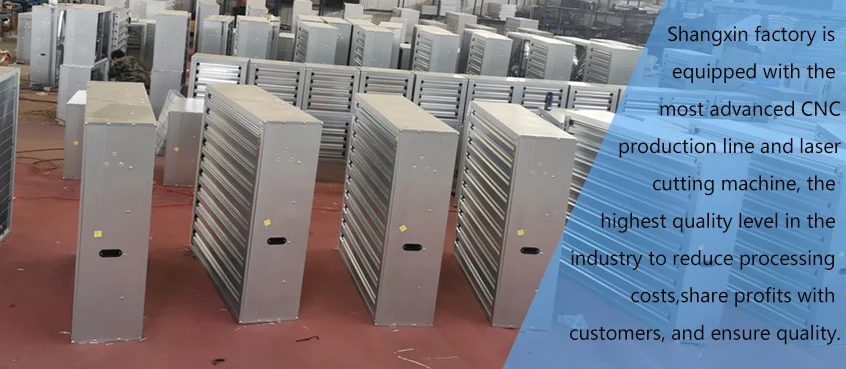

Thickened galvanized sheet frame

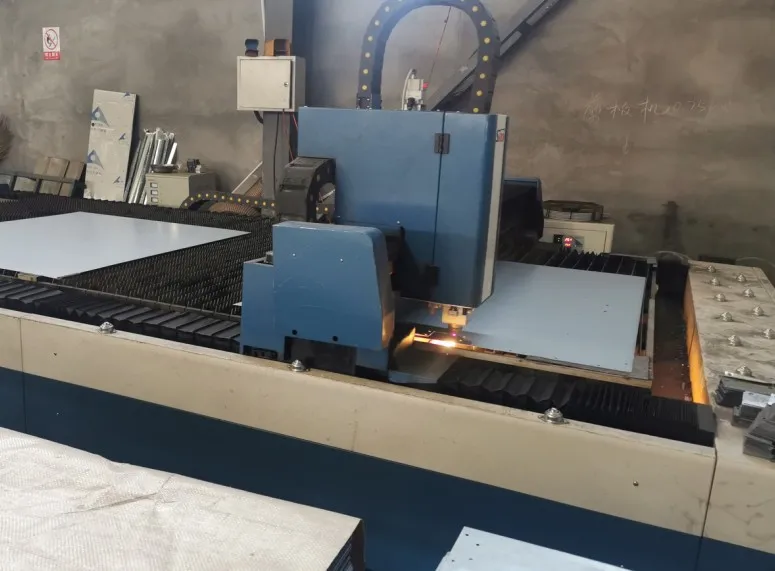

Technology and automation equipment.

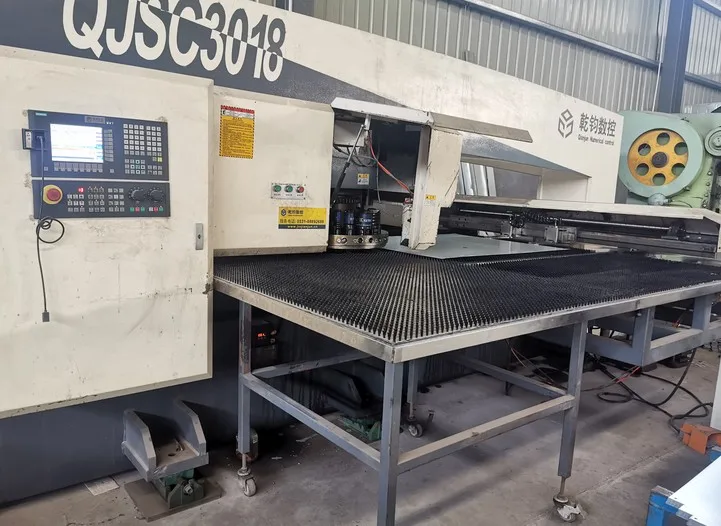

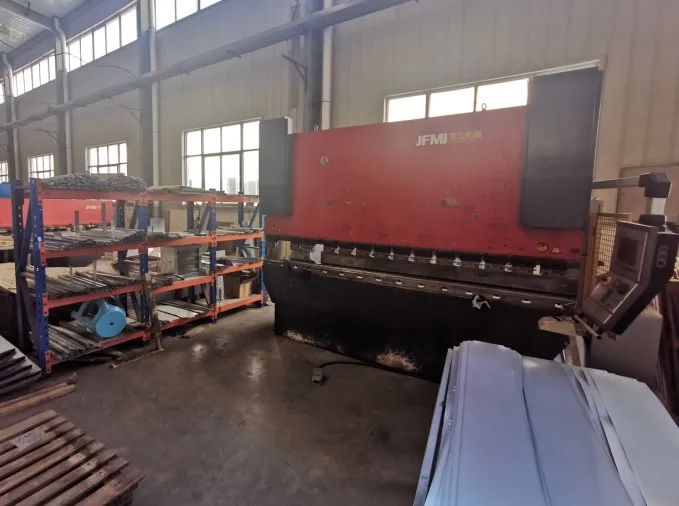

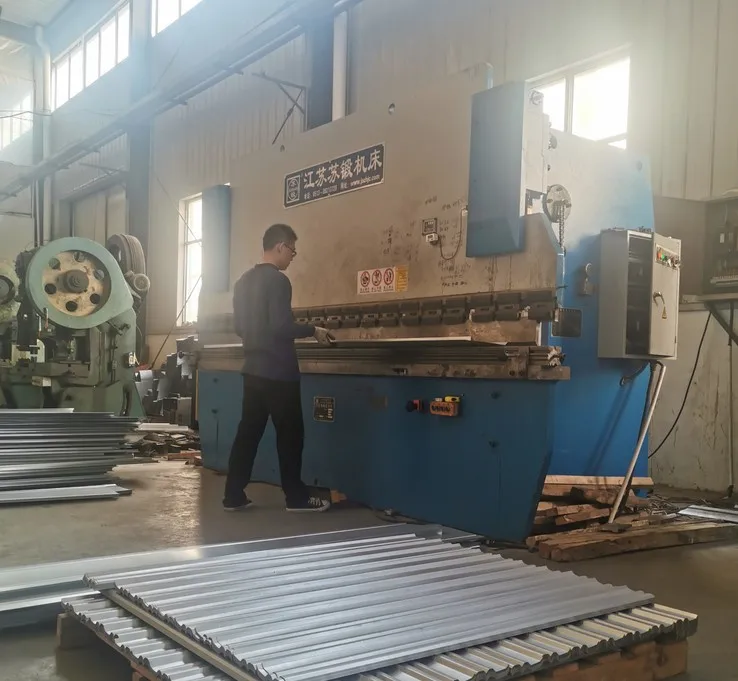

Professional equipment based on CNC. Punching and bending. Highly accurate. The material is made of galvanized sheet, and the coating weight is 275g. Advantage: High strength, strong corrosion resistance
Professional equipment based on CNC. Punching and bending. Highly accurate. The material is made of galvanized sheet, and the coating weight is 275g. Advantage: High strength, strong corrosion resistance

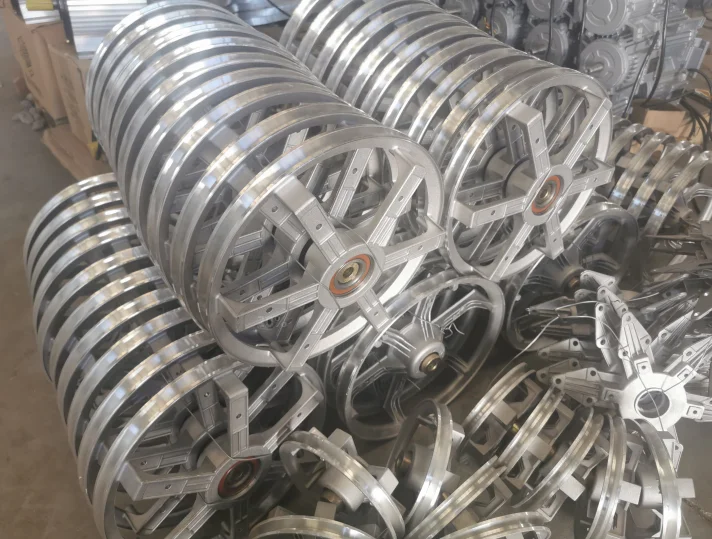

Fan Belt pulley
1. Fan belt pulley and flange are made of aluminum-magnesium alloy by pressure casting.Good outlook with lightweight. Especially to reinforcing rib to increased strength. No broken . Long service life.
2.The angle of blade hub is designed after double tested which can be fix with blade exactly.
3.Small wind resistance,Large air flow, attractive and durable.
2.The angle of blade hub is designed after double tested which can be fix with blade exactly.
3.Small wind resistance,Large air flow, attractive and durable.

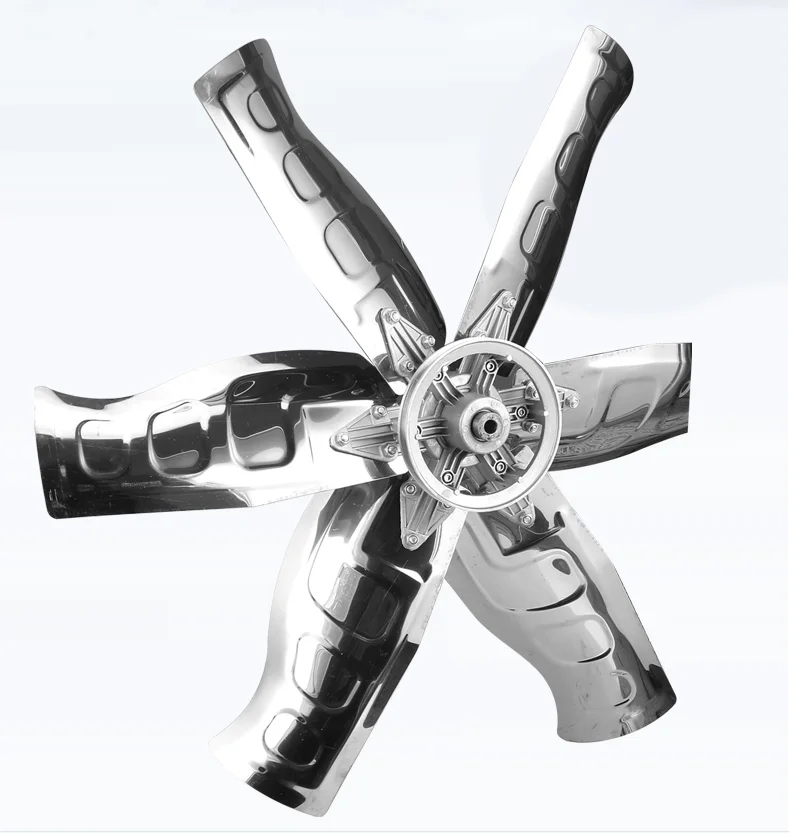

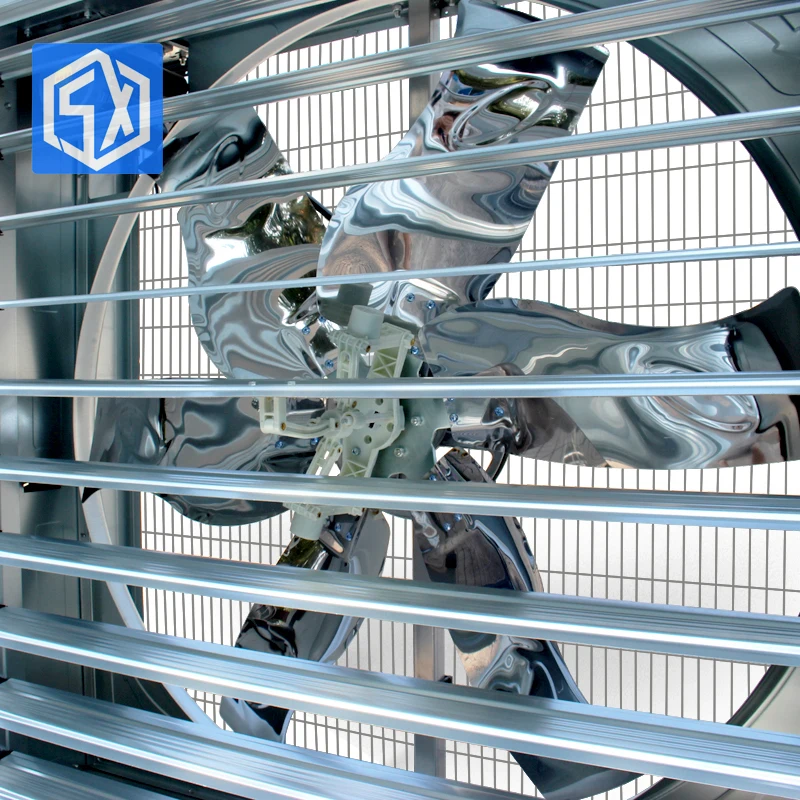

Fan Blades
1. Material : Krupp 430 stainless steel,thickness 1.2mm
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:Blade material also have galvanized sheet, aluminum alloy for option.
2. Diameter: 1270mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:Blade material also have galvanized sheet, aluminum alloy for option.
Shutters
1. Material: hot-dip galvanized sheet, the thickness of zinc is 275g/㎡.
2. Thickness: 1.6mm in the middle, 0.8mm in others
3.Shutter mount: high-quality nylon. High anti-corrosion performance, flexible opening, long service life, no deformation, no rust, stable operation.
Belt
We have Chinese belt and Japanese Mitsuboshi brand belt for customer choice. Long service life and no repair
Modified B type belt,so that service life increase 3 times than Type A.
Modified B type belt,so that service life increase 3 times than Type A.

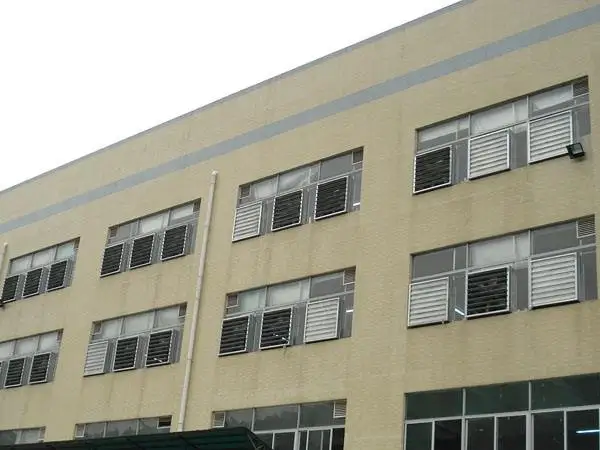

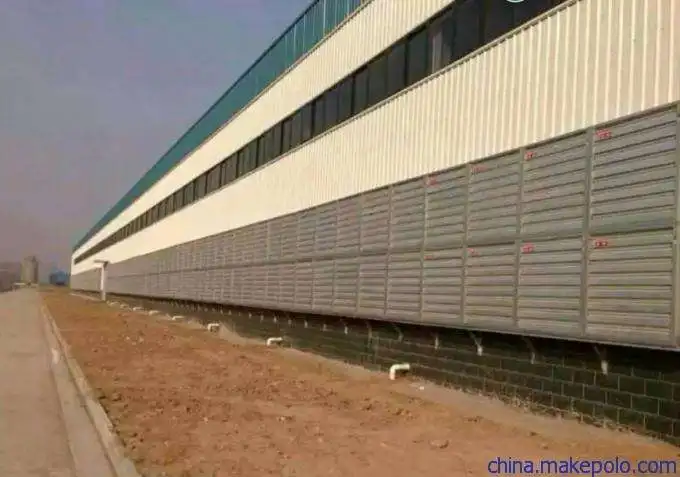

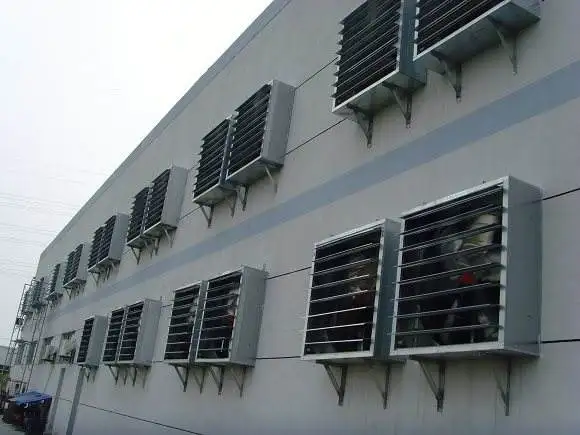

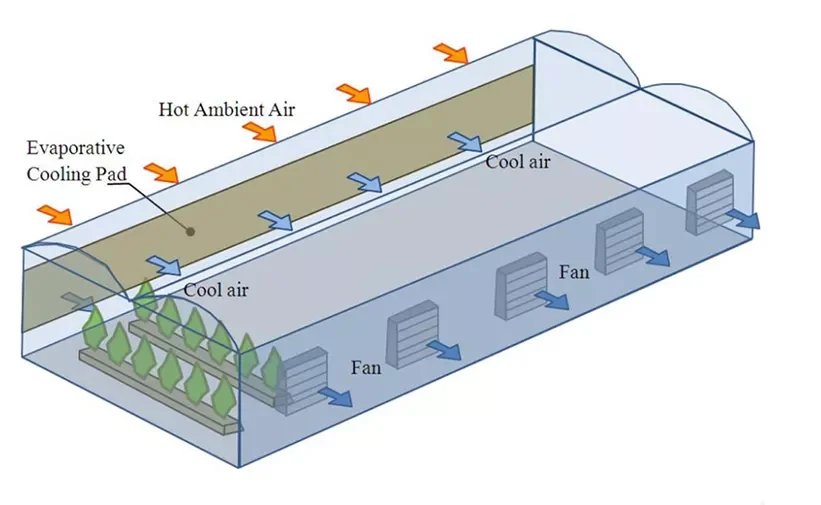

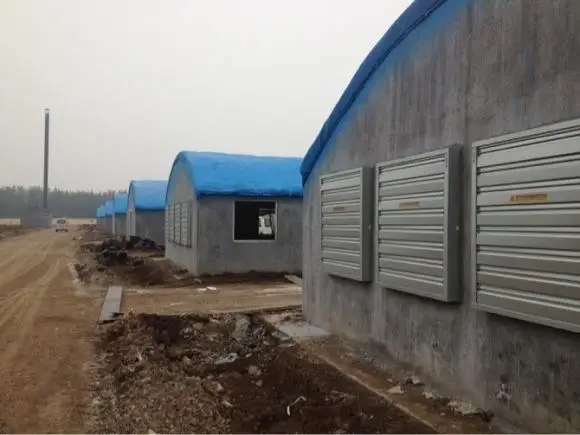

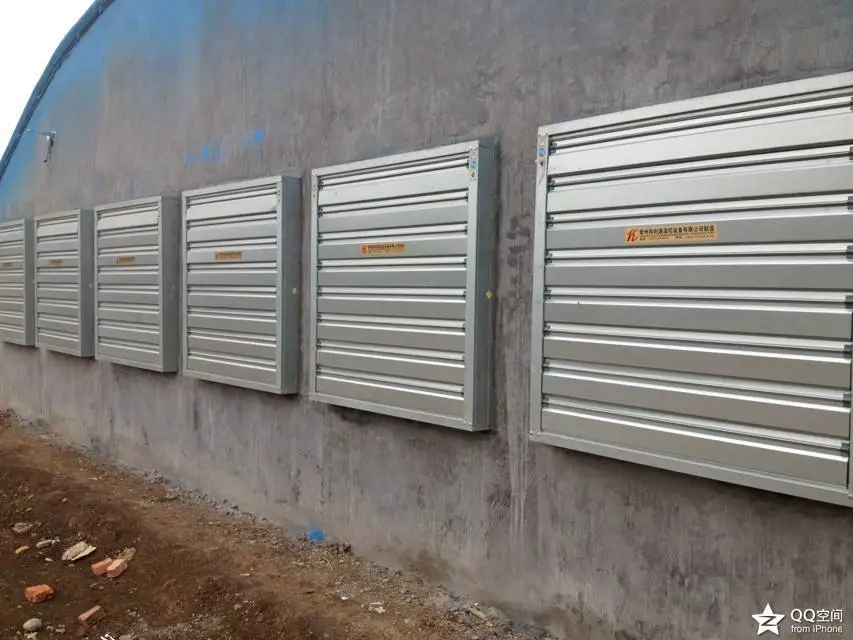

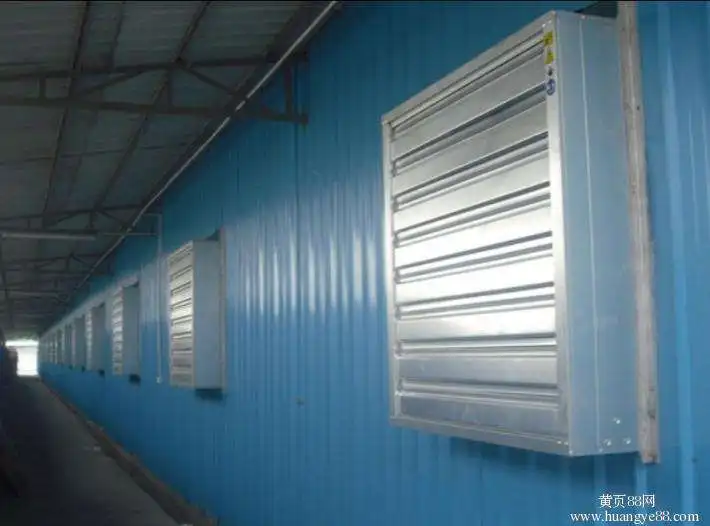

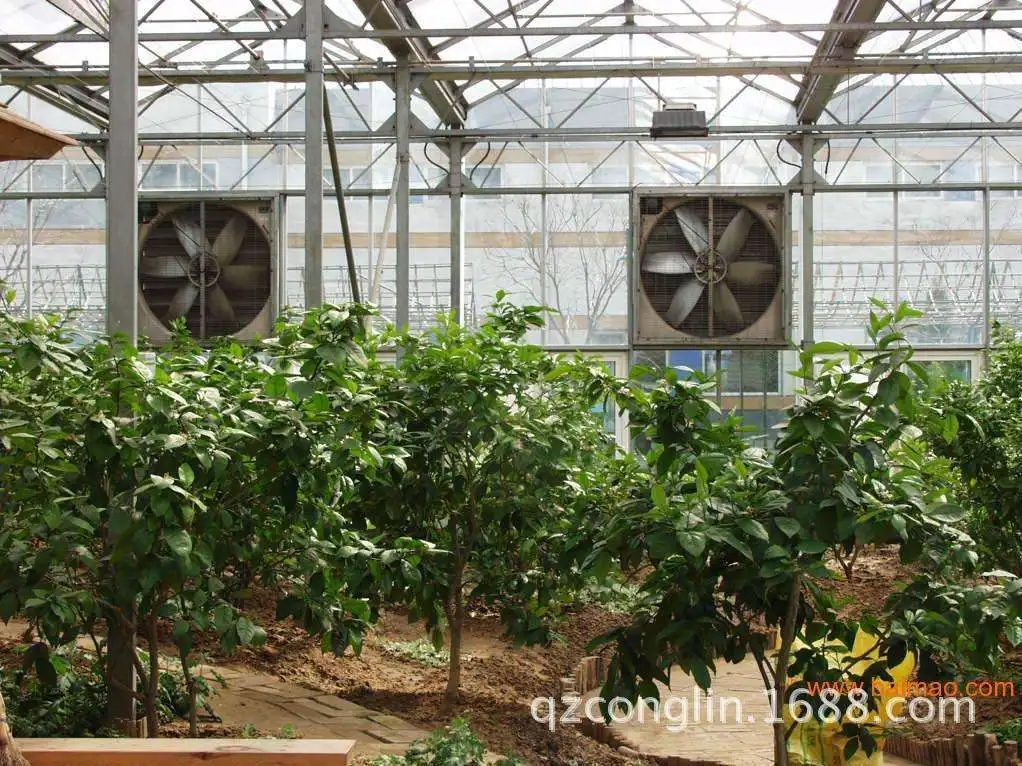

Application scenarios
Exhaust fan is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile etc.

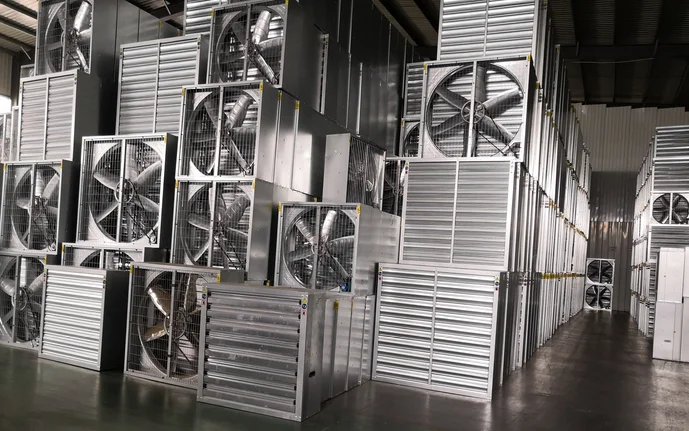

Company Introduction
Qingzhou ShangXin Power Machinery Co., Ltd. is one of the world’s most professional manufacturer of cooling product,warming product,disinfect sprayer,ect.
Qingzhou ShangXin Power Machinery Co., Ltd. was establised in 2017,located in Qingzhou, shandong Province.We provide best quality machines and solutions for global users in machinery fields. Some of them also visit us and check our machines. From the single machine to the automatic product line, From china to the whole world.Qingzhou Shangxin committed to machine manufacturing and high efficiency producing. We also have development on new material and key technology. We welcome you to visit us and make a deal.
Qingzhou ShangXin Power Machinery Co., Ltd. was establised in 2017,located in Qingzhou, shandong Province.We provide best quality machines and solutions for global users in machinery fields. Some of them also visit us and check our machines. From the single machine to the automatic product line, From china to the whole world.Qingzhou Shangxin committed to machine manufacturing and high efficiency producing. We also have development on new material and key technology. We welcome you to visit us and make a deal.

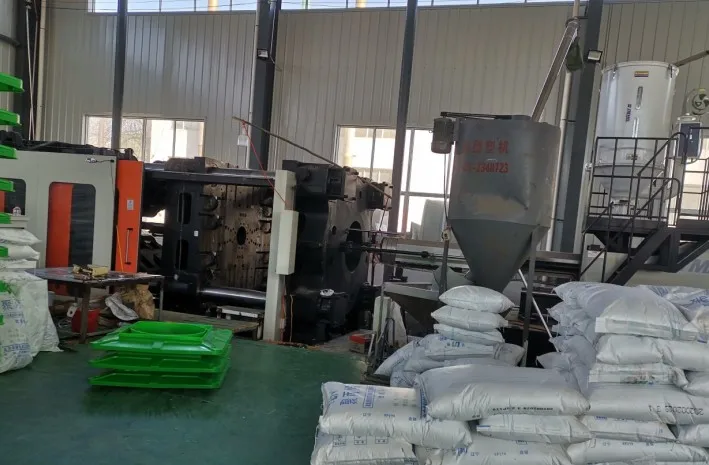

Manufacturing Technique

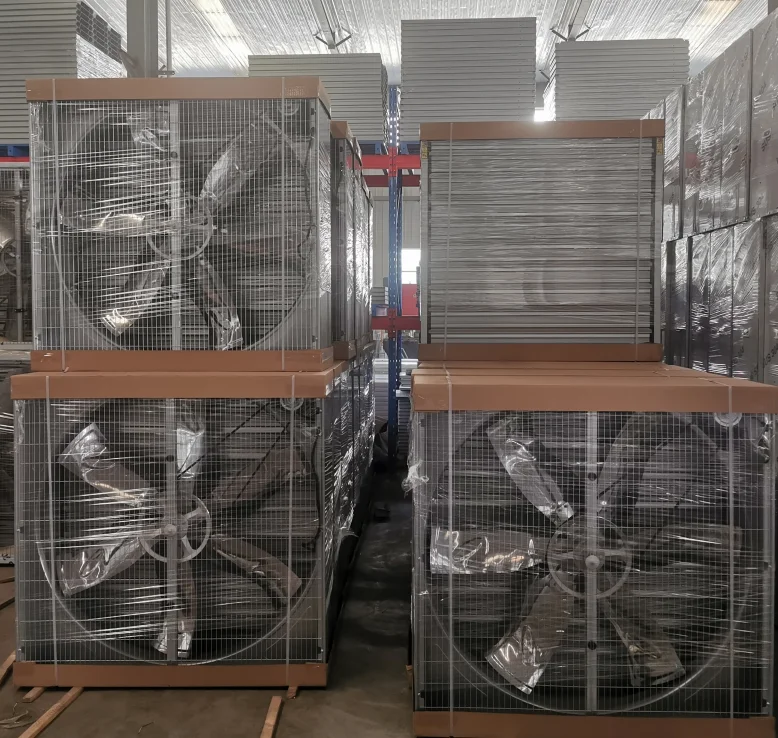

Packaging & Delivery
